300Mbps Project Outdoor CPE

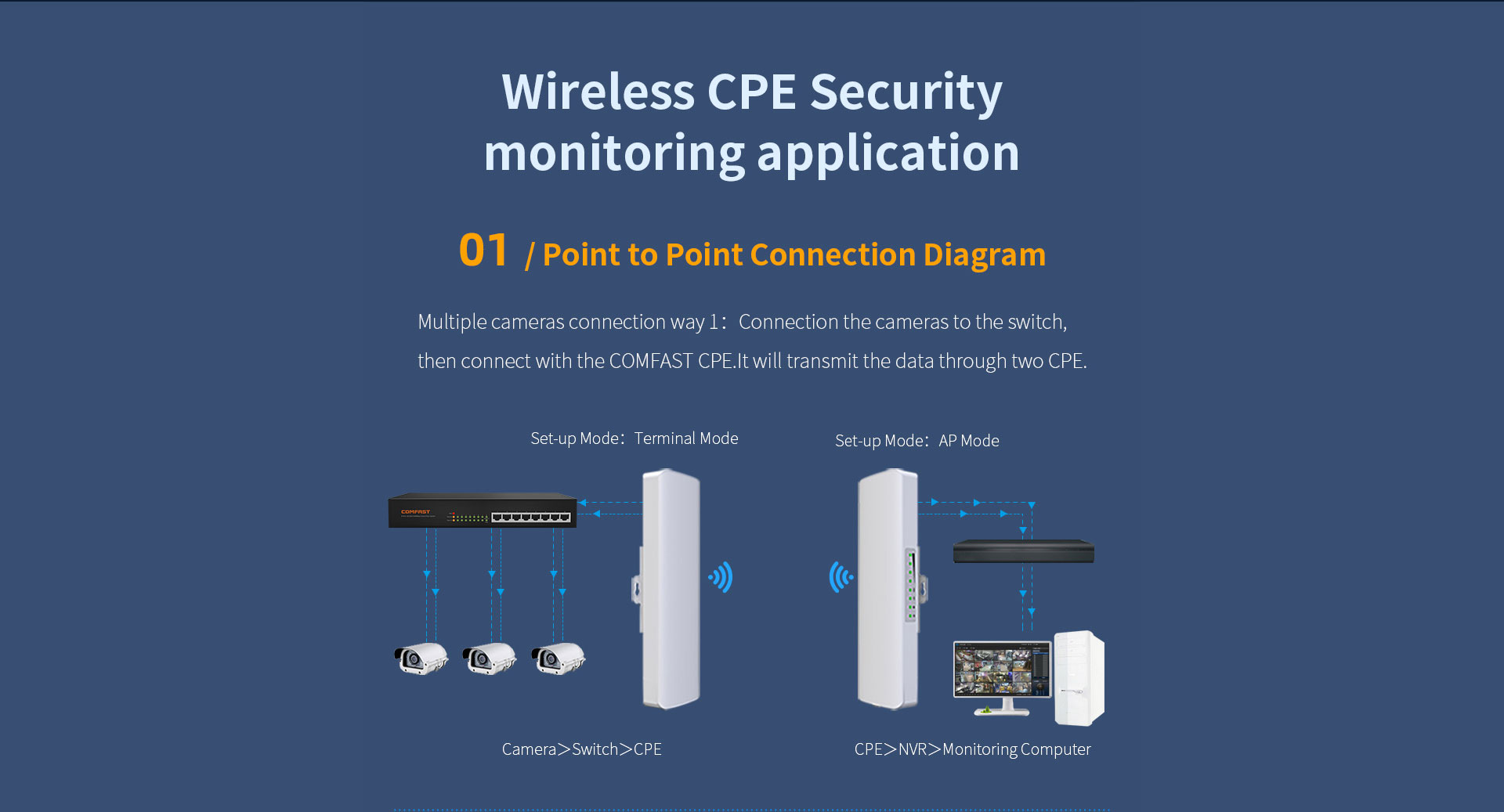

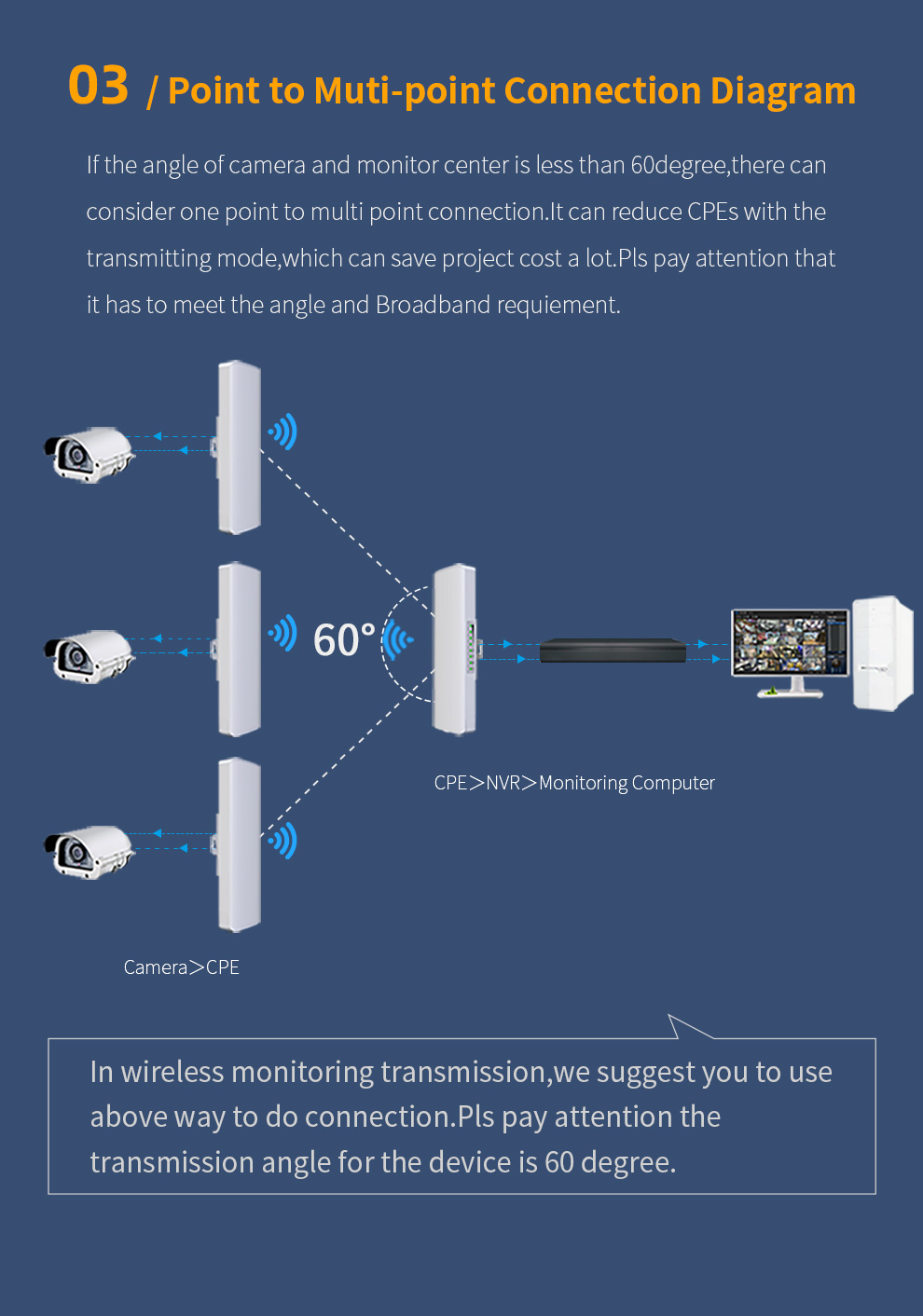

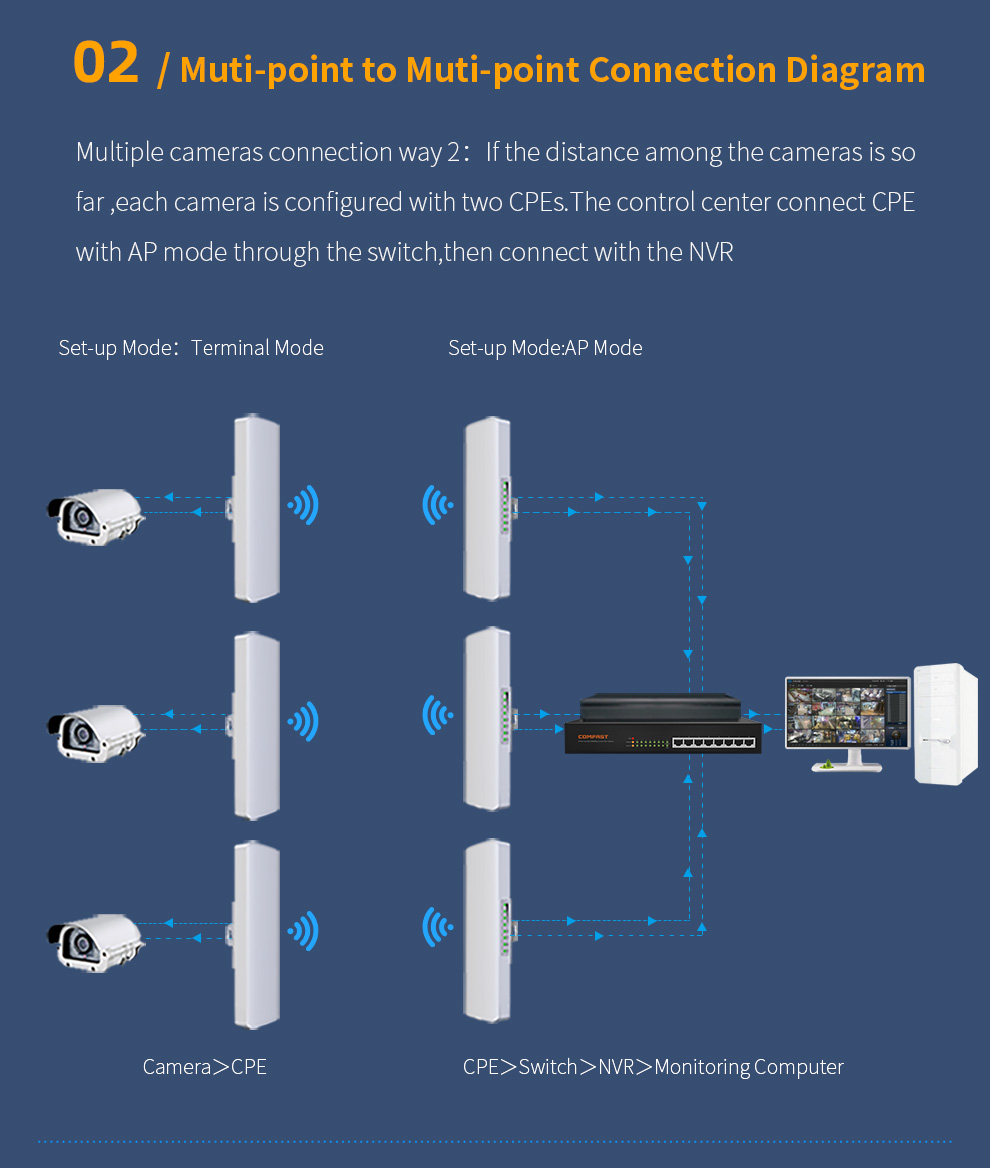

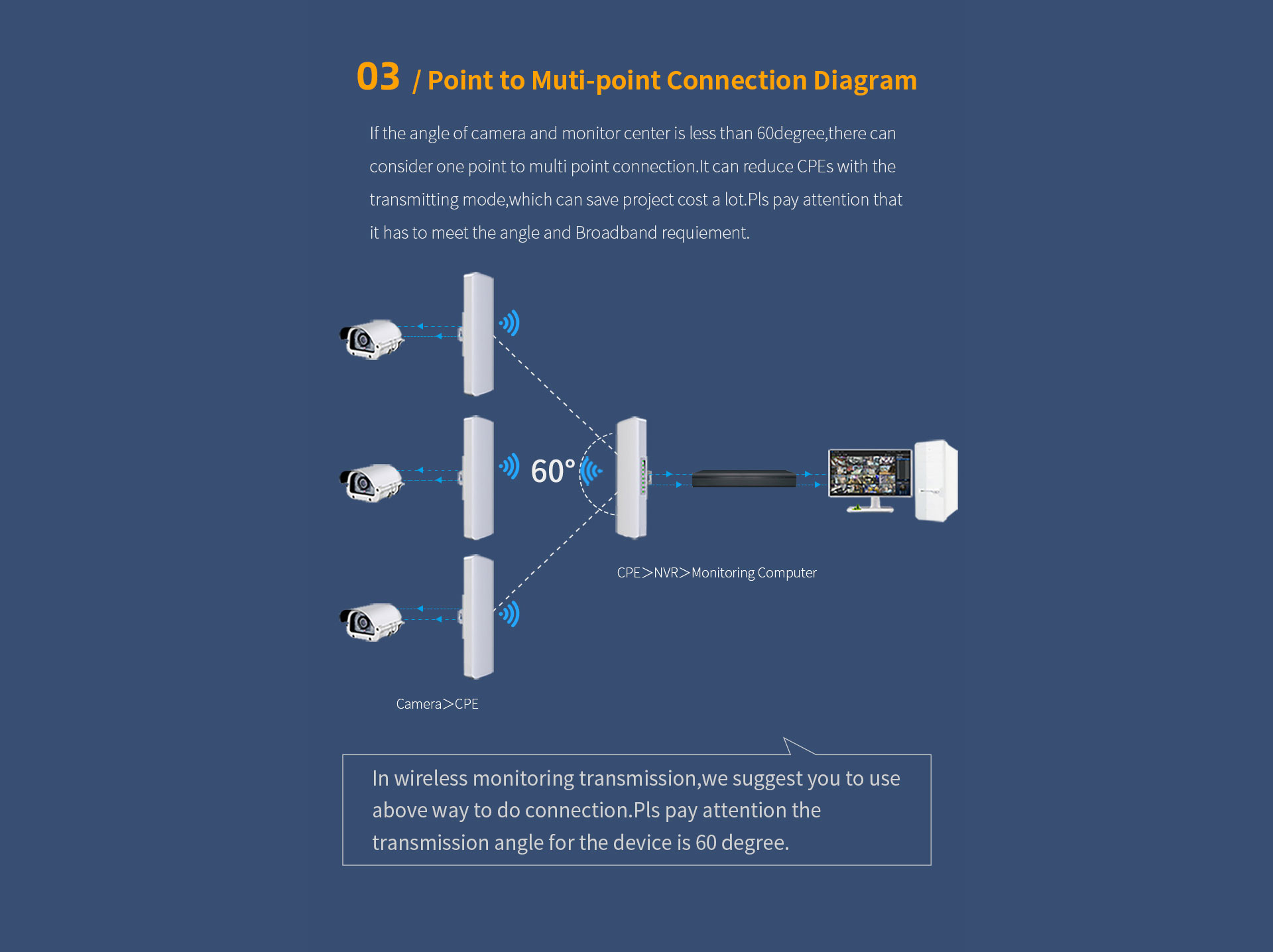

The CF-E315D is a 300Mbps outdoor wireless CPE with built-in dual-polarization high-gain antennas, designed for stable point-to-point and multipoint transmission. Its rear digital display shows real-time status, and a master/slave mode switch enables quick setup. With IP65 protection and lightning defense, it is a reliable choice for outdoor surveillance, coverage, and base station applications.
-
Compact and rugged industrial outdoor housing
-
Rear digital display for real-time status visibility
-
Built-in dual 12dBi dual-polarization high-gain antennas
-
Physical master/slave mode DIP switch for easy deployment
-
IP65 protection rating, waterproof and dustproof
-
Built-in 2KV lightning protection for harsh climates
-

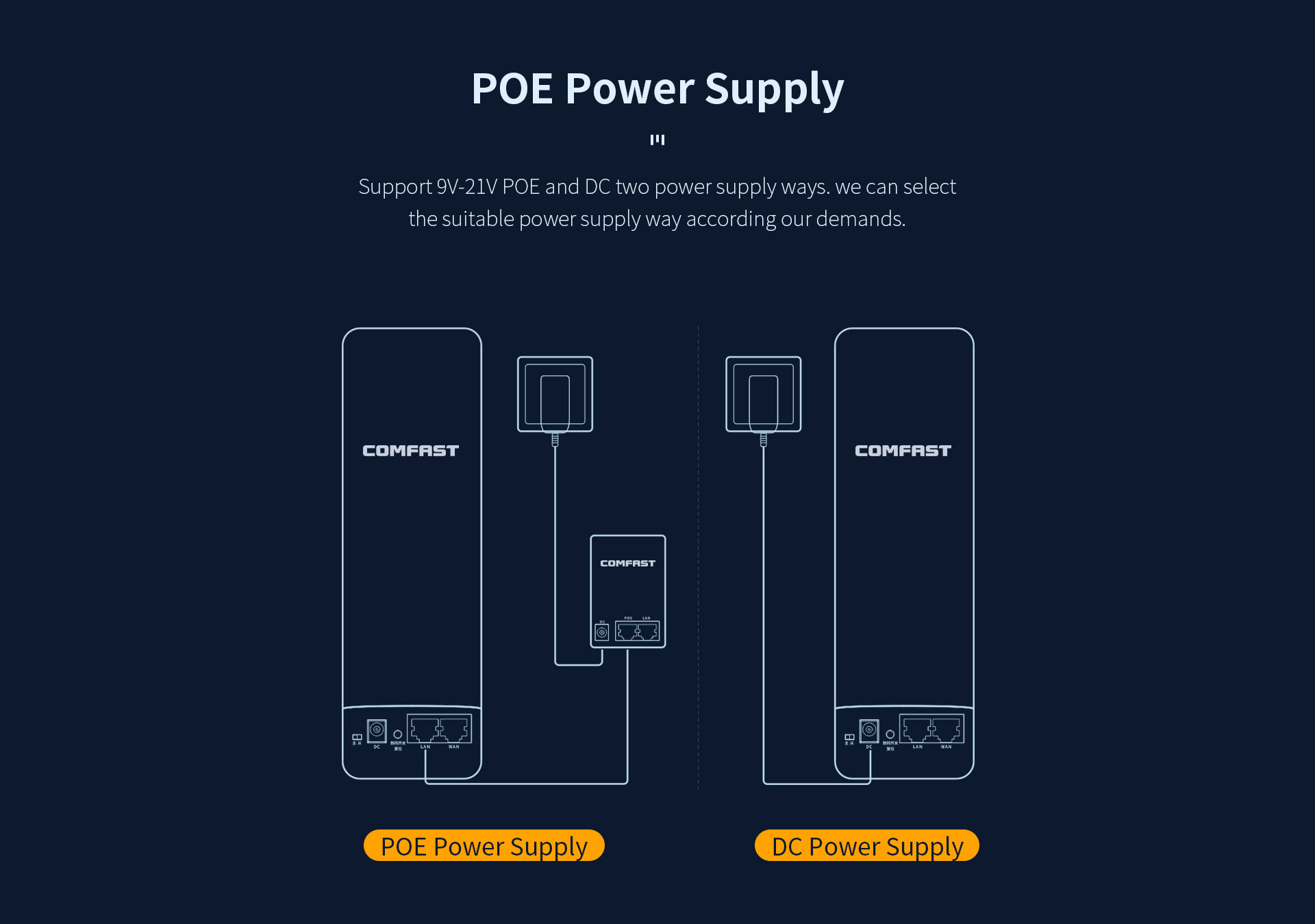

Flexible power via PoE or DC supply
-
Ultra-low power consumption for high efficiency
-

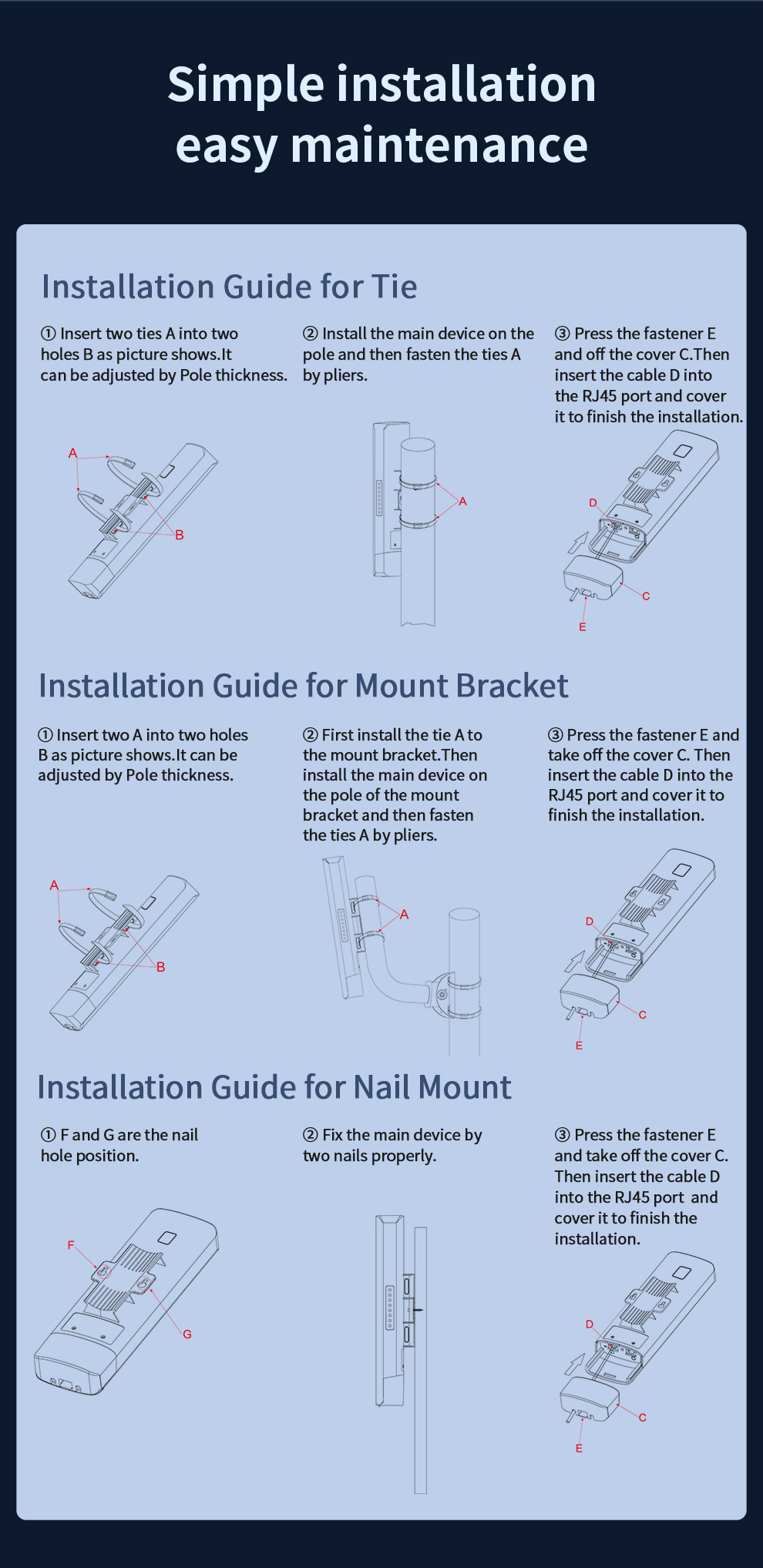

Supports wall or pole mounting options
- Kategorie: Bezdrátový most 2.4G
- Model: CF-E315D
Kontaktujte nás
Oprava výrobku
Adresa pro opravy
9.-10. patro, budova H, Huanan Digital Valley, No.1Huanan Road, okres Longhua, Shenzhen, Čína
Telefon
Telefon: 86-755-83790059
PSČ/poštovní směrovací číslo:518109
Čas služby
Pondělí až pátek
9:00-12:00,13:30-18:30
Your Free Professional Consultation
Consult with us now for guidance from a leading WiFi engineer with 17 years of experience. Don’t miss this excellent opportunity to access expert WiFi coverage and surveillance transmission solutions, backed by our high‑quality products and support!
Why choose us ？
Our Factory
Shenzhen Shaih Garan Electronics Technology Co., Ltd. s an integrated R&D and manuacturingenterprise dedicated to providing customers with high-qualityproducts and comprehensive services. We cover thefull spectrum fromresearch and developmento production, sales,and support, and offer OE/ODM customized production tailored to client requirements.
Industry Experience
0
year
Factory &Warehouse
0
m² +
Daily Capacity
0
+
Technical Experts
0
OEM&ODM
Direct-from-Factory
Ready to Ship
Patent Protected
Rapid Delivery
Quality Assured
Dust Free Workshop
Testing Equipment
Assembly Line
PCBA Processing
Chip Mounter
Fine Detection
Warehouse Logistics
*Obrázky produktu a ukázkové scénáře na této stránce slouží pouze pro ilustrační účely a mohou se od skutečného produktu mírně lišit. Pro přesnost se prosím podívejte na fyzický produkt.
*Údaje na této stránce jsou teoretické hodnoty získané v interní laboratoři společnosti COMFAST za specifických zkušebních podmínek. Skutečné využití se může lišit v důsledku individuálních rozdílů mezi jednotlivými produkty, verzemi softwaru, podmínkami použití a faktory prostředí. Pro přesnou reprezentaci se prosím podívejte na reálné použití.
*S cílem poskytnout co nejpřesnější informace o výrobku, jeho specifikacích a vlastnostech může společnost COMFAST pravidelně upravovat a revidovat textové popisy, obrazové efekty a další obsah na této stránce, aby zajistila soulad se skutečným výkonem, specifikacemi, balením a příslušenstvím výrobku. Pokud budou takové úpravy nebo revize nezbytné, nebudou předem oznámeny.
| Specifikace hardwaru | RAM: DDR 8MB; Flash: 4MB; |
| Anténa | 2*12dBi Internal Dual Polarization Antennas |
| Bezdrátový standard | IEEE 802.11b/g/n |
| Parametry RF | Output Power: 82mW (19dBm); Receiving Sensitivity: -96dBm; Working Frequency: 2.412 ~ 2.472GHz |
| Modulation Mode | DSSS: DBPSK @ 1Mbps, DQPSK @ 2Mbps, CCK @ 5.5/11Mbps OFDM: BPSK @ 6/9Mbps, QPSK @ 12/18Mbps, 16-QAM @ 24Mbps 64-QAM @ 48/54Mbps MIMO-OFDM: MCS 0-15 |
| Rychlost přenosu | 2.4GHz: 300Mbps |
| Fyzické porty | 1* 10/100Mbps WAN RJ45 Ethernet Port; 1* 10/100Mbps LAN RJ45 Ethernet Port; 1* Master-slave mode DIP switch, 1*DC Port; 1* RESET Button |

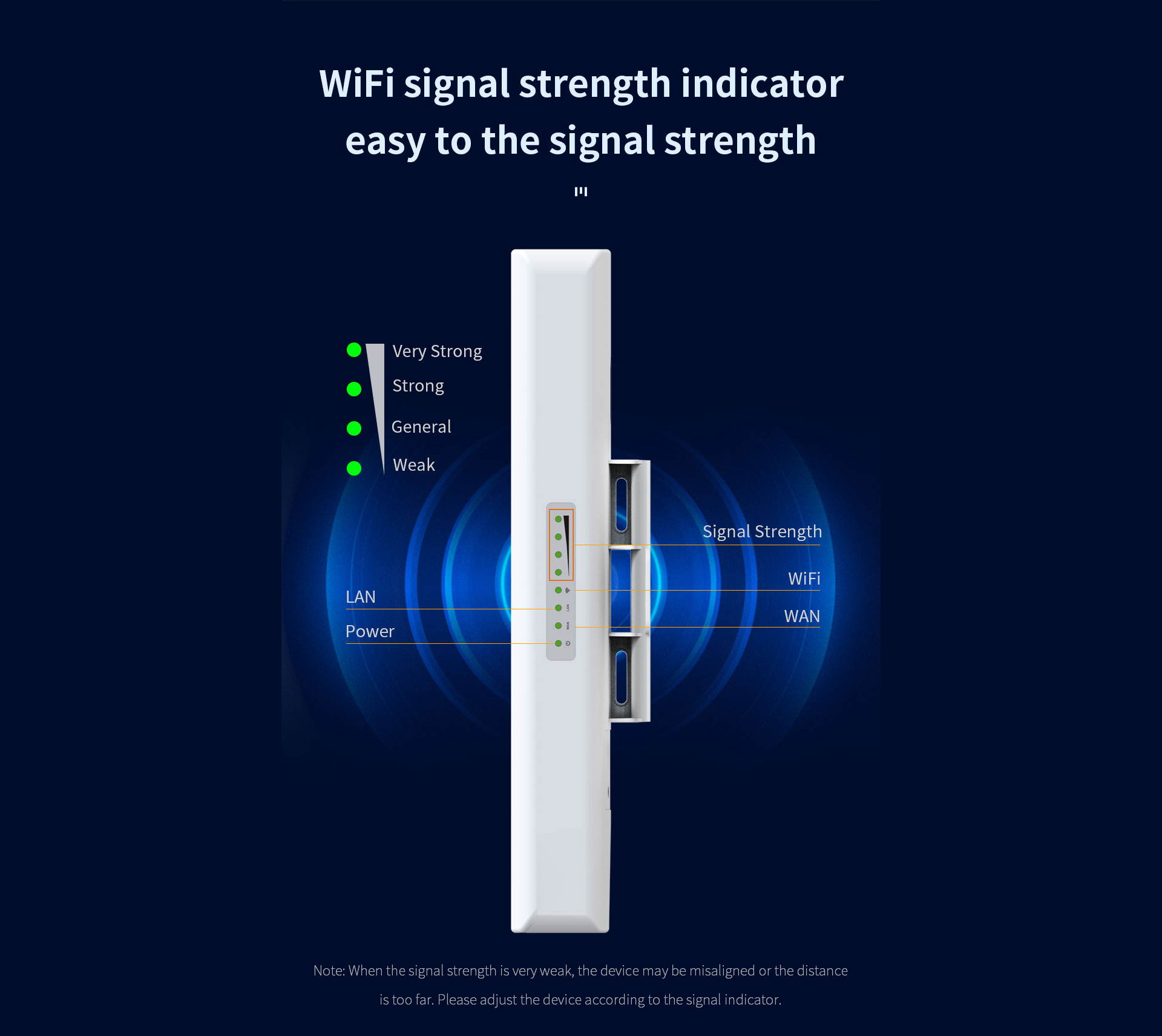

| Indicator | 8* Indicators: Power/WAN/LAN/WiFi/Signal Strength |
| Zobrazit | Rear digital display |
| Power | 9V~24V POE power adapter; support DC power supply |
| Power Consumption (Max) | <5W |
| IP Index | 2KV Lightning Protection; IP65 |
| MTBF | >250000H |
| Installation Way | Wall-mounted / Pole-mounted |
| Case | Plastic Case (Imported ABS Material) |
| Fyzické vlastnosti | Size: 262*80*53mm; Weight: 0.32KG |
| Pracovní prostředí | Working Temperature: -10℃~55℃; Storage Temperature: -50℃~75℃; Working Humidity: 10%~90%RH Non-condensing; Skladovací vlhkost: 5%~90%RH Bez kondenzace |
