Project ShelfLine Security Backhaul: Warehouse Monitoring Solution for an E-Commerce Fulfillment Center in Suzhou

Contractor Team Introduction

We are a local WiFi and security monitoring transmission engineering contractor with long-term experience in warehouse CCTV networks, logistics park surveillance, fulfillment center monitoring, loading dock camera backhaul, forklift route monitoring, rack aisle camera deployment, parking area wireless transmission, temporary yard CCTV, PoE-powered camera systems, indoor AP deployment, outdoor AP installation, wireless bridge alignment, and NVR monitoring room integration.

A Warehouse Monitoring Solution is not a simple camera installation project. Warehouses have high metal racks, moving forklifts, truck loading areas, pallet stacks, temporary cargo zones, cold chain rooms, scanner devices, labeling stations, security patrol routes, and remote perimeter cameras. CCTV video must return to the NVR continuously, while warehouse management WiFi and maintenance access must remain separated from camera traffic. A professional warehouse monitoring project must consider camera angles, rack obstruction, forklift safety, dock operation, bridge height, channel planning, PoE stability, NVR recording, and construction windows.

Our team has used COMFAST equipment in many warehouse, logistics, factory, retail storage, parking, and outdoor monitoring projects. From field experience, COMFAST gateways, PoE switches, WiFi 6 routers, ceiling APs, in-wall APs, outdoor APs, and wireless bridges are practical for warehouse projects because they support stable video backhaul, centralized PoE power, flexible wireless transmission, indoor management WiFi, and clean long-term maintenance. For this project, we selected COMFAST CF-AC100 full gigabit AC gateway router, CF-SG1241P 24-port gigabit PoE switch, CF-WR632AX OpenWrt WiFi 6 mini router, CF-E395AX ceiling APs, CF-E390AX ceiling APs, CF-E591AX in-wall APs, CF-WA933 outdoor WiFi 6 APs, CF-E312A V2 5.8G wireless bridges, and CF-E113A V2 5.8G wireless bridges.

1. Project Overview

Project Name: Project ShelfLine Security Backhaul

Project Location: Suzhou Industrial Park, Jiangsu, China

Warehouse Type: Medium-to-large e-commerce fulfillment center with receiving, sorting, packing, labeling, verification, return handling, cold chain front room, high-rack storage, loading docks, parking areas, and temporary outdoor storage yards

Warehouse Area: Approximately 68,000 square meters

Warehouse Zones: 6 main storage zones, 4 sorting zones, 3 packing areas, 2 receiving docks, 2 shipping docks, 1 return area, 1 cold chain front room, 1 monitoring room, and multiple outdoor perimeter points

Rack Height: 8 to 11 meters in the high-rack storage zones

Loading Dock Doors: 18 dock doors across receiving and shipping areas

CCTV Cameras Included in Upgrade: 96 cameras

Remote Cameras Requiring Wireless Backhaul: 29 cameras

NVR Location: Warehouse monitoring room beside the IT maintenance office

Main Monitoring Areas: Main entrance, gatehouse, vehicle entrance and exit, receiving dock, shipping dock, loading bays, rack aisles, forklift routes, sorting area, packing area, weighing area, labeling area, verification area, return area, cold storage entrance, dangerous goods perimeter, warehouse office, staff passage, parking area, perimeter road, temporary yard, and warehouse exterior

Project Goal: Build a stable warehouse monitoring system with reliable CCTV backhaul, continuous NVR recording, warehouse management WiFi, outdoor maintenance access, wireless bridge transmission for remote cameras, and separated CCTV and management networks.

2. Customer Pain Points Before the Project

Several cameras were connected through temporary network cables. Some cables crossed rack aisles, dock-side walls, or outdoor service paths. After long-term forklift movement, loading activity, cleaning, and pallet handling, cable protection became unreliable.

Rack aisle cameras and forklift route cameras occasionally lost video. The cameras were working, but the old network paths were affected by metal rack reflection, cable damage, unstable field power, and unclear switch-port routing.

Receiving dock and shipping dock cameras froze during busy hours. Trucks, containers, forklifts, open dock doors, and pallet stacks changed the wireless and visual environment throughout the day.

Parking area, perimeter road, and temporary yard cameras often went offline. Re-cabling these points would require road crossing, outdoor conduit work, and temporary traffic control, which the warehouse wanted to avoid.

NVR recording had occasional frame loss, especially during night shifts and inventory checks. Night infrared video increased camera bitrate, but the old transmission network had no reserved bandwidth margin.

The old wireless bridge devices were installed too low in several outdoor locations. Trucks, stacked goods, container trailers, and metal storage sheds sometimes blocked the signal path.

Several wireless bridge links used the same channel. When parking cameras, dock cameras, and perimeter cameras transmitted at the same time, bridge interference caused unstable CCTV video.

The monitoring network and office network were mixed in several places. Warehouse management devices, CCTV cameras, office computers, temporary maintenance WiFi, and NVR traffic were not clearly separated, which made troubleshooting difficult.

Weak-current boxes near the dock and warehouse perimeter had unclear labels. Some camera cables, AP uplinks, wireless bridge links, and PoE ports were undocumented, so maintenance staff spent too much time finding the correct device path.

3. Customer Requirements

All remote CCTV cameras must connect stably to the NVR in the warehouse monitoring room.

Warehouse entrance, gatehouse, vehicle entrance and exit, receiving dock, shipping dock, loading bay, rack aisle, forklift route, sorting area, packing area, weighing area, labeling area, verification area, return area, cold chain front room, cold storage entrance, dangerous goods perimeter, parking area, perimeter road, temporary yard, and warehouse exterior cameras must have stable video backhaul.

Wireless bridges should be used where new cabling would disturb warehouse operation, cross vehicle paths, require difficult approval, or create unsafe construction around docks and parking areas.

Key cameras must support live preview, continuous NVR recording, remote review, and reliable playback.

CCTV network must be separated from office network, warehouse management WiFi, and management access.

Provide limited management WiFi and maintenance WiFi for IT staff, warehouse supervisors, security staff, and commissioning engineers.

Use centralized PoE power for cameras, wireless bridges, indoor APs, outdoor APs, and selected monitoring devices.

Install indoor APs and cameras away from forklift collision zones, rack movement, sprinkler lines, high-humidity areas, and high-temperature equipment zones.

Construction must not affect receiving, shipping, forklift routes, inventory checks, night shifts, fire exits, employee passages, or safety inspections.

Project handover must include topology diagram, device labels, camera point list, AP location list, wireless bridge direction records, switch port map, and acceptance test results.

4. COMFAST Equipment Used in This Project

CF-AC100 Full Gigabit AC Gateway Router: The CF-AC100 was deployed as the monitoring and management network core gateway. It handled CCTV network access, DHCP, NVR integration, network policy, and management access.

CF-SG1241P 24-Port Gigabit PoE Switch: The CF-SG1241P was installed in the warehouse core equipment room for centralized PoE power and gigabit data aggregation. It powered cameras, indoor APs, outdoor APs, wireless bridges, and monitoring devices.

CF-WR632AX OpenWrt WiFi 6 Mini Router: The CF-WR632AX was installed in the IT maintenance office and monitoring room for temporary commissioning, emergency network support, management wireless access, and maintenance tool connectivity.

CF-E395AX WiFi 6 Ceiling AP: The CF-E395AX was used in rack aisles, forklift routes, receiving and shipping buffer zones, and warehouse main indoor passages. It supported warehouse management WiFi and maintenance access in medium-to-high-density indoor areas.

CF-E390AX WiFi 6 Ceiling AP: The CF-E390AX was used in warehouse offices, employee passages, rest areas, sorting office corners, and general indoor management WiFi zones.

CF-E591AX WiFi 6 In-Wall AP: The CF-E591AX was installed in supervisor offices, monitoring room, duty room, meeting room, staff break room, and small function rooms where room-level coverage was needed.

CF-WA933 Outdoor WiFi 6 AP: The CF-WA933 was used for medium-density outdoor maintenance WiFi around warehouse corners, perimeter roads, rear service routes, temporary loading areas, patrol routes, and selected outdoor work zones.

CF-E312A V2 5.8G Wireless Bridge: The CF-E312A V2 was used for mid-to-long-distance CCTV wireless backhaul from parking cameras, dock cameras, gatehouse cameras, warehouse exterior cameras, temporary yard cameras, and remote monitoring points.

CF-E113A V2 5.8G Wireless Bridge: The CF-E113A V2 was used for farther or higher-stability links, including perimeter road cameras, dangerous goods perimeter cameras, far-side parking cameras, cross-road cameras, and remote security points.

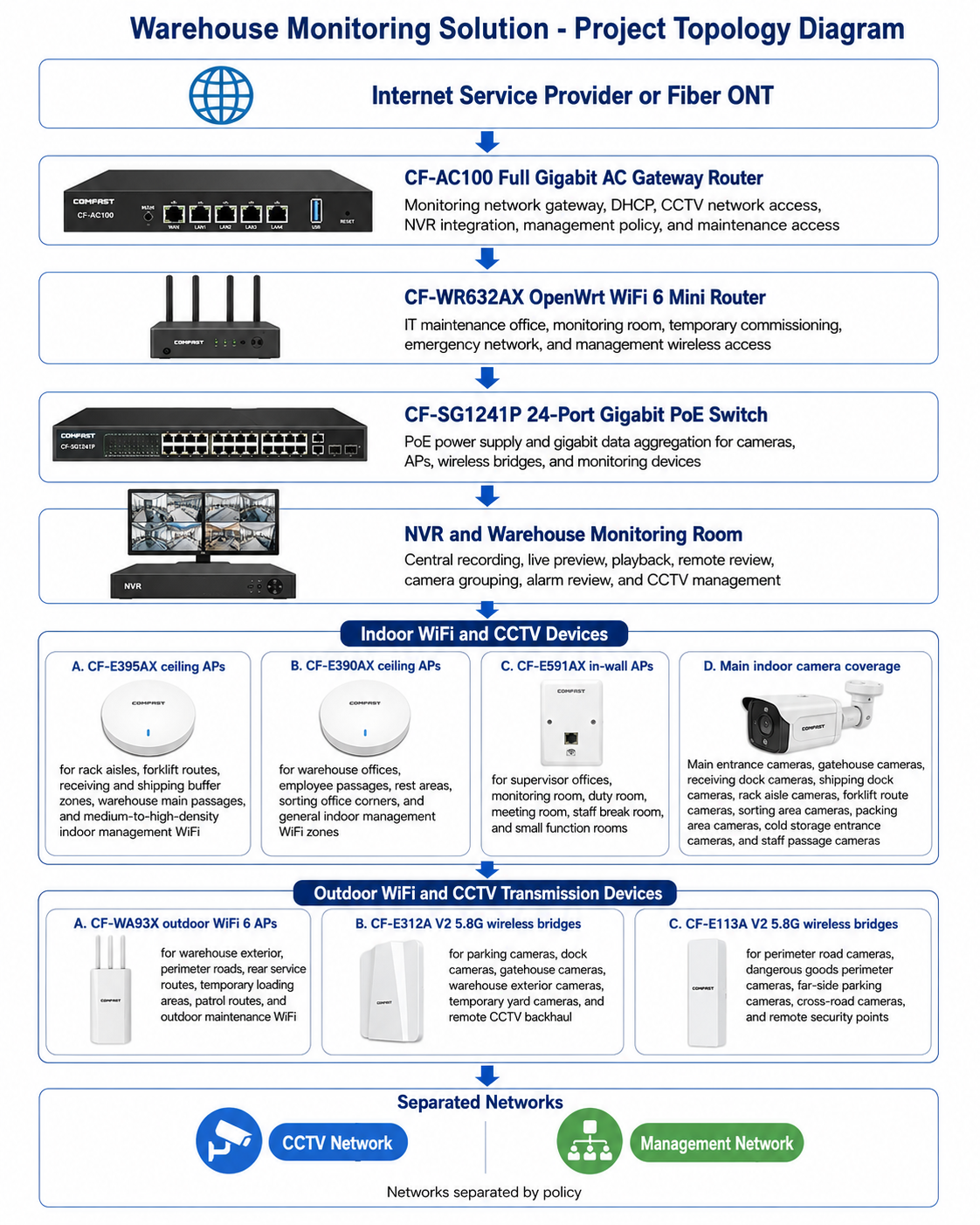

5. Project Topology Diagram

6. Site Survey and Troubleshooting Process

We started the project with a full walkthrough together with the warehouse operations manager, security supervisor, IT supervisor, dock manager, forklift team leader, sorting supervisor, packing supervisor, cold chain manager, night shift guard, and maintenance technician. We followed the actual warehouse operation route from the main entrance to the gatehouse, from receiving dock to sorting area, from packing to shipping dock, from rack aisles to forklift routes, and from parking area to perimeter roads.

In the NVR monitoring room, we checked camera grouping, recording schedules, playback records, live preview quality, remote review access, switch ports, uplinks, and previous failure logs. We identified which issues were caused by cameras, which were caused by power, and which were caused by transmission instability.

At the warehouse weak-current room, we checked PoE power budget, cabinet ventilation, old adapters, unlabeled cables, existing switch load, uplink condition, grounding, and service space. The original cabinet had functional devices, but the documentation was not suitable for fast warehouse maintenance.

At the main entrance and gatehouse, we tested vehicle entry cameras, staff passage cameras, visitor registration points, and wireless backhaul paths. The gatehouse needed stable monitoring and maintenance access without mixing CCTV with office traffic.

At receiving and shipping docks, we tested camera view, bridge visibility, truck obstruction, dock door height, forklift movement, pallet staging, and cable protection. Dock cameras had to remain stable during the most active warehouse periods.

In high-rack aisles, we checked camera angles, rack height, metal reflection, forklift mast movement, pallet stacking height, and AP mounting safety. Camera installation could not interfere with rack operation, sprinkler lines, or forklift movement.

Along forklift routes, we checked blind corners, crossing points, charging areas, pedestrian crossings, and camera placement. The monitoring design had to help review incidents without creating collision hazards during installation.

In sorting, packing, weighing, labeling, verification, and return areas, we checked WiFi demand for handheld scanners, tablets, temporary terminals, and staff devices. We also checked camera coverage for package movement and process review.

At the cold chain front room and cold storage entrance, we checked humidity, temperature transition, condensation risk, doorway movement, camera placement, and cable routing. Equipment in these areas required careful mounting and protected cable paths.

At the dangerous goods perimeter, we confirmed safety distance, monitoring angles, power source conditions, and approval requirements. Work in this zone was scheduled under safety supervision.

In the parking area, perimeter road, warehouse exterior, and temporary yard, we confirmed wireless bridge line of sight, mounting height, vehicle obstruction, power availability, weather protection, and maintenance access.

We scanned the wireless environment and planned bridge channels. The old bridge links had channel overlap, so we grouped CF-E312A V2 and CF-E113A V2 links by direction, distance, and camera bitrate requirement.

7. Problems Found During Implementation

The original temporary cables were not suitable for long-term warehouse CCTV return. Some routes were too close to forklift movement, dock activity, pallet staging, and outdoor exposure. We replaced selected unstable paths with wireless bridge backhaul and better PoE aggregation.

Camera dropouts were not simply camera problems. The causes included unstable PoE power, low bridge mounting height, metal rack reflection, poor alignment, same-channel interference, and truck obstruction.

Remote parking, perimeter road, temporary yard, and warehouse exterior cameras were better suited to wireless bridge backhaul than new trenching. This reduced civil work and avoided disruption to logistics routes.

Wireless bridges could not be installed at low convenient points. Trucks, containers, forklifts, pallet stacks, and metal racks can block or reflect wireless links. We raised selected links and adjusted directions to protect transmission stability.

Multiple bridge links could not share the same channel. We separated wireless bridge groups by direction and camera load to reduce interference and packet loss.

Night infrared video needed more bandwidth margin. Several perimeter, dock, and parking cameras increased bitrate after dark, so we tested night recording and playback as part of acceptance.

Indoor management WiFi could not be mixed with CCTV video. We separated warehouse management WiFi, CCTV traffic, and management access through network policy to protect NVR stability.

Indoor APs and cameras had to be mounted away from forklift collision zones, high-rack movement, sprinkler heads, loading equipment, and high-humidity areas. Installation safety was as important as signal performance.

Construction had to avoid receiving peaks, shipping peaks, forklift-dense periods, inventory checks, fire exits, and safety inspection windows. We used phased work and low-traffic windows to protect warehouse operation.

8. Final Engineering Solution

The CF-AC100 was deployed as the core gateway for the monitoring and management network. It provided DHCP, CCTV network access, NVR integration, management policy, and maintenance access control.

The CF-SG1241P 24-port gigabit PoE switch was deployed in the warehouse core equipment room. It provided centralized PoE power and gigabit data aggregation for indoor cameras, outdoor cameras, APs, wireless bridges, and monitoring devices.

The CF-WR632AX OpenWrt WiFi 6 mini router was installed in the IT office and monitoring room for controlled management wireless access, emergency network support, temporary commissioning, and maintenance tool connection.

CF-E395AX ceiling APs were installed in rack aisles, forklift routes, receiving and shipping buffer zones, and main warehouse passages. They supported warehouse management devices and maintenance access in large indoor operation zones.

CF-E390AX ceiling APs were installed in warehouse offices, employee passages, rest areas, and general indoor zones. They provided stable medium-density management WiFi without overloading the high-rack area.

CF-E591AX in-wall APs were installed in supervisor offices, the monitoring room, the duty room, meeting room, and staff break room. These rooms needed stable local wireless access without relying on distant warehouse ceiling APs.

CF-WA933 outdoor WiFi 6 APs were installed for warehouse exterior, perimeter road, rear service route, temporary loading area, patrol route, and outdoor maintenance WiFi access.

CF-E312A V2 wireless bridges were used for parking cameras, dock cameras, gatehouse cameras, warehouse exterior cameras, temporary yard cameras, and remote CCTV backhaul.

CF-E113A V2 wireless bridges were used for perimeter road cameras, dangerous goods perimeter cameras, far-side parking cameras, cross-road cameras, and remote security points where stronger link stability was required.

9. Different Area Monitoring and Backhaul Design

NVR Warehouse Monitoring Room Network: The NVR monitoring room became the central point for live preview, continuous recording, playback, remote review, alarm review, and camera group management. All key camera groups were renamed by warehouse zone.

Core Equipment Room Network: The core equipment room was reorganized with CF-AC100, CF-SG1241P, and clear switch port labels. Camera groups, AP uplinks, bridge links, and management devices were documented.

Main Entrance CCTV Backhaul: Main entrance cameras recorded visitor arrival, employee access, delivery entry, and security check activity. These cameras were connected through stable PoE and NVR paths.

Gatehouse Monitoring Network: The gatehouse used CCTV backhaul and maintenance access for security staff. Gatehouse cameras covered vehicle entry, visitor registration, and barrier operation.

Vehicle Entrance and Exit Camera Backhaul: Vehicle entrance and exit cameras were tested during truck peaks. Bridge positions were selected to avoid truck and container obstruction.

Receiving Dock Camera Backhaul: Receiving dock cameras covered inbound trucks, unloading, pallet staging, and dock safety. The camera return path was tested during active receiving periods.

Shipping Dock Camera Backhaul: Shipping dock cameras monitored outbound trucks, loading accuracy, dock door activity, and after-hours movement. CF-E312A V2 links were used where cabling was difficult.

Loading Bay Monitoring: Loading bay cameras were mounted to avoid collision risk and to capture truck, forklift, pallet, and dock door activity clearly.

Rack Aisle Camera Coverage: Rack aisle cameras were positioned to monitor picking, inventory movement, and aisle safety. We avoided mounting points that would interfere with rack operations or sprinkler coverage.

Forklift Route Monitoring: Forklift route cameras covered intersections, blind corners, charging areas, and pedestrian crossing points. AP and camera mounting heights were selected to avoid forklift mast movement and collision risk.

Sorting Area WiFi and CCTV Design: Sorting zones used CF-E395AX APs for management WiFi and cameras for process monitoring. The network supported scanner devices, supervisor tablets, and video review.

Packing Area WiFi and CCTV Design: Packing zones used WiFi and CCTV for order process visibility. Cameras covered packing tables, conveyor areas, and packing exception points.

Weighing and Labeling Area Monitoring: Cameras covered weighing stations, labeling terminals, and package transfer points. Stable management WiFi supported handheld and temporary terminals.

Verification Area Monitoring: Verification cameras supported order accuracy review and exception handling. The CCTV network remained separated from management WiFi traffic.

Return Area Monitoring: Return area cameras recorded return inspection, sorting, repackaging, and exception handling to support process review.

Cold Chain Front Room Monitoring: Cold chain front room cameras and AP positions considered humidity, condensation, door movement, and temperature transition. Cable routes were protected from condensation-prone areas.

Cold Storage Entrance Monitoring: Cold storage entrance cameras covered door usage, staff movement, and goods transfer. Equipment was positioned away from condensation-heavy door seals.

Dangerous Goods Perimeter Monitoring: Dangerous goods perimeter cameras used CF-E113A V2 wireless bridge backhaul and safety-approved mounting points. Work in this area followed warehouse safety rules.

Warehouse Office Network: Warehouse offices used CF-E390AX and CF-E591AX APs for office and management access. Office traffic was separated from CCTV video traffic.

Staff Passage Monitoring: Staff passage cameras monitored employee movement, emergency exit access, and after-hours activity. Camera video returned to the NVR through the CCTV network.

Parking Area Camera Backhaul: Parking cameras used CF-E312A V2 and CF-E113A V2 links depending on distance. Bridge height was selected to avoid vans, trucks, and temporary parked trailers.

Perimeter Road Camera Backhaul: Perimeter road cameras used wireless bridge links to avoid new cabling across roads and drainage zones. These cameras supported security patrol and after-hours monitoring.

Temporary Yard Monitoring: Temporary yard cameras used wireless backhaul because the storage layout changed with seasonal order volume. This gave the warehouse flexibility without repeated cable construction.

Warehouse Exterior Camera Backhaul: Exterior cameras monitored side roads, wall corners, emergency doors, and service routes. Wireless bridge links reduced outdoor cabling complexity.

Remote CCTV Wireless Bridge Backhaul: Remote CCTV points were grouped by distance, line of sight, camera bitrate, and maintenance access. Each link was tested for signal, bandwidth, latency, packet loss, live preview, recording, and playback.

Outdoor Maintenance WiFi Access: CF-WA933 APs provided controlled outdoor maintenance WiFi for field inspection, camera alignment, bridge testing, and security patrol support.

10. Wireless Bridge, AP, and Camera Installation Details

Wireless bridge installation height was selected based on truck height, forklift height, container position, pallet stack height, metal rack height, and maintenance safety. We avoided low convenient positions because they are often blocked during real warehouse operations.

CF-E312A V2 links were aligned for mid-distance camera groups around docks, parking, gatehouse, temporary yard, and warehouse exterior. Each link was tested with real camera video, not only signal indicators.

CF-E113A V2 links were aligned for more demanding perimeter and far-side camera groups. These links were tested for nighttime recording because perimeter video is most important during low-light periods.

Indoor APs were mounted away from forklift paths, rack impact zones, moving doors, conveyor routes, and sprinkler heads. AP placement also considered metal reflection and scanner device movement.

Camera angles were selected based on operational value. We focused on dock doors, package flow, aisle entrances, forklift intersections, verification points, cold storage entrances, and outdoor security points.

Outdoor cable routes used protected entry points, waterproof boxes, drip loops, secure brackets, and labeled paths. Grounding and lightning protection were reviewed for exposed outdoor installation points.

Every AP, camera, wireless bridge, uplink, and switch port was labeled. The customer received a camera point list, AP location list, bridge direction records, switch port map, and maintenance notes.

11. NVR and Warehouse Monitoring Room Integration

The NVR monitoring room was reorganized as the central point for warehouse security video. Camera groups were renamed by actual warehouse zones, including entrance, gatehouse, receiving dock, shipping dock, rack aisle, forklift route, sorting, packing, labeling, verification, return, cold storage entrance, dangerous goods perimeter, parking, perimeter road, temporary yard, and warehouse exterior.

We tested live preview, continuous recording, playback, remote review, alarm review, and camera search after each camera group was connected. This prevented a common issue where cameras appear online but do not record continuously.

The monitoring team received a bridge-to-camera map showing which camera groups returned through each wireless bridge link. This helps IT and security staff quickly identify whether a future problem is camera-side, bridge-side, switch-side, power-side, or NVR-side.

The CF-WR632AX provided controlled management WiFi inside the IT office and monitoring room. This access was separated from CCTV video traffic and general office devices.

12. Network Segmentation and Maintenance Design

CCTV Network: The CCTV network carried video from wired cameras and wireless bridge-connected cameras to the NVR. It was separated from office access and warehouse management WiFi to protect recording stability.

Management Network: The management network was reserved for the CF-AC100 gateway, CF-SG1241P PoE switch, CF-WR632AX router, indoor APs, outdoor APs, wireless bridges, NVR access, and authorized maintenance devices.

Warehouse Management WiFi: Warehouse management WiFi supported authorized handheld scanners, supervisor tablets, inventory check tools, and maintenance devices. It was not mixed with CCTV video traffic.

Outdoor Maintenance WiFi: CF-WA933 outdoor APs provided controlled field access around dock exteriors, perimeter roads, temporary yards, and patrol routes. This helped technicians check camera views and bridge status from the field.

PoE Power Design: The CF-SG1241P centralized PoE power for cameras, APs, and bridges. This reduced scattered adapters and made power troubleshooting more direct.

Documentation and Labeling: Every camera group, bridge link, AP, switch port, and field box was labeled. The handover package included topology, camera point list, AP location list, bridge direction records, port map, and acceptance results.

13. What We Did Differently from Other Engineering Teams

We did not simply connect cameras to bridges and leave. We tested live preview, continuous NVR recording, playback, day video, night infrared video, bridge signal, bandwidth, latency, and packet loss.

We did not only make warehouse WiFi signal look full. We tested scanner movement, supervisor tablets, management WiFi, and AP performance around metal racks and forklift routes.

We did not test only when the warehouse was quiet. We tested during forklift movement, truck loading, dock activity, pallet staging, night shift, and inventory check conditions.

We did not use the same channel for every bridge. Wireless links were grouped by distance, direction, and camera load to reduce interference and improve CCTV stability.

We did not mount bridges at low convenient points. Mounting height was selected according to truck height, forklift height, rack height, container position, and maintenance safety.

We did not mix CCTV video, warehouse management WiFi, office access, and device management in one flat network. Each service was separated by policy.

We did not blindly pull cables across active warehouse areas. Wireless bridge backhaul was used where cabling would affect forklift routes, dock activity, outdoor roads, or temporary yard flexibility.

We did not interrupt warehouse operations. Construction was completed by zone during approved windows, avoiding receiving peaks, shipping peaks, forklift-dense hours, inventory checks, fire exits, and safety inspections.

14. Project Acceptance Results

NVR continuous recording test passed.

Daytime live video preview test passed.

Night infrared video test passed.

Video playback and search test passed.

Wireless bridge signal strength test passed.

Wireless bridge alignment angle inspection passed.

Bridge bandwidth test passed.

Bridge latency test passed.

Packet loss test passed.

Main entrance camera test passed.

Gatehouse camera test passed.

Receiving dock camera test passed.

Shipping dock camera test passed.

Loading bay camera test passed.

Rack aisle camera test passed.

Forklift route camera test passed.

Sorting area camera and WiFi test passed.

Packing area camera and WiFi test passed.

Weighing and labeling area monitoring test passed.

Verification area monitoring test passed.

Return area monitoring test passed.

Cold storage entrance camera test passed.

Dangerous goods perimeter camera test passed.

Parking area camera test passed.

Perimeter road camera test passed.

Temporary yard camera test passed.

Power-off recovery test passed.

PoE power supply test passed.

Waterproof box inspection passed.

Device label inspection passed.

Topology diagram, camera point list, AP location list, wireless bridge direction records, switch port map, and acceptance report were delivered to the customer.

15. Customer and User Feedback

Warehouse Operations Manager Feedback: “The monitoring system is much more stable now. We can review receiving, shipping, sorting, and temporary yard activities without the old video gaps.”

Security Supervisor Feedback: “Parking area and perimeter cameras no longer drop offline like before. Night recording and playback are much better.”

IT Supervisor Feedback: “The device labels, switch port map, AP location list, and bridge direction records make maintenance much faster. We can identify camera paths clearly.”

Dock Manager Feedback: “The dock cameras are smoother during loading and unloading. We can review truck and pallet movement more clearly.”

Forklift Team Leader Feedback: “Forklift route monitoring is more useful now. The cameras cover key intersections and blind corners without interfering with our routes.”

Sorting Supervisor Feedback: “Sorting area WiFi and CCTV are more stable. Scanner and supervisor tablet access improved after the AP upgrade.”

Packing Supervisor Feedback: “The packing area cameras help us review package exceptions, and the wireless devices are more stable during peak orders.”

Cold Chain Manager Feedback: “Cold storage entrance monitoring is more reliable, and the installation avoided the condensation-heavy areas we were concerned about.”

Night Shift Guard Feedback: “Night infrared video is stable now, especially around the perimeter road, parking area, and temporary yard.”

Maintenance Technician Feedback: “The outdoor boxes are cleaner, the bridge directions are documented, and troubleshooting is much easier than before.”

16. Project Summary

Project ShelfLine Security Backhaul was a successful Warehouse Monitoring Solution for an e-commerce fulfillment center in Suzhou. The project solved unstable temporary CCTV cabling, rack aisle video loss, forklift route monitoring gaps, dock camera freezing, parking and perimeter camera dropouts, night recording frame loss, old bridge interference, weak-current cabinet disorder, mixed network traffic, and hard-to-cable remote monitoring points.

The final COMFAST solution used the CF-AC100 full gigabit AC gateway router, CF-SG1241P 24-port gigabit PoE switch, CF-WR632AX OpenWrt WiFi 6 mini router, CF-E395AX ceiling APs, CF-E390AX ceiling APs, CF-E591AX in-wall APs, CF-WA933 outdoor WiFi 6 APs, CF-E312A V2 5.8G wireless bridges, and CF-E113A V2 5.8G wireless bridges. This combination supported stable CCTV backhaul, NVR recording, indoor warehouse management WiFi, room-level office WiFi, outdoor maintenance access, wireless bridge transmission, PoE power, and segmented management.

The key value of this project was not simply installing cameras and APs. The real value was designing the warehouse monitoring system around operational routes, camera angles, rack height, forklift movement, truck obstruction, dock activity, video bitrate, PoE stability, channel planning, wireless bridge alignment, NVR recording, network separation, and long-term maintenance.

17. Lessons Learned and Advice to Other Contractors

Warehouse monitoring projects must start with operational workflow analysis, not only camera quantity.

Camera placement must consider rack aisles, forklift intersections, dock doors, pallet staging, verification points, and after-hours security needs.

Wireless bridge line of sight must be checked under real conditions, including trucks, containers, forklifts, pallet stacks, and metal rack reflection.

Bridge mounting height should be selected according to truck height, forklift mast height, rack height, container position, and maintenance safety.

Multiple bridge links require channel planning. Using the same channel for every link creates interference and unstable CCTV video.

Night infrared video must be tested because camera bitrate can increase after dark and expose weak transmission margins.

Warehouse management WiFi, office access, CCTV video, and device management should be separated by policy.

Indoor APs and cameras must avoid forklift collision zones, sprinkler lines, rack movement, high-humidity areas, and unsafe service positions.

Construction must avoid receiving peaks, shipping peaks, forklift-dense periods, night inventory checks, fire exits, and safety inspection windows.

Professional handover must include topology diagrams, camera point lists, AP location records, bridge direction records, signal test results, switch port labels, and maintenance guidance.

For warehouse projects, engineers should walk every dock, rack aisle, forklift route, sorting line, packing station, cold storage entrance, perimeter road, parking corner, temporary yard, and weak-current box. Drawings are useful, but warehouse operation decides whether the monitoring system will stay stable.

A Warehouse Monitoring Solution is complete only when cameras stay online, NVR recording is continuous, day and night video remain stable, remote cameras return video without unsafe cabling, management WiFi is separated from CCTV traffic, bridge links are documented, and the warehouse team can maintain the system confidently. That was the standard we delivered for Project ShelfLine Security Backhaul.
