Description

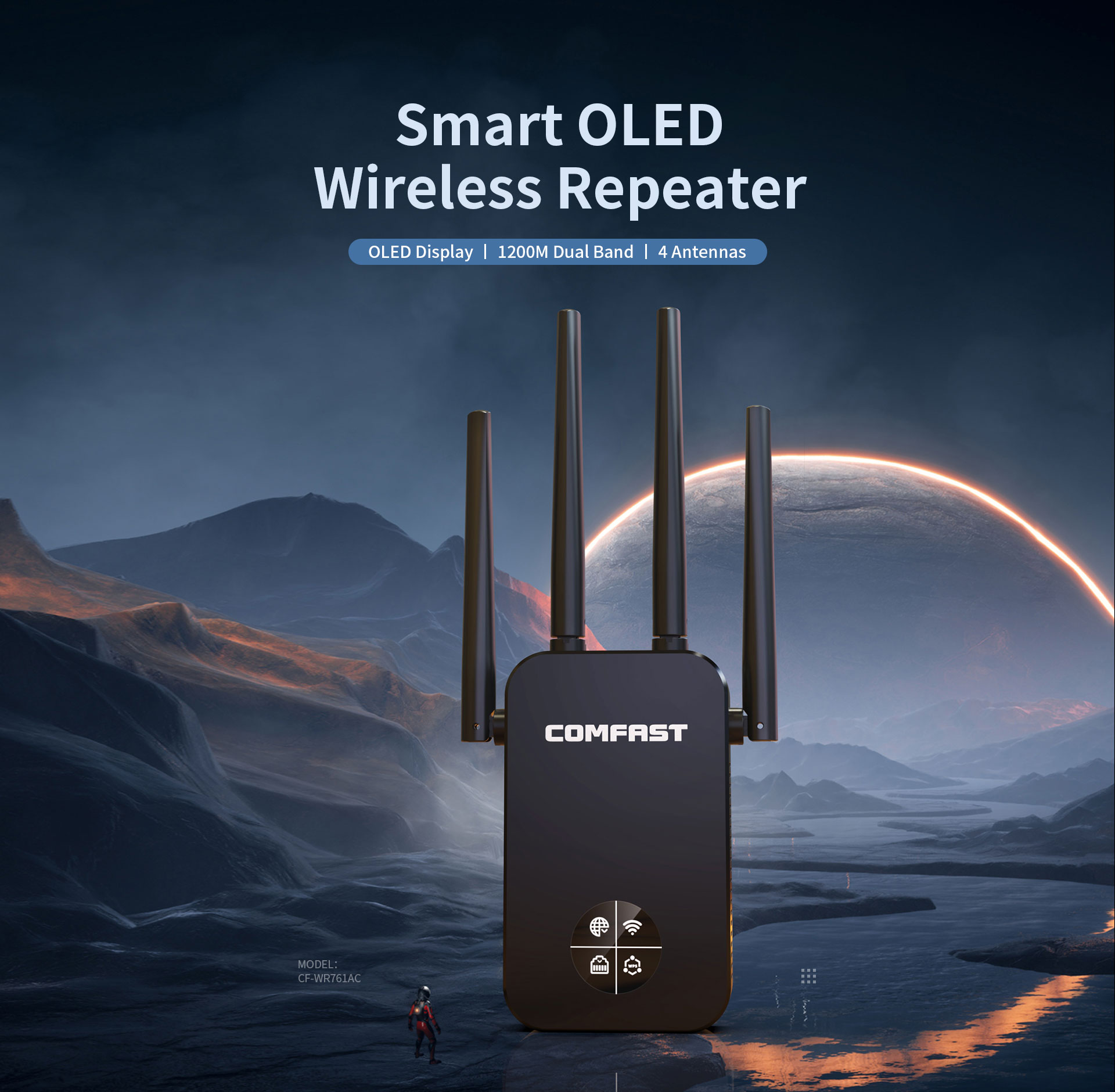

1200Mbps Dual Band WiFi Repeater
The CF-WR761AC is a dual-band Gigabit WiFi range extender featuring a smart LCD display. This intuitive screen simplifies setup and shows real-time status. With four high-gain antennas, it effectively expands coverage and penetrates walls, making it ideal for eliminating dead zones in large homes like villas and duplexes.
-

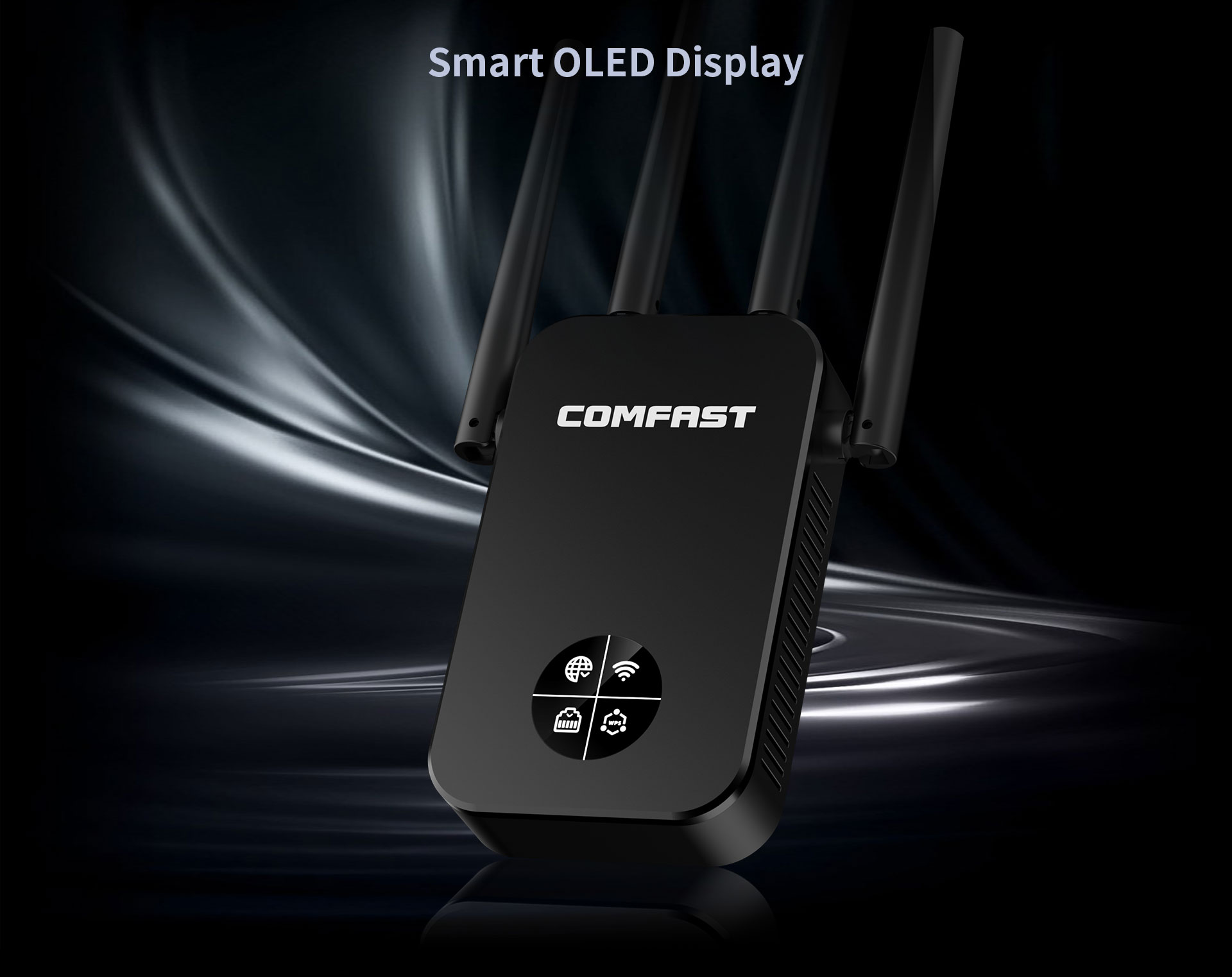

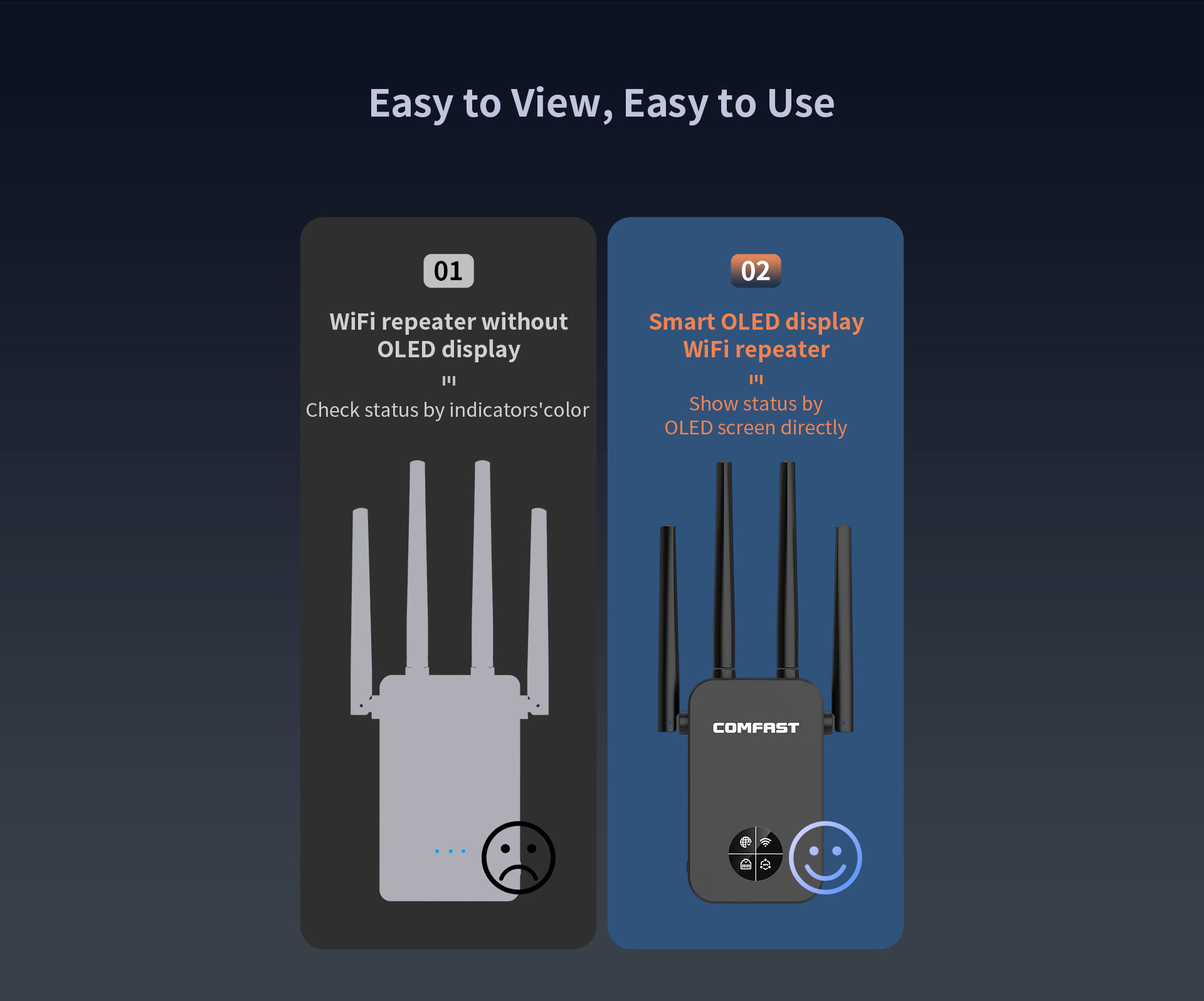

Features a smart LCD display for intuitive operation and status viewing
-
Compact upright design that blends into modern home decor
-

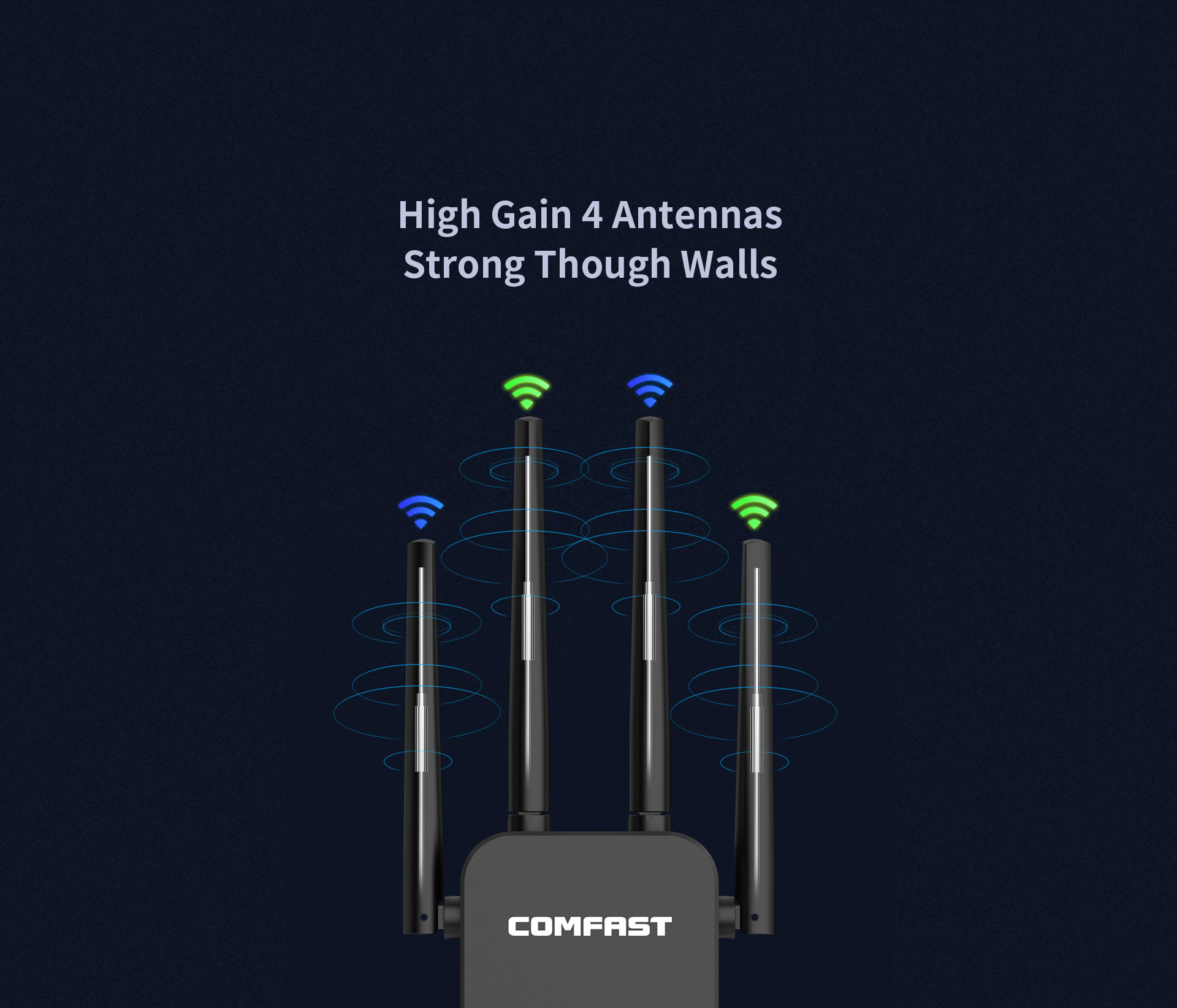

Four rotatable high-gain external antennas for optimal signal direction
-

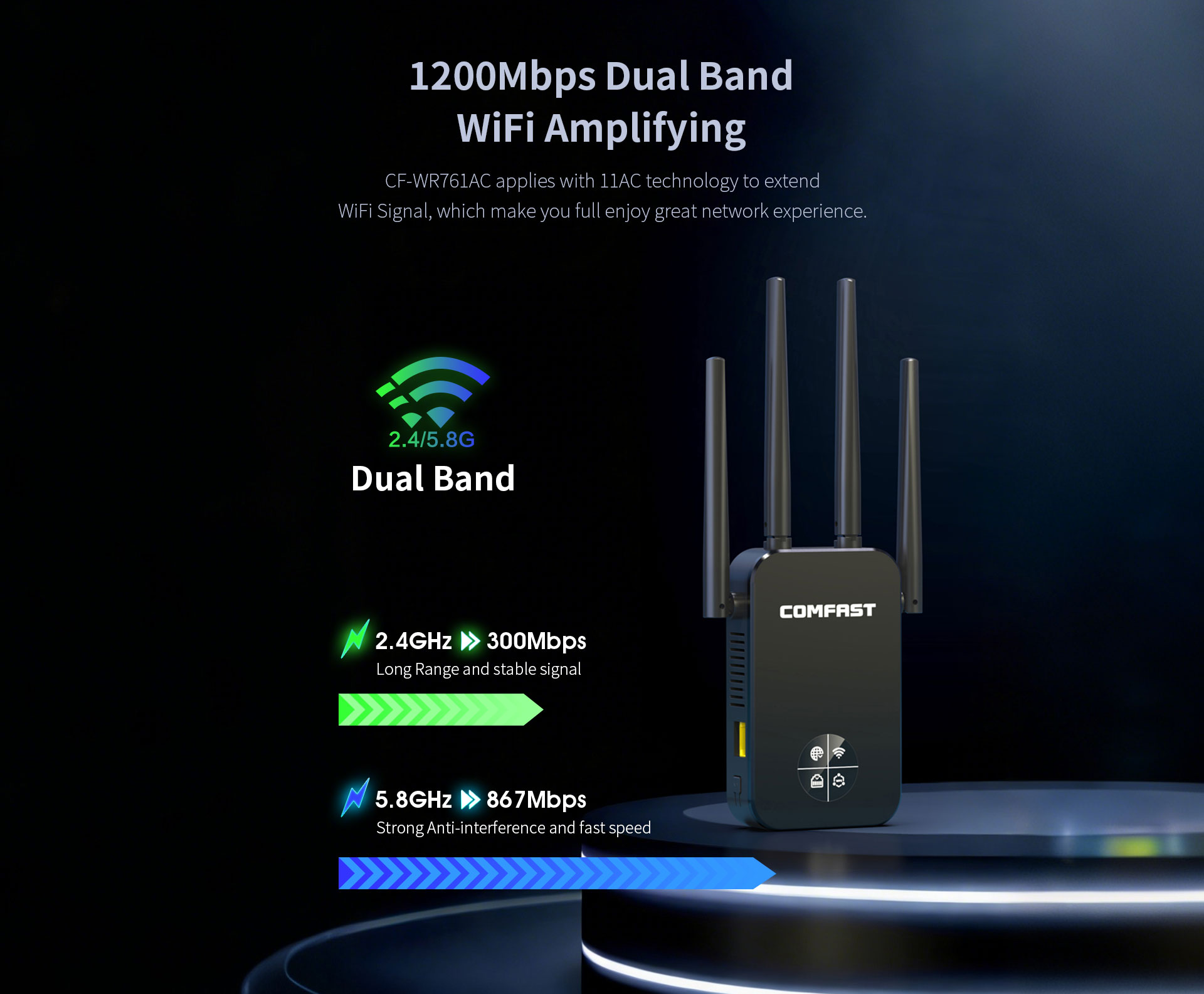

Next-generation dual-band technology with speeds up to 1200Mbps
-
Quad-antenna enhancement system for extended coverage and wall penetration
-

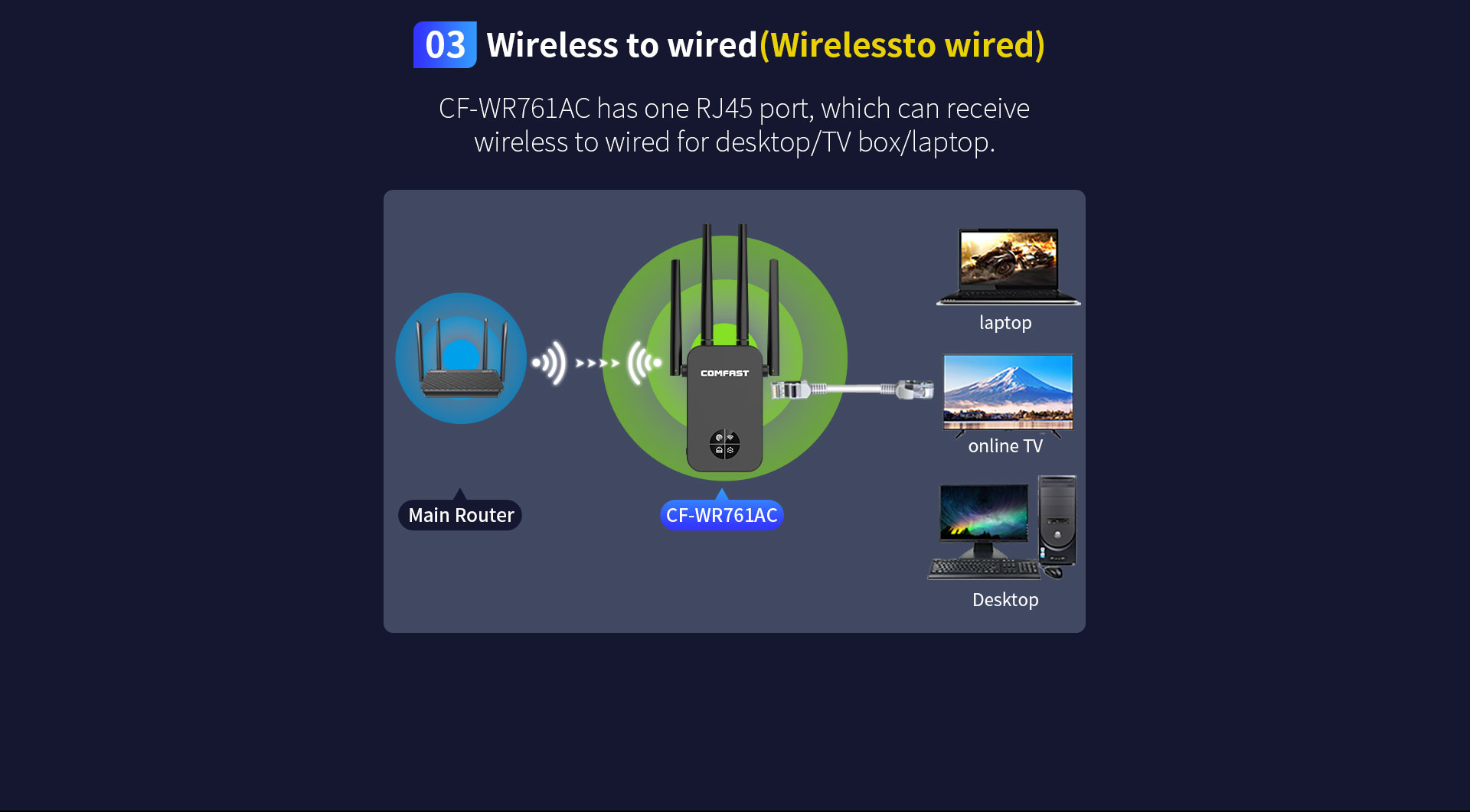

Built-in Ethernet port enables stable wired connections from WiFi
-

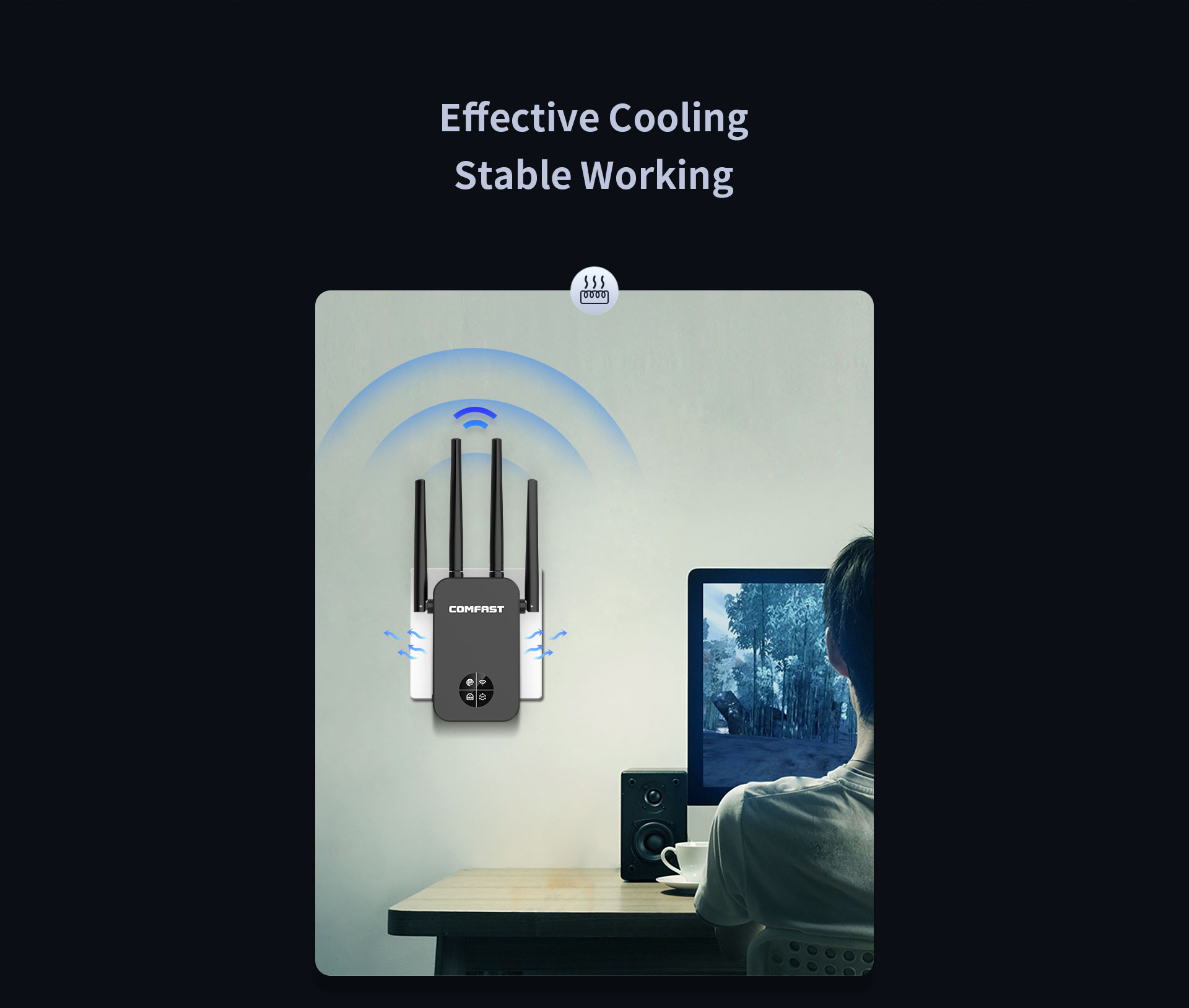

Efficient cooling design ensures reliable, long-term operation
-
Supports AP, Repeater, and Router modes for flexible application
-

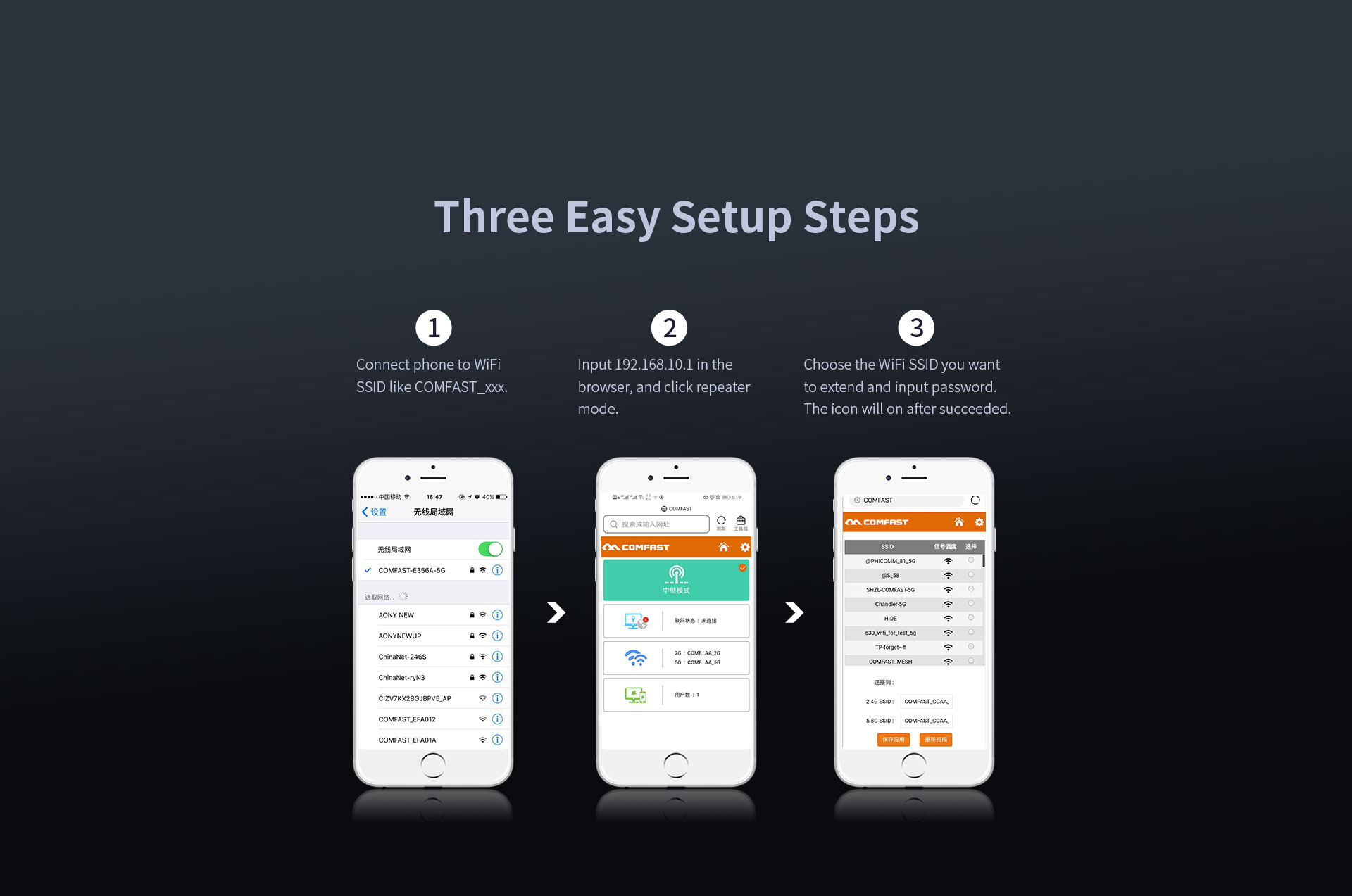

Simple setup with broad compatibility for quick pairing with mainstream routers
- Categories: Wireless Repeater, PWR Repeater
- Model: CF-WR761AC
Contact Us
Product Repair
Repair Address
9th-10th Floor, Building H, Huanan Digital Valley, No.1Huanan Road, Longhua District, Shenzhen, China
Telephone
Phone: 86-755-83790059
ZIP/Postal code:518109
Service Time
Monday to Friday
9:00-12:00,13:30-18:30
*The product images and demonstration scenarios on this page are for illustrative purposes only and may have slight differences from the actual product. Please refer to the physical product for accuracy.
*The data on this page are theoretical values obtained from COMFAST’s internal laboratory under specific testing conditions. Actual usage may vary due to individual product differences, software versions, usage conditions, and environmental factors. Please refer to real-world usage for accurate representation.
*To provide as accurate product information, specifications, and features as possible, COMFAST may periodically adjust and revise the text descriptions, image effects, and other content on this page to ensure alignment with actual product performance, specifications, packaging, and accessories. Should such adjustments or revisions become necessary, no prior notice will be provided.
| Product Model | CF-WR761AC |
| Antenna | 4*3dBi Dual Band Antennas |
| Wireless Standard | IEEE802.11ac/a/b/g/n |
| Transmission Rate | 2.4GHZ: 300Mbps; 5.8GHZ: 867Mbps |
| RF Parameters | Output Power (Max): 126mW (≈21dBm) Receiver Sensitivity (Min): -96dBm Frequency: 2.412~2.472GHz 5.180~5.825GHz |
| Button | 1*RESET Button |
| Physical Ports | 1*10/100Mbps LAN/WAN RJ45 Ethernet Port |
| Power | 100~240V/50/60Hz |
| Power Consumption | < 12W |
| MTBF | >250000H |
| Working Mode | AP / Repeater / Route Mode |
| Display screen | LCD |
| Physical Features | Size: 86(L)*45(W)*197(H) |
| Working Environment | Working Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Working Humidity: 10%~90%RH Non-condensing Storage Humidity: 5%~90%RH Non-condensing |
