Routeur sans fil AX2700 WiFi6 Mesh

CF-WR627AX is a WiFi6 mesh router with wireless speeds up to 2700 Mbps. It offers high bandwidth, low latency, and high efficiency, featuring one-click mesh networking for seamless whole-home coverage in large or complex living environments.

  • Brand chipset solution for stable performance

  • Concurrent 2.4 GHz & 5.8 GHz signals with strong stability and anti-interference

  • Mesh smart networking for full coverage in large households

  • Supports OFDMA, MU-MIMO, BSS and other technologies for delay-free connectivity

  • Next-generation WiFi6 supporting IEEE 802.11a/b/g/n/ac/ax standards

  • 2700 Mbps wireless speed for faster data transmission and improved online experience

  • WPA3 encryption to safeguard home WiFi security

  • High-gain four antennas for more sensitive signal reception

  • Imported ABS material with optimized thermal design for better heat dissipation

Nous contacter

Service en ligne

Heures d'ouverture : Du lundi au vendredi, de 9h00 à 12h00 et de 13h30 à 18h30 (sauf jours fériés).

Réparation des produits

Adresse de réparation

9e-10e étage, bâtiment H, Huanan Digital Valley, No.1Huanan Road, Longhua District, Shenzhen, Chine

Téléphone

Téléphone : 86-755-83790059
Code postal : 518109

Temps de service

Du lundi au vendredi
9:00-12:00,13:30-18:30

Description

Struggling with network problems?

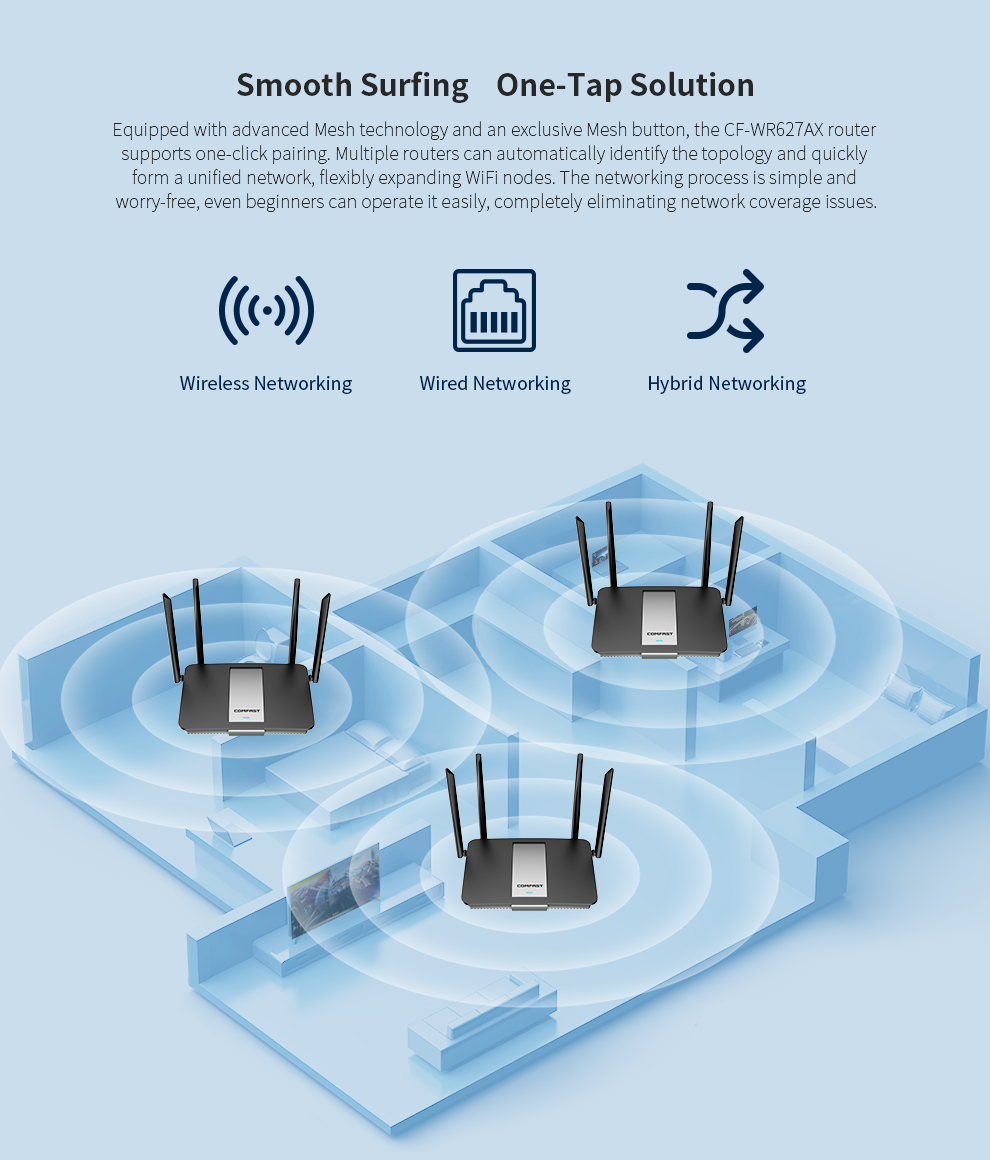

Smooth Surfing One-Tap Solution

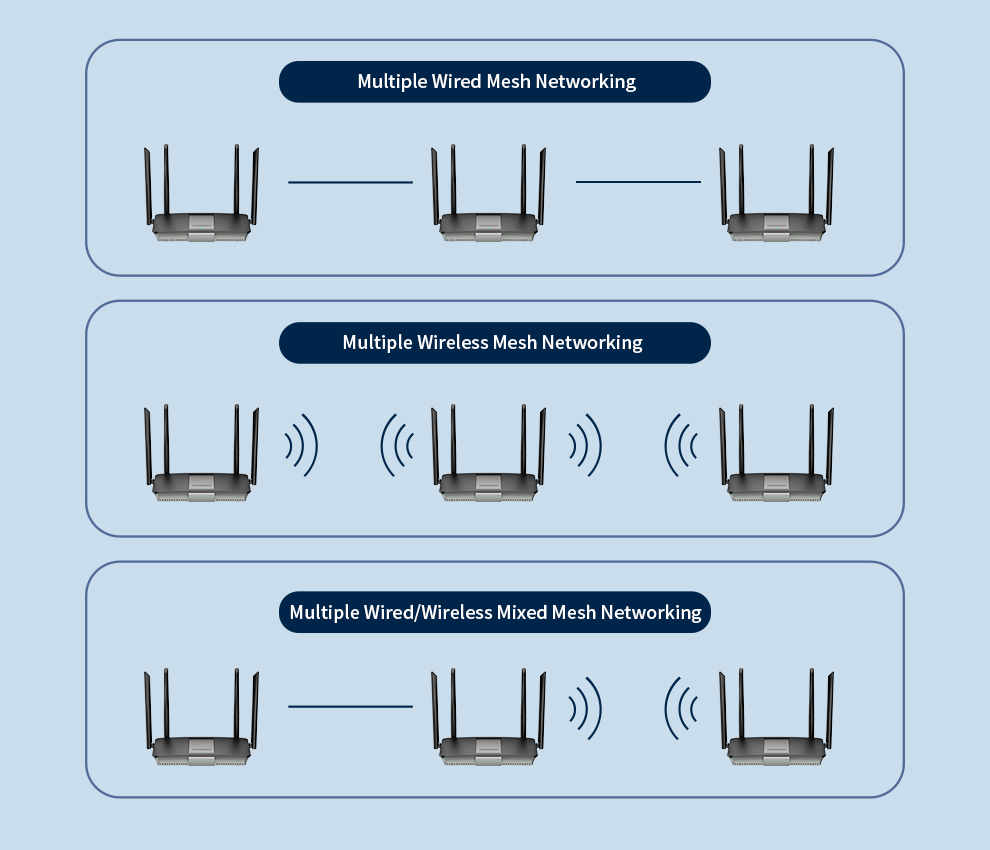

Equipped with advanced Mesh technology and an exclusive Mesh button, the CF-WR627AX

router supports one-click pairing. Multiple routers can automatically identify the topology and quickly

form a unified network, flexibly expanding WiFi nodes. The networking process is simple and worry-free,

even beginners can operate it easily, completely eliminating network coverage issues.

Hardcore Hardware Whole-Home Harmony

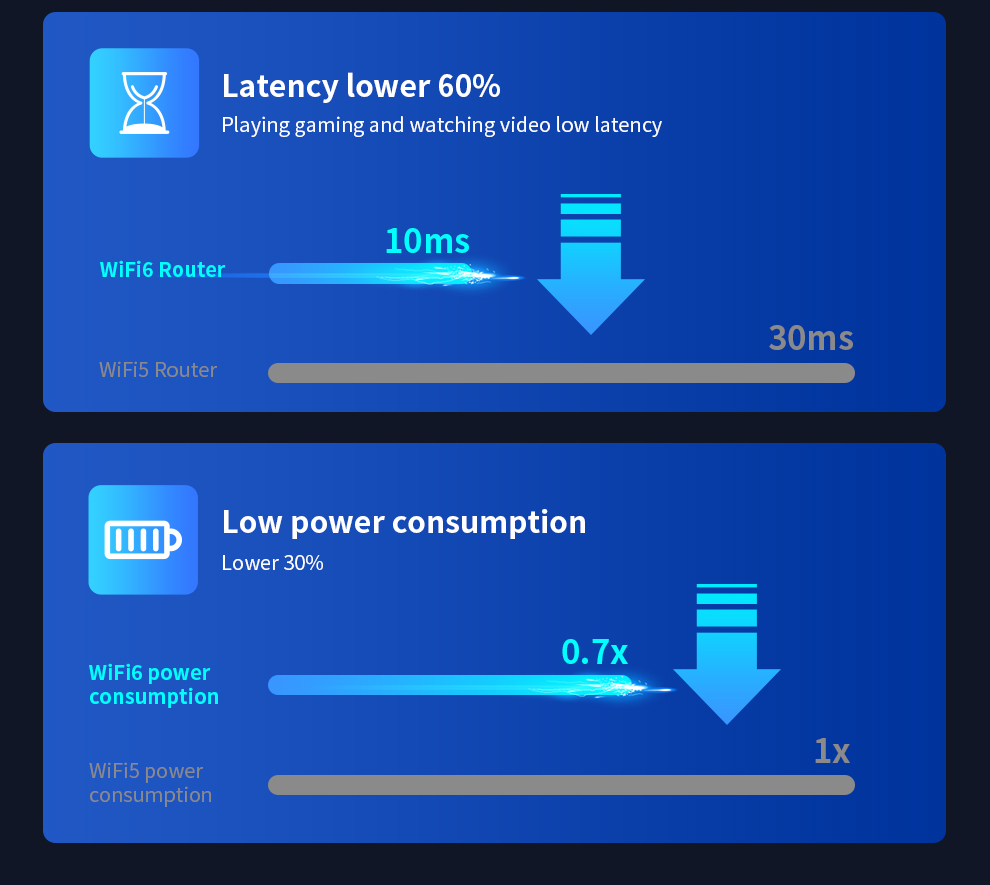

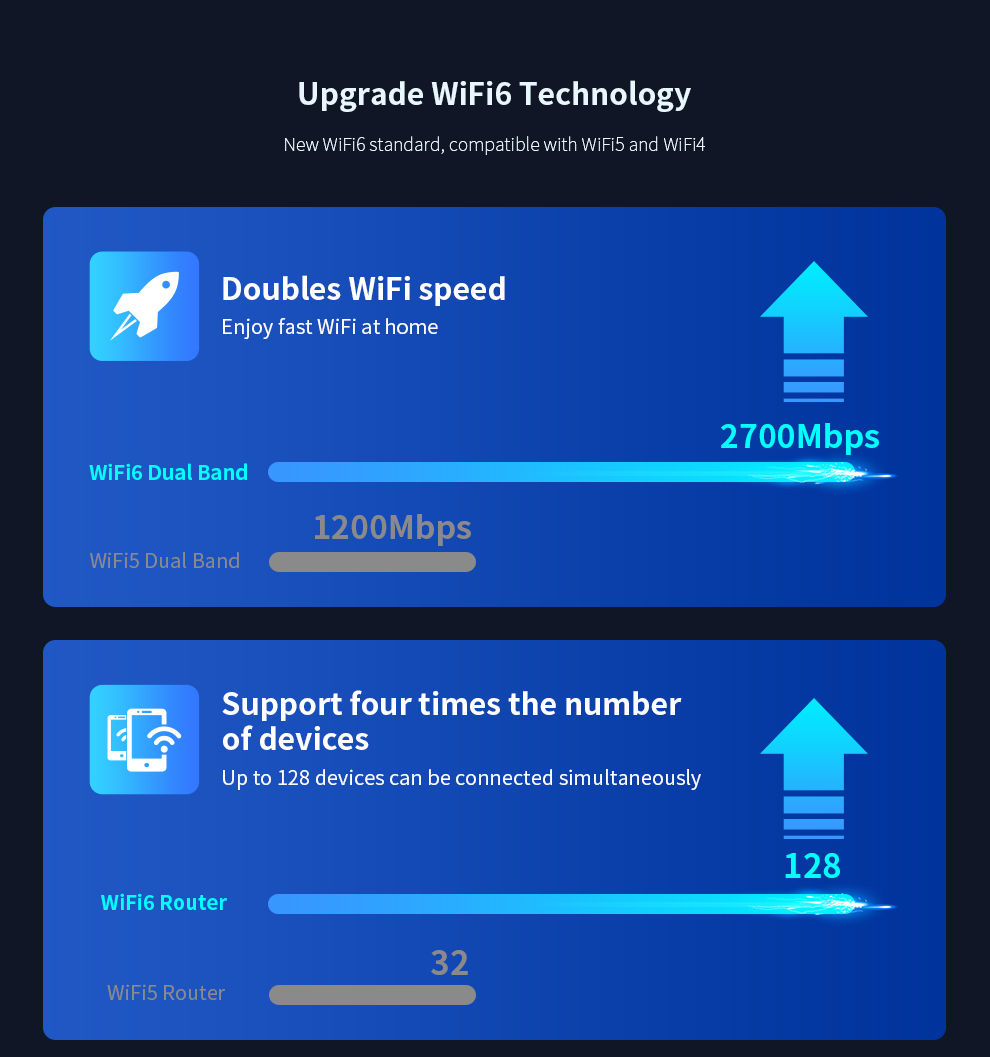

Upgrade WiFi6 Technology

New WiFi6 standard, compatible with WiFi5 and WiFi4

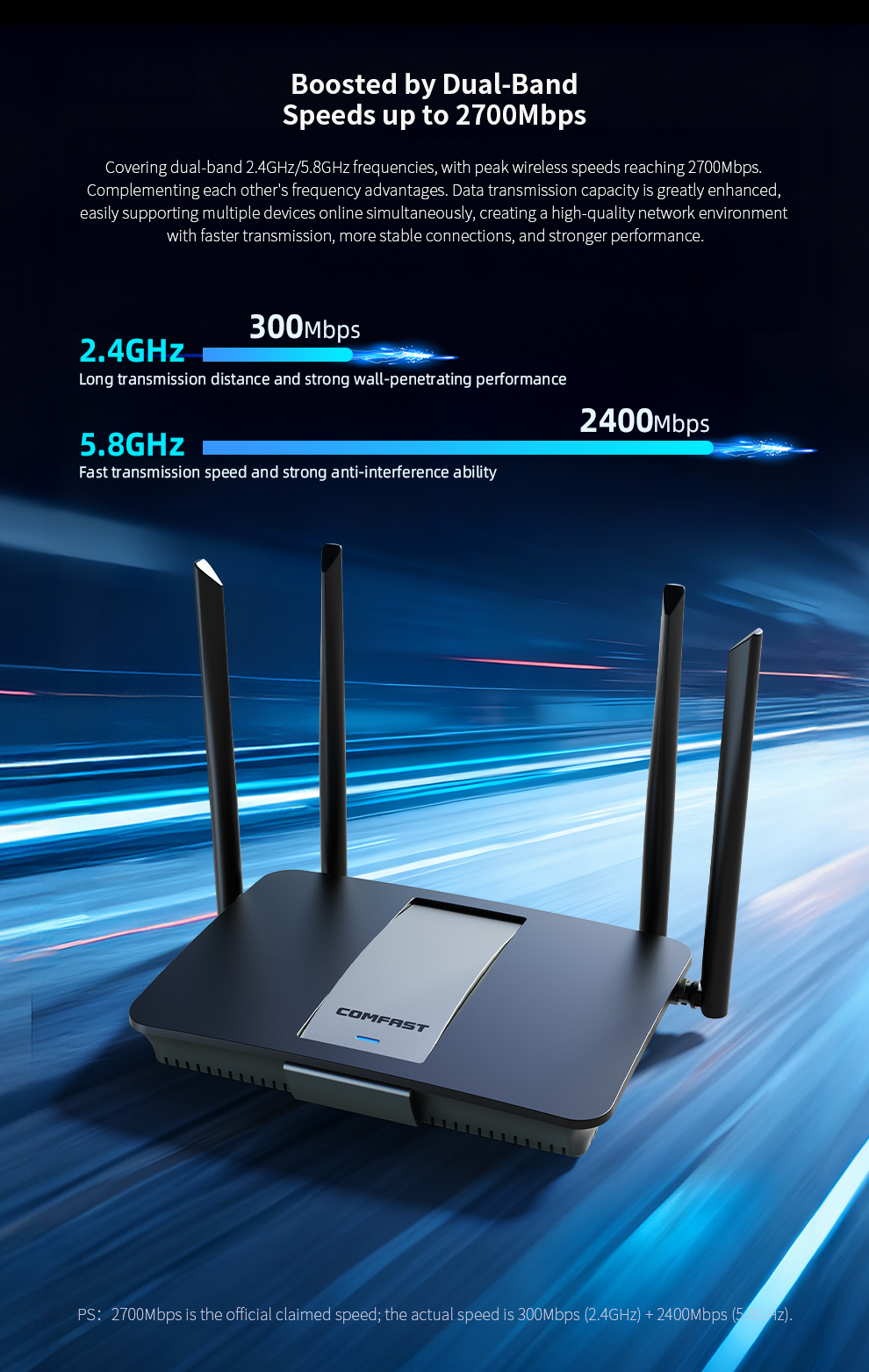

Boosted by Dual-Band Speeds up to 2700Mbps

Covering dual-band 2.4GHz/5.8GHz frequencies, with peak wireless speeds reaching 2700Mbps.

Complementing each other’s frequency advantages. Data transmission capacity is greatly enhanced,

 easily supporting multiple devices online simultaneously, creating a high-quality network environment

with faster transmission, more stable connections, and stronger performance.

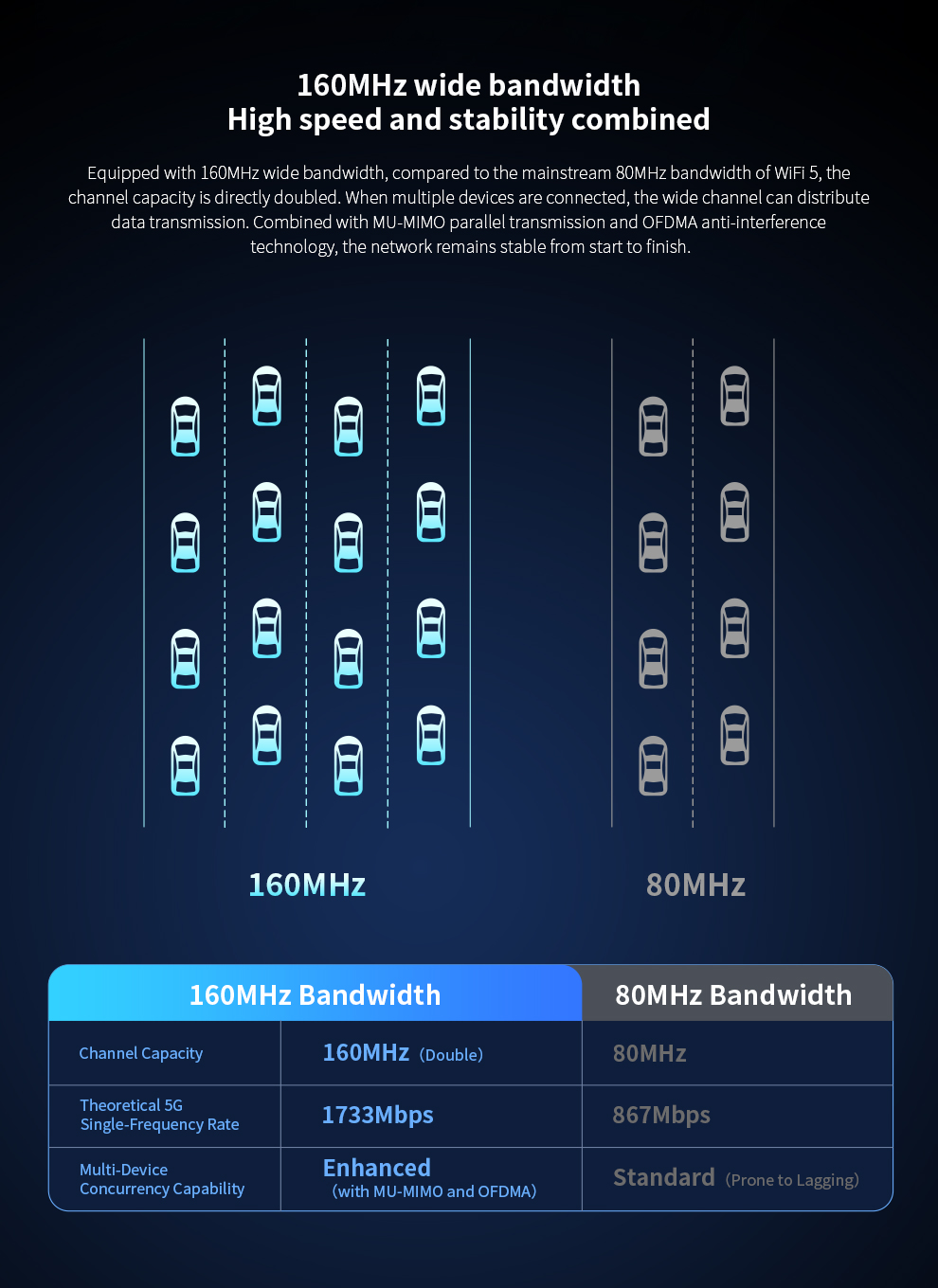

160MHz wide bandwidth High
speed and stability combined

Equipped with 160MHz wide bandwidth, compared to the mainstream 80MHz bandwidth of WiFi 5,

the channel capacity is directly doubled. When multiple devices are connected, the wide channel can

distribute data transmission. Combined with MU-MIMO parallel transmission and OFDMA anti-interference

technology, the network remains stable from start to finish.

Tri-Core Engine Inside All Performance Out

Equipped with a multi-core advanced process chip, the main control’s comprehensive processing

capacity is significantly enhanced. It effectively improves data forwarding and routing calculation

capabilities, expands the capacity of devices in high-load scenarios, and provides a more stable

and reliable high-speed connection foundation for modern smart home and commercial networks.

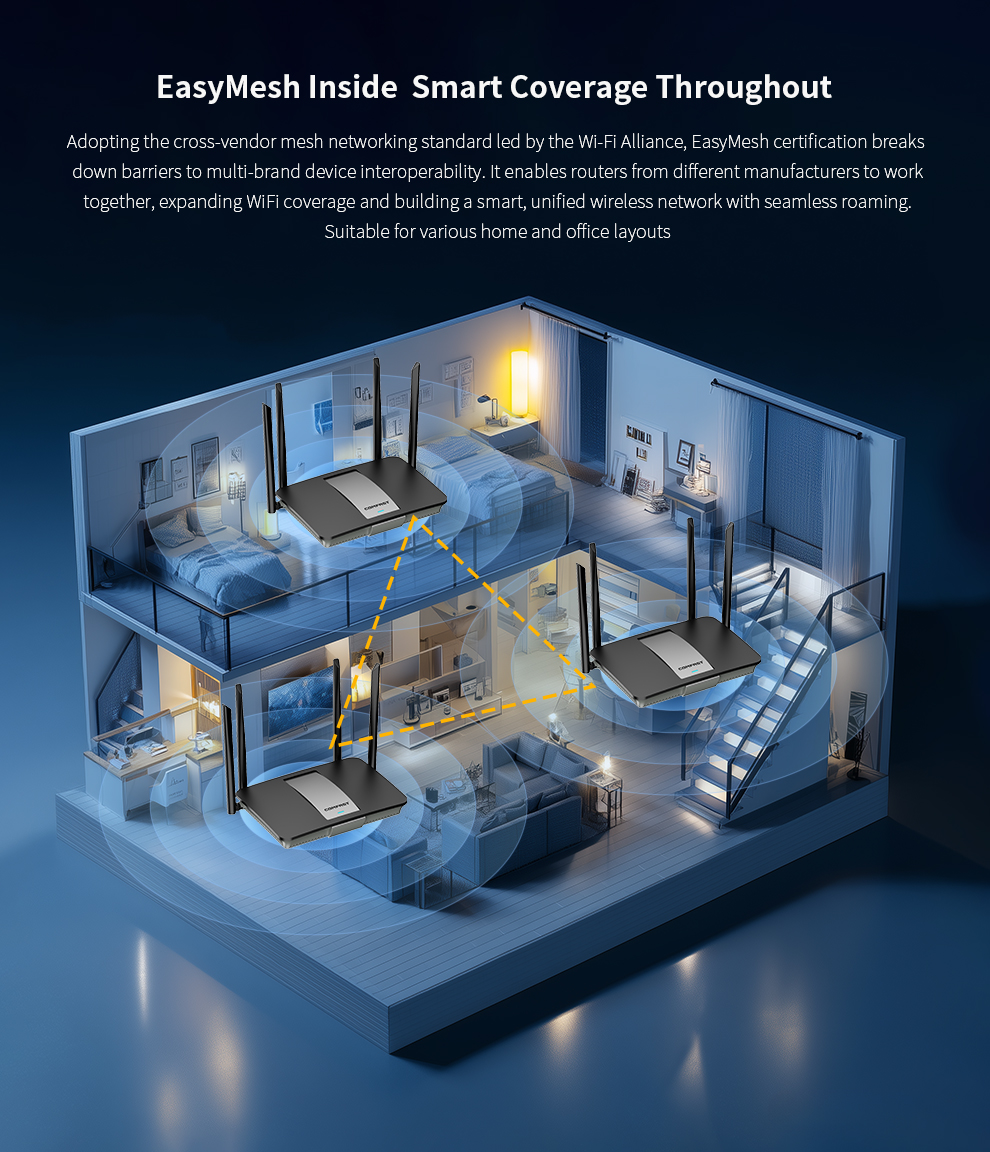

EasyMesh Inside Smart Coverage Throughout

Adopting the cross-vendor mesh networking standard led by the Wi-Fi Alliance, EasyMesh certification breaks down

barriers to multi-brand device interoperability. It enables routers from different manufacturers to work together,

expanding WiFi coverage and building a smart, unified wireless network with seamless roaming. Suitable for various home and office layouts

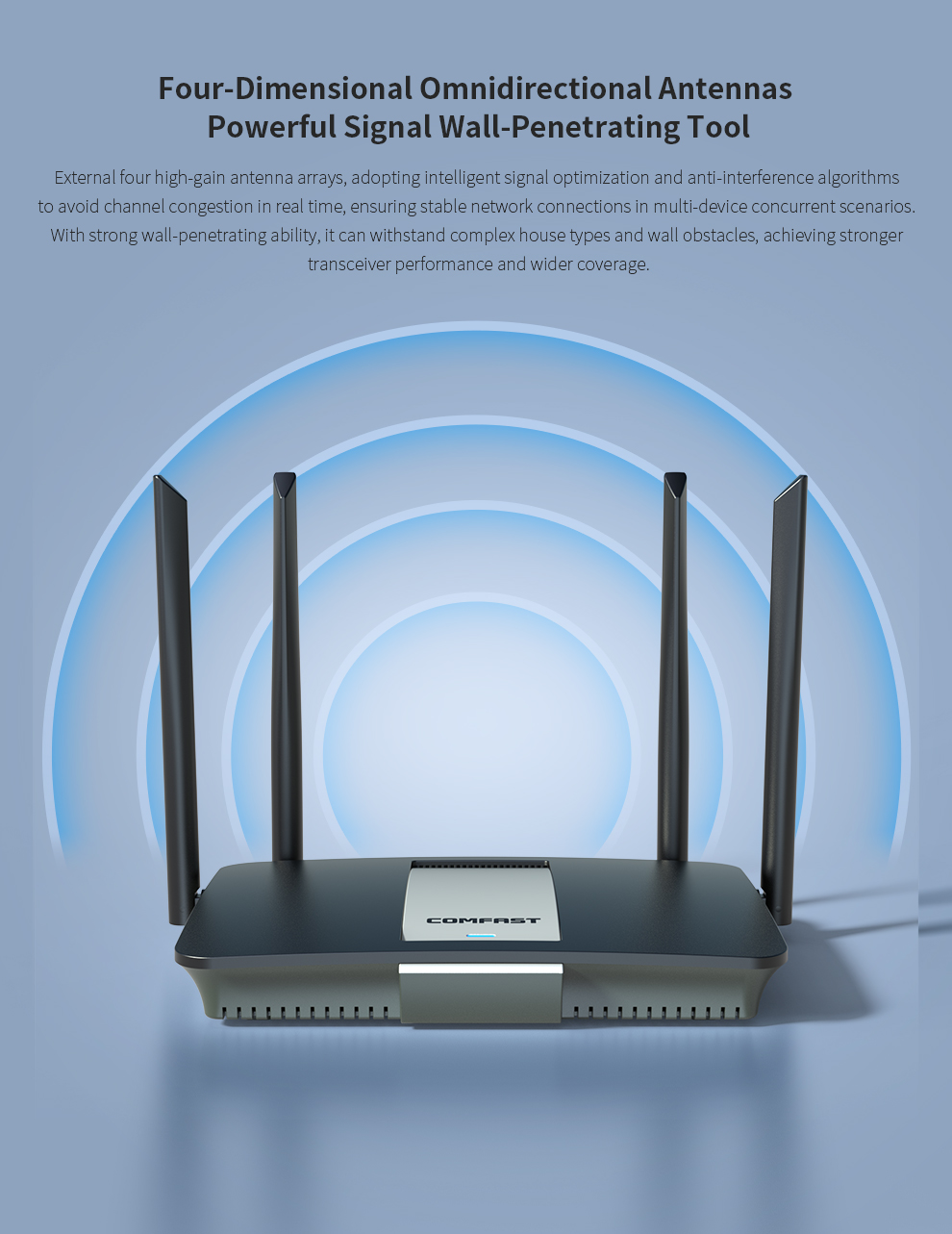

Four-Dimensional Omnidirectional Antennas
Powerful Signal Wall-Penetrating Tool

External four high-gain antenna arrays, adopting intelligent signal optimization and anti-interference algorithms

to avoid channel congestion in real time, ensuring stable network connections in multi-device concurrent

scenarios. With strong wall-penetrating ability, it can withstand complex house types and wall obstacles, achieving

stronger transceiver performance and wider coverage.

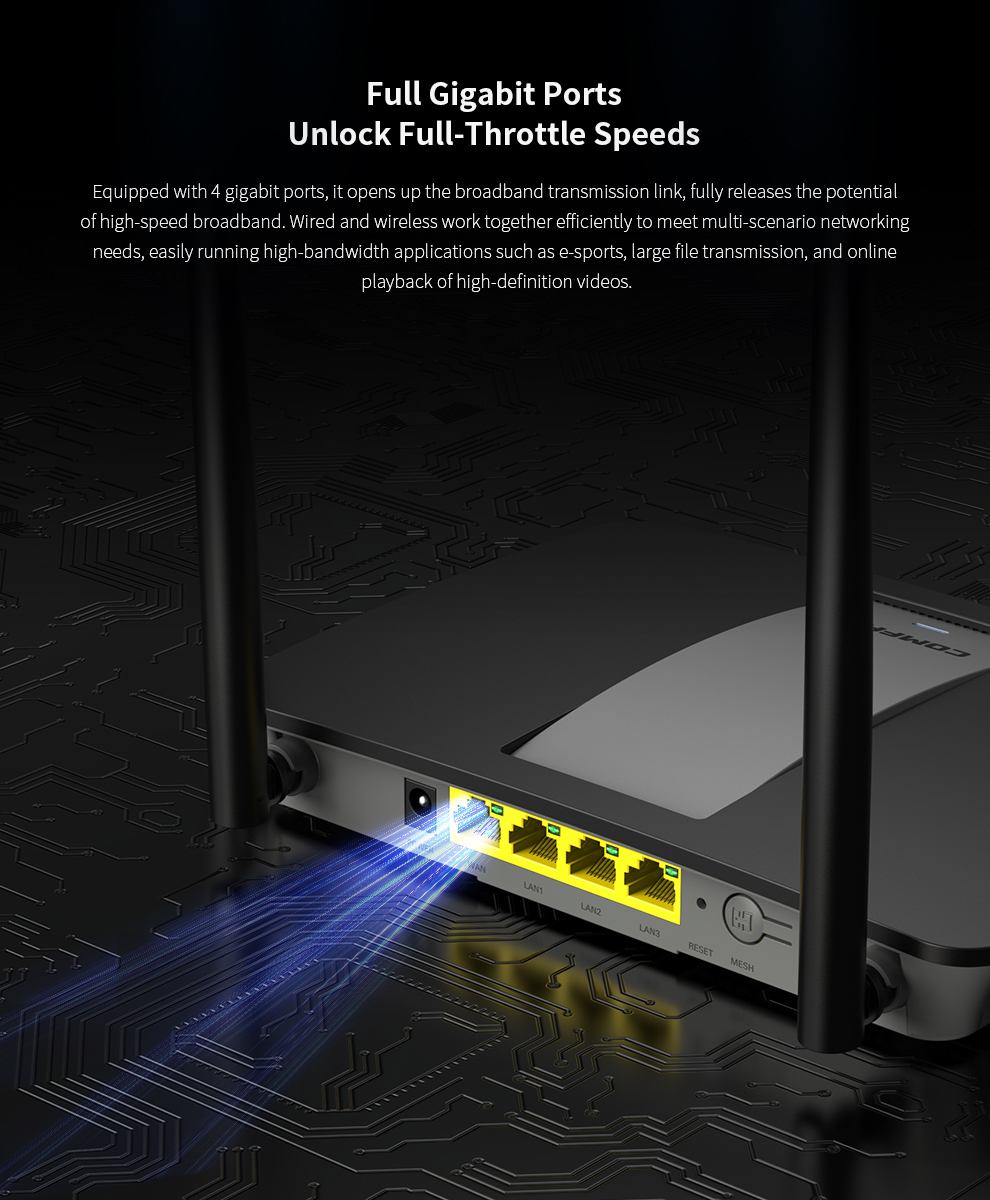

Full Gigabit Ports Unlock Full-Throttle Speeds

Equipped with 4 gigabit ports, it opens up the broadband transmission link, fully releases the potential of high-speed broadband.

Wired and wireless work together efficiently to meet multi-scenario networking needs, easily running high-bandwidth applications

such as e-sports, large file transmission, and online playback of high-definition videos.

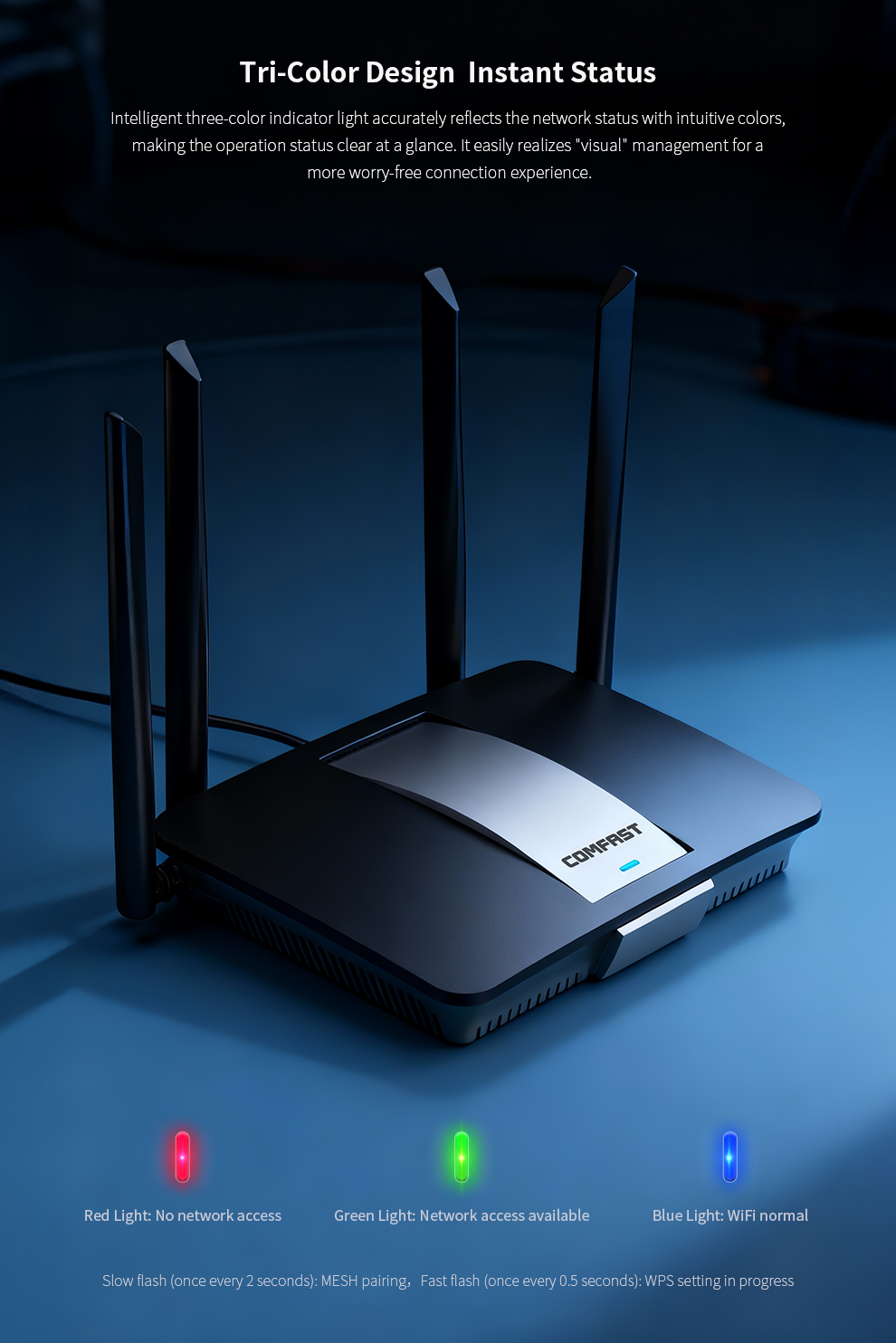

Tri-Color Design Instant Status

Intelligent three-color indicator light accurately reflects the network status with intuitive colors, making the

operation status clear at a glance. It easily realizes “visual” management for a more worry-free connection experience.

Efficient Heat Dissipation for Stable and Durable Use

The bottom of the fuselage is equipped with a multi-hole heat dissipation structure.

Excellent heat dissipation efficiency quickly discharges operating heat, effectively avoiding overheating and lagging risks,

allowing you to enjoy a continuous, stable, and fast network experience.

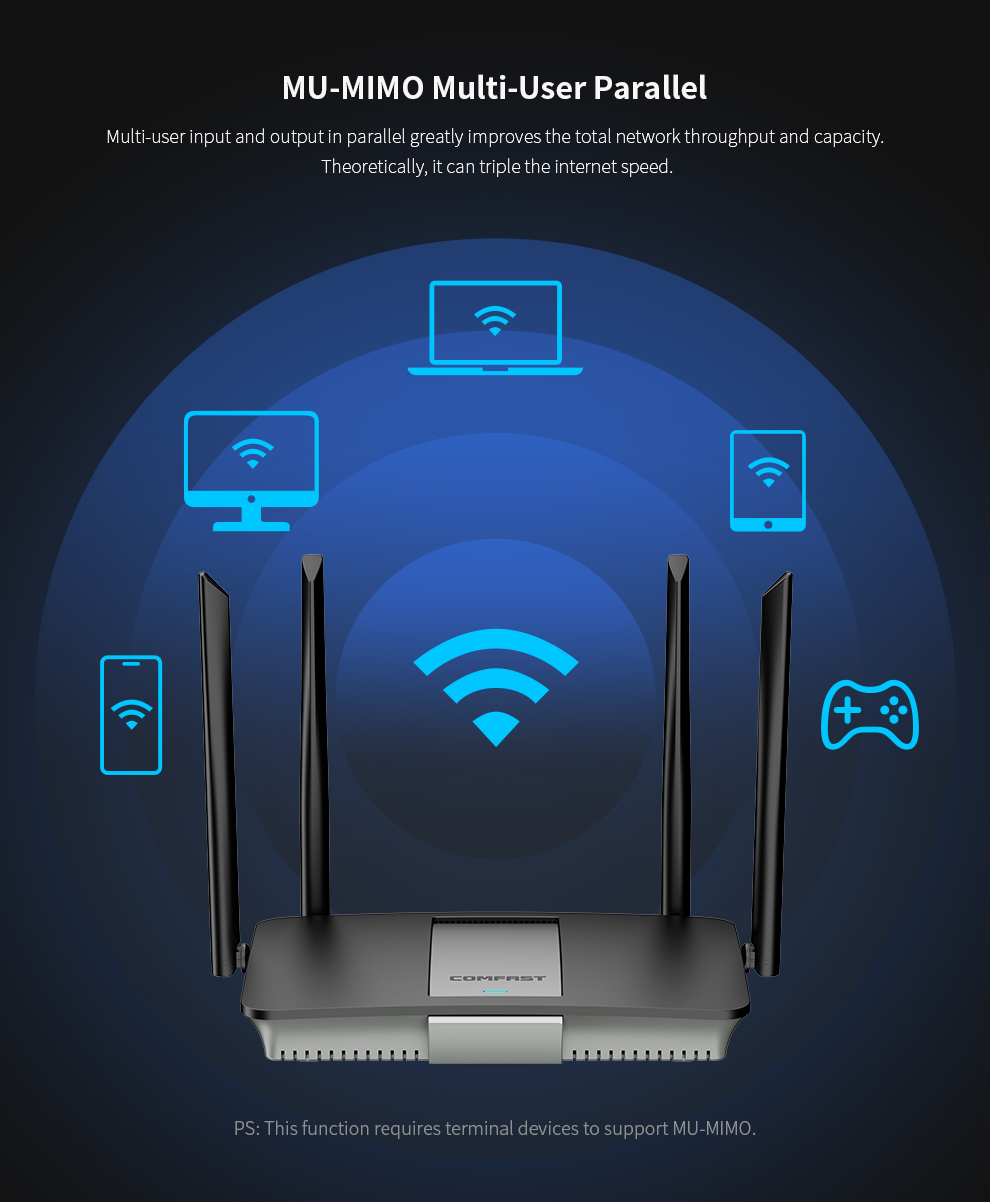

MU-MIMO Multi-User Parallel

Multi-user input and output in parallel greatly improves the total network throughput and capacity.

Theoretically, it can triple the internet speed.

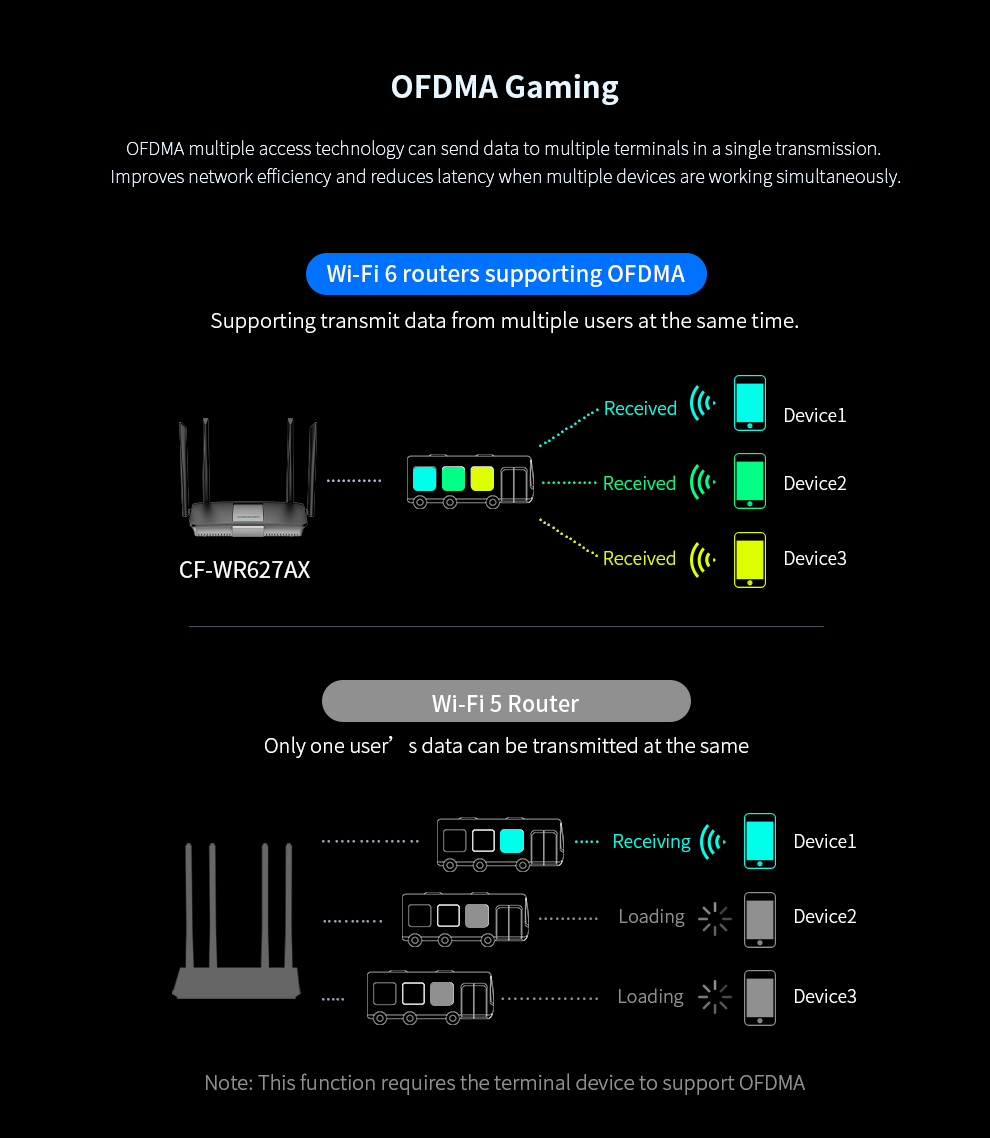

Jeux OFDMA

La technologie d'accès multiple OFDMA permet d'envoyer des données à plusieurs terminaux en une seule transmission.

Améliore l'efficacité du réseau et réduit la latence lorsque plusieurs appareils fonctionnent simultanément.

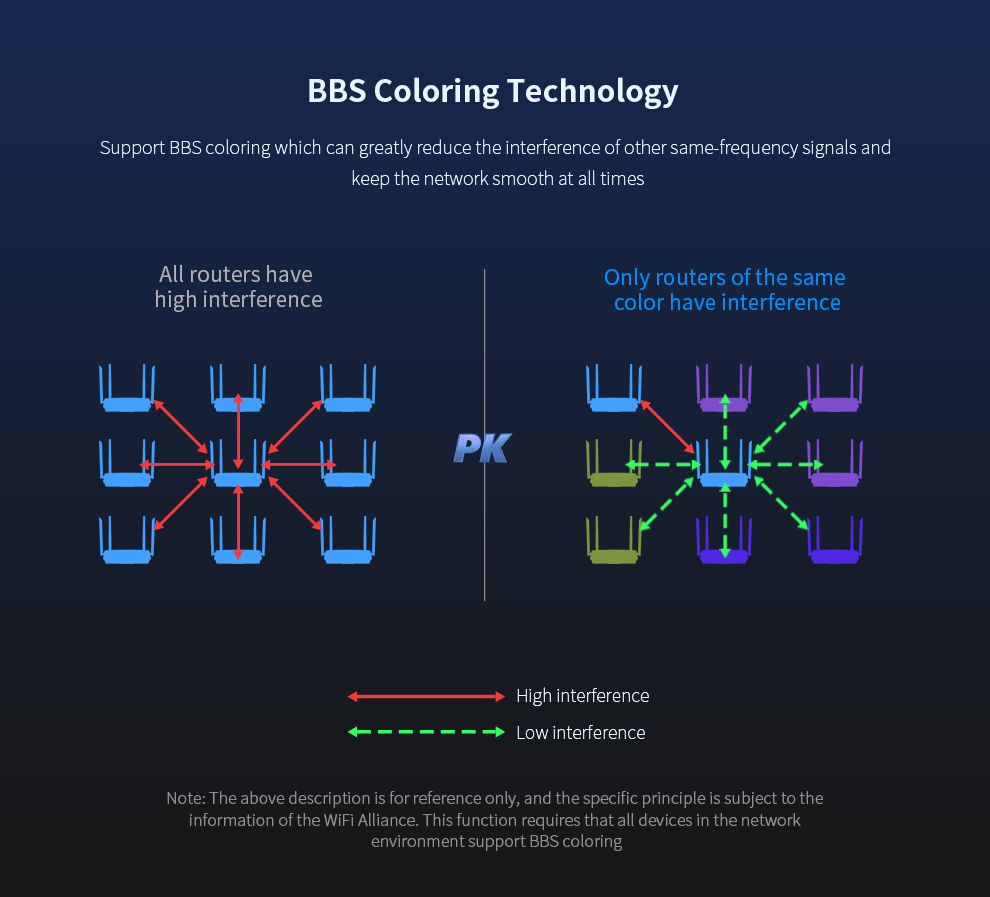

Technologie de coloriage BBS

Prise en charge de la coloration BBS, ce qui permet de réduire considérablement les interférences avec d'autres réseaux de même fréquence.

les signaux et maintenir la fluidité du réseau à tout moment

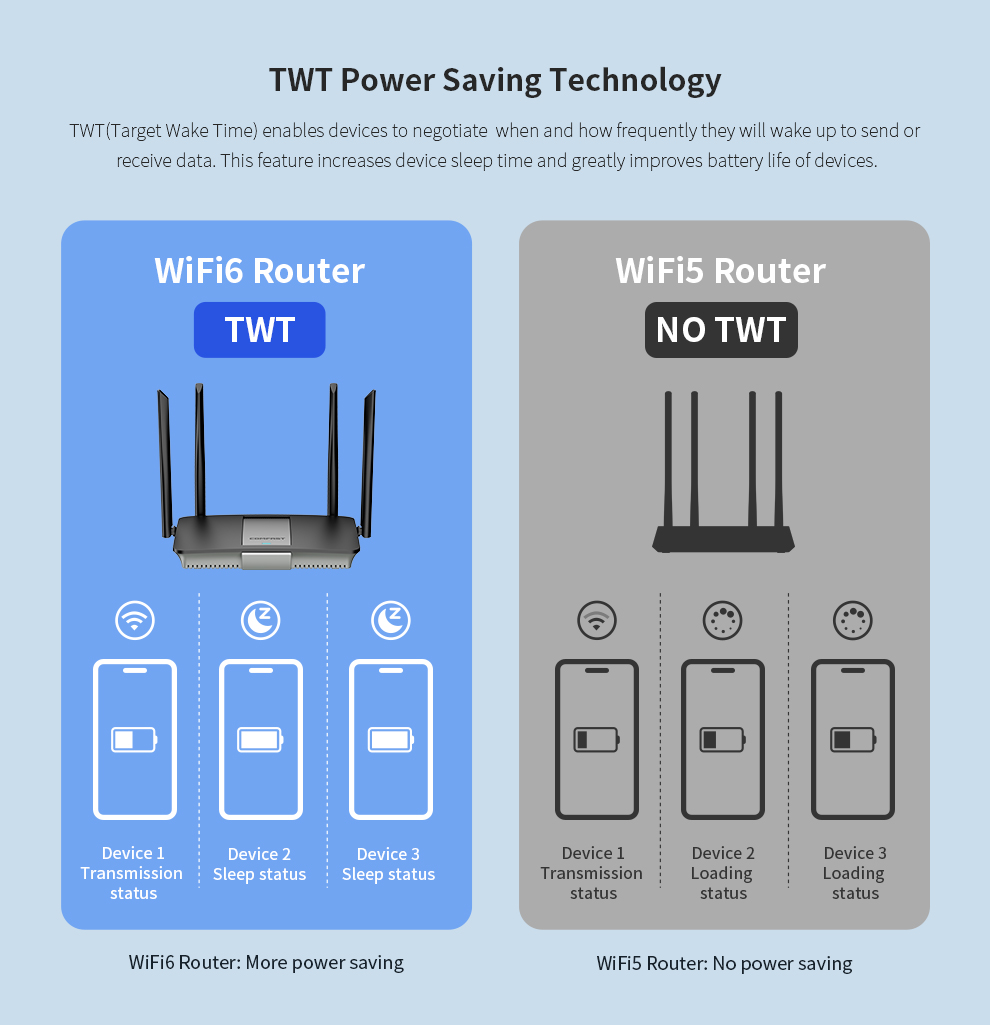

TWT Technologie d'économie d'énergie

TWT(Target Wake Time) enables devices to negotiate when and how frequently

they will wake up to send or receive data. This feature increases device sleep time and

greatly improves battery life of devices.

Prise en charge de l'IPV6, compatible avec l'IPV4

The capacity of IP address space has been greatly improved, the forwarding efficiency

of router has been greatly improved, and playing games, watching videos are smoother

*Les images du produit et les scénarios de démonstration présentés sur cette page sont fournis à titre d'illustration uniquement et peuvent présenter de légères différences par rapport au produit réel. Veuillez vous référer au produit physique pour plus de précision.
*Les données figurant sur cette page sont des valeurs théoriques obtenues par le laboratoire interne de COMFAST dans des conditions de test spécifiques. L'utilisation réelle peut varier en fonction des différences entre les produits, des versions logicielles, des conditions d'utilisation et des facteurs environnementaux. Veuillez vous référer à une utilisation réelle pour une représentation précise.
*Afin de fournir des informations aussi précises que possible sur les produits, leurs spécifications et leurs caractéristiques, COMFAST peut périodiquement ajuster et réviser les descriptions de texte, les effets d'image et d'autres contenus de cette page pour s'assurer qu'ils correspondent aux performances, aux spécifications, à l'emballage et aux accessoires réels des produits. Si de tels ajustements ou révisions s'avèrent nécessaires, aucun préavis ne sera donné.

Modèle de produit CF-WR627AX
Spécifications du matériel DDR:128MB Flash:128MB; Maximum coverage diameter: 30m (indoor) 100m (no shielding)
Antenne External 4*5dBi Antennas
Norme sans fil IEEE802.11a/b/g/n/ac/ax
Taux de transmission sans fil 2.4GHz: 300Mbps; 5.8GHz: 2400Mbps
RF parameters Output Power (Max):23dBm;
Sensibilité de réception (Min):-96dBm ;
Working Frequency:802.11b/g/n: 2.412GHz-2.472GHz
802.11a/an/ac/ax:5.180GHz-5.825GHz
Ports physiques 1*10/100/1000mbps adaptive WAN port;
3*10/100/1000mbps adaptive LAN ports;
Bouton 1*RESET, 1*MESH; 1 * DC Power Supply Interface
Alimentation électrique DC Direct Current; 12VDC 1A
Safety features WPA-PSK/WPA2-PSK/WPA3-SAE

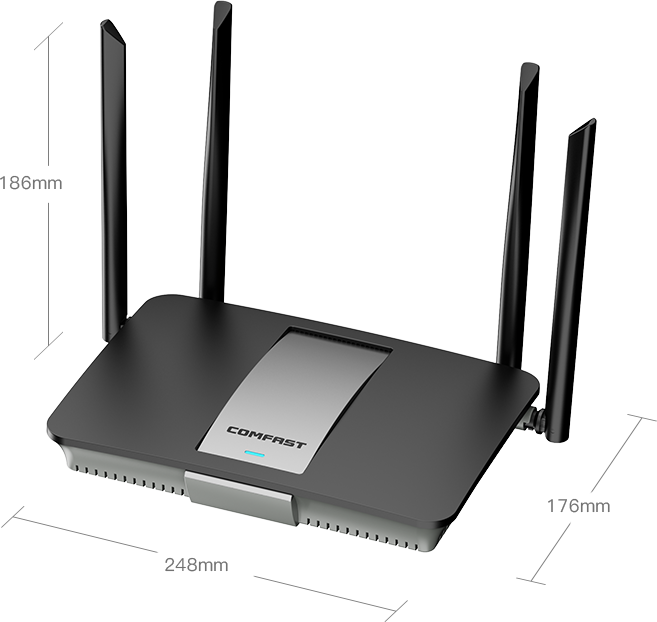

Caractéristiques physiques Plastic shell, Size:176mm * 248mm * 186mm
Témoin lumineux 1*Tricolour Light
Environnement de travail Température de fonctionnement : -10℃~55℃
Température de stockage : -40℃~70℃
Humidité de fonctionnement : 10%~90%RH sans condensation
Humidité de stockage : 5%~90%RH Sans condensation
