CF-WR630AX is a WiFi 6 intelligent Mesh networking router with wireless speeds of up to 3000Mbps. It features high bandwidth, low latency, high efficiency, wide coverage, and rich user interfaces, and is equipped with Mesh functionality for one-touch interconnection and easy network setup.
Full gigabit Ethernet ports for smoother wired transmission
Four high-gain antennas for more sensitive signal reception
Imported ABS material with excellent heat resistance and pressure durability
Status indicator lights for easy monitoring of device operation
2.4& 5.8GHz dual-band concurrency for more stable signals and efficient anti-interference
Next-generation WiFi 6 supporting IEEE 802.11a/b/g/n/ac/ax standards

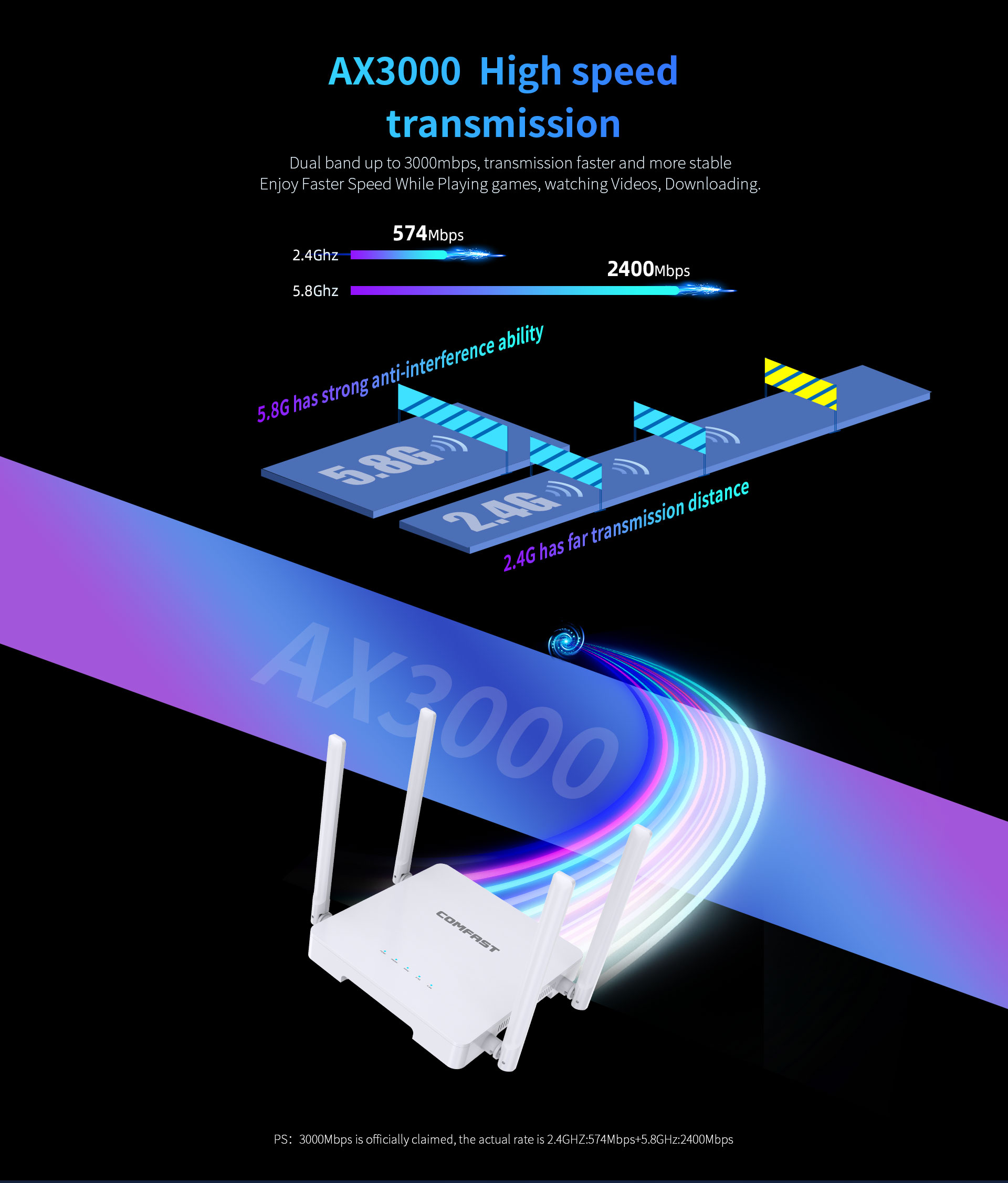

3000Mbps wireless speed for high-speed transmission and a better online experience

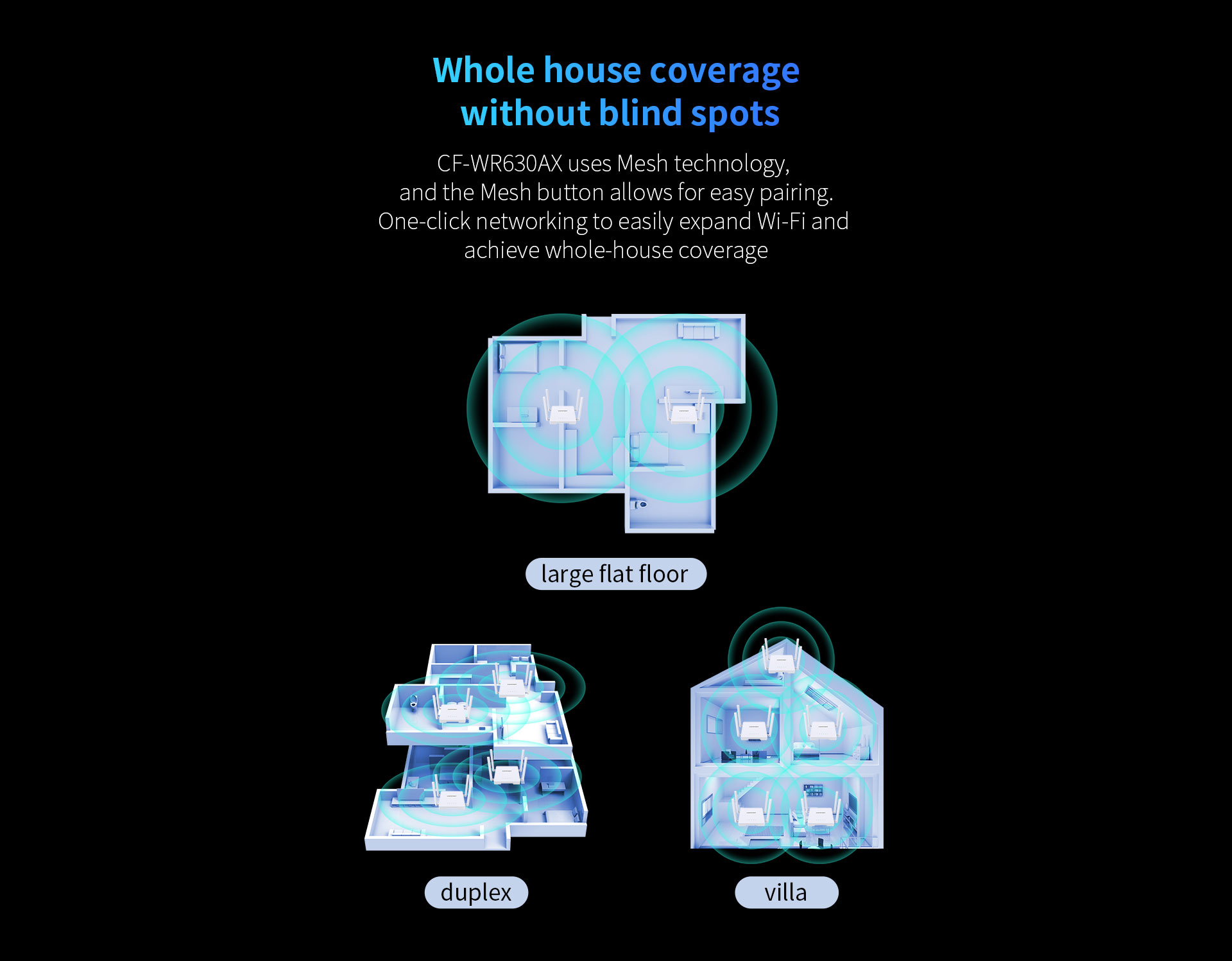

Mesh intelligent networking enabling full network coverage for ultra-large homes
WPA3 encryption to safeguard home WiFi security
Orari di servizio: Lun-Ven 9:00-12:00, 13:30-18:30 (esclusi i giorni festivi)
9°-10° Piano, Edificio H, Huanan Digital Valley, No.1Huanan Road, Longhua District, Shenzhen, Cina
Telefono: 83790059
CAP/Codice postale: 518109
Da lunedì a venerdì
9:00-12:00,13:30-18:30
Consult with us now for guidance from a leading WiFi engineer with 17 years of experience. Don’t miss this excellent opportunity to access expert WiFi coverage and surveillance transmission solutions, backed by our high‑quality products and support!
Direct-from-Factory
Ready to Ship
Direct-from-Factory
Ready to Ship
Direct-from-Factory
Dust Free Workshop
Testing Equipment
Assembly Line
PCBA Processing
Chip Mounter
Fine Detection
Warehouse Logistics


*Le immagini del prodotto e gli scenari dimostrativi in questa pagina sono solo a scopo illustrativo e possono presentare leggere differenze rispetto al prodotto reale. Per una maggiore precisione, fare riferimento al prodotto fisico.
*I dati riportati in questa pagina sono valori teorici ottenuti dal laboratorio interno di COMFAST in condizioni di prova specifiche. L'utilizzo effettivo può variare a causa delle differenze tra i singoli prodotti, le versioni del software, le condizioni di utilizzo e i fattori ambientali. Per una rappresentazione accurata, fare riferimento all'uso reale.
*Per fornire informazioni, specifiche e caratteristiche del prodotto il più possibile accurate, COMFAST può periodicamente regolare e rivedere le descrizioni del testo, gli effetti delle immagini e altri contenuti di questa pagina per garantire l'allineamento con le prestazioni, le specifiche, la confezione e gli accessori effettivi del prodotto. Qualora tali adeguamenti o revisioni si rendessero necessari, non verrà fornito alcun preavviso.
| Specifiche hardware | DDR: 256MB; Flash: 128MB; Number of machines: 128 Maximum coverage diameter: 30m(indoor) 100m(no shielding) |
| Antenna | External 2*2.4GHZ(5dBi)+2*5GHZ(5dBi) Antennas |
| Standard wireless | IEEE802.11a/b/g/n/ac/ax |
| Tariffa wireless | 2.4GHz: 573Mbps; 5.8GHz: 2402Mbps |
| Parametri RF | Output Power (Max): 20dBm; Receiving Sensitivity (Min): -96dBm; Wireless Channel: 2.4GHz: 1~13; 5GHz: 36,40,44,48,52,60,64, 149,153,157,161,165 |
| Porte fisiche | 1*porta WAN adattiva da 10/100/1000mbps; 3*10/100/1000mbps adaptive LAN ports: |
| Pulsante | 1*WPS/RESET, 1*MESH; 1* DC Power Supply Interface |
| Alimentazione | DC Direct Current; 12VDC 1A |
| Caratteristiche di sicurezza | WPA-PSK/WPA2-PSK/WPA3-SAE |
| Caratteristiche fisiche | Plastic shell, Size: 160mm * 160mm * 168mm |
| Indicator light | POWER MESH WAN 2.4G 5.8G |
| Ambiente di lavoro | Temperatura di lavoro: 0℃~40℃ Temperatura di conservazione: -40℃~70℃ Umidità di lavoro: 10%~90%RH senza condensa Umidità di stoccaggio: 5%~90%RH senza condensa |
