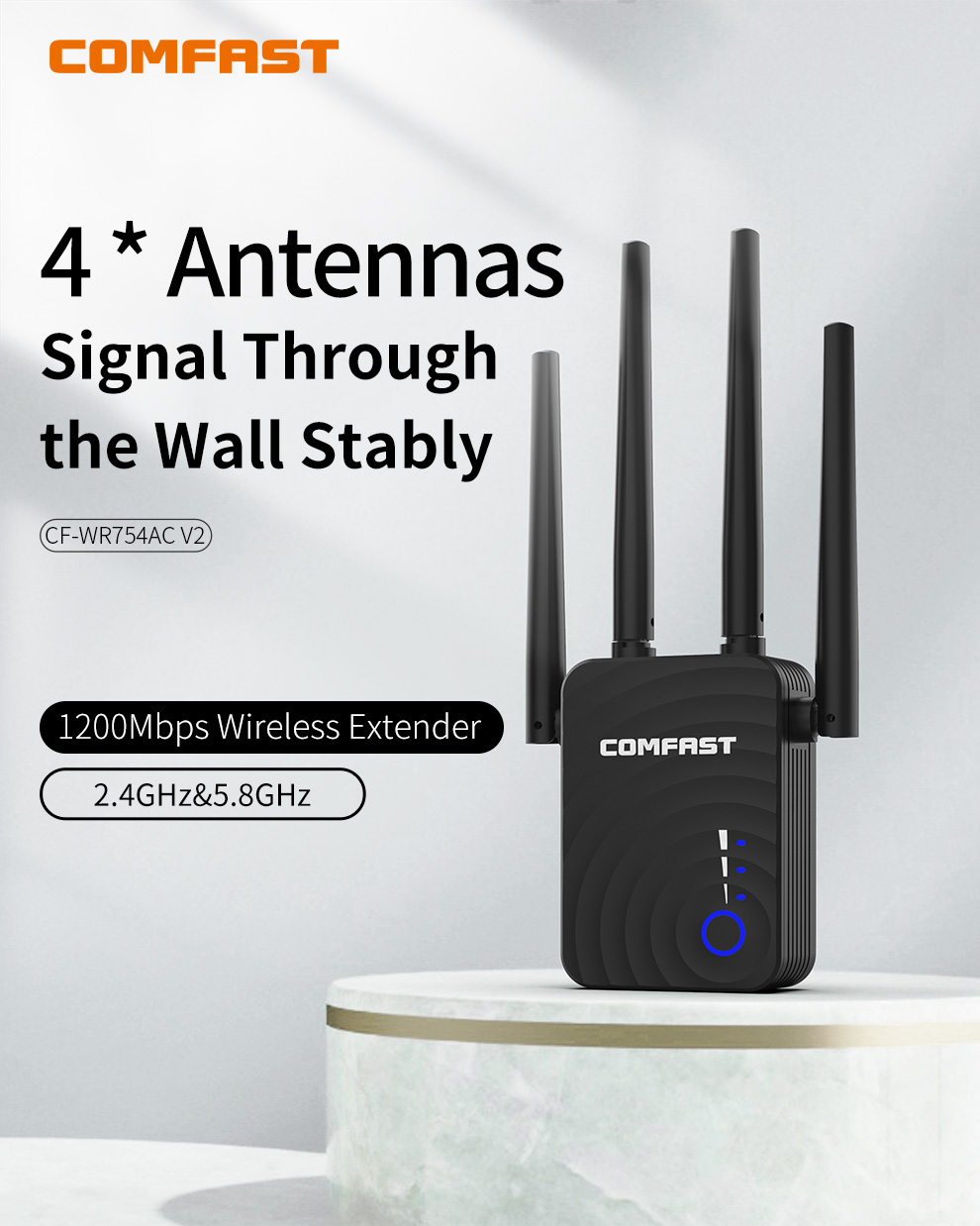

1200Mbpsワイヤレス・エクステンダー

The CF-WR754AC V2 is a high-performance 1200Mbps dual-band wall-penetrating repeater, featuring a powerful quad-antenna array for extended and stable WiFi coverage. It effortlessly eliminates dead zones in large homes, villas, and multi-story residences, providing seamless whole-home wireless connectivity for all your streaming and browsing needs.

  • Refined sand-blasted finish for a tech aesthetic

  • Extensive ventilation for excellent thermal performance

  • Quad high-gain dual-band external antennas

  • Simultaneous dual-band support on 2.4GHz and 5.8GHz

  • Delivers wireless speeds up to 1200Mbps

  • Supports wireless-to-wireless, wireless-to-wired, and wired-to-wireless modes

  • Equipped with two 10/100Mbps auto-sensing Ethernet ports

  • Supports repeater, AP, router, and bridge operation modes

  • Smart indicator clearly shows power, WiFi, and signal strength

お問い合わせ

オンラインサービス

営業時間月~金 9:00~12:00、13:30~18:30(祝日を除く)

製品修理

修理住所

中国深圳市龍華区華南路1号華南デジタルバレーH棟9-10階

電話

電話:86-755-83790059
郵便番号:518109

サービス時間

月曜日から金曜日
9:00-12:00,13:30-18:30

説明

why do we need COMFAST WiFi repeater

It’s necessary to get a good WiFi repeater

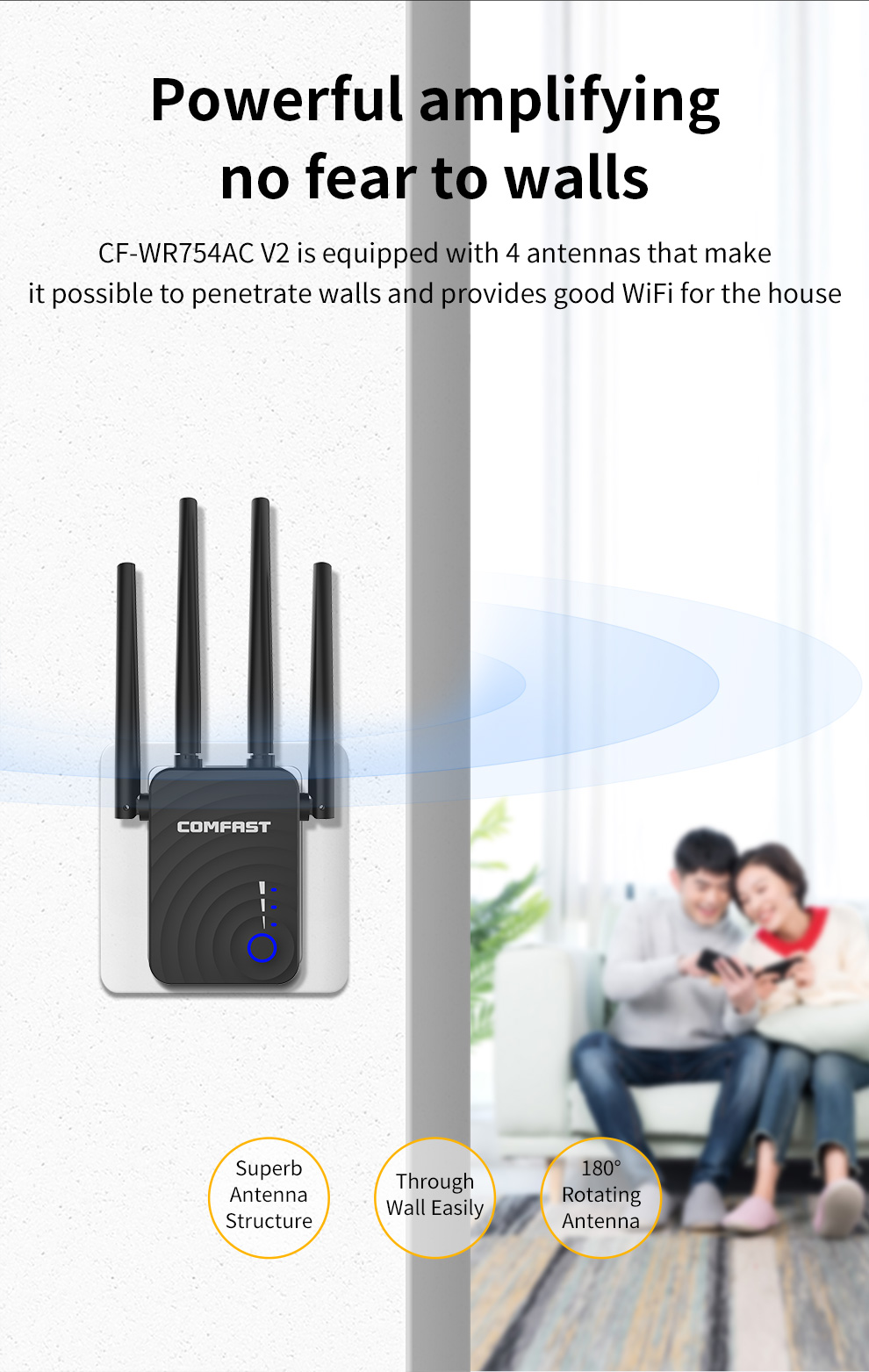

Powerful amplifying no fear to walls

CF-WR754AC V2 is equipped with 4 antennas that make it possible to

penetrate walls and provides good WiFi for the house

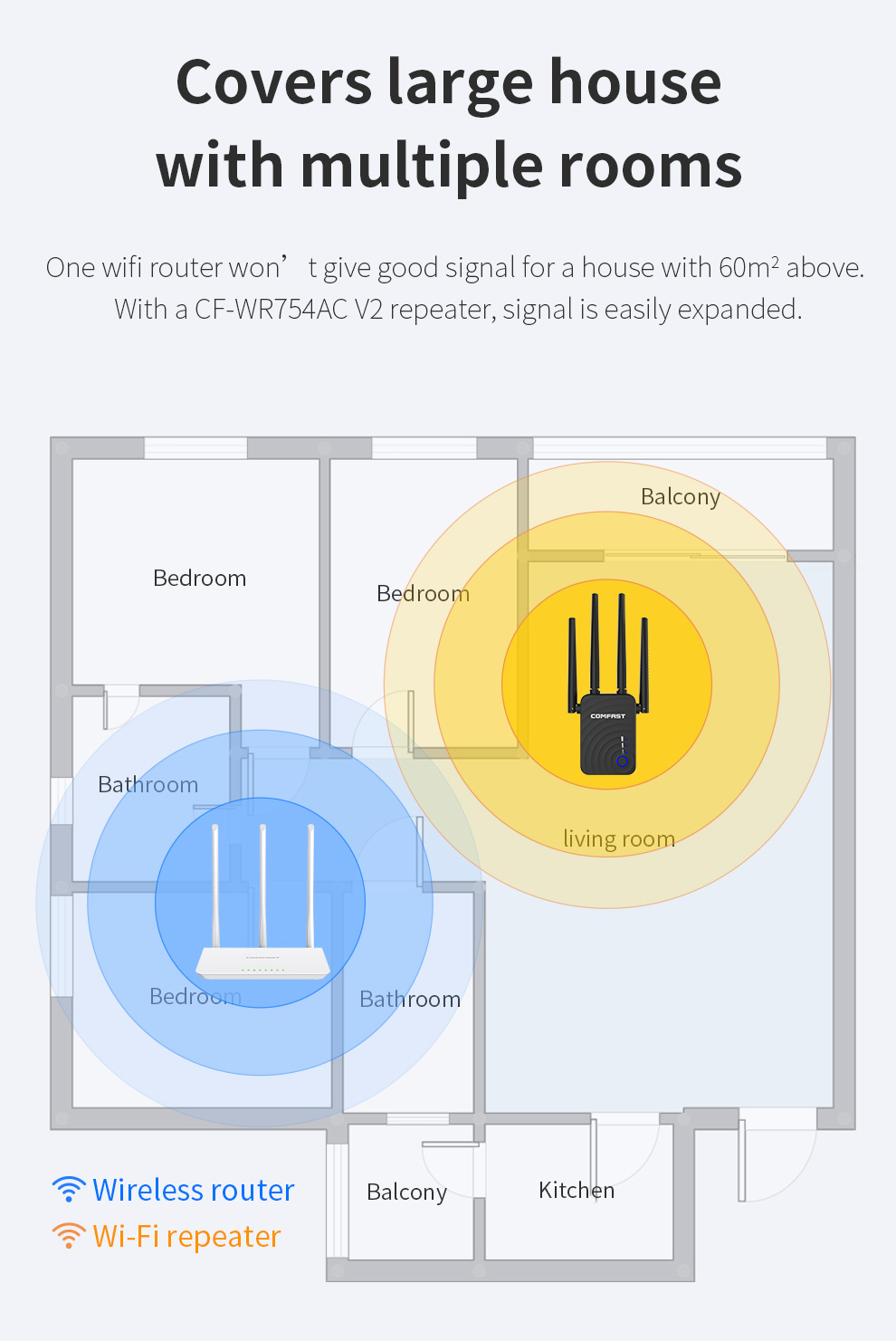

Covers large house with multiple rooms

One wifi router won’ t give good signal for a house with 60㎡ above.

With a CF-WR754AC V2 repeater, signal is easily expanded.

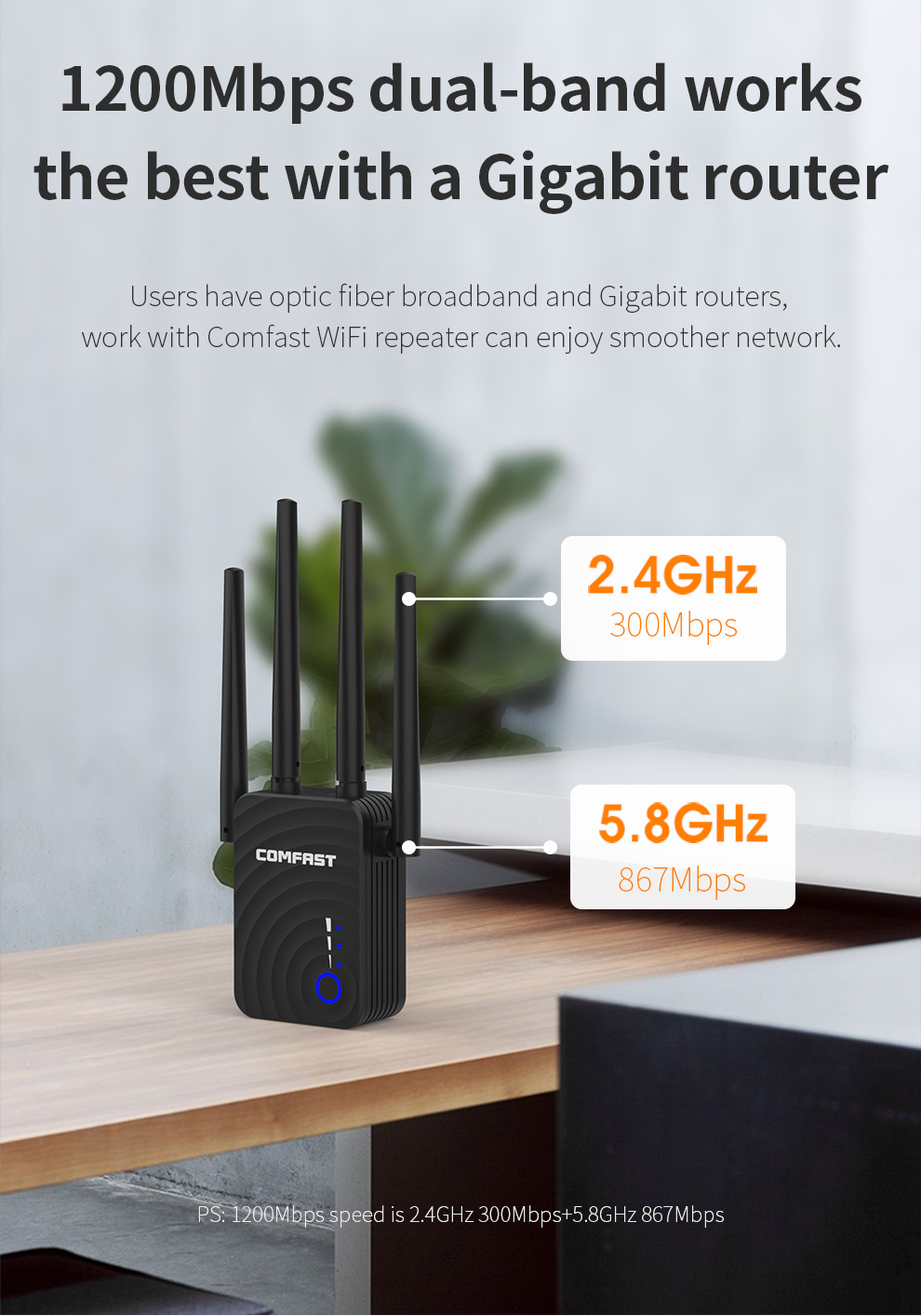

1200Mbps dual-band works
the best with a Gigabit router

Users have optic fiber broadband and Gigabit routers,

work with COMFAST WiFi repeater can enjoy smoother network.

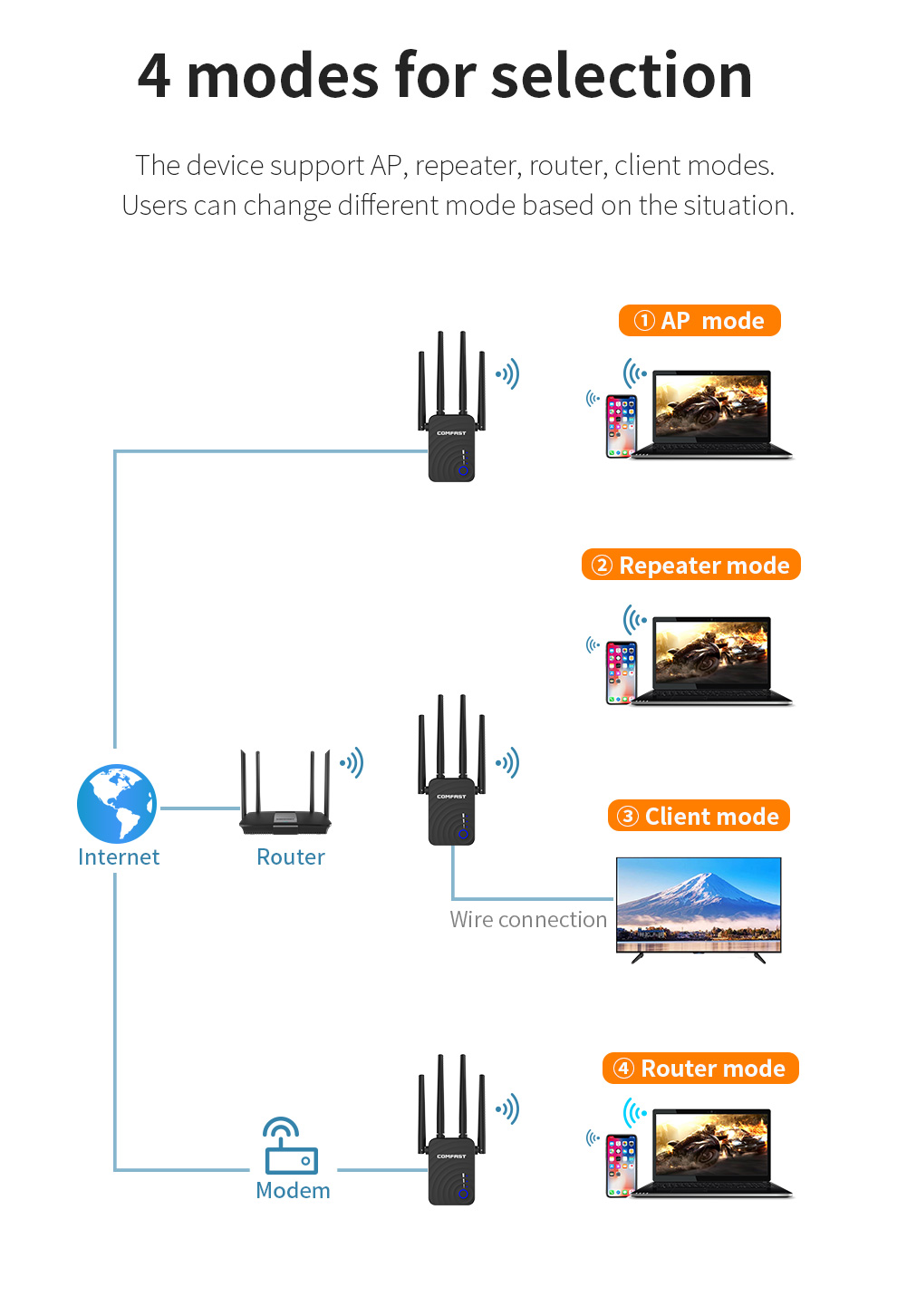

4 modes for selection

The device support AP, repeater, router, client modes.

Users can change different mode based on the situation.

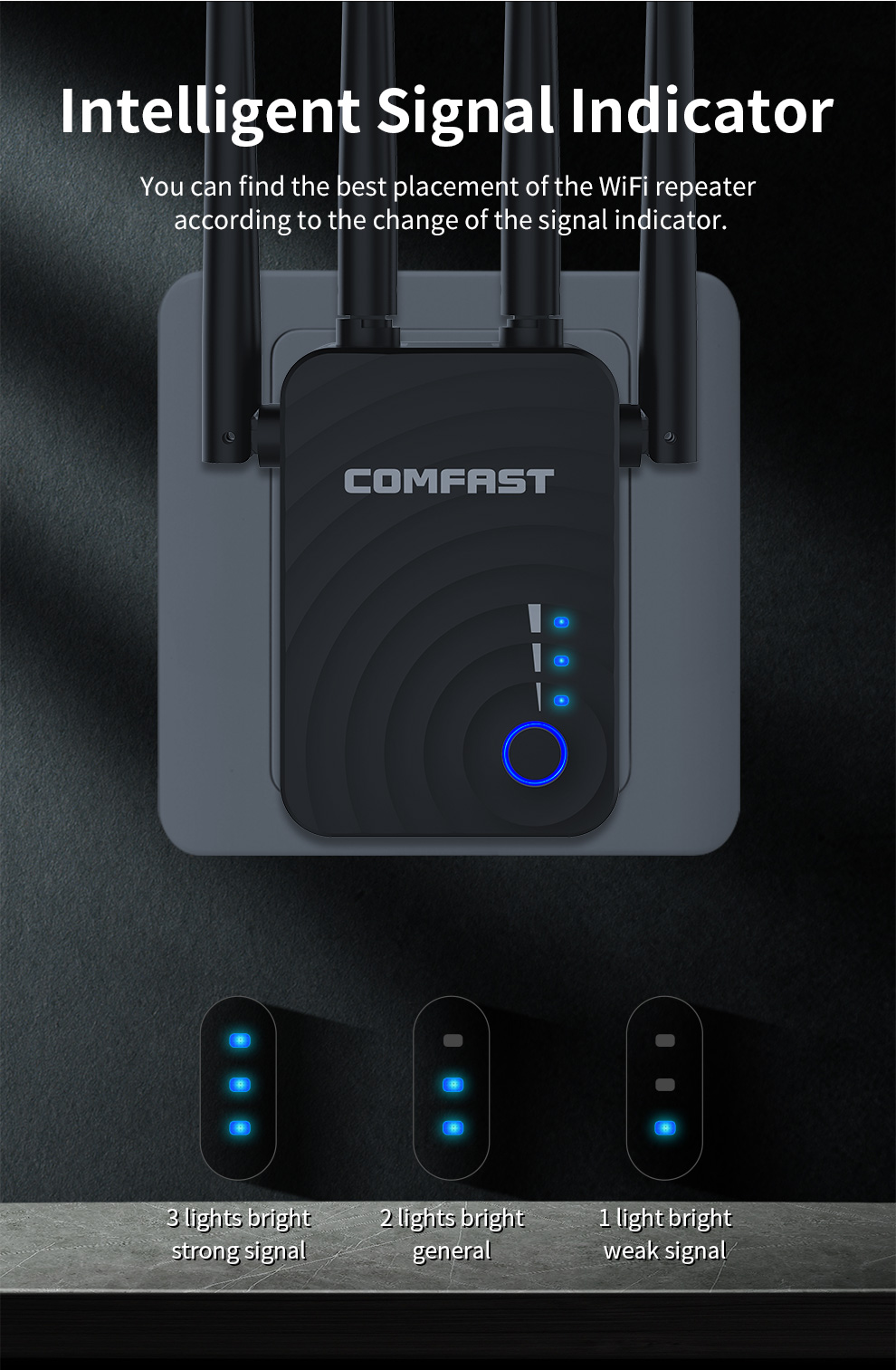

Intelligent Signal Indicator

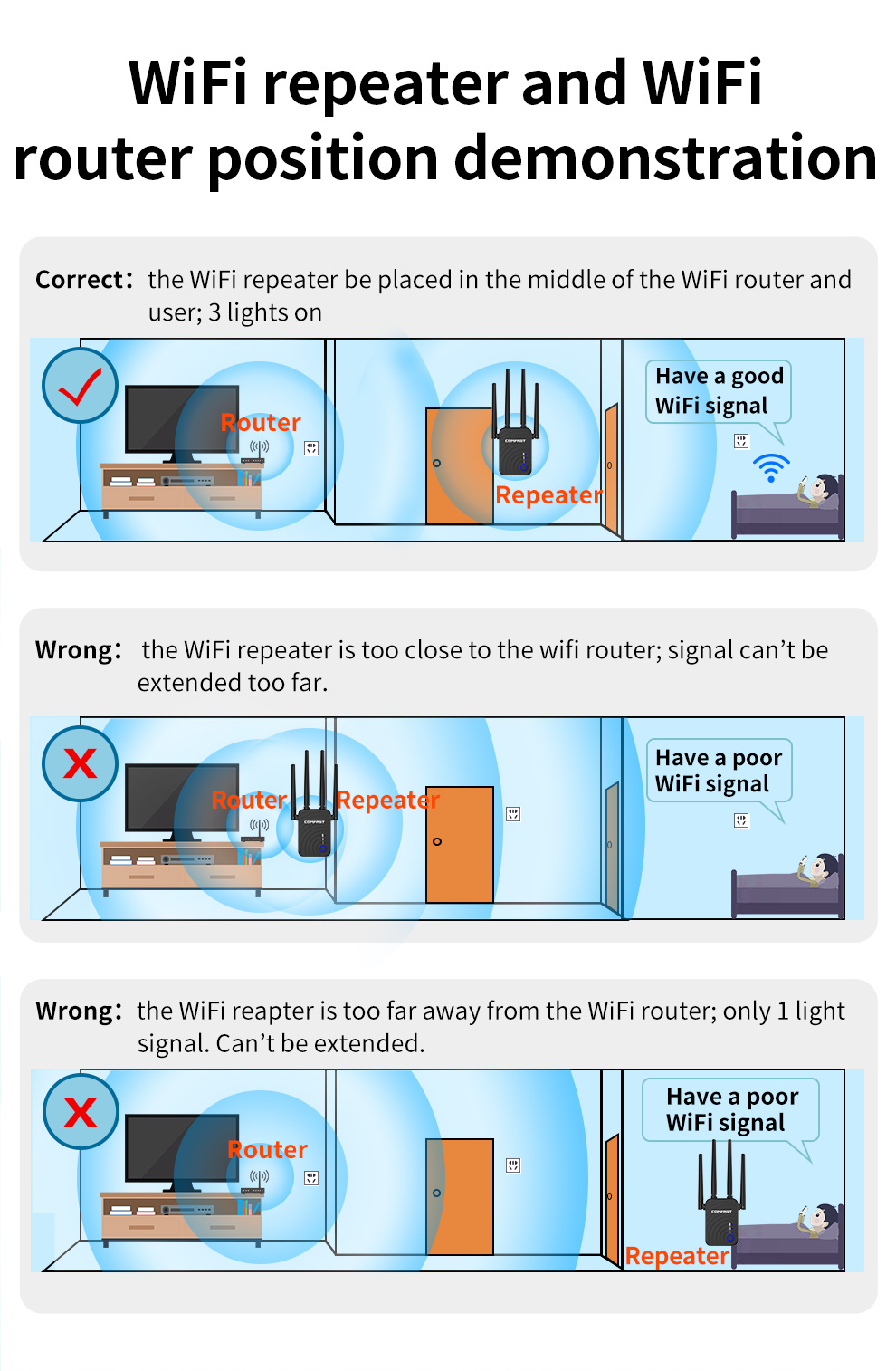

You can find the best placement of the WiFi repeater according to the change of the signal indicator.

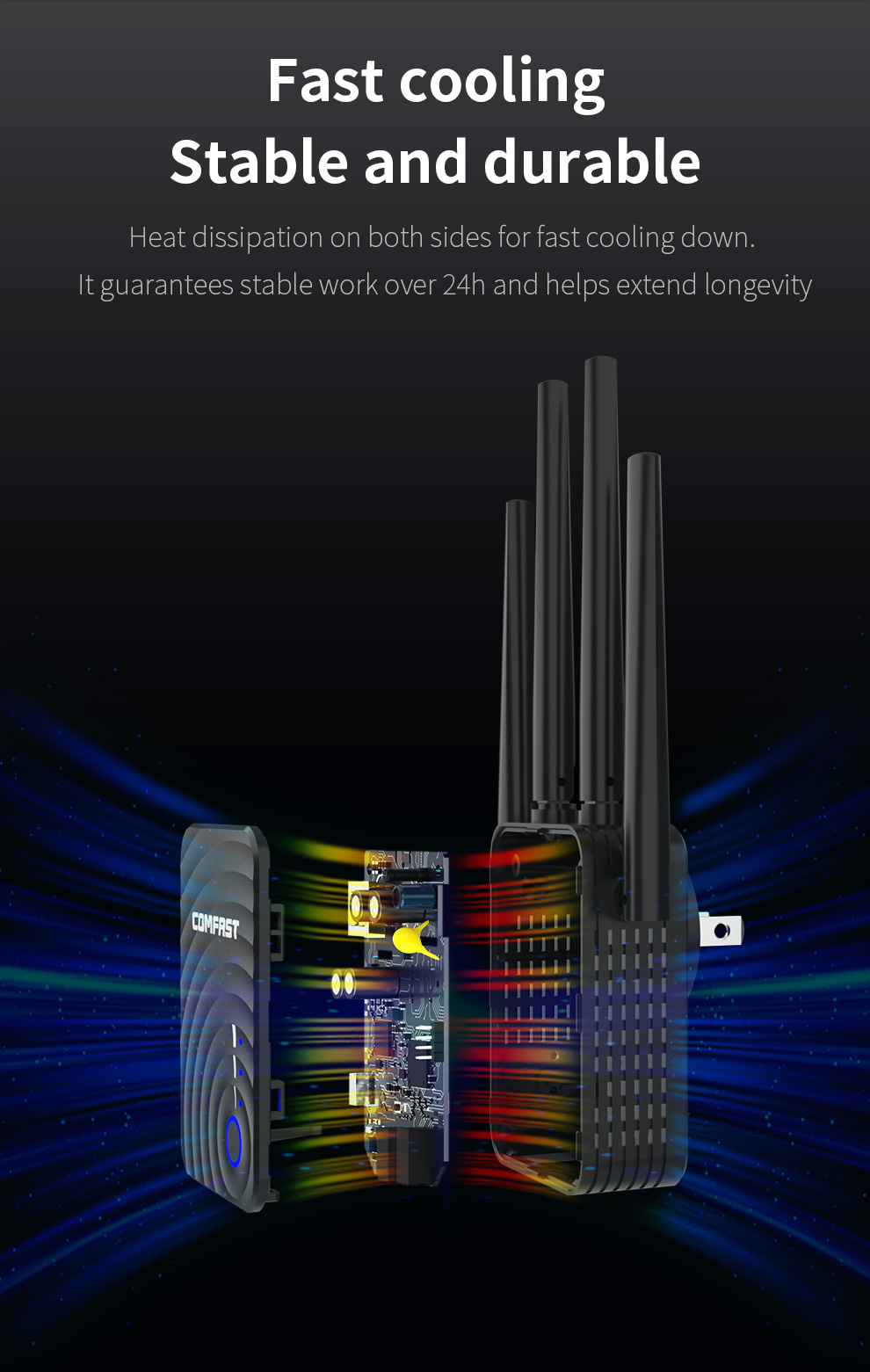

Fast cooling Stable and durable

Heat dissipation on both sides for fast cooling down.

It guarantees stable work over 24h and helps extend longevity

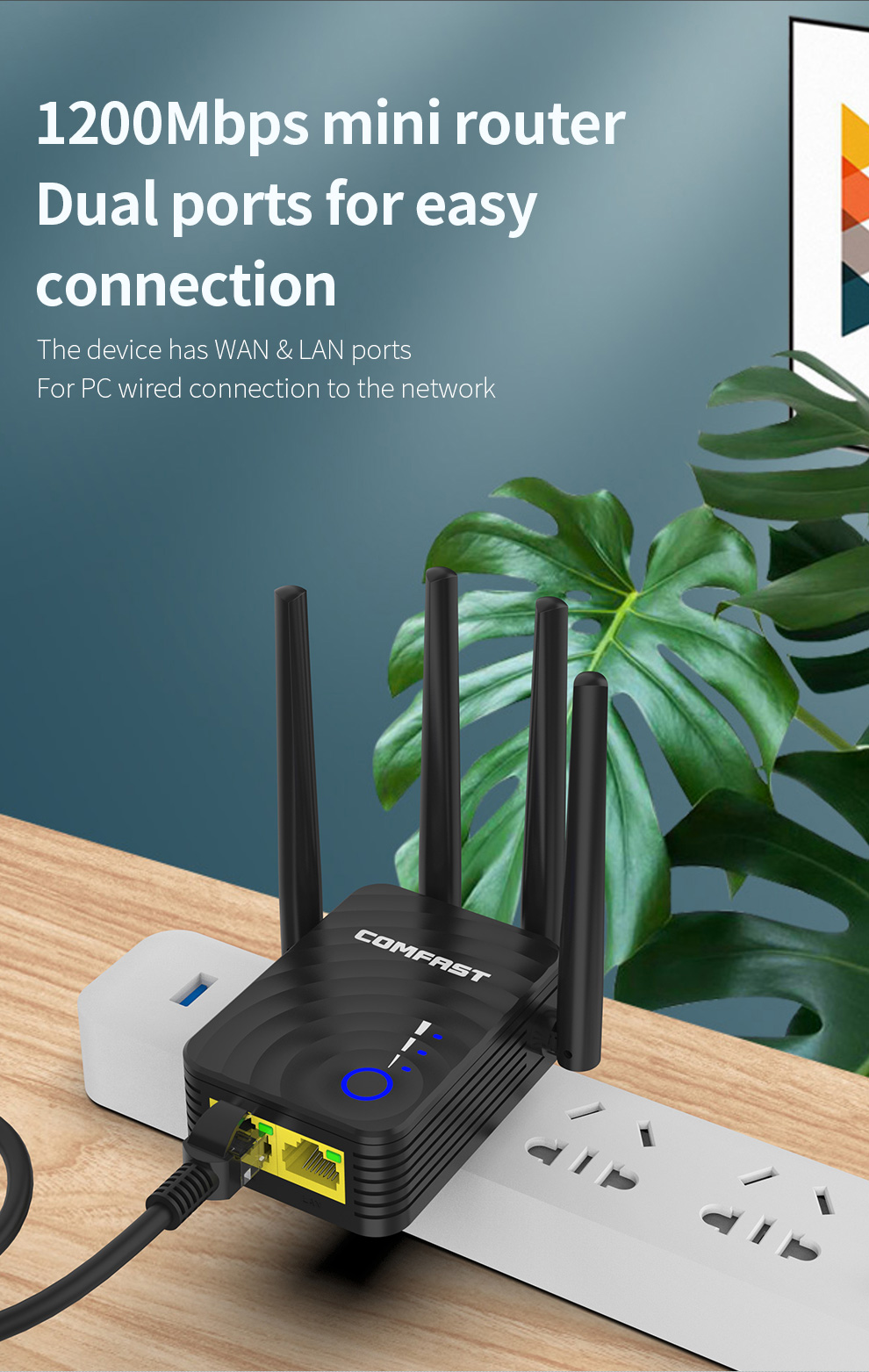

1200Mbps mini router Dual
ports for easy connection

The device has WAN & LAN portsFor PC wired connection to the network

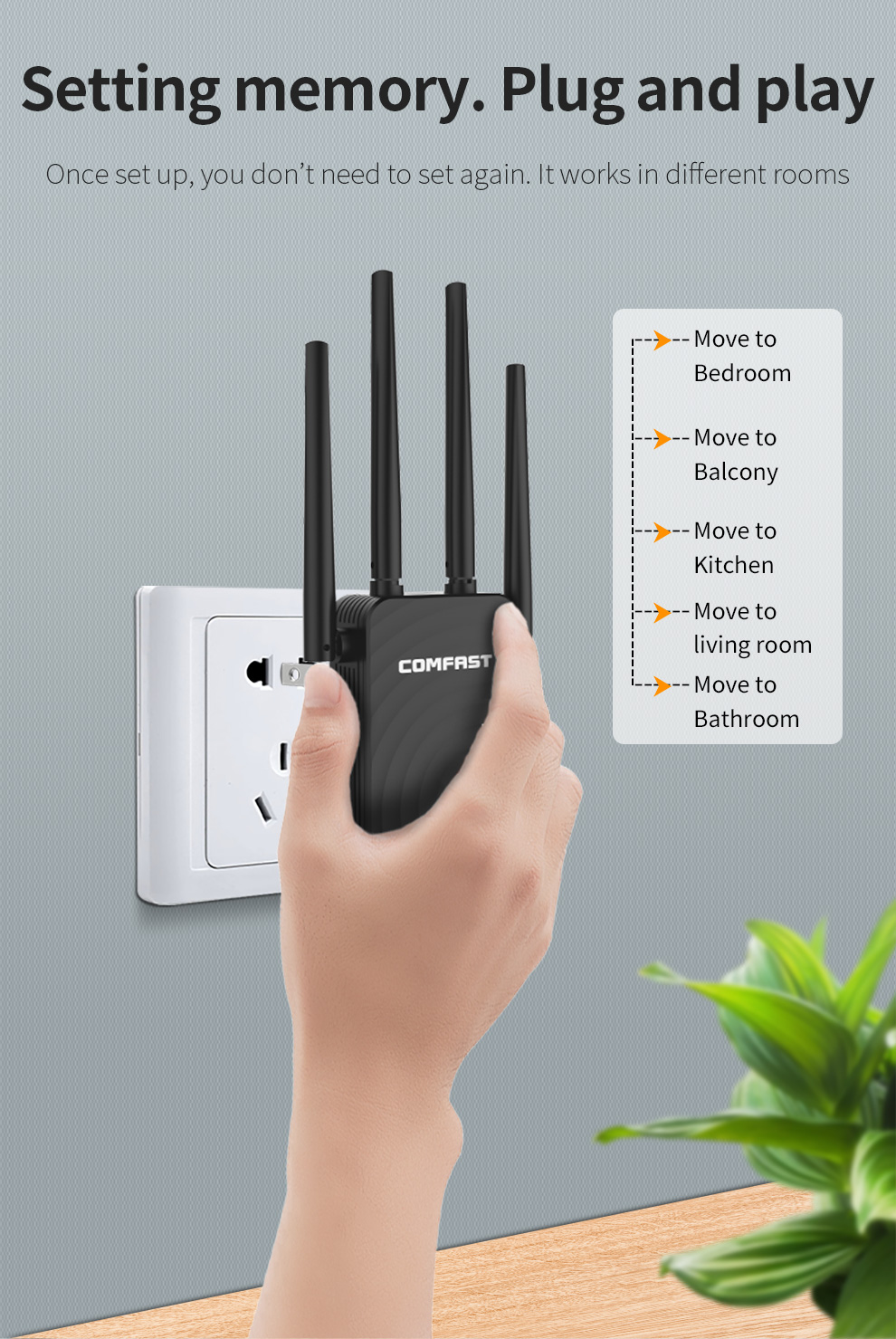

Setting memory. Plug and play

Once set up, you don’t need to set again. It works in different rooms

3 steps, easy WiFi repeating

You just need a phone/PC/tablet to do the setting.Default mode is Repeater mode

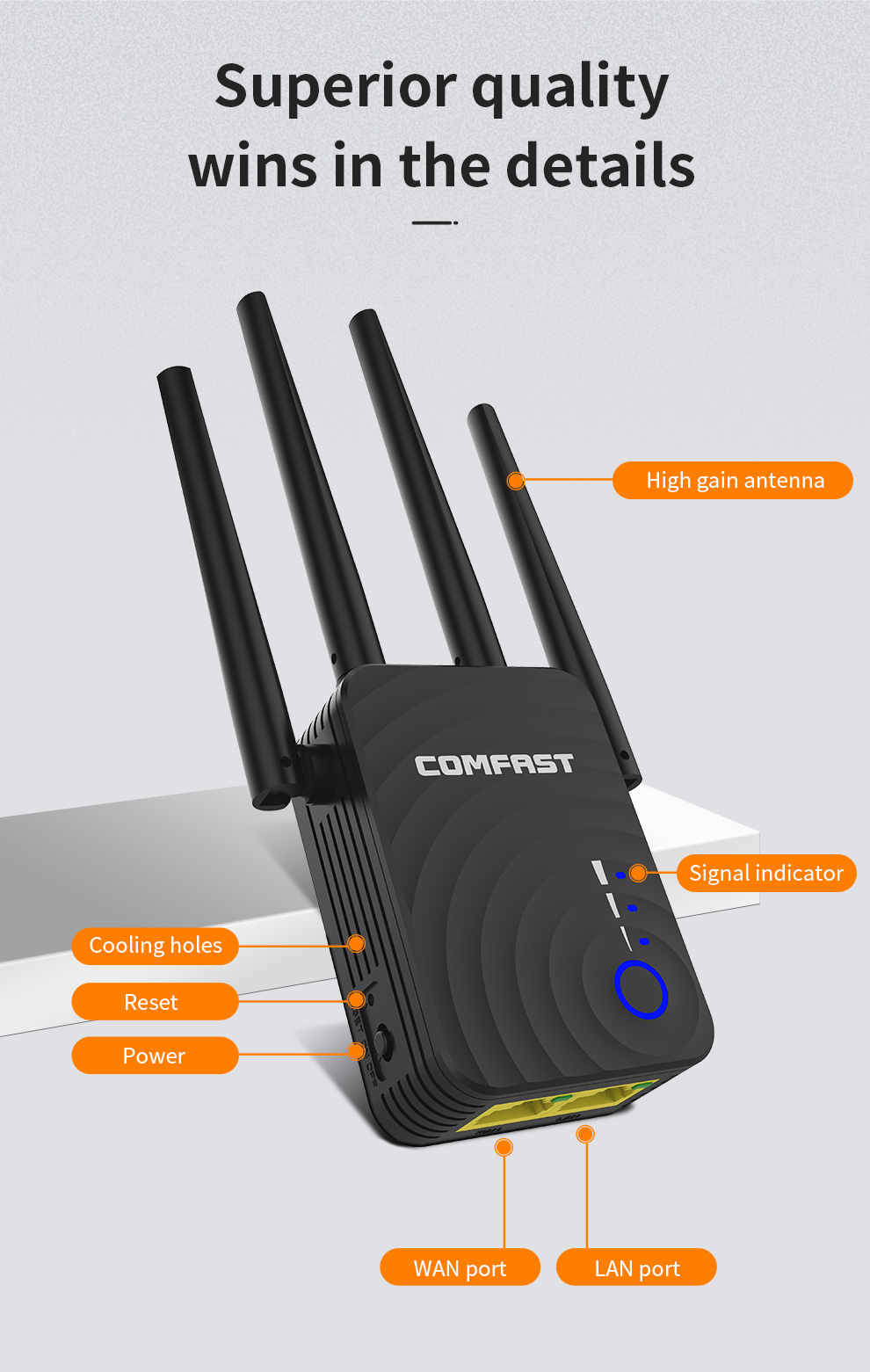

Superior quality wins in the details

*本ページに掲載されている商品画像やデモシーンはイメージであり、実際の商品とは多少異なる場合があります。正確には現物をご参照ください。.
*このページに記載されているデータは、特定の試験条件下でCOMFAST社内の研究所で得られた理論値です。製品の個体差、ソフトウェアのバージョン、使用条件、環境要因などにより、実際の使用とは異なる場合があります。正確な表示については、実際の使用状況をご参照ください。.
*可能な限り正確な製品情報、仕様、機能を提供するため、COMFASTは、実際の製品性能、仕様、パッケージ、および付属品との整合性を確保するために、本ページ上のテキスト説明、画像効果、およびその他のコンテンツを定期的に調整および修正することがあります。このような調整または改訂が必要となった場合、事前の通知は行いません。.

製品モデル CF-WR754AC V2
RAM DDR2: 64MB; Flash: 8MB
アンテナ 4*2dBi External Omnidirectional Antennas
ワイヤレス規格 IEEE802.11ac/a/b/g/n
伝送速度 11b:1/2/5/5.11Mbps
11g: 6/9/12/18/24/36/48/54Mbps
11n:300Mbps
11ac:867Mbps
RFパラメータ 出力電力(最大):100mW(20dBm)
受信感度(最小):-96dBm
周波数:2.412~2.472GHz 5.180~5.825GHz
ボタン 1*WPS Button
1*RST Button
1*Power toggle switch
物理ポート 1*10/100Mbps WAN RJ45 Ethernet Port
1*10/100Mbps LAN RJ45 Ethernet Port
インジケーター Power, WiFi Intensity
パワー 100~240V/50/60Hz
プラグ EU/USプラグ
チャンネル帯域幅 20/40/80 MHz オート
暗号化 WPA-PSK / WPA2-PSK / WPA / WPA2
作業モード AP/Repeater/Route/Bridge Mode; (where AP/relay/route mode can
be set by toggle switch, bridge mode is in advanced setup surface)
ケース プラスチックケース(ABS素材)
物理的特徴 Size: 172*75*52mm
労働環境 働く温度:0℃~40℃
保管温度: -40℃~70
働く湿気: 不凝縮 10%~90%RH
貯蔵の湿気: 不凝縮 5%~90%RH
パッキングリスト 1*無線中継器
1*ケーブル
1*保証カード

素早く熟知する

暂无安装指南

製品ビデオ

暂无关联的产品视频

よくある質問

暂无常见问题
