300Mbps WiFi信号エクステンダー

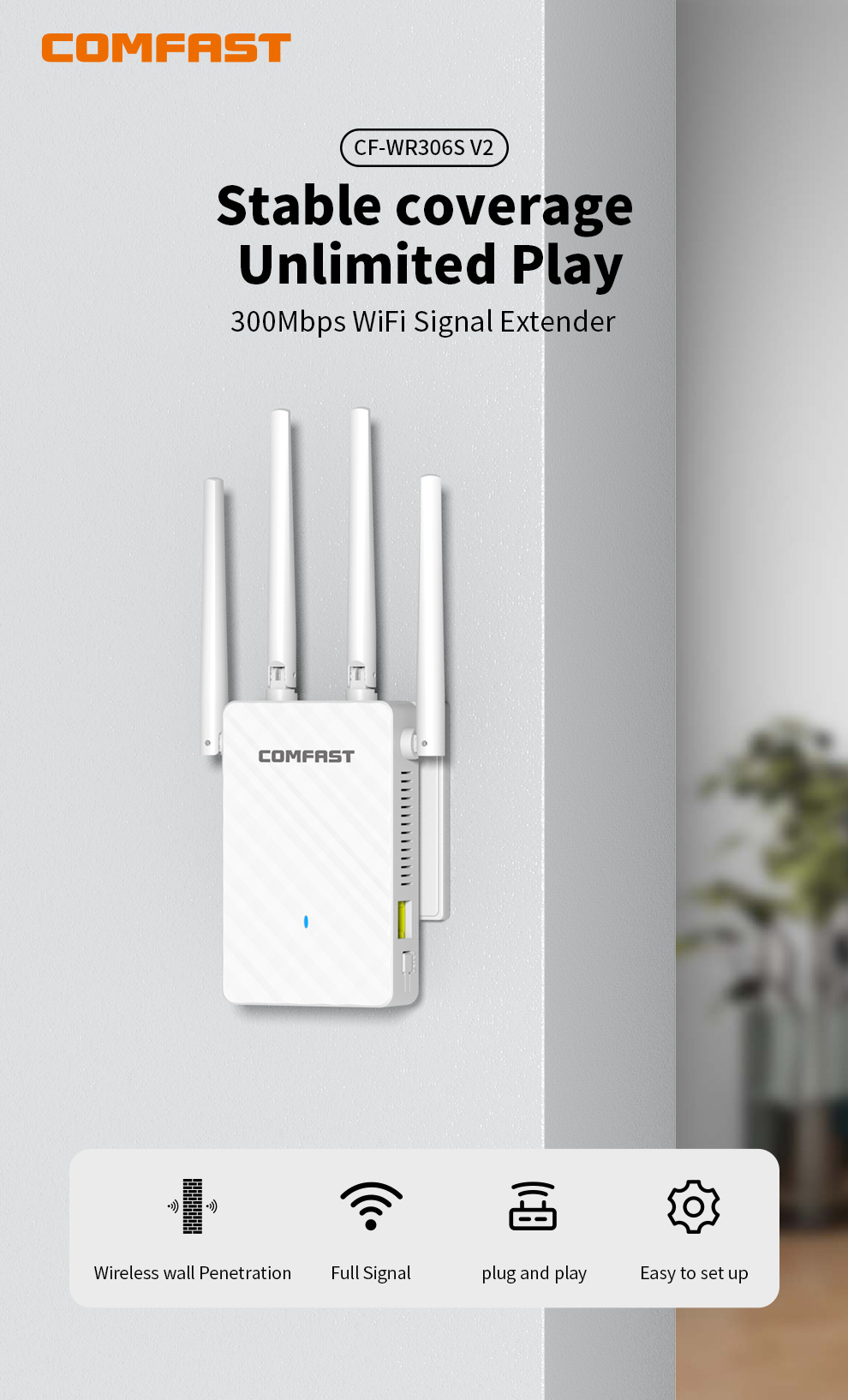

The CF-WR306S V2 is a 300Mbps wireless range extender with four enhanced antennas, designed to penetrate walls and expand coverage. It effectively extends your existing WiFi signal to eliminate dead zones in large apartments, multi-story homes, and offices. Featuring a side Ethernet port for wireless-to-wired connectivity and multiple operating modes, it offers a flexible solution for achieving stable, whole-home WiFi coverage.

  • Pure white body with subtle texture, sleek and tech-savvy

  • Four rotatable high-gain antennas for superior signal capture

  • Side Ethernet port enables wireless-to-wired connection

  • Efficient built-in cooling design ensures reliable operation

  • Quality imported ABS material, sturdy and heat-resistant

  • Delivers wireless extension speeds up to 300Mbps

  • Optimized for wall penetration and expansive coverage

  • Supports four modes: Repeater, Router, AP, and Bridge

  • Multi-color status indicator for clear operational feedback

お問い合わせ

オンラインサービス

営業時間月~金 9:00~12:00、13:30~18:30(祝日を除く)

製品修理

修理住所

中国深圳市龍華区華南路1号華南デジタルバレーH棟9-10階

電話

電話:86-755-83790059
郵便番号:518109

サービス時間

月曜日から金曜日
9:00-12:00,13:30-18:30

説明

Whole house coverage Strong connection

Make up for the lack of router coverage and achieve full house WiFi coverage

Eight advantages

300Mbps High Speed

Adopting 11N wireless technology, the wireless transmission rate can reach 300Mbps,

the network is not stuck, and the internet is smoother

High gain antenna No worry for thick wall

Four high gain omnidirectional antennas effectively enhance the sensitivity of WiFi signal transmission and reception,

with fast extension speed and wider WiFi coverage

Quick heat dissipation stable operation

The design of both sides and bottom heat dissipation holes ensures scientific and rapid heat dissipation,

ensuring stable operation of the equipment for 24 hours and extending its service life

The room doesn't have an internet cable?
Wireless to wired

CF-WR306S V2 comes with RJ45 network port, which can be connected to a network cable for desktop/laptop wired internet access

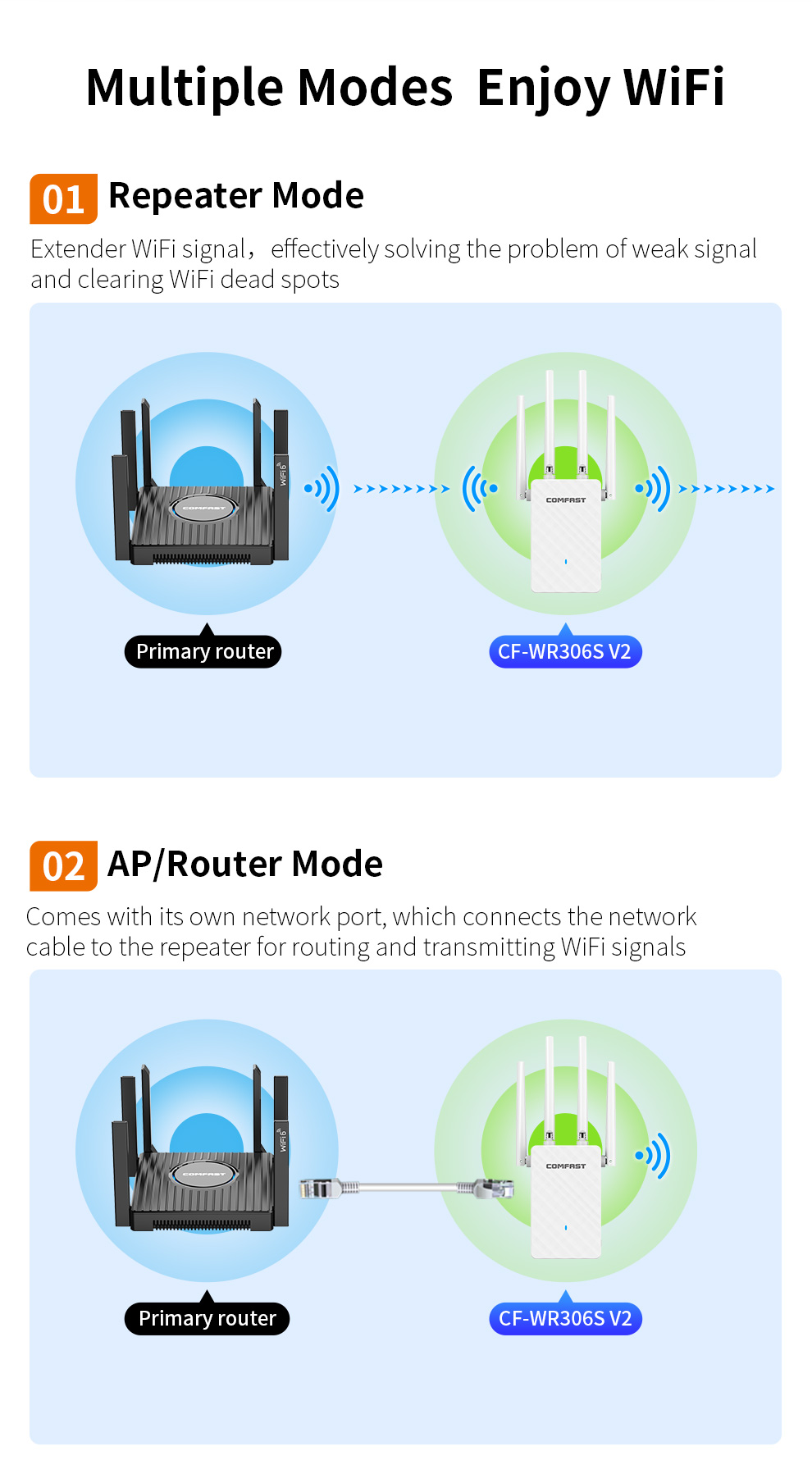

Multiple Modes Enjoy WiFi

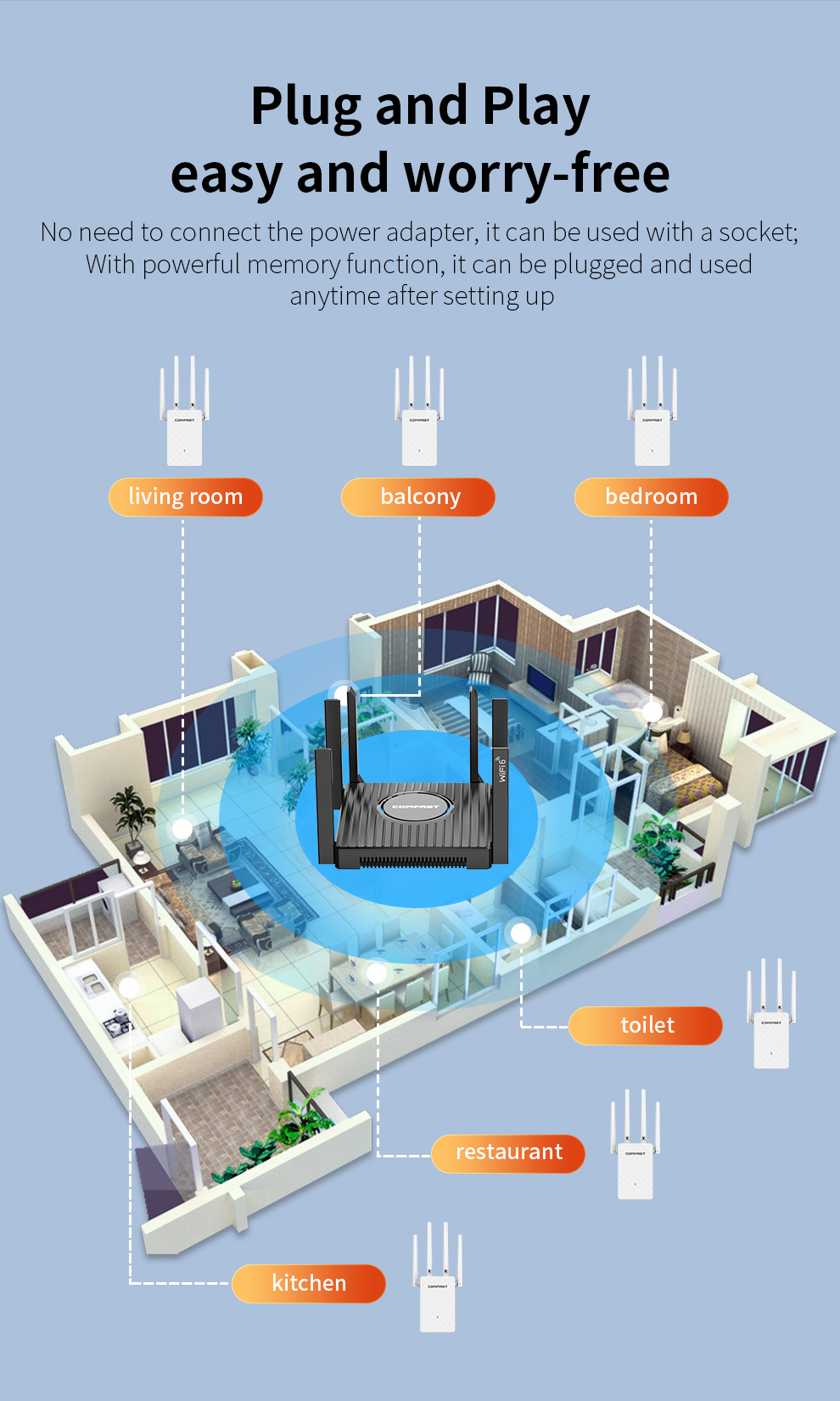

Plug and Play easy and worry-free

No need to connect the power adapter, it can be used with a socket; With powerful memory function,

it can be plugged and used anytime after setting up

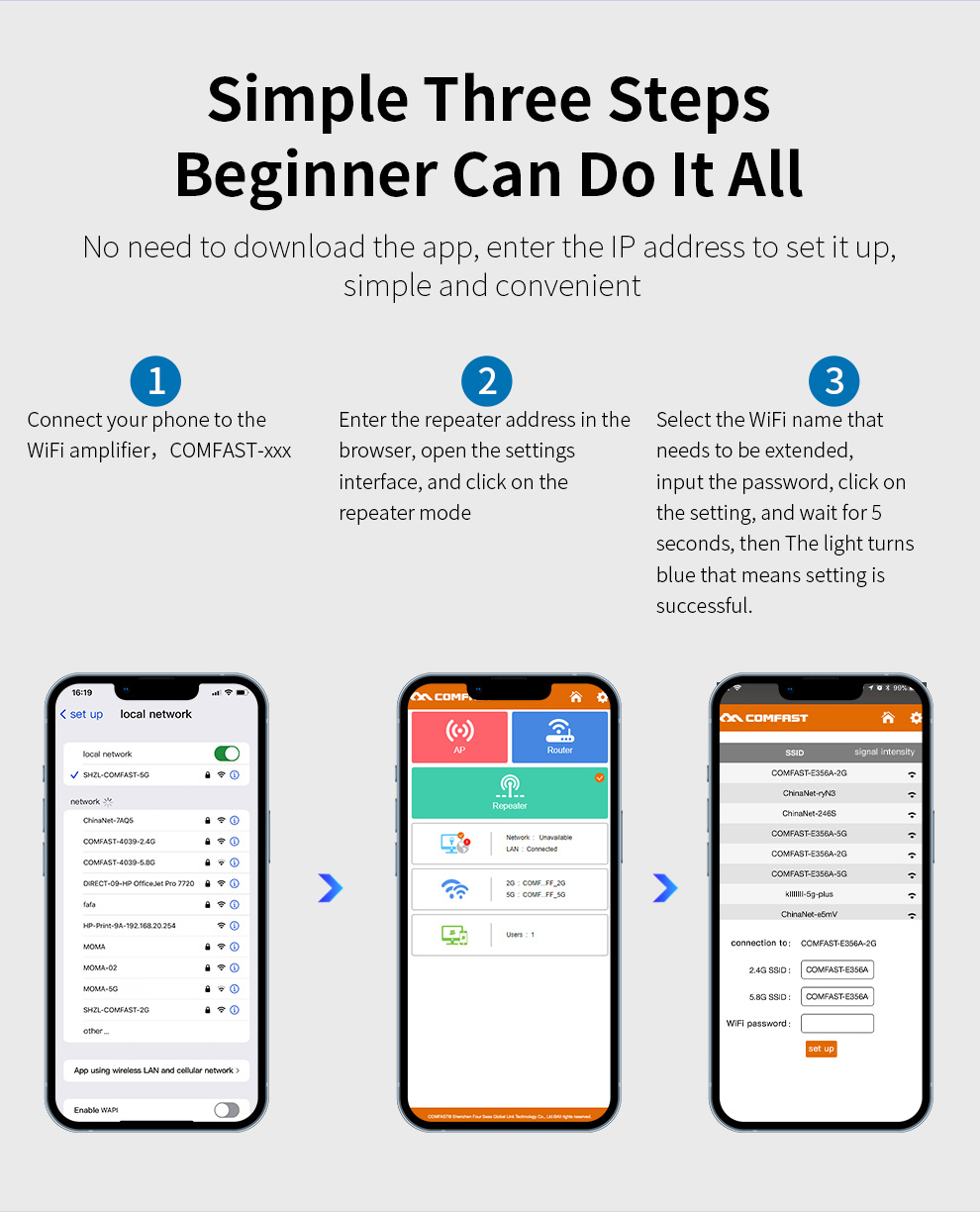

Simple Three Steps Beginner Can Do It All

No need to download the app, enter the IP address to set it up, simple and convenient

Flexible Extension Multi Scenario Application

*本ページに掲載されている商品画像やデモシーンはイメージであり、実際の商品とは多少異なる場合があります。正確には現物をご参照ください。.
*このページに記載されているデータは、特定の試験条件下でCOMFAST社内の研究所で得られた理論値です。製品の個体差、ソフトウェアのバージョン、使用条件、環境要因などにより、実際の使用とは異なる場合があります。正確な表示については、実際の使用状況をご参照ください。.
*可能な限り正確な製品情報、仕様、機能を提供するため、COMFASTは、実際の製品性能、仕様、パッケージ、および付属品との整合性を確保するために、本ページ上のテキスト説明、画像効果、およびその他のコンテンツを定期的に調整および修正することがあります。このような調整または改訂が必要となった場合、事前の通知は行いません。.

Chipset  DDR:8MB, Flash:2MB
アンテナ 4*2dBi External Antennas
ワイヤレス規格 IEEE802.11b/g/n
伝送速度 11b:1/2/5.5/11Mbps
11g: 6/9/12/18/24/36/48/54Mbps
11n:300Mbps
RFパラメータ Output Power (Max): 82mW(19dBm)
受信感度(最小):-96dBm
Frequency: 2.412GHz-2.472GHz
ボタン 1*WPS/RESET Button
物理ポート 1*10/100Mbps WAN/LAN RJ45 Ethernet Port
パワー Power: 100~240V, 50/60HZ
暗号化 WPA-PSK/WPA2-PSK
WPA/WPA2
作業モード AP, Repeater, Router, Bridge
ケース Plastic Case(ABS Material)
物理的特徴 Size: 196.37*88.12*7.47MM
労働環境 働く温度:0℃~40℃
保管温度: -40℃~70
働く湿気: 不凝縮 10%~90%RH
保管湿度:5%-90%RH 結露しないこと
