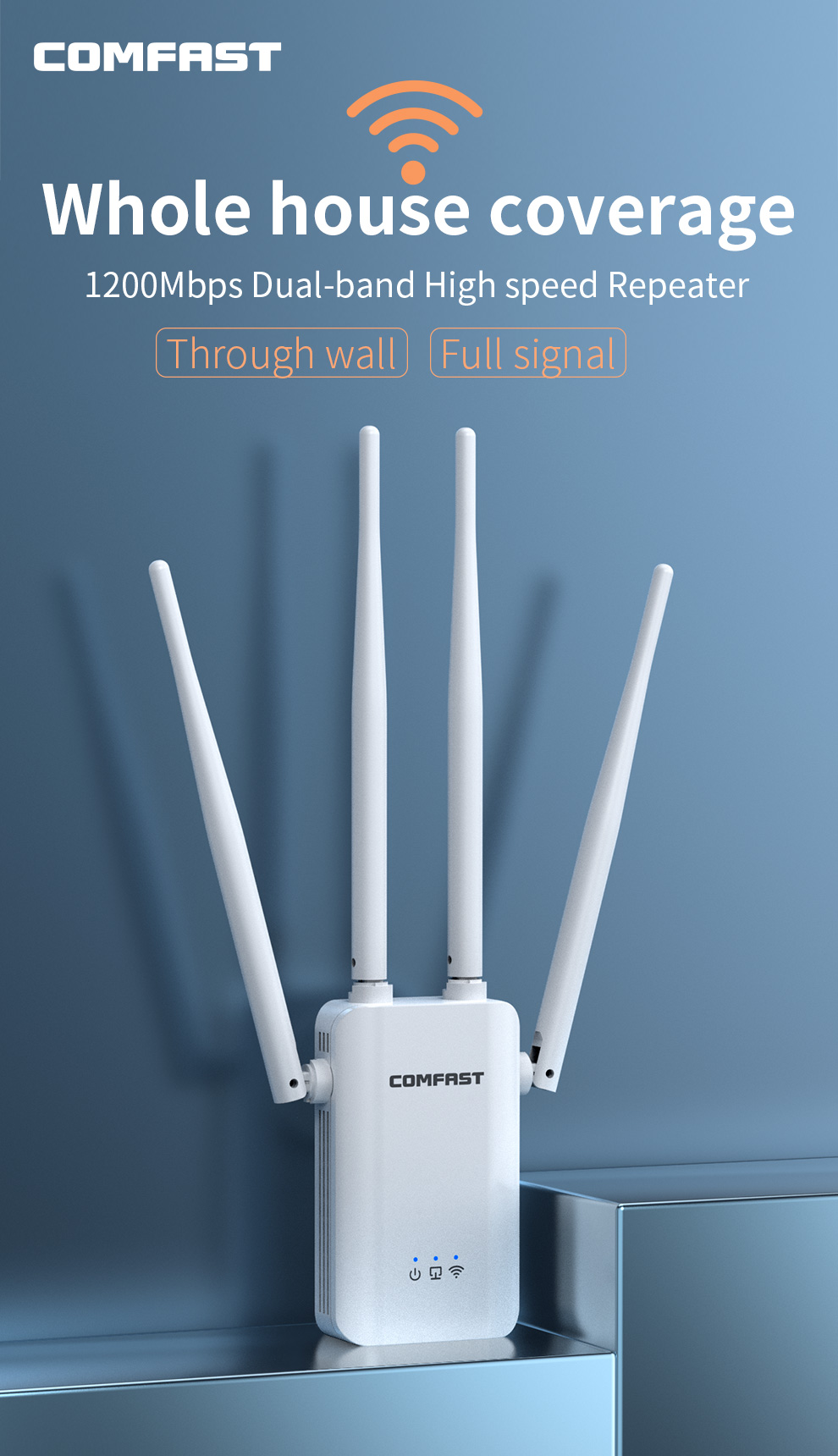

1200Mbps Dual Band WiFi Extender

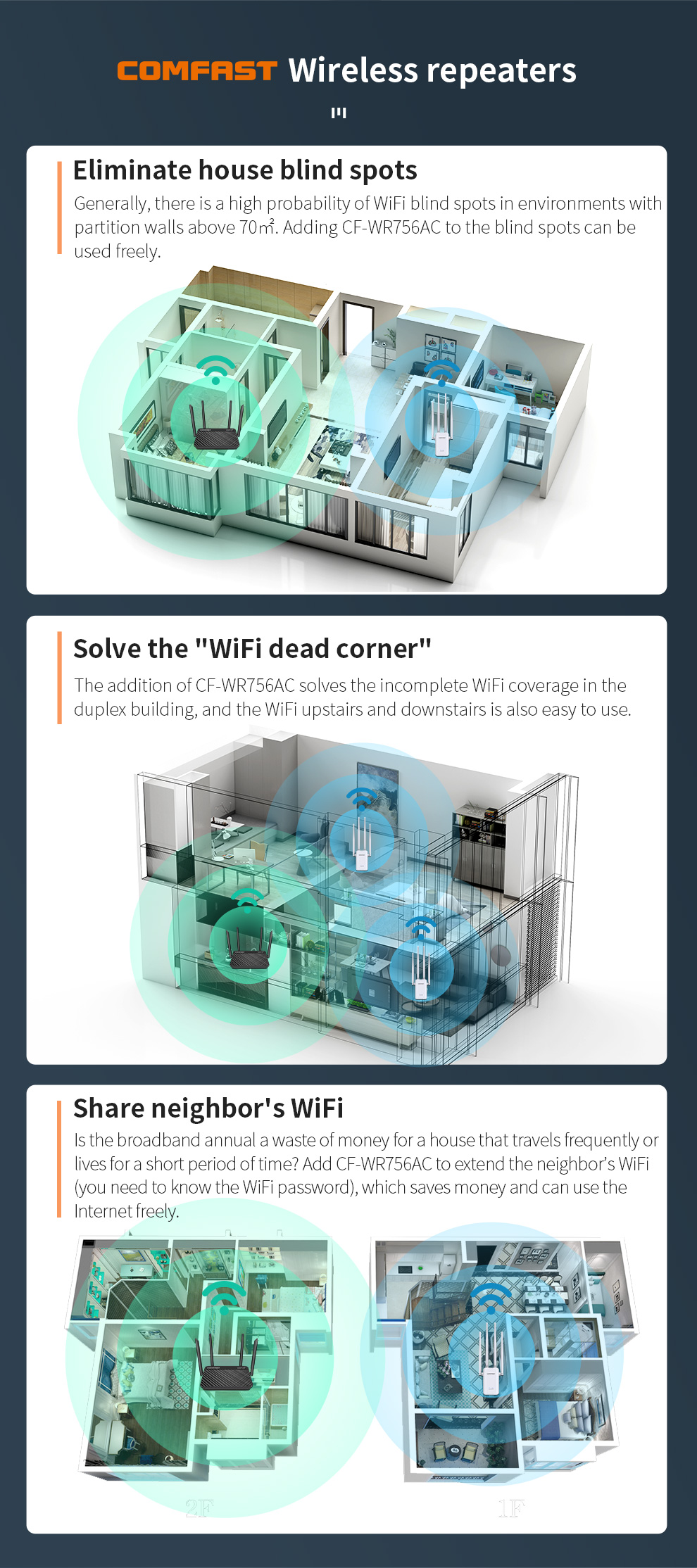

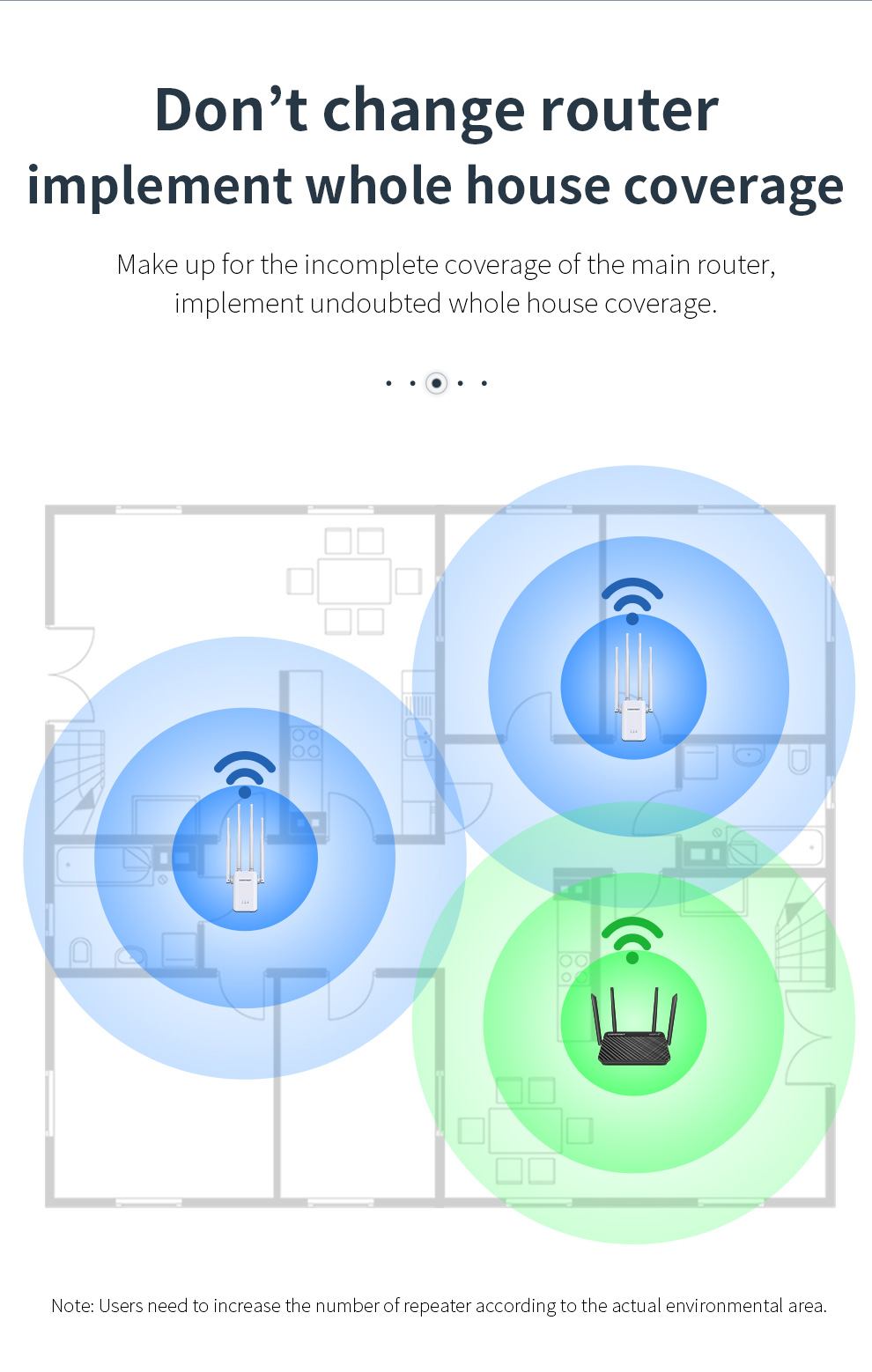

The CF-WR756AC is a gigabit dual-band WiFi range extender equipped with four high-gain antennas to effectively expand wireless coverage and eliminate dead zones. Supporting multiple operation modes and WiFi-to-Ethernet conversion, it is ideal for large spaces like duplexes, villas, and offices, delivering a stable, high-speed whole-home WiFi experience.
-

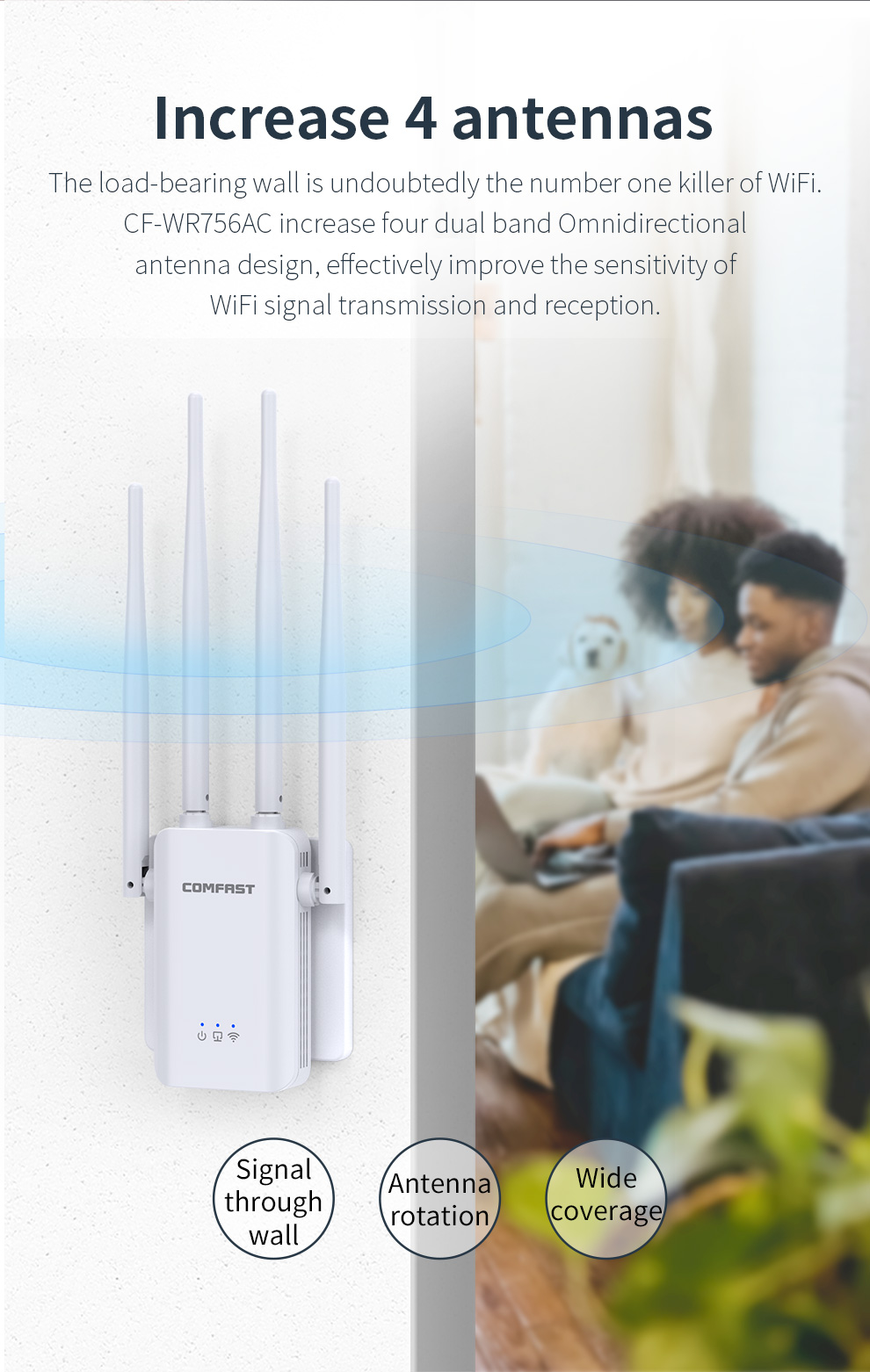

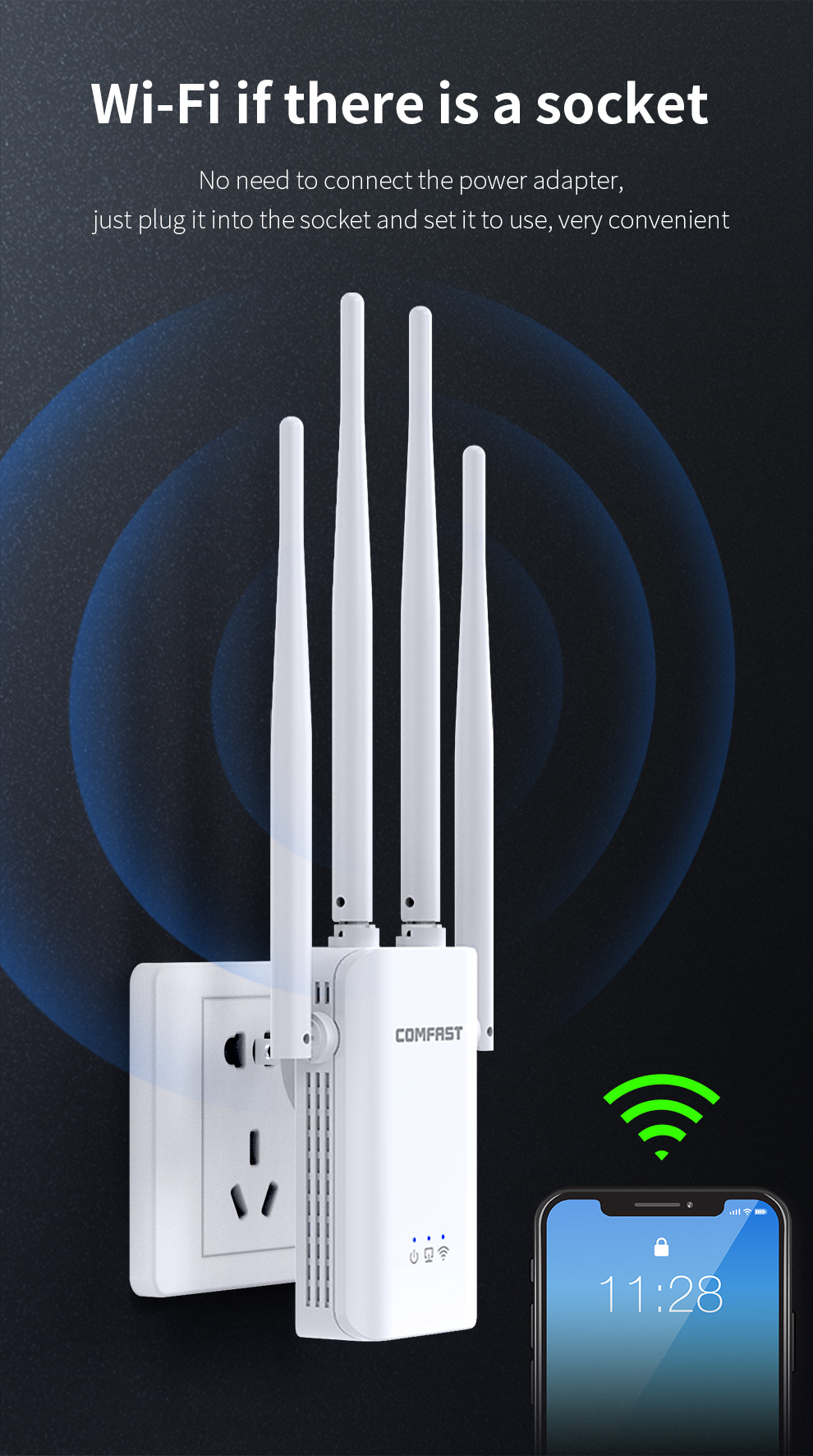

Four external high-gain antennas for extended coverage
-
Flexibly rotatable antennas for optimal signal direction
-

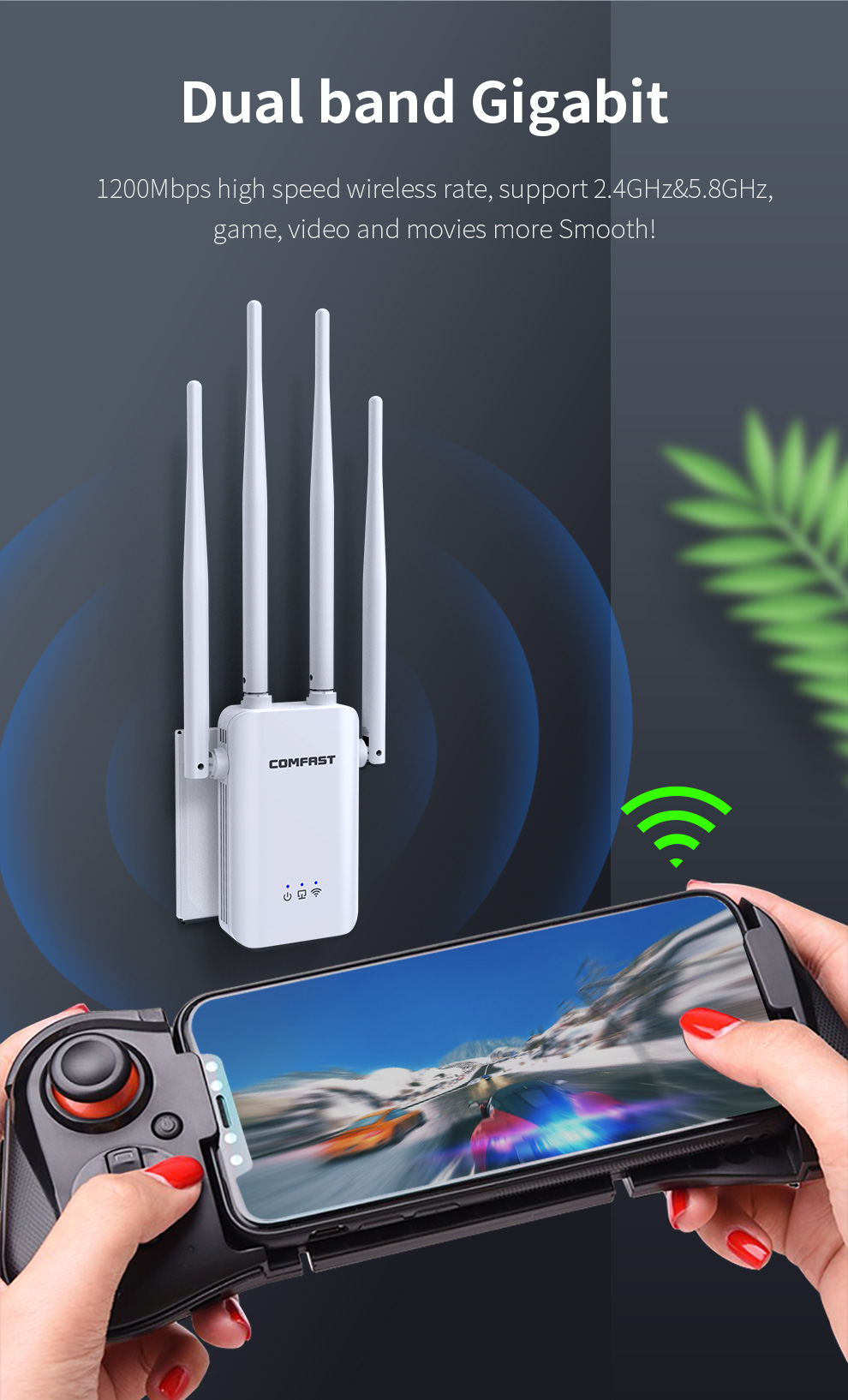

Gigabit dual-band with total speeds up to 1200Mbps
-

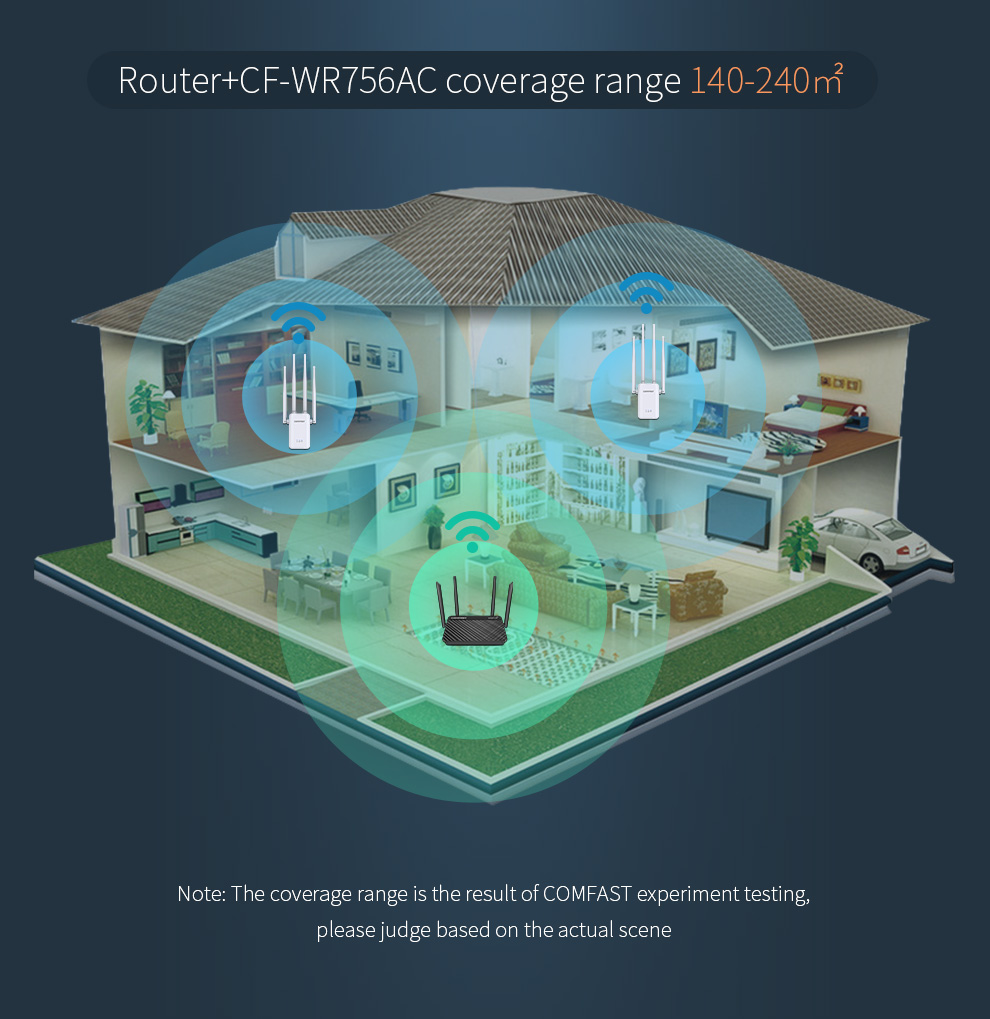

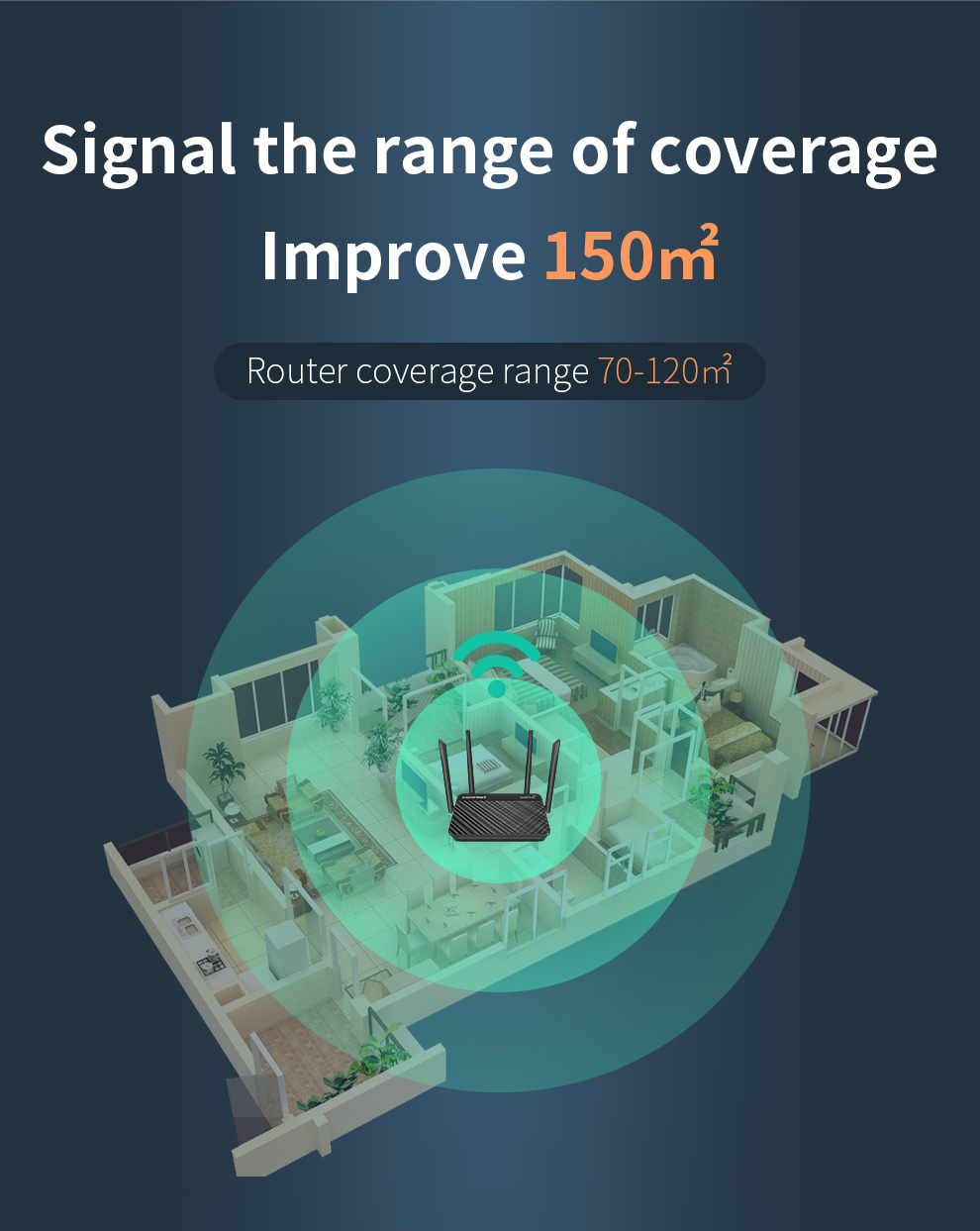

Powerful wall-penetrating capability for large spaces
-
Supports AP, Repeater, and Router operation modes
-

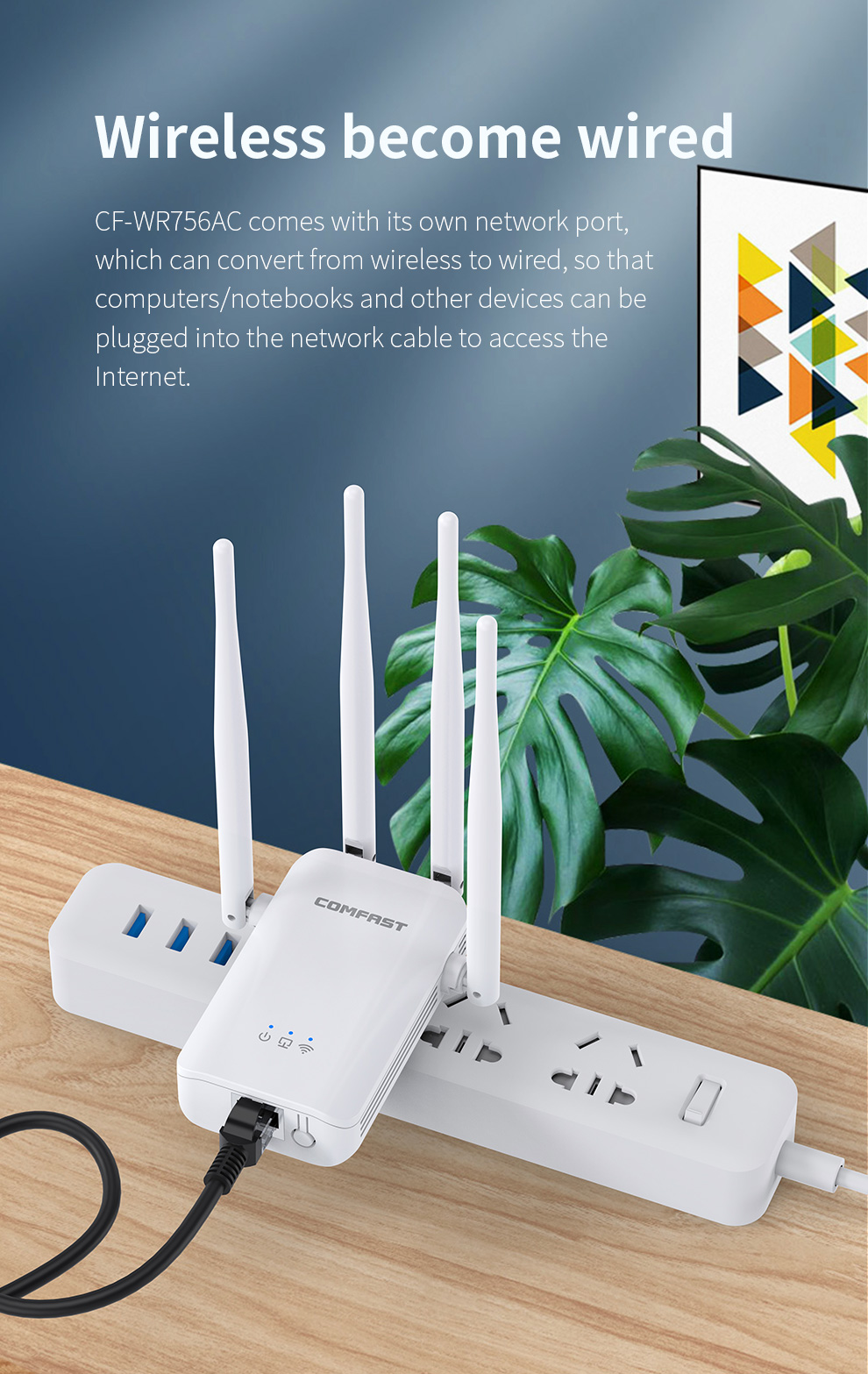

Built-in Ethernet port for stable wired connections
-

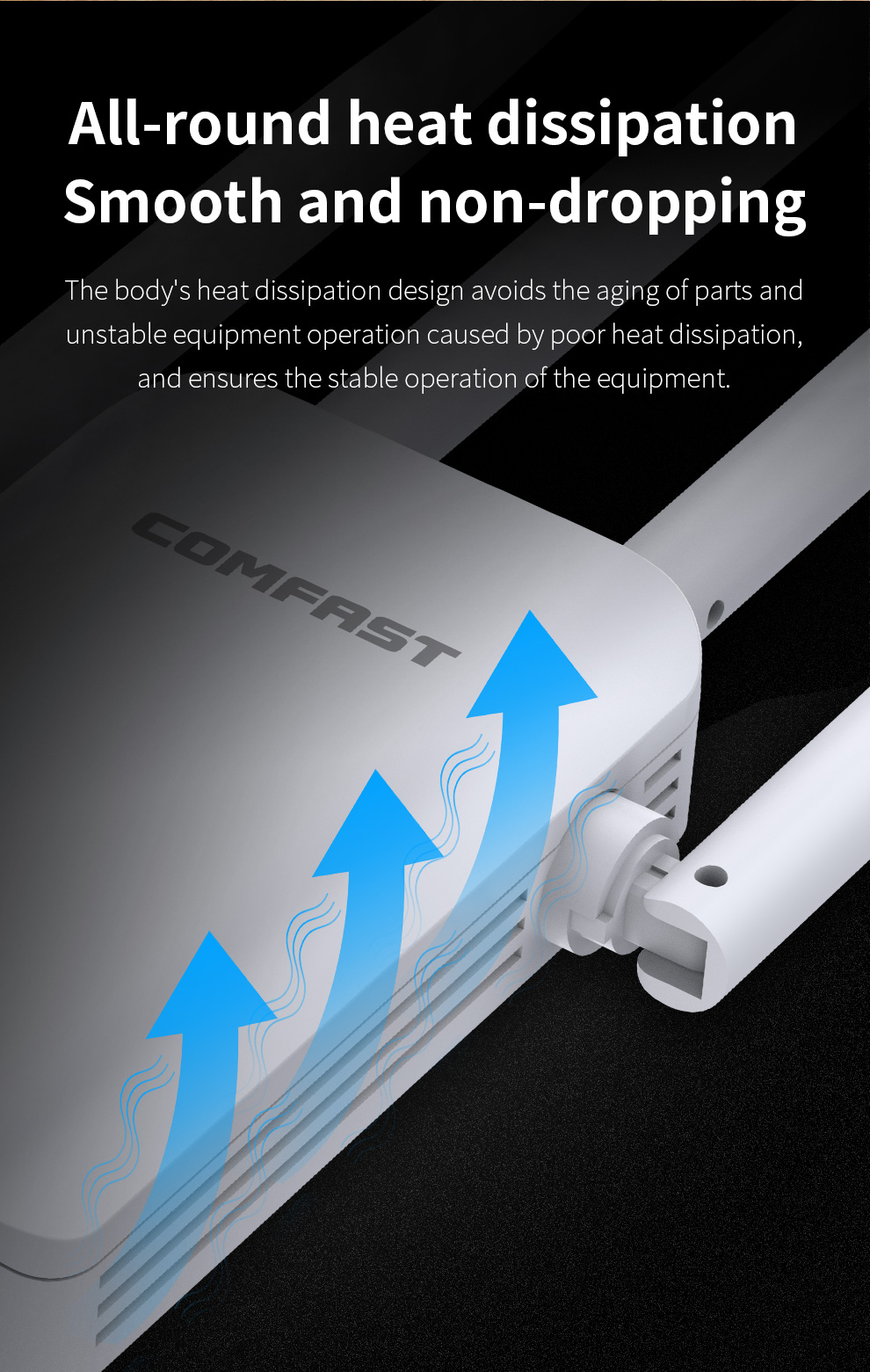

Efficient thermal design for prolonged stable operation
-

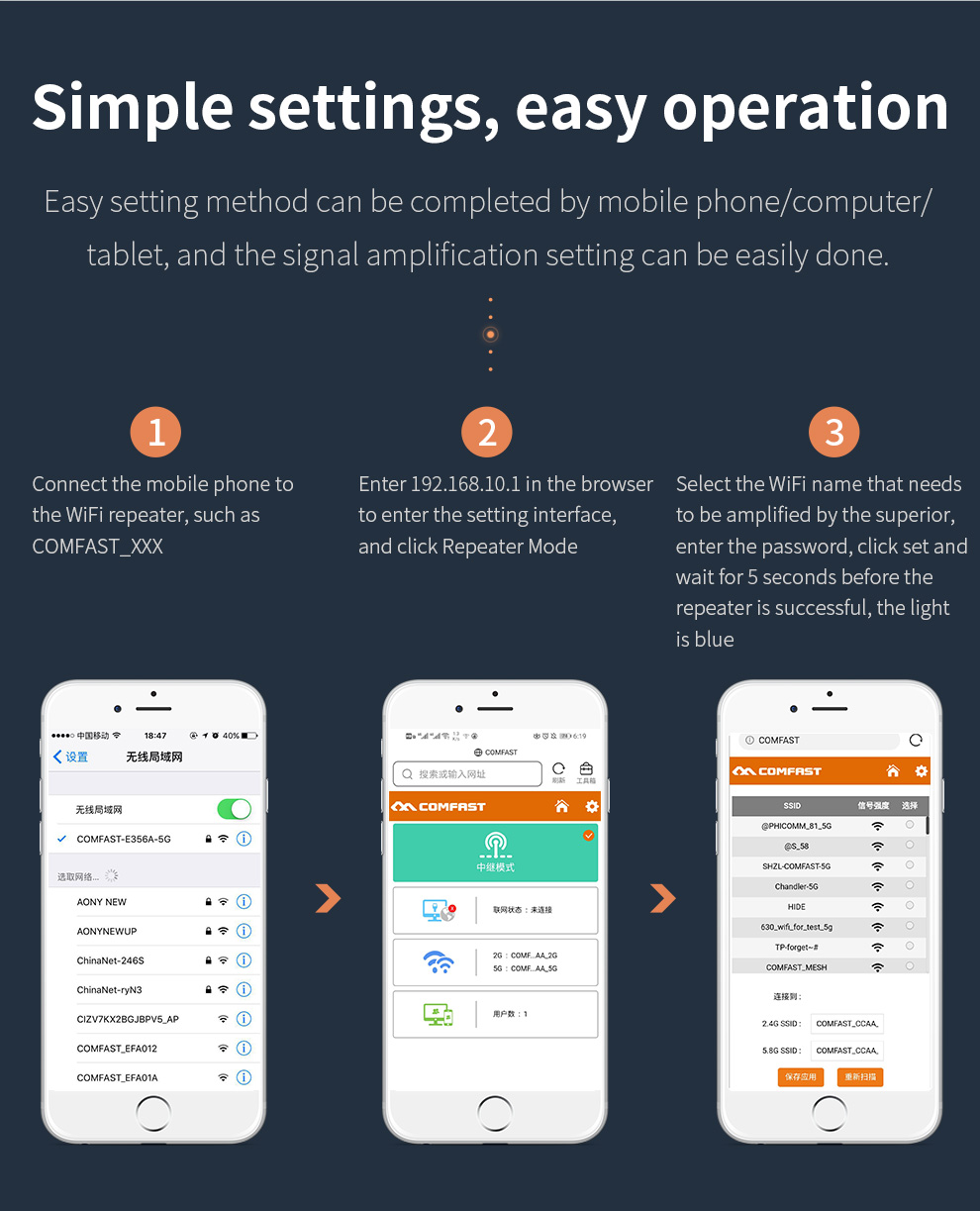

Easy setup to quickly expand your existing network
-
Ideal for large-area home and office applications
- Categories: Wireless Repeater, PWR Repeater
- Model: CF-WR756AC
Contact Us
Product Repair
Repair Address
9th-10th Floor, Building H, Huanan Digital Valley, No.1Huanan Road, Longhua District, Shenzhen, China
Telephone
Phone: 86-755-83790059
ZIP/Postal code:518109
Service Time
Monday to Friday
9:00-12:00,13:30-18:30
*The product images and demonstration scenarios on this page are for illustrative purposes only and may have slight differences from the actual product. Please refer to the physical product for accuracy.
*The data on this page are theoretical values obtained from COMFAST’s internal laboratory under specific testing conditions. Actual usage may vary due to individual product differences, software versions, usage conditions, and environmental factors. Please refer to real-world usage for accurate representation.
*To provide as accurate product information, specifications, and features as possible, COMFAST may periodically adjust and revise the text descriptions, image effects, and other content on this page to ensure alignment with actual product performance, specifications, packaging, and accessories. Should such adjustments or revisions become necessary, no prior notice will be provided.
| Product Model | CF-WR756AC |
| Antenna | 4*3dBi Dual Band Omnidirectional Antennas |
| Wireless Standard | IEEE802.11ac/a/b/g/n |
| Transmission Rate | 1200Mbps (2.4G:300Mbps; 5.8G: 867Mbps) |
| RF Parameters | Output Power (Max): 100mW(20dBm) Receiver Sensitivity (Min): -96dBm Frequency: 2.412~2.472GHz 5.180~5.825GHz |
| Button | 1*WPS/RST Button |
| Physical Ports | 1*10/100Mbps LAN/WAN RJ45 Ethernet Port |
| Indicator | Power, WiFi, Network port |
| Power | 100~240V/50/60Hz |
| Power consumption | < 15W |
| MTBF | >250000H |
| Working Mode | AP / Repeater / Route Mode |
| Case | Plastic Case (ABS Material) |
| Physical Features | Size: 247*86*48mm |
| Working Environment | Working Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Working Humidity: 10%~90%RH Non-condensing Storage Humidity: 5%~90%RH Non-condensing |
