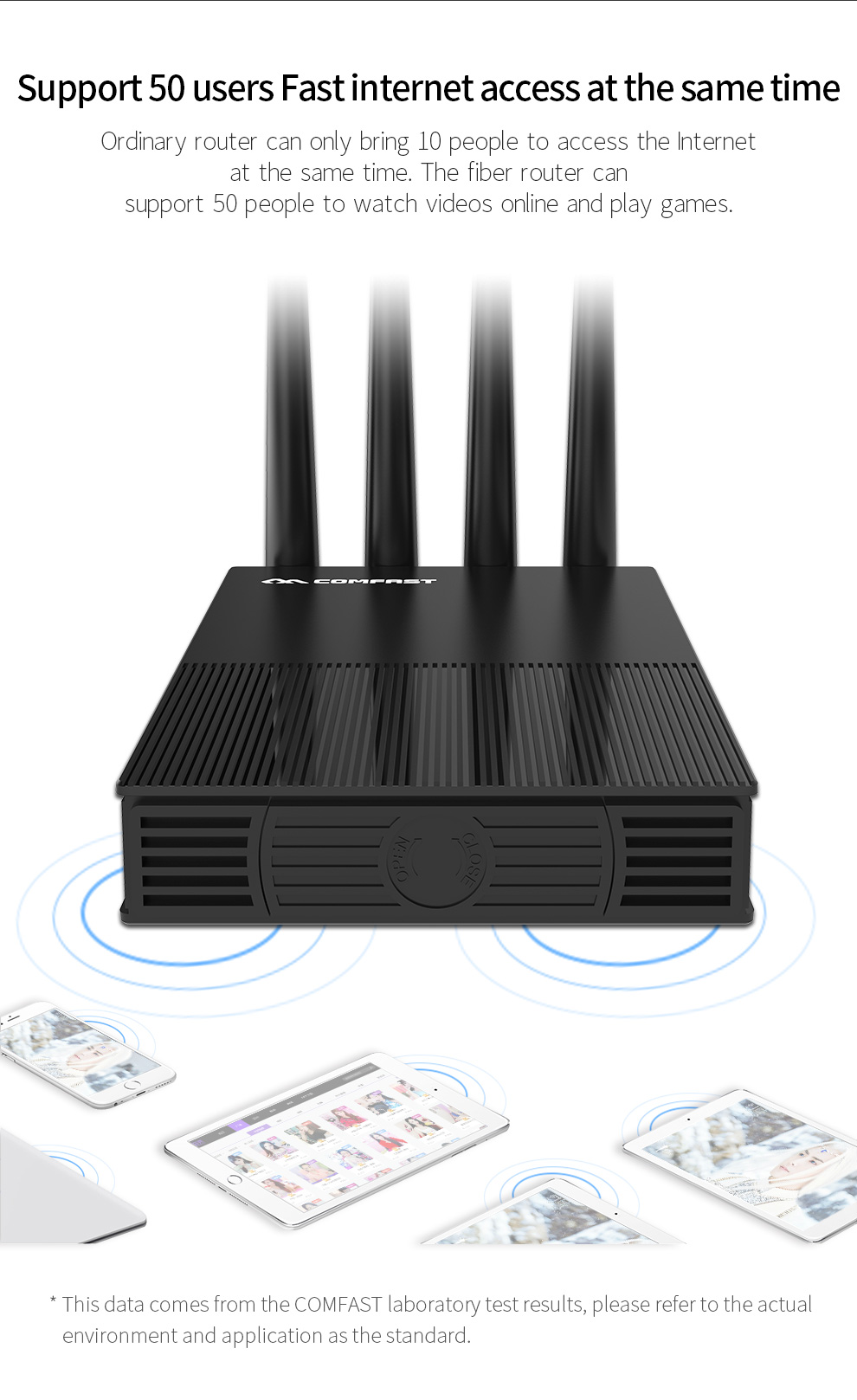

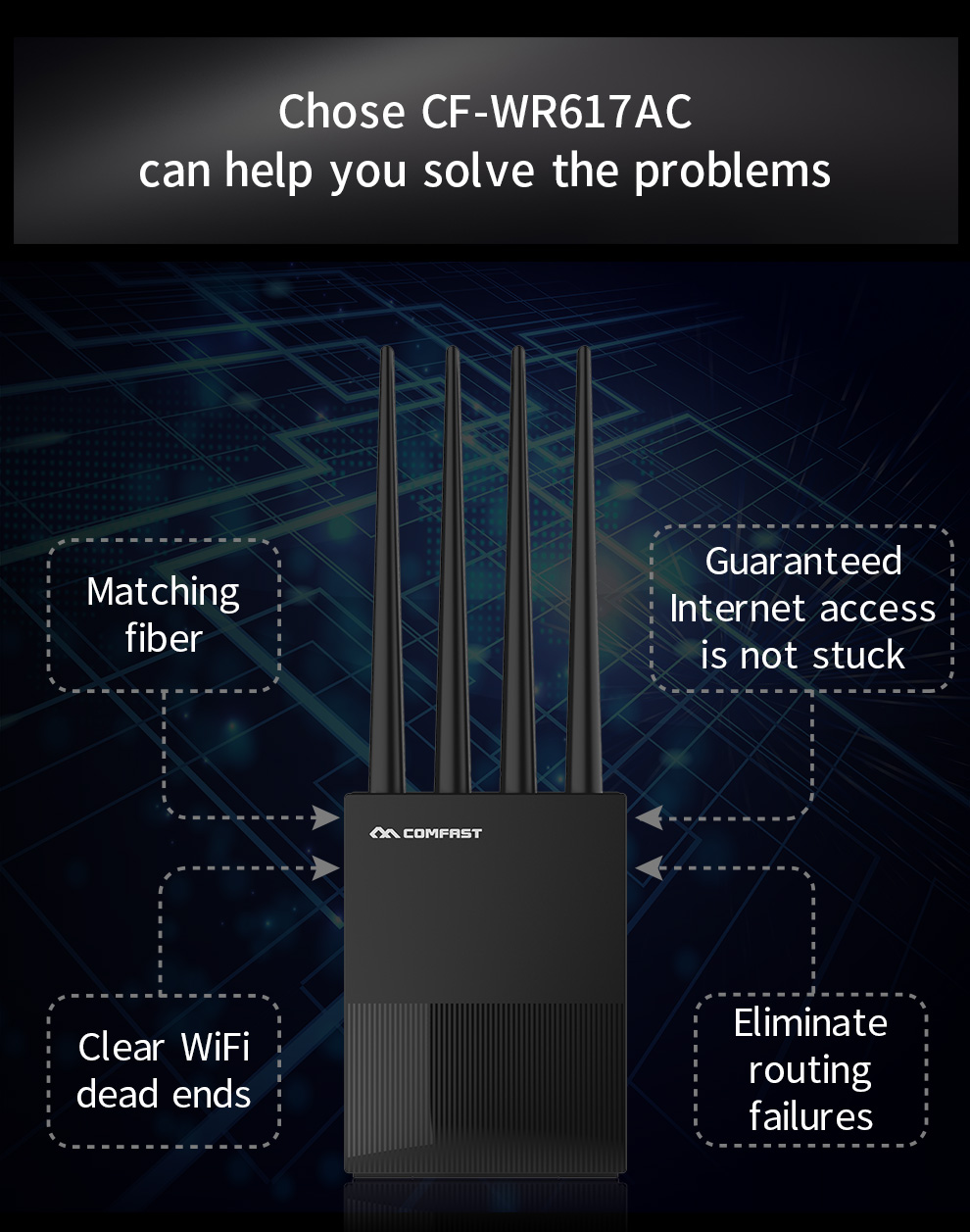

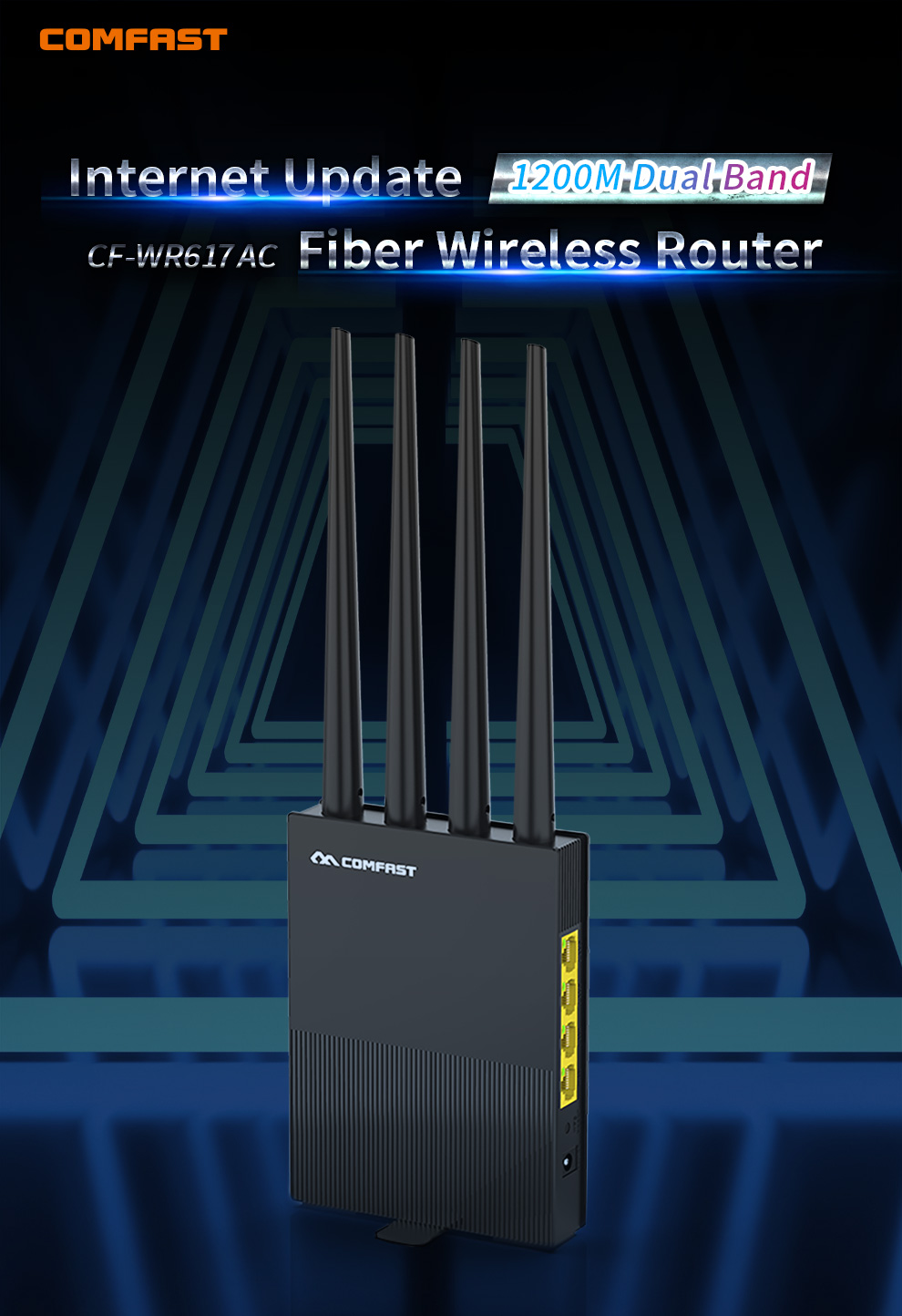

CF-WR617AC is a 1200Mbps dual-band home router supporting 2.4GHz and 5.8GHz with dual-chip architecture. Equipped with four high-gain omnidirectional antennas, it offers wide coverage and flexible placement options including upright, flat, or wall-mounted installation.
Professional router chip, preventing disconnections and ensuring stable operation
Supports IEEE 802.11ac/a/b/g/n standards

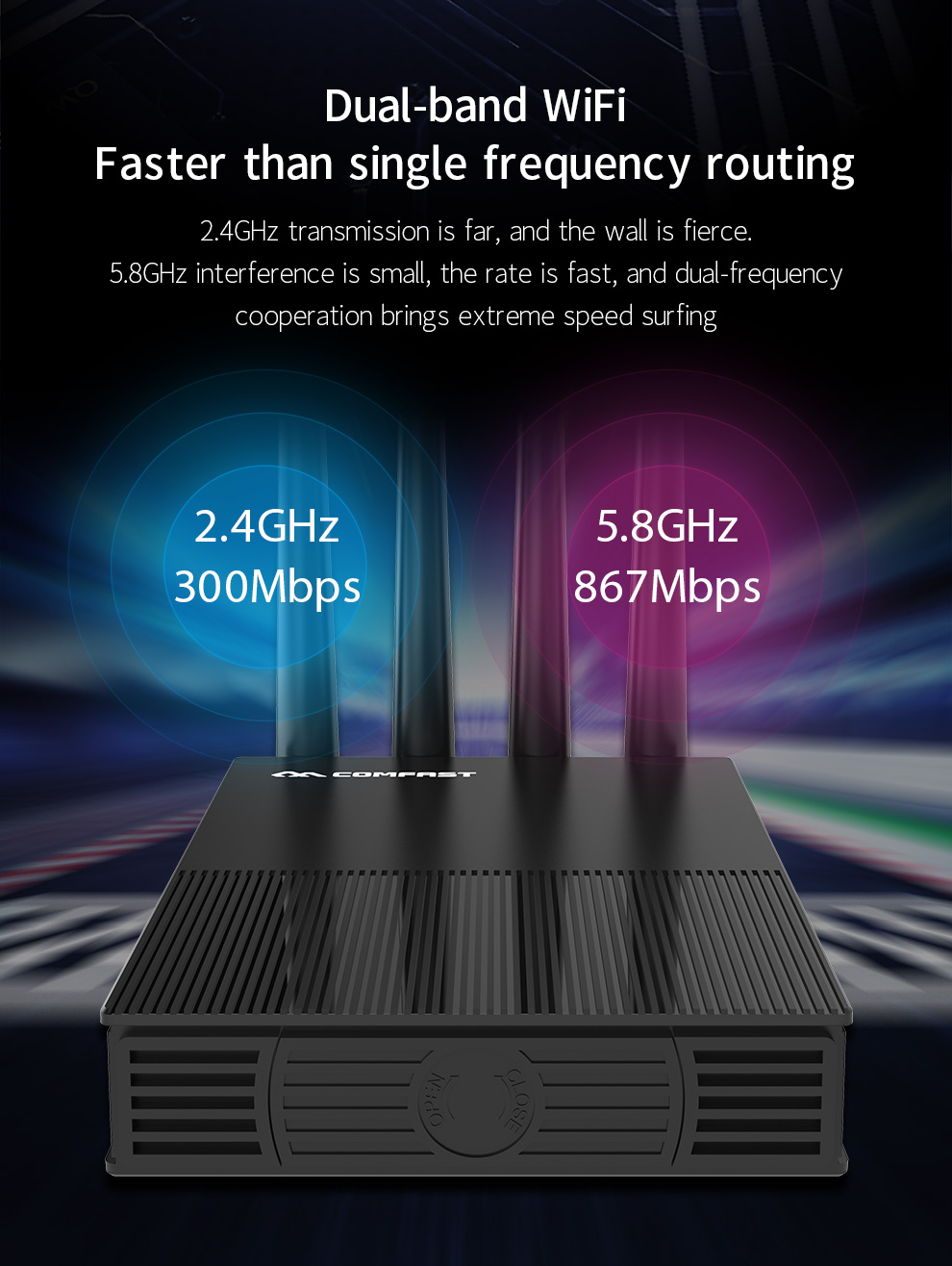

Dual-band 2.4GHz & 5.8GHz, better anti-interference and faster 5G WiFi
USB 2.0 port with 64MB RAM and 8MB flash

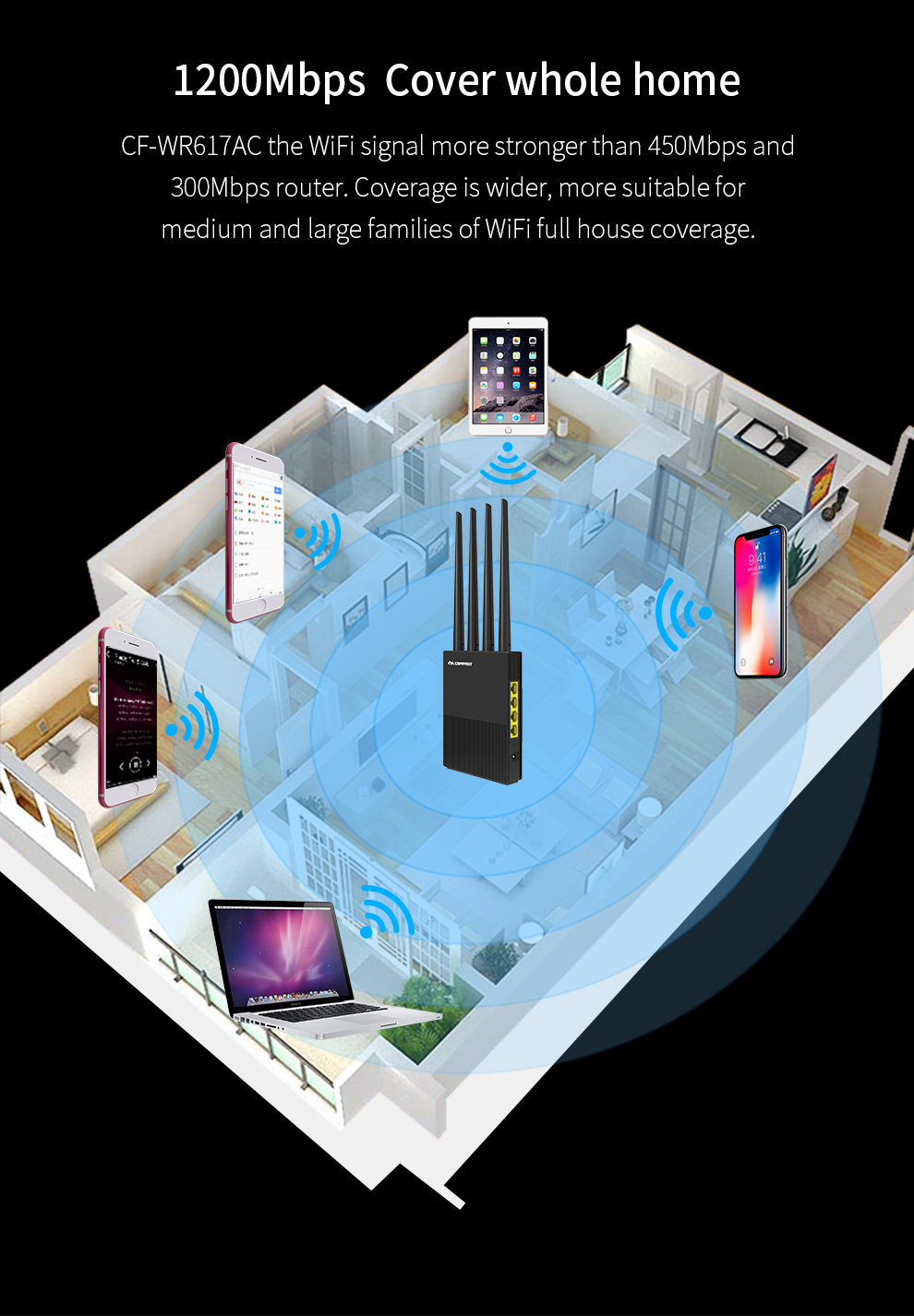

1200Mbps wireless speed for fast networking

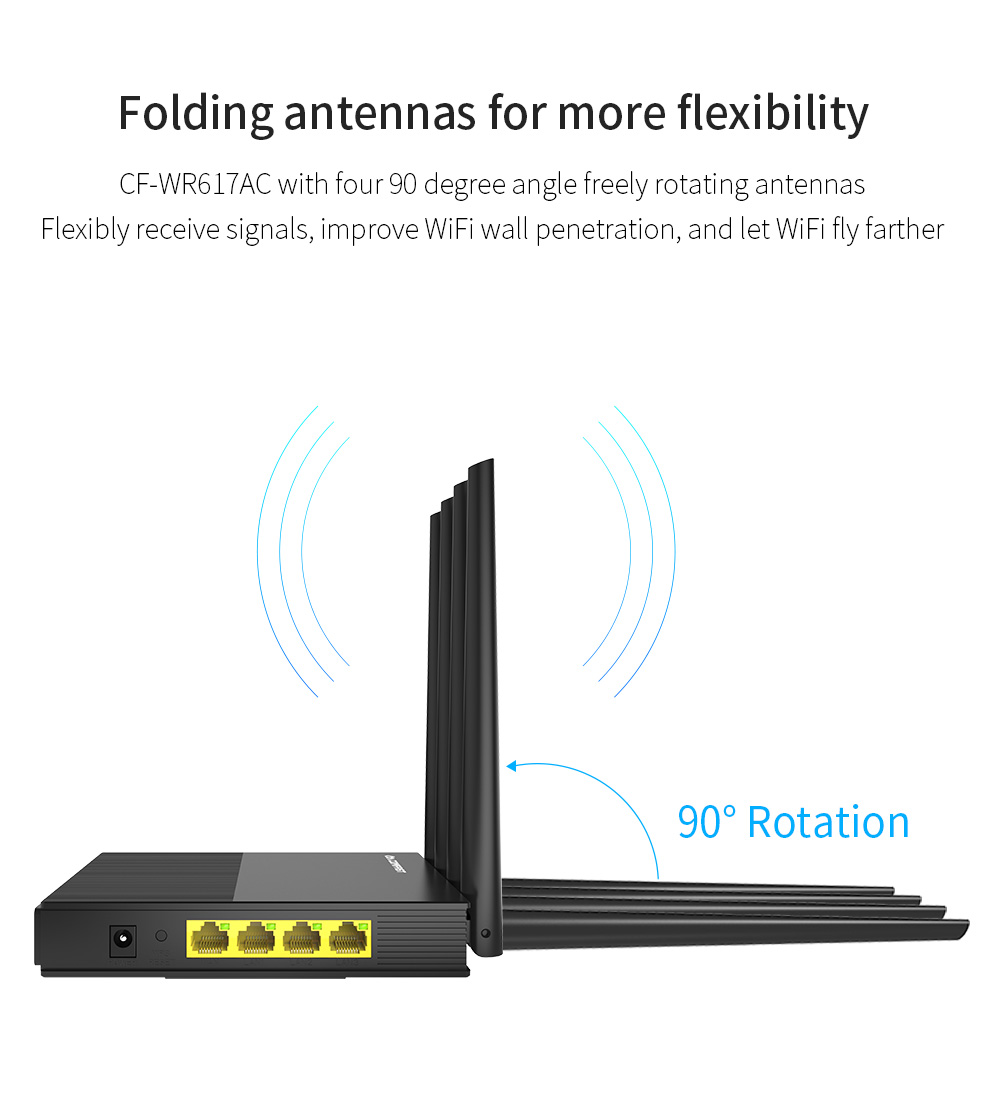

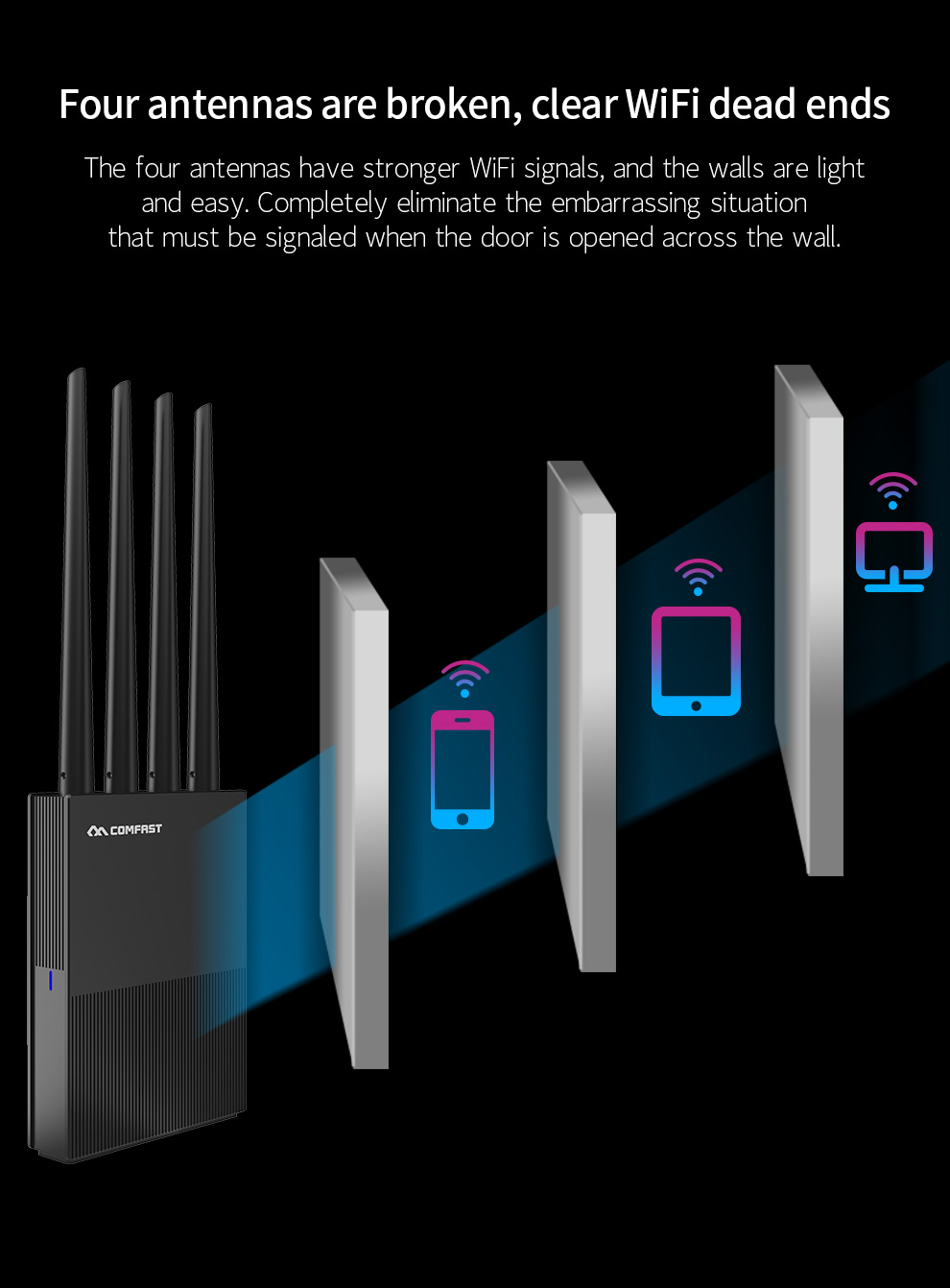

Four external antennas for stronger signal

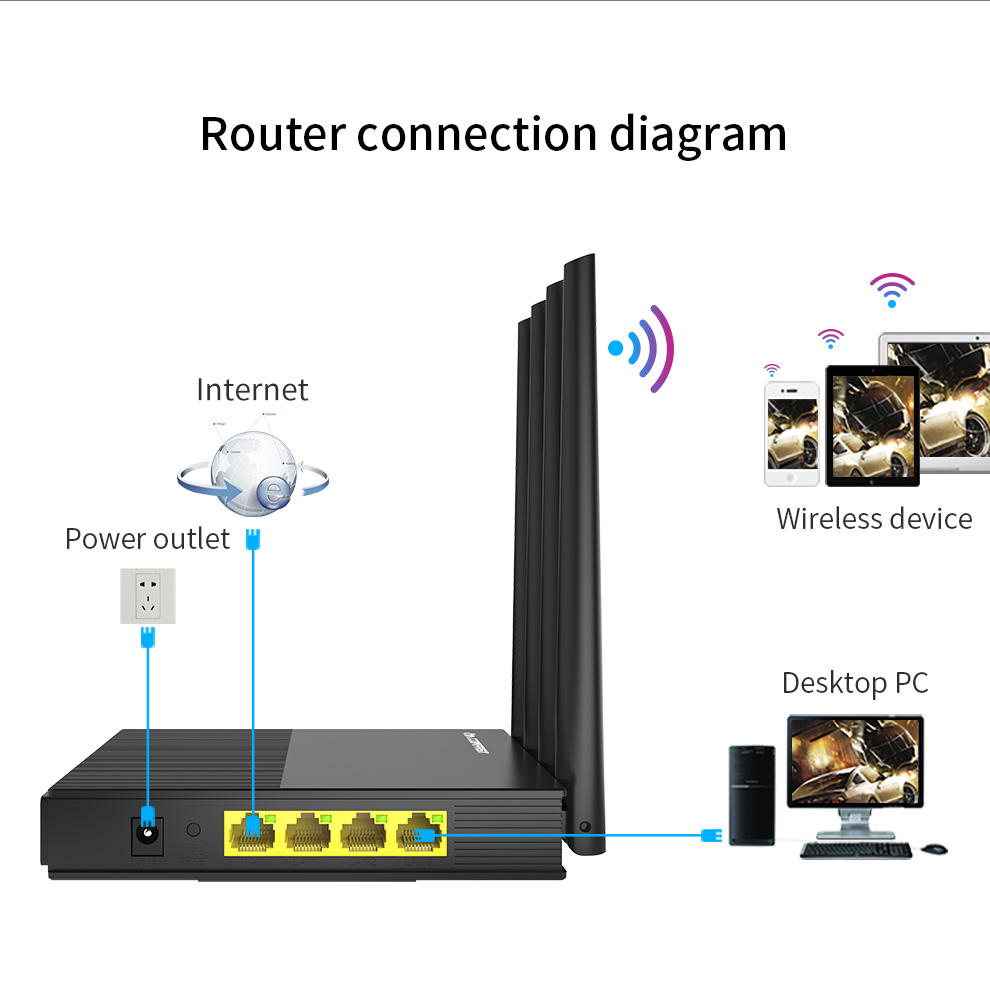

1 WAN + 3 LAN ports for easy expansion

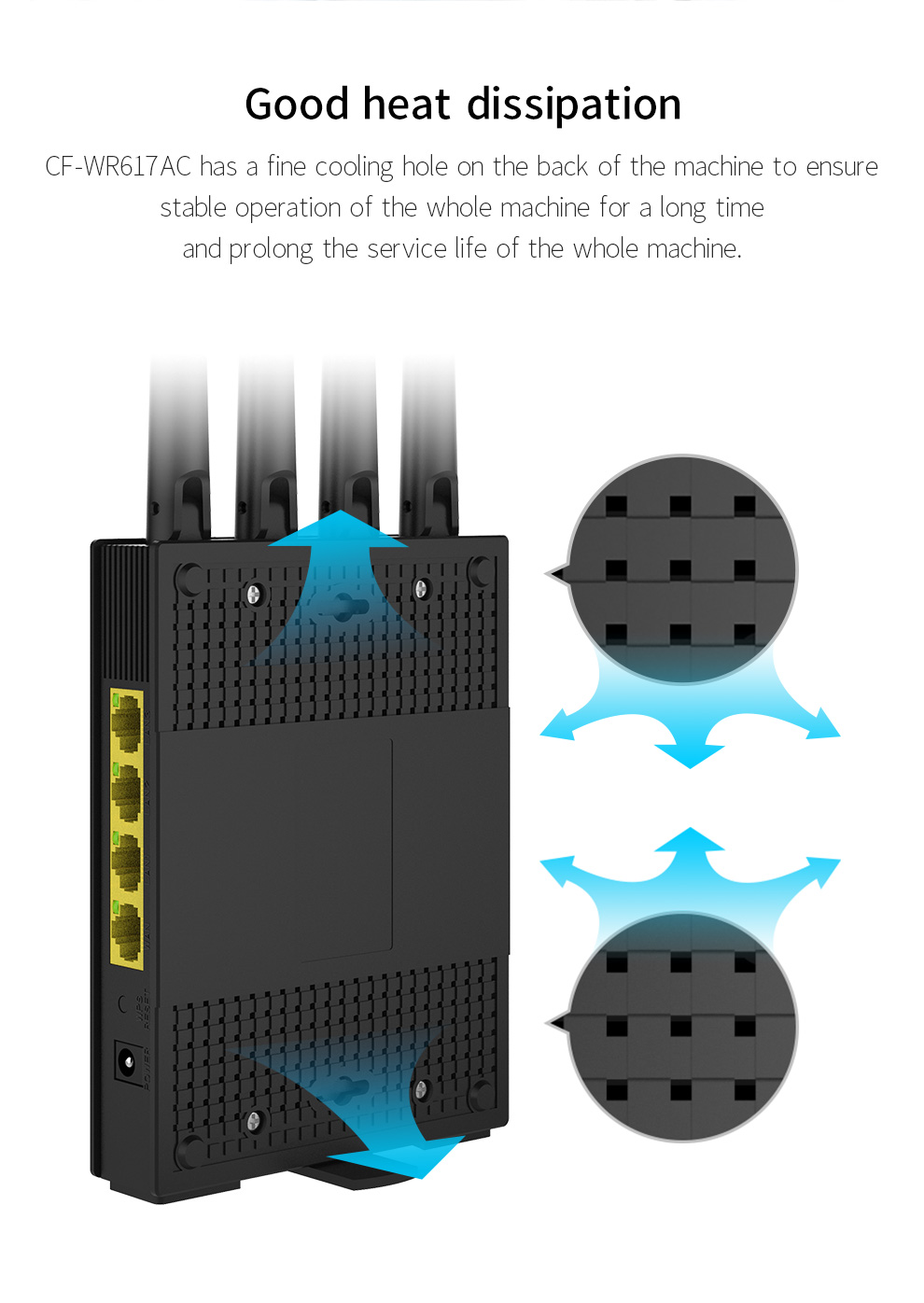

Multiple cooling vents for good heat dissipation

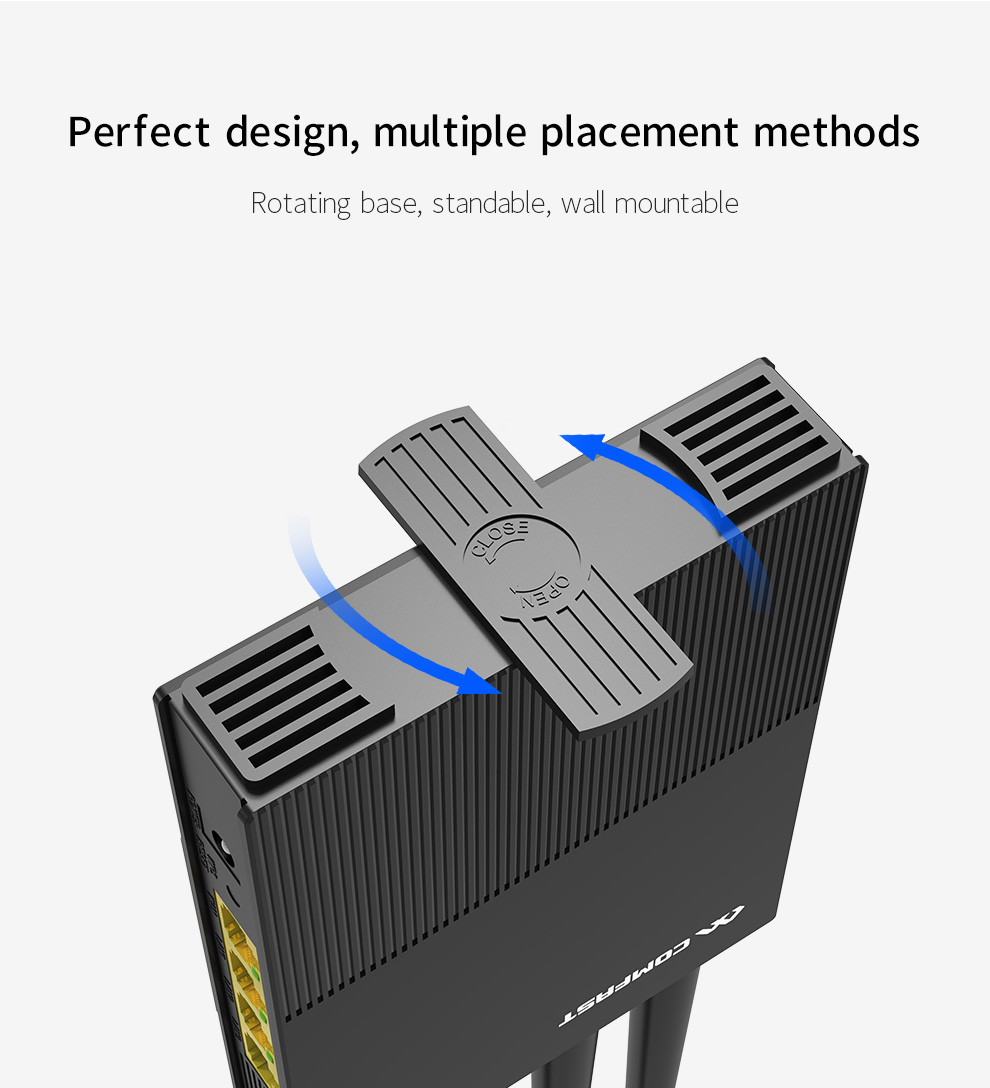

Supports wall-mount, desktop, and upright placement
9th-10th Floor, Building H, Huanan Digital Valley, No.1Huanan Road, Longhua District, Shenzhen, China
Phone: 86-755-83790059
ZIP/Postal code:518109
Monday to Friday
9:00-12:00,13:30-18:30
Consult with us now for guidance from a leading WiFi engineer with 16 years of experience. Don’t miss this excellent opportunity to access expert WiFi coverage and surveillance transmission solutions, backed by our high‑quality products and support!
Direct-from-Factory
Ready to Ship
Direct-from-Factory
Ready to Ship
Direct-from-Factory
Dust Free Workshop
Testing Equipment
Assembly Line
PCBA Processing
Chip Mounter
Fine Detection
Warehouse Logistics


*The product images and demonstration scenarios on this page are for illustrative purposes only and may have slight differences from the actual product. Please refer to the physical product for accuracy.
*The data on this page are theoretical values obtained from COMFAST’s internal laboratory under specific testing conditions. Actual usage may vary due to individual product differences, software versions, usage conditions, and environmental factors. Please refer to real-world usage for accurate representation.
*To provide as accurate product information, specifications, and features as possible, COMFAST may periodically adjust and revise the text descriptions, image effects, and other content on this page to ensure alignment with actual product performance, specifications, packaging, and accessories. Should such adjustments or revisions become necessary, no prior notice will be provided.
| Hardware Specification | DDR: 64MB;Flash: 16MB |
| Antenna | 2.4GHz: 2*5dBi Antennas 5.8GHz: 2*5dBi Antennas |
| Wireless Rate | 2.4GHz:300Mbps 5GHz:867Mbps |
| RF Parameters | Output Power(Max): 100mW (20dBm) Receiver Sensitivity (Min): -96dBm Frequency: 802.11ac/n/a: 5.180GHz-5.825GHz 802.11b/g/n: 2.412GHz-2.472GHz |

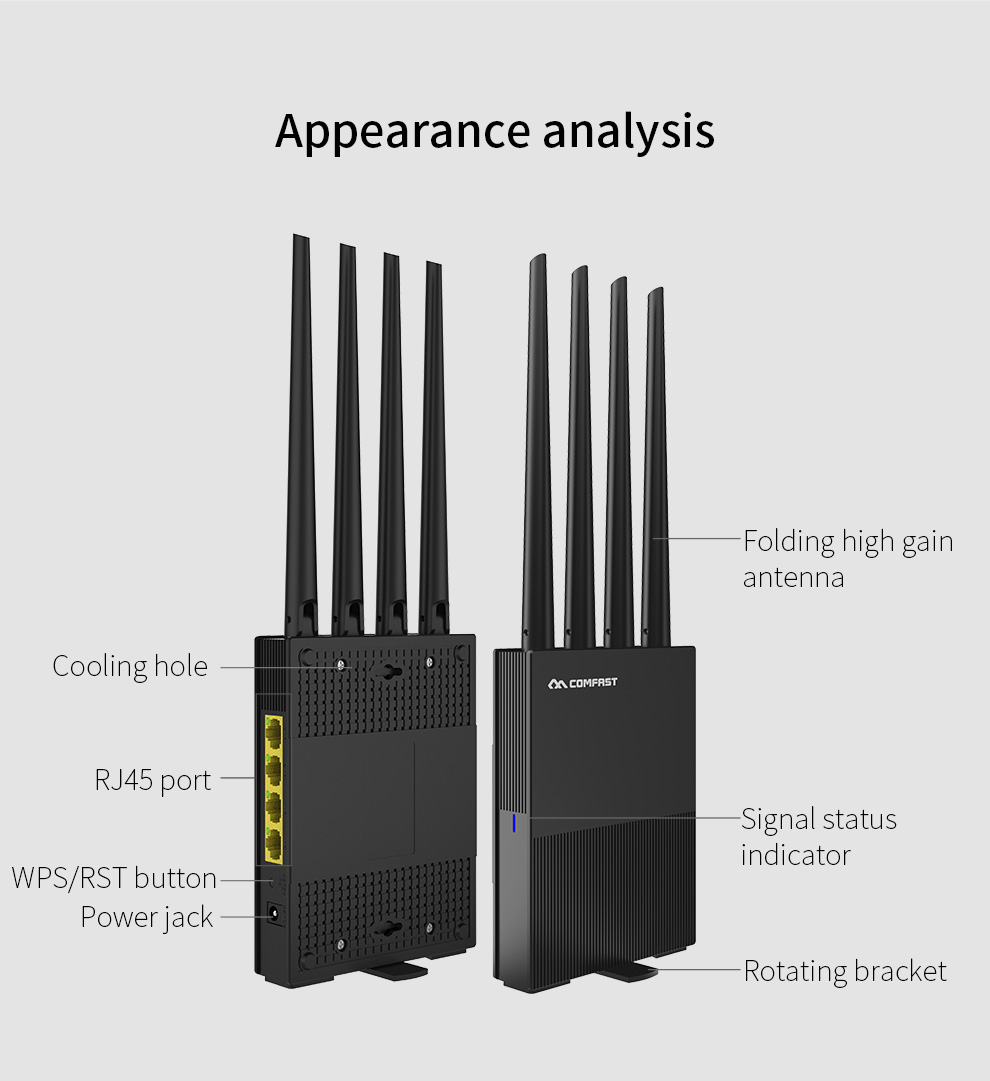

| Physical Port | 1*10/100Mbps RJ45 Ethernet WAN Port 3*10/100Mbps RJ45 Ethernet LAN Port 1*RESET Button 1*DC Power interface |
| Indicator | Three-color light |
| Power | 5V 1.5A |
| Power Consumption(Max) | <7.5W |
| IP Index | IP 31 |

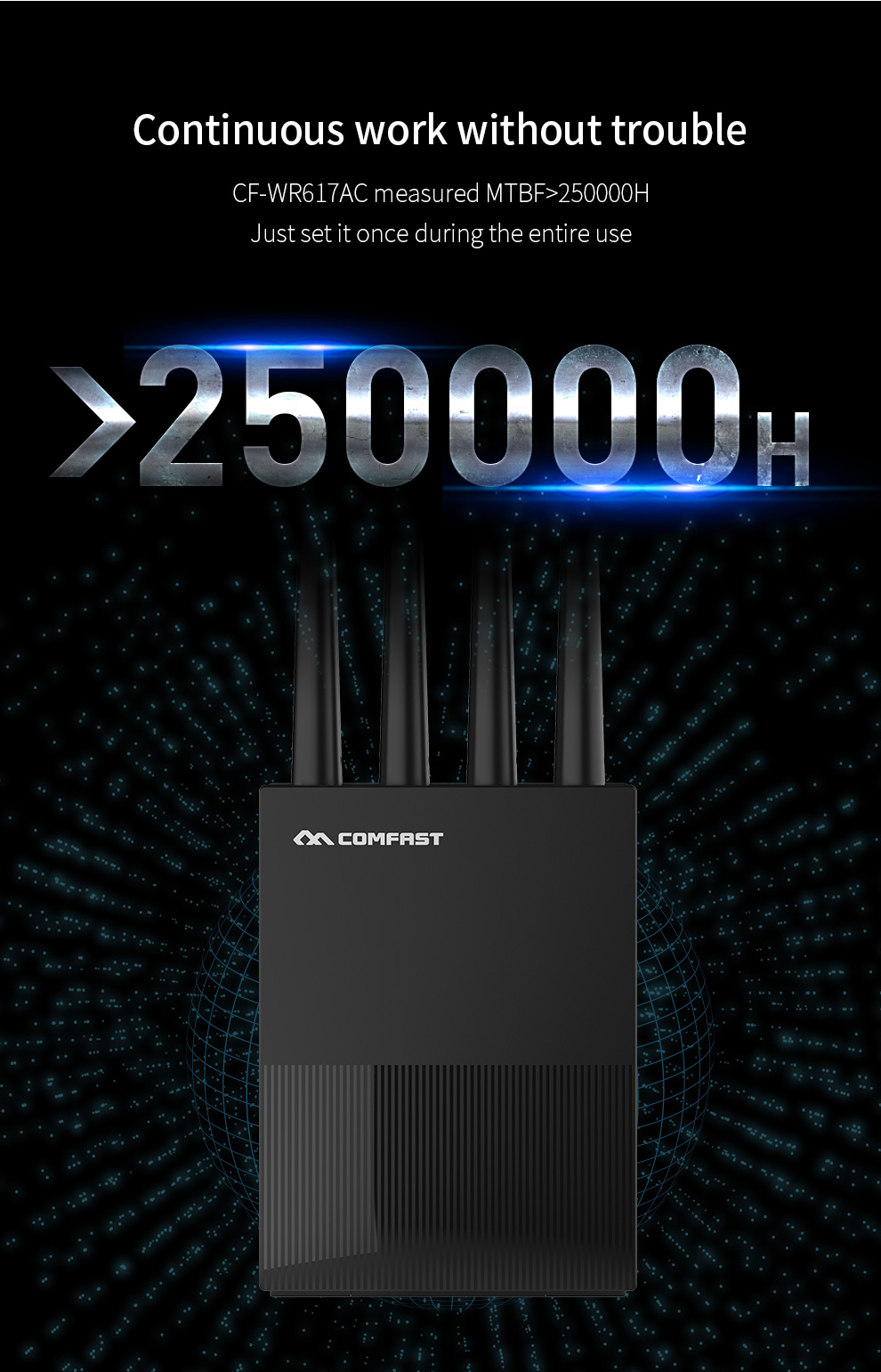

| MTBF | >250000H |
| Installation Way | Desktop/Wall-mounted |
| Case | Plastic Case |
| Size | Shape: Size: 14.95*11*2.6cm Antenna: 17.5cm |
| Working Environment | Working Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Working Humidity: 10%-90%RH Non-condensing Storage Humidity: 5%-95%RH Non-condensing |
