1200Mbps Outdoor AP

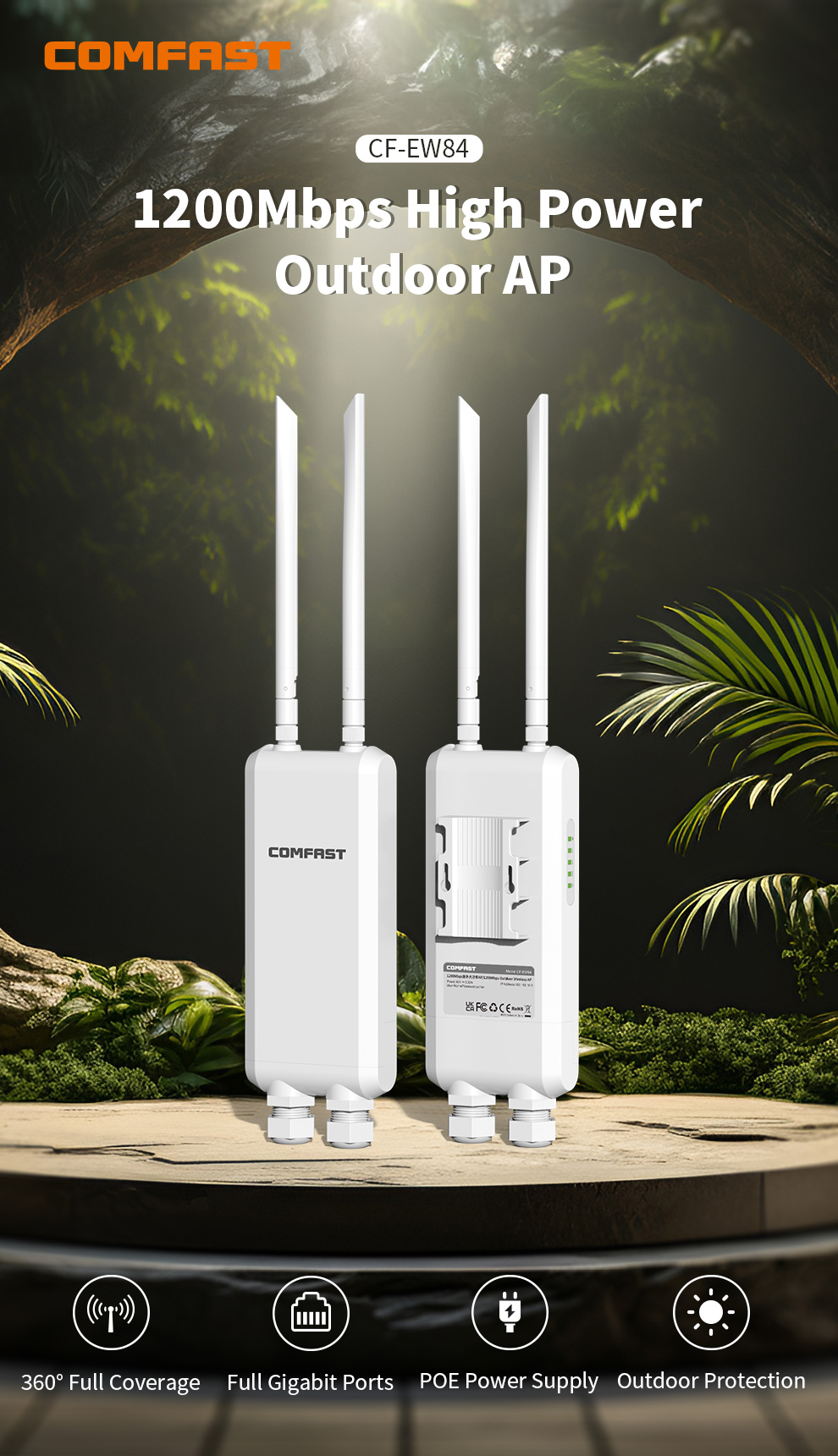

The CF-EW84 is a 1200Mbps dual-band high-power outdoor AP with an IP66-rated waterproof and freeze-resistant housing. Designed for harsh environments, its streamlined design, high-gain external antennas, and standard PoE ensure stable, high-speed, and extensive wireless coverage for large outdoor venues like plazas, resorts, and scenic areas.
-
Streamlined design combines aesthetics with practicality
-

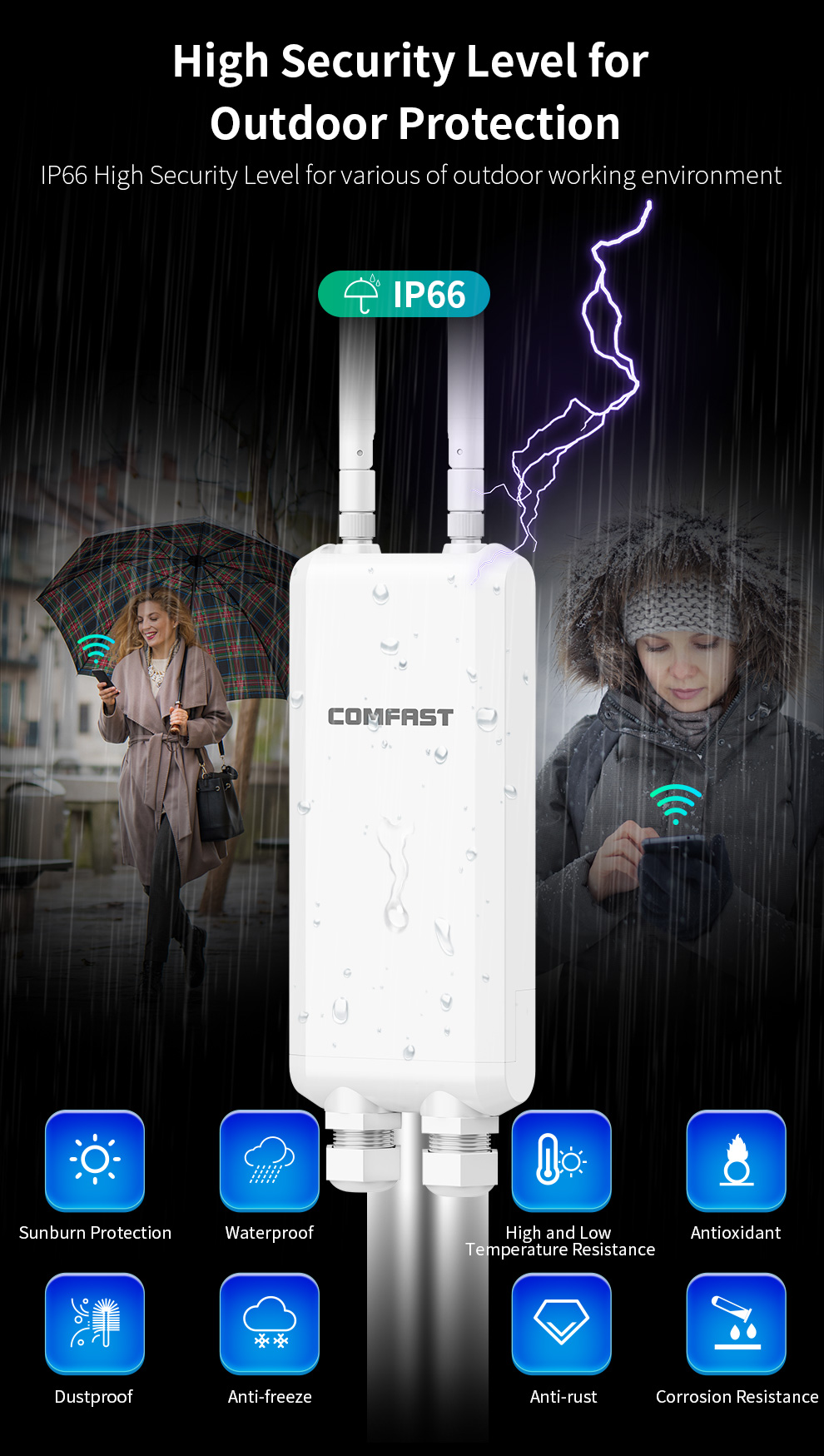

IP66-rated housing for waterproof, freeze, and dust protection
-

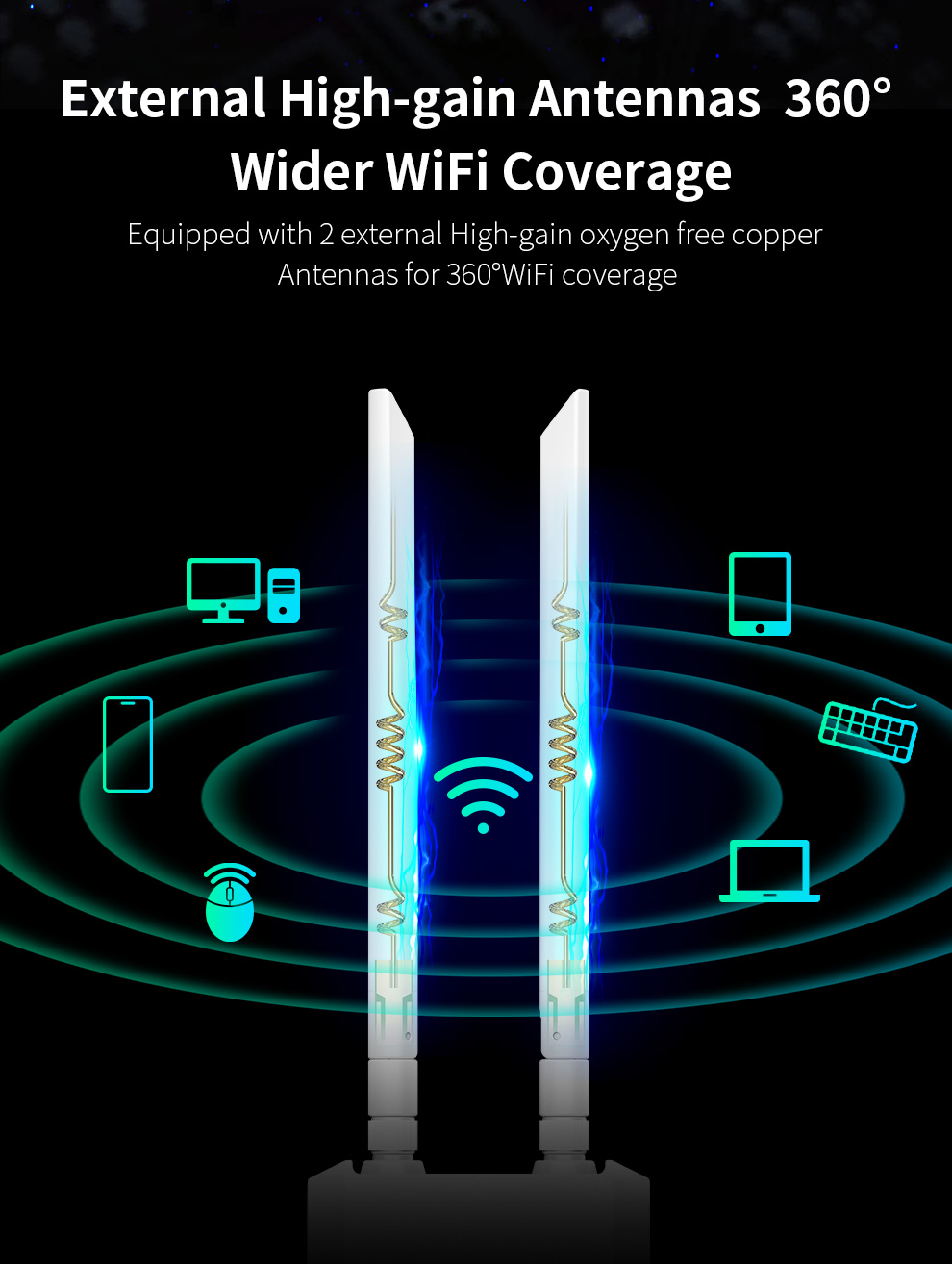

Two external high-gain dual-band antennas for strong signals
-
Pole-mount installation for stability and simplicity
-
Standard 48V PoE support for safe, flexible deployment
-
Dual-band high-speed wireless rates up to 1200Mbps
-
Multiple gigabit Ethernet ports for high expandability
-
Fast seamless roaming enhances mobile experience
-
Clear status indicators for instant operational visibility
- Categories: Wireless AP, Outdoor AP
- Model: CF-EW84
Contact Us
Product Repair
Repair Address
9th-10th Floor, Building H, Huanan Digital Valley, No.1Huanan Road, Longhua District, Shenzhen, China
Telephone
Phone: 86-755-83790059
ZIP/Postal code:518109
Service Time
Monday to Friday
9:00-12:00,13:30-18:30
*The product images and demonstration scenarios on this page are for illustrative purposes only and may have slight differences from the actual product. Please refer to the physical product for accuracy.
*The data on this page are theoretical values obtained from COMFAST’s internal laboratory under specific testing conditions. Actual usage may vary due to individual product differences, software versions, usage conditions, and environmental factors. Please refer to real-world usage for accurate representation.
*To provide as accurate product information, specifications, and features as possible, COMFAST may periodically adjust and revise the text descriptions, image effects, and other content on this page to ensure alignment with actual product performance, specifications, packaging, and accessories. Should such adjustments or revisions become necessary, no prior notice will be provided.
| Product Model | CF-EW84 |
| Antenna | External 2*5dBi Antennas |
| Wireless Standard | IEEE802.11b/g/n Standards |
| RF Parameters | Output Power (Max): 800mW(29dBm); Receiving Sensitivity (Min): -96dBm; Frequency: 802.11b/g/n : 2.412GHz~2.484GHz |
| Modulation Mode | DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps; OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps; MIMO-OFDM: MCS 0-15 |
| Transmission Rate | 11b: 1, 2, 5.5, 11Mbps; 11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps; 11n: MCS0-MCS15(20MHz and 40MHz Analog Bandwidth); 20MHz: 144.4Mbps; 40MHz: 300Mbps |
| Physical Ports | 1*10/100Mbps WAN RJ45 Ethernet Port;2*10/100Mbps LAN RJ45 Ethernet Port; Support 24V POE power supply 1*Reset Buttons (1*DC) |
| Indicator | WiFi/Power/Network port 3 signal strength indicators |
| Power | Power Supply: 802.3af/at POE Power Supply(0-100m); Power Adapter: 24V 0.5A POE Power Adapter(Configured) |
| Power Consumption(Max) | <12W |
| IP Index | Ip66 |
| MTBF | >250000H |

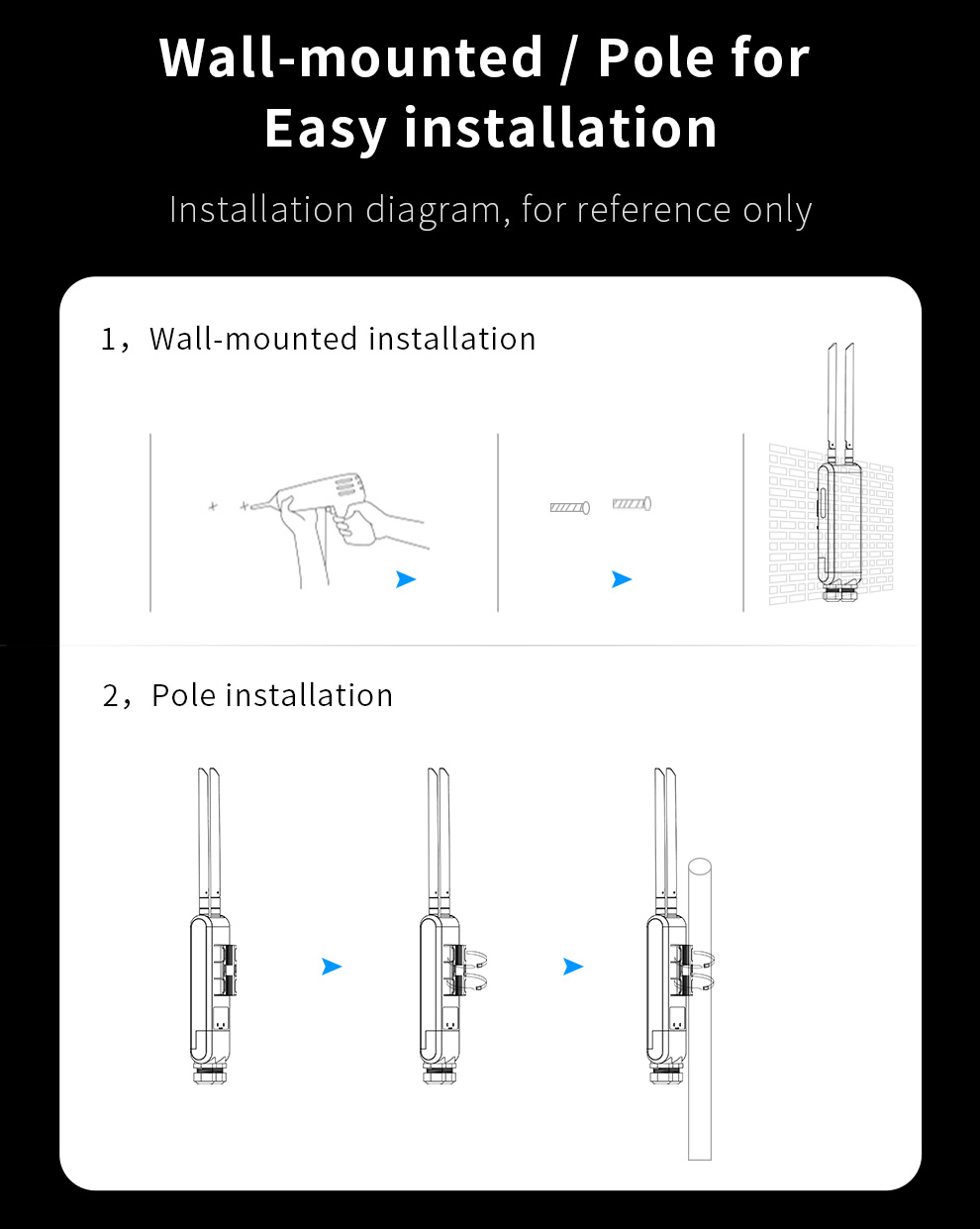

| Installation Way | Wall-mounted/Pole-mounted |
| Case | Plastic Case (Imported ABS Material) |
| Physical Features | Size: 90mm*388.2mm |
| Working Environment | Working Temperature: -10℃~55℃; Storage Temperature: -40℃~70℃; Working Humidity: 10%~90%RH Non-condensing; Storage Humidity: 5%~90%RH Non-condensing |
