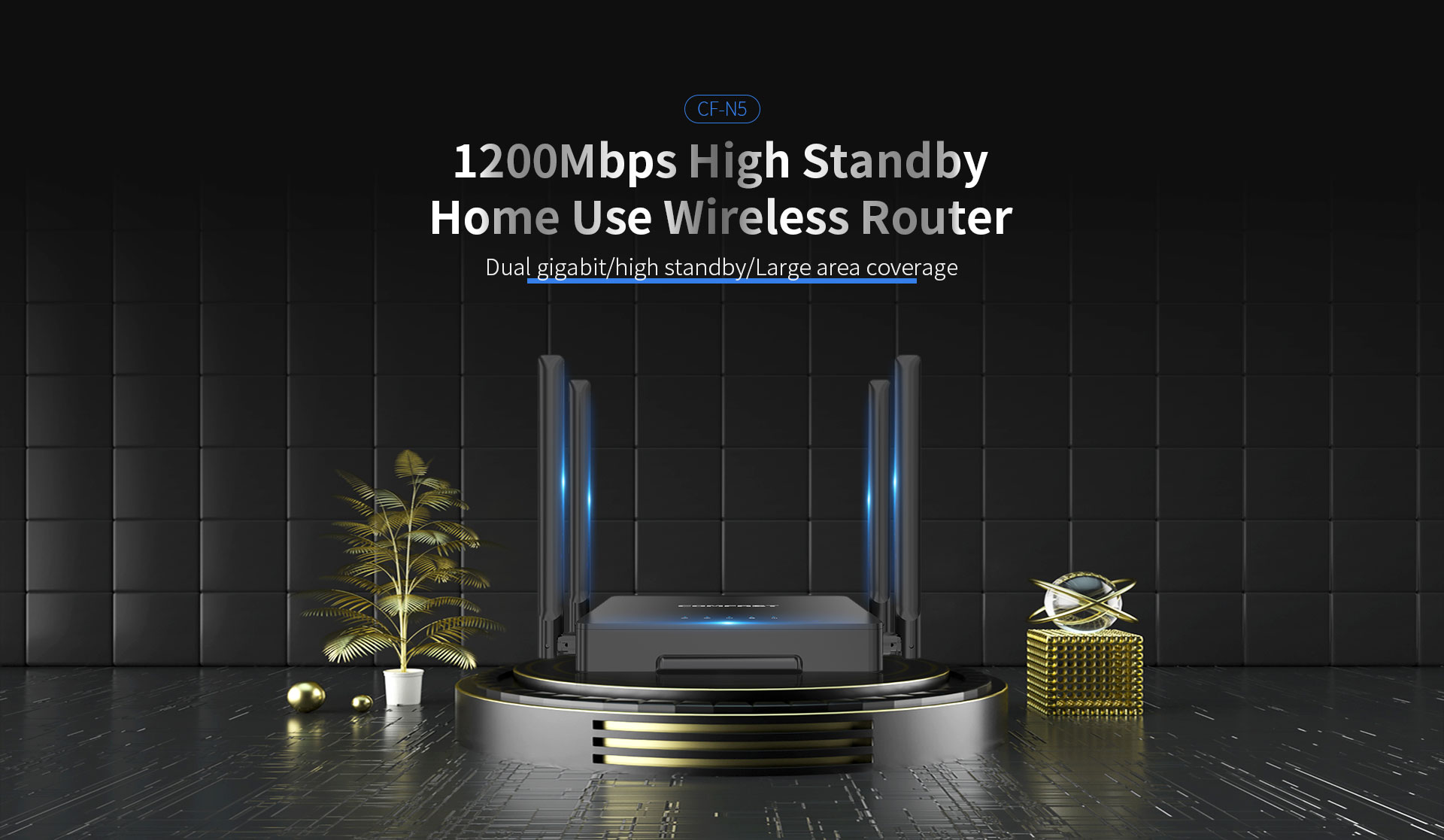

1200Mbps High-memory Home Router
CF-N5 is a high-memory, wall-penetrating home router equipped with 512MB ultra-large memory to support more simultaneous users. Both 2.4GHz and 5GHz bands feature PA power amplifiers, and four high-gain antennas enhance signal transmission and reception, making it ideal for homes with multiple wireless devices.
-
512MB ultra-large memory supports more devices and improves long-term performance
-
Supports IEEE802.11ac/a/b/g/n standards
-
2.4GHz and 5.8GHz dual bands with strong anti-interference
-
Faster 5GHz WiFi for smoother wireless connections
-
1200Mbps wireless speed for high-speed networking
-
Equipped with four 5dBi omnidirectional high-gain antennas
-
Four external antennas deliver stronger signal coverage
-
Three-chip architecture ensures stable and reliable performance
-
PA amplifiers on both bands provide more stable wireless signals
- Categories: Wireless Router, Idea Router, Home Router
- Model: CF-N5
Contact Us
Product Repair
Repair Address
9th-10th Floor, Building H, Huanan Digital Valley, No.1Huanan Road, Longhua District, Shenzhen, China
Telephone
Phone: 86-755-83790059
ZIP/Postal code:518109
Service Time
Monday to Friday
9:00-12:00,13:30-18:30
*The product images and demonstration scenarios on this page are for illustrative purposes only and may have slight differences from the actual product. Please refer to the physical product for accuracy.
*The data on this page are theoretical values obtained from COMFAST’s internal laboratory under specific testing conditions. Actual usage may vary due to individual product differences, software versions, usage conditions, and environmental factors. Please refer to real-world usage for accurate representation.
*To provide as accurate product information, specifications, and features as possible, COMFAST may periodically adjust and revise the text descriptions, image effects, and other content on this page to ensure alignment with actual product performance, specifications, packaging, and accessories. Should such adjustments or revisions become necessary, no prior notice will be provided.
| Hardware Specification | PA: 2.4G KCT8227D 5.8G KCT8536C DDR: 512MB；FLASH: 32MB； |
| Antenna | 2*5dBi 2.4GHz Antennas; 2* 5dBi 5.8GHz Antenna |
| Wireless Standard | 2.4GHz: 300Mbps 5.8GHz: 867Mbps |
| RF Parameters | Output Power(Max): 250mW(24dBm) Receiver Sensitivity(Min): -96dBm Frequency: 802.11ac/n/a：5.180-5.825GHz 802.11b/g/n：2.412GHz-2.472GHz |
| Physical Port | 1*10/100/1000Mbps WAN RJ45; 4*10/100/1000Mbps LAN RJ45; 1*RESET Button; 1*Micro USB Port 1*USB3.0 Port 1*DC Power |

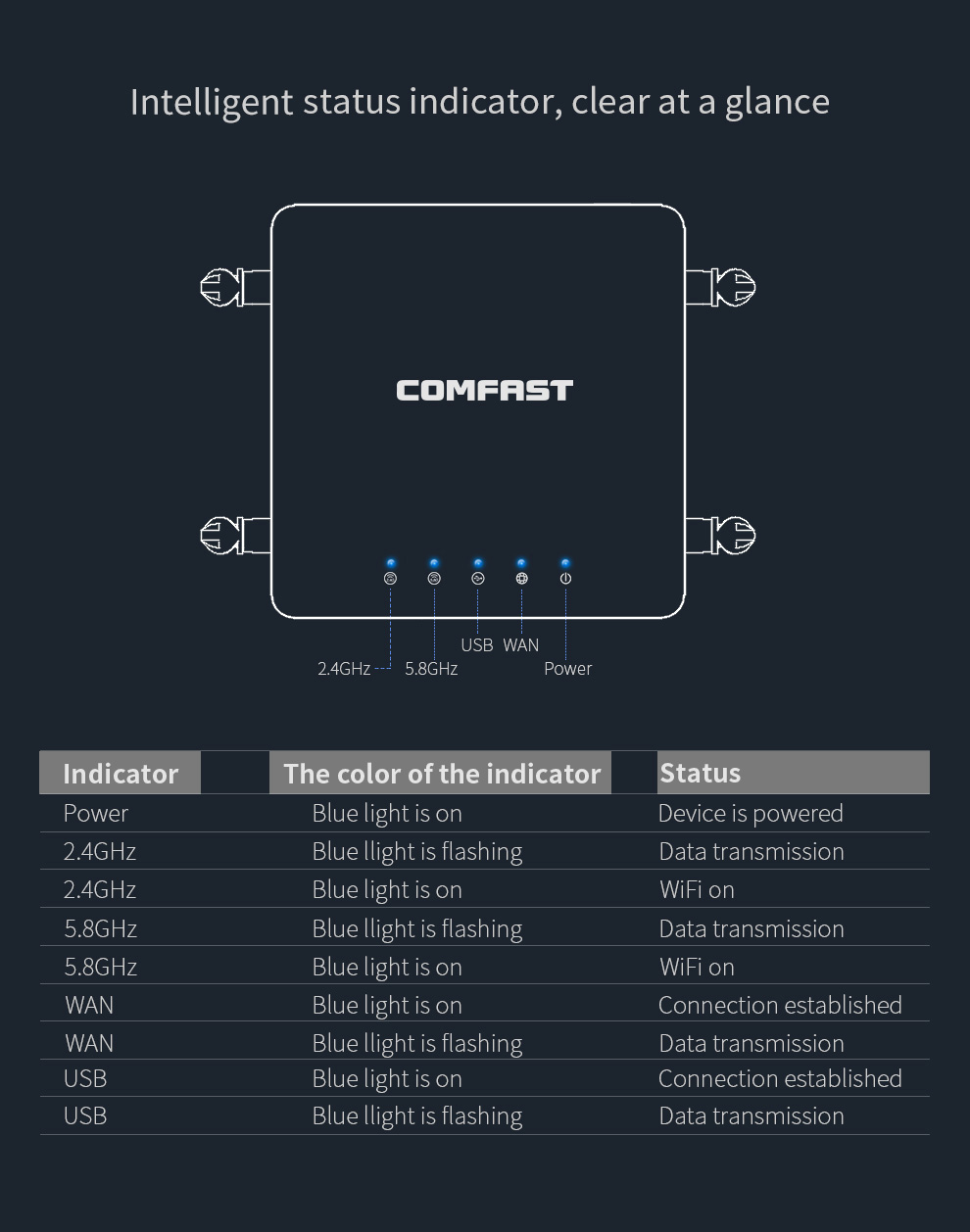

| Indicator | 2.4G/5.8G/USB/WAN/Power |
| Power | Power Adapter: DC12V/1.5A |
| Power (Max) | <18W |
| IP Index | IP31 Level |
| MTBF | >250000H |
| Installation Way | Desktop/Wall-mounted |
| Case | ABS Material, Plastic Case |
| Physical Features | Product Size: 160*160*168mm |
| Working Environment | Working Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Working Humidity: 10%-90%RH Non-condensing Storage Humidity: 5%-95%RH Non-condensing |
