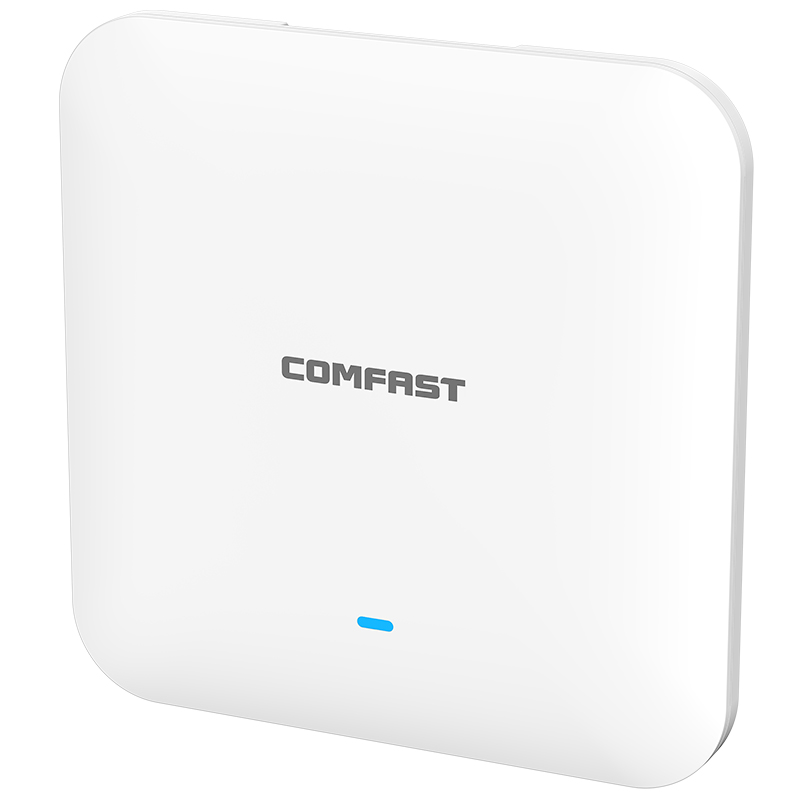

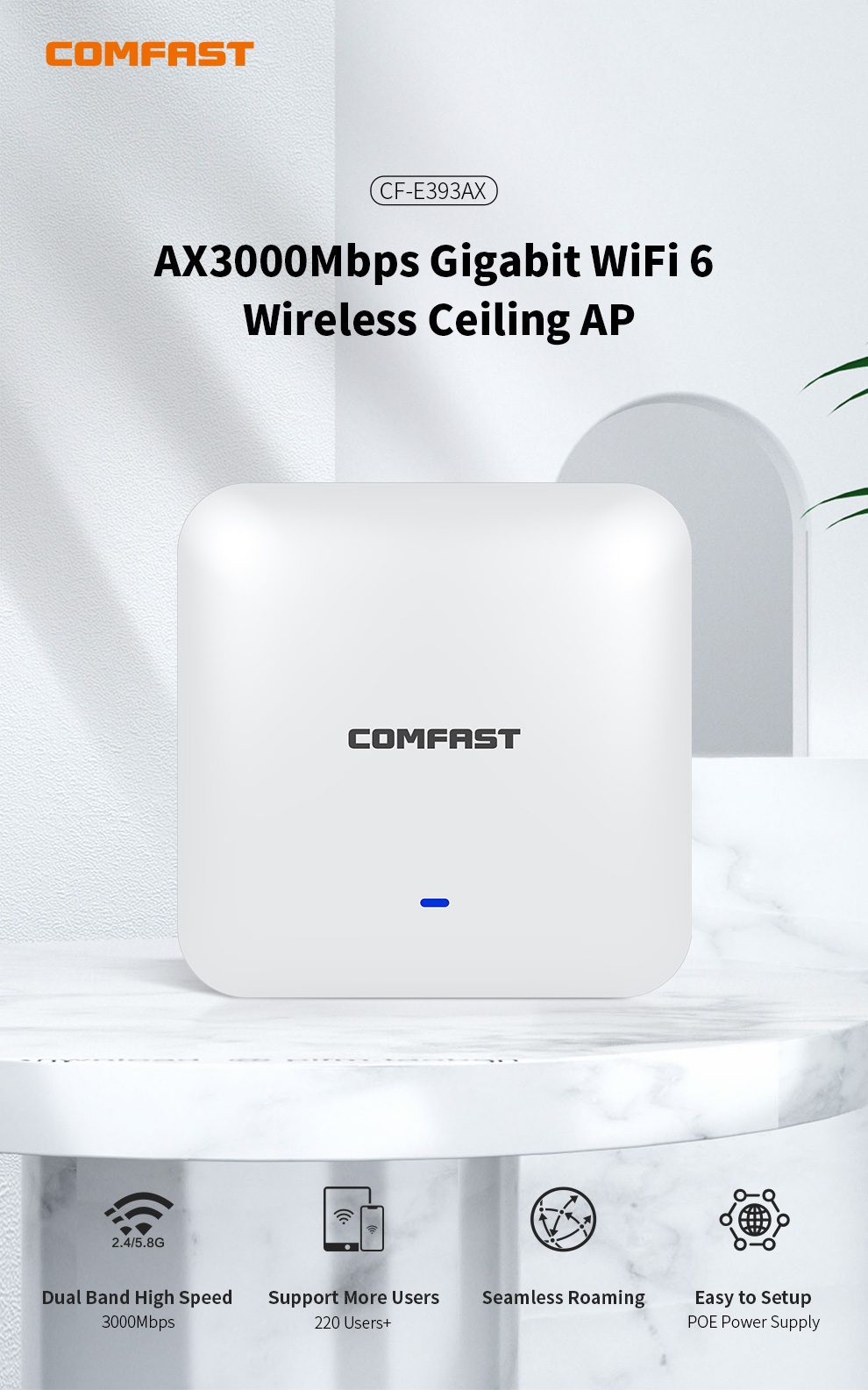

3000Mbps Wireless Celling AP

The CF-E393AX is a high-power WiFi 6 ceiling mount AP, delivering up to 3000Mbps wireless speed for extensive and stable indoor coverage. It utilizes dual-band and Mesh networking for seamless roaming and strong signal penetration, and supports standard PoE for easy installation. It is an ideal wireless solution for large venues like malls, hotels, enterprises, and schools.

  • Ceiling-mount design with four built-in high-gain antennas

  • High 400mW (26dBm) transmit power for extended coverage

  • Dual-band concurrent wireless speed up to 3000Mbps

  • Supports latest WiFi 6 standard and 1024-QAM modulation

  • Utilizes OFDMA and MU-MIMO for multi-user efficiency

  • Standard 48V PoE support for flexible and easy deployment

  • Built-in Mesh function enables flexible and easy networking

  • Enables seamless roaming with imperceptible handoff

  • Ideal for large venues like malls, enterprises, and schools

Contact Us

Online Service

Service hours: Mon-Fri 9:00-12:00, 13:30-18:30 (excluding holidays)

Product Repair

Repair Address

9th-10th Floor, Building H, Huanan Digital Valley, No.1Huanan Road, Longhua District, Shenzhen, China

Telephone

Phone: 86-755-83790059
ZIP/Postal code:518109

Service Time

Monday to Friday
9:00-12:00,13:30-18:30

描述

Performance Upgrade
High Speed

WiFi 6 full signal coverage,enjoy seamless roaming freedom.

One-click deployment, enjoy enterprise-level WiFi treatment.

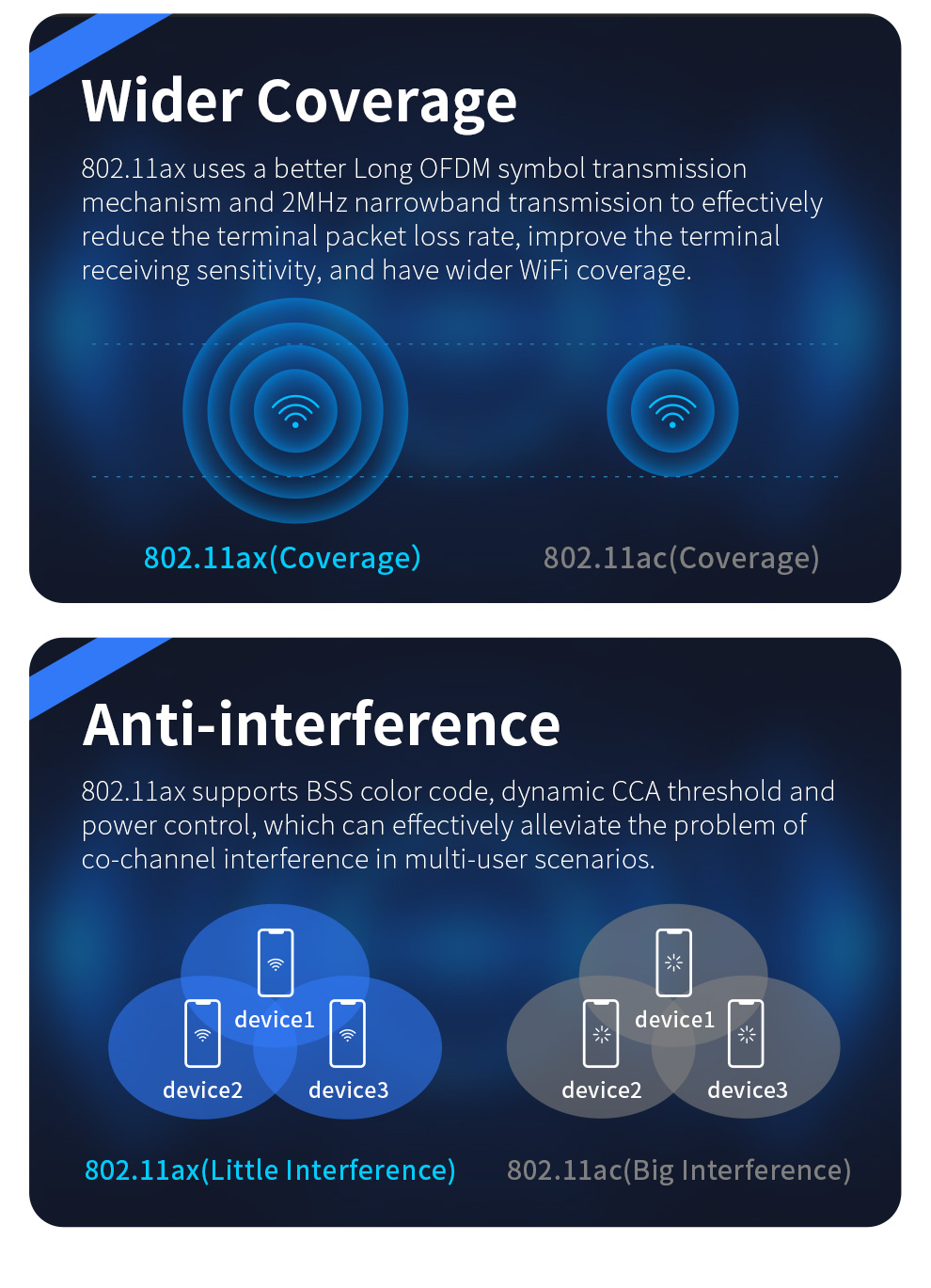

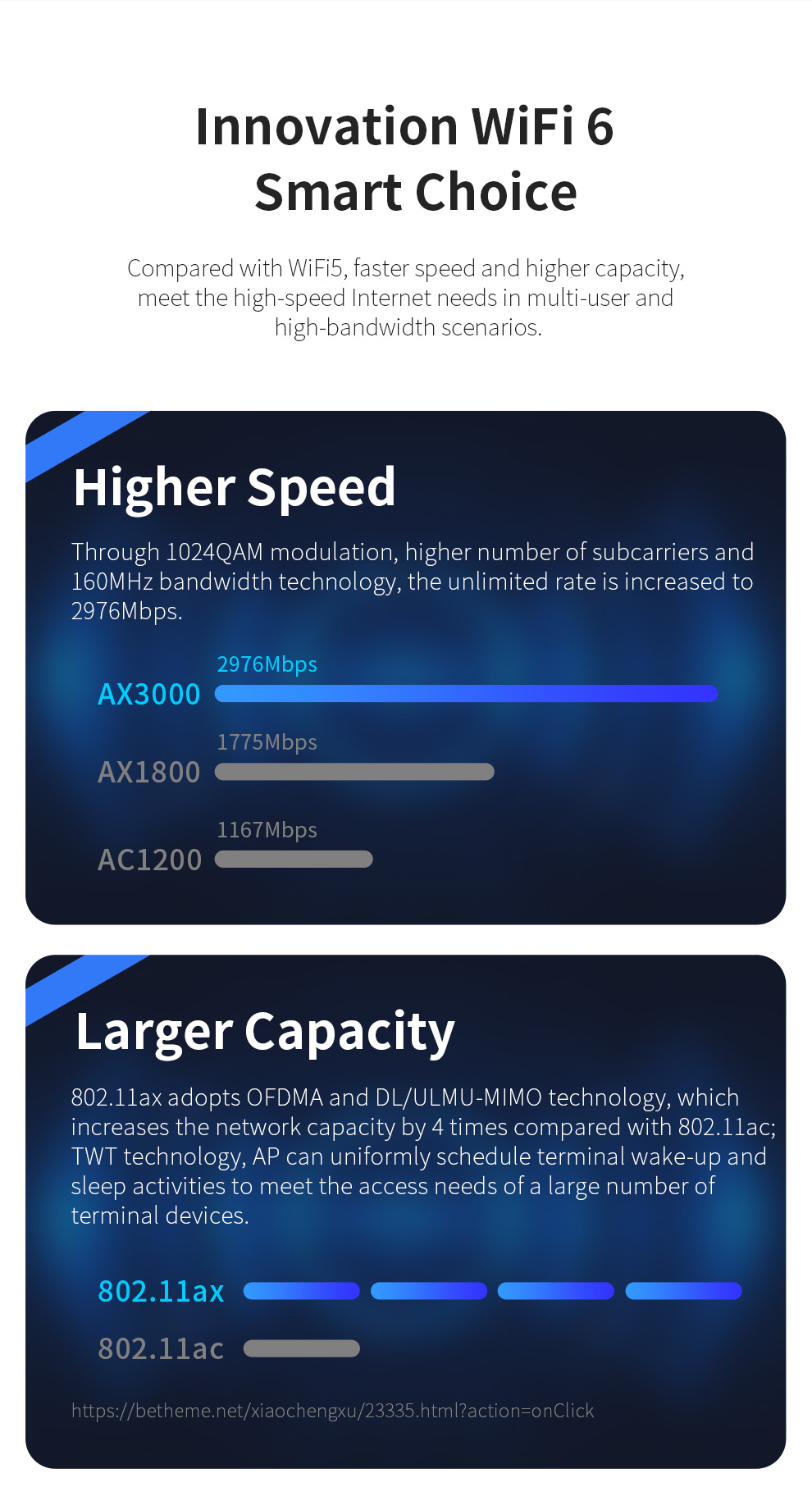

Innovation WiFi 6
Smart Choice

Compared with WiFi5, faster speed and higher capacity,

meet the high-speed Internet needs in multi-user and

high-bandwidth scenarios.

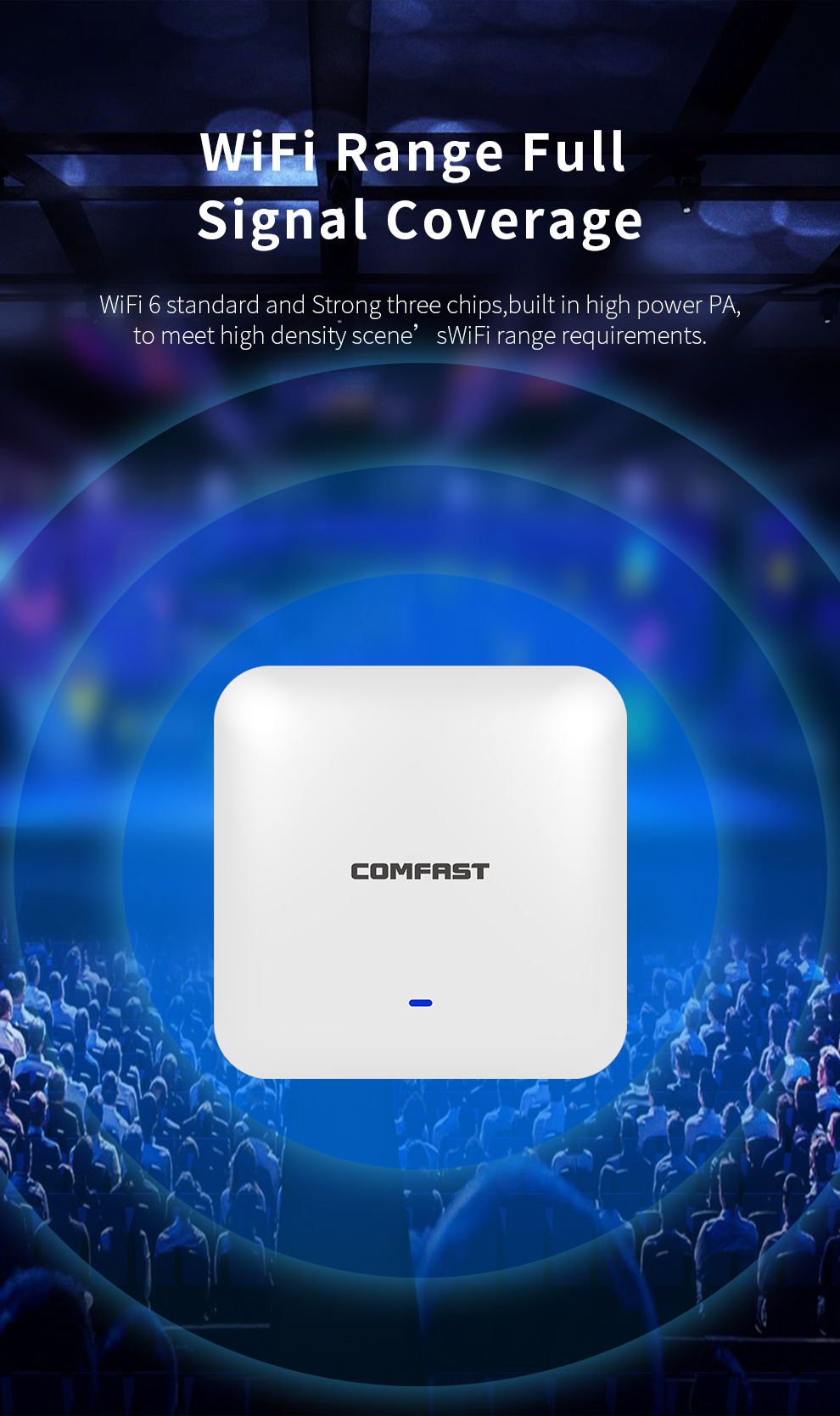

WiFi Range Full
Signal Coverage

WiFi 6 standard and Strong three chips,built in high power PA,

to meet high density scene’sWiFi range requirements.

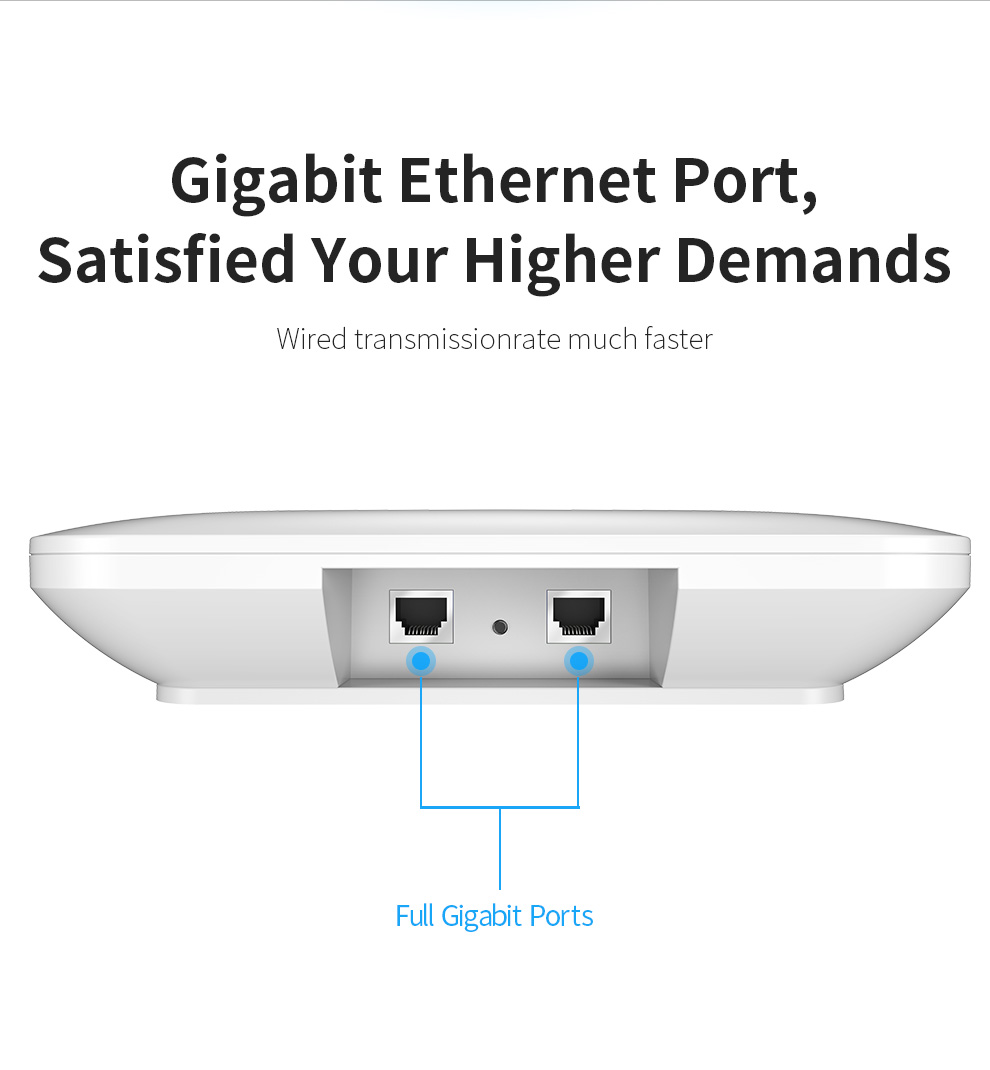

Gigabit Ethernet Port,
Satisfied Your Higher Demands

Wired transmissionrate much faster

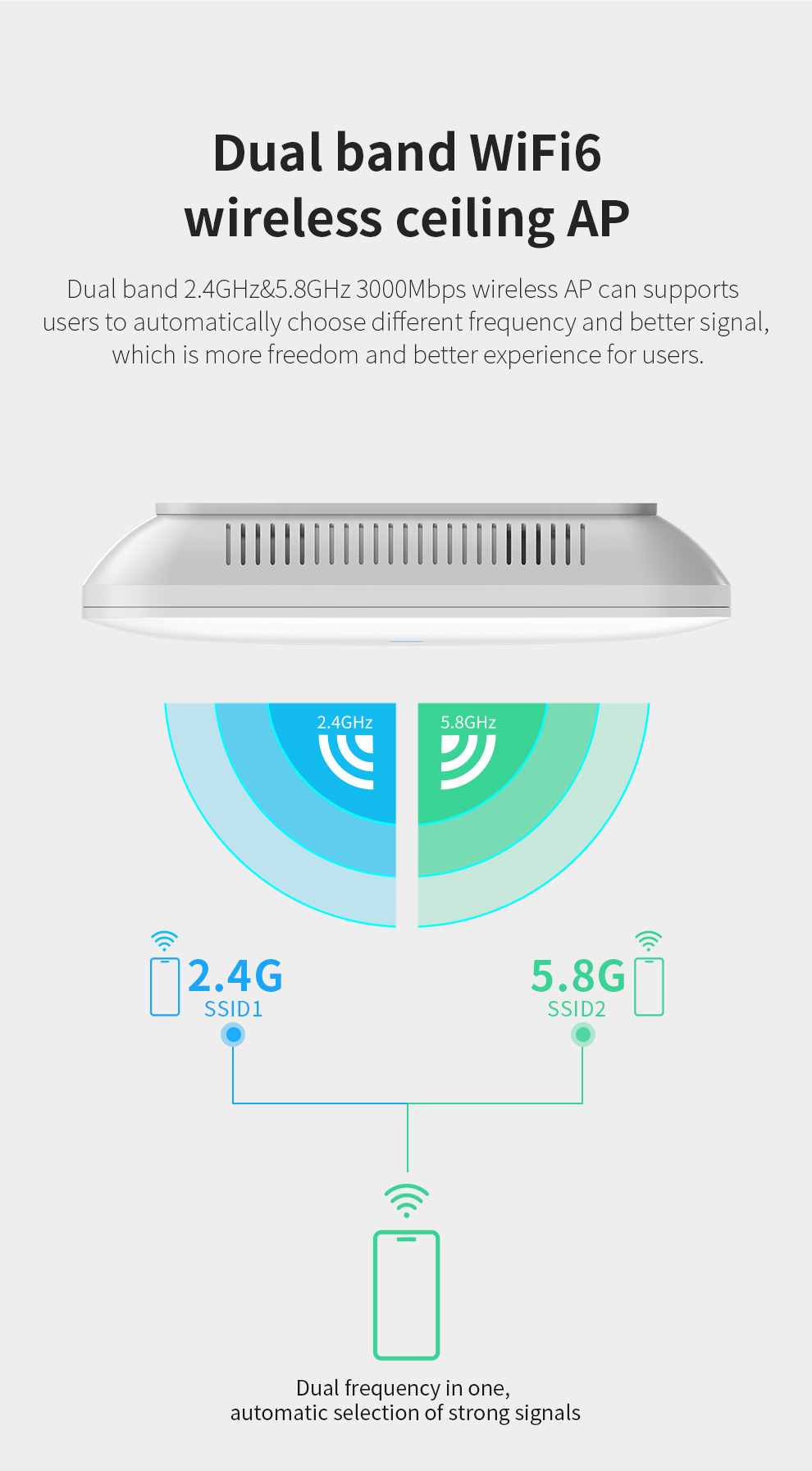

Dual band WiFi6
wireless ceiling AP

Dual band 2.4GHz&5.8GHz 3000Mbps wireless AP can supports

users to automatically choose different frequency and better signal,

 which is more freedom and better experience for users.

Reduce latency
Enjoy high speed network

Multiple users can connect simultaneously,

and latency lower to 10ms, and smoother network

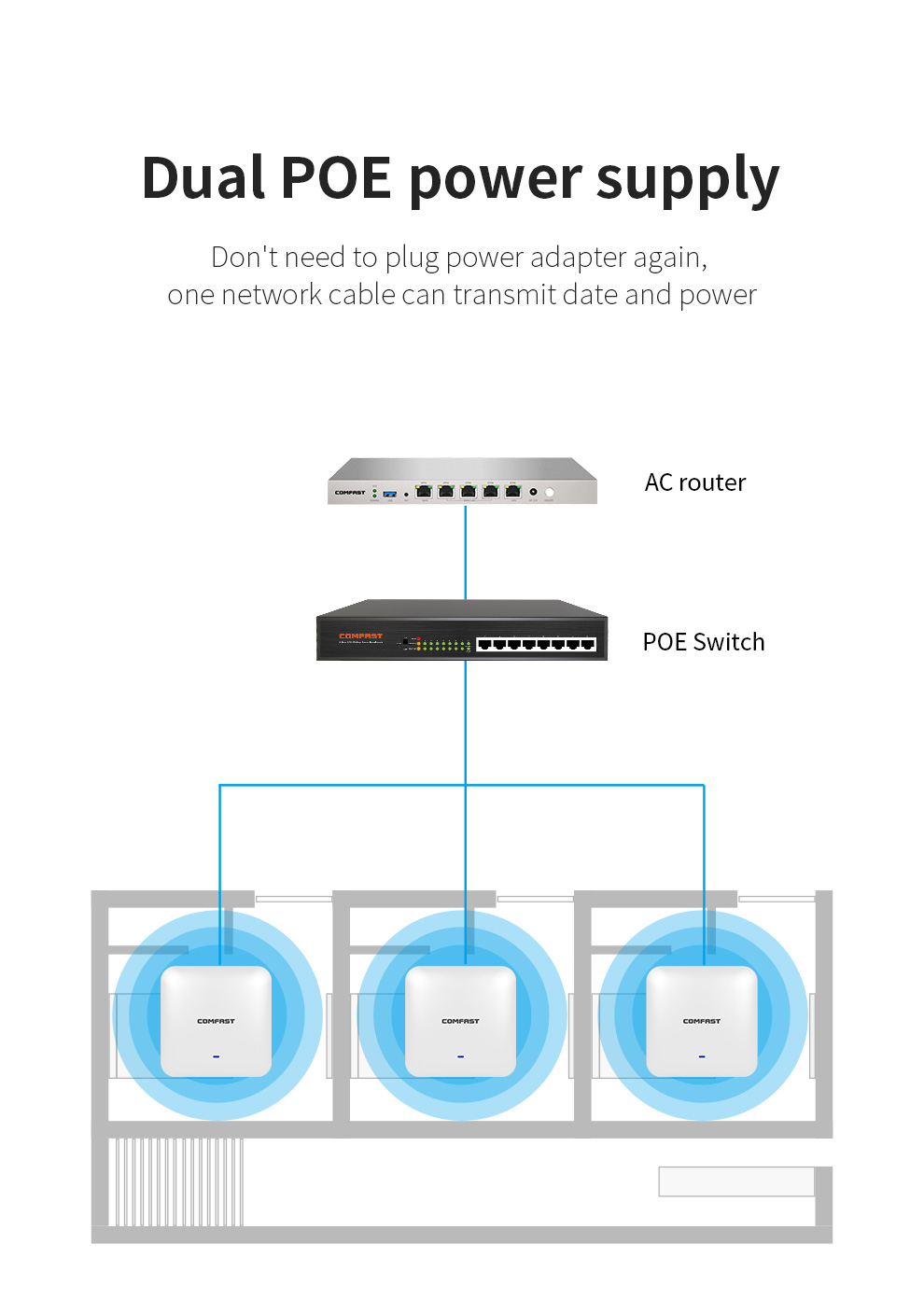

Dual POE power supply

Don’t need to plug power adapter again,

one network cable can transmit date and power

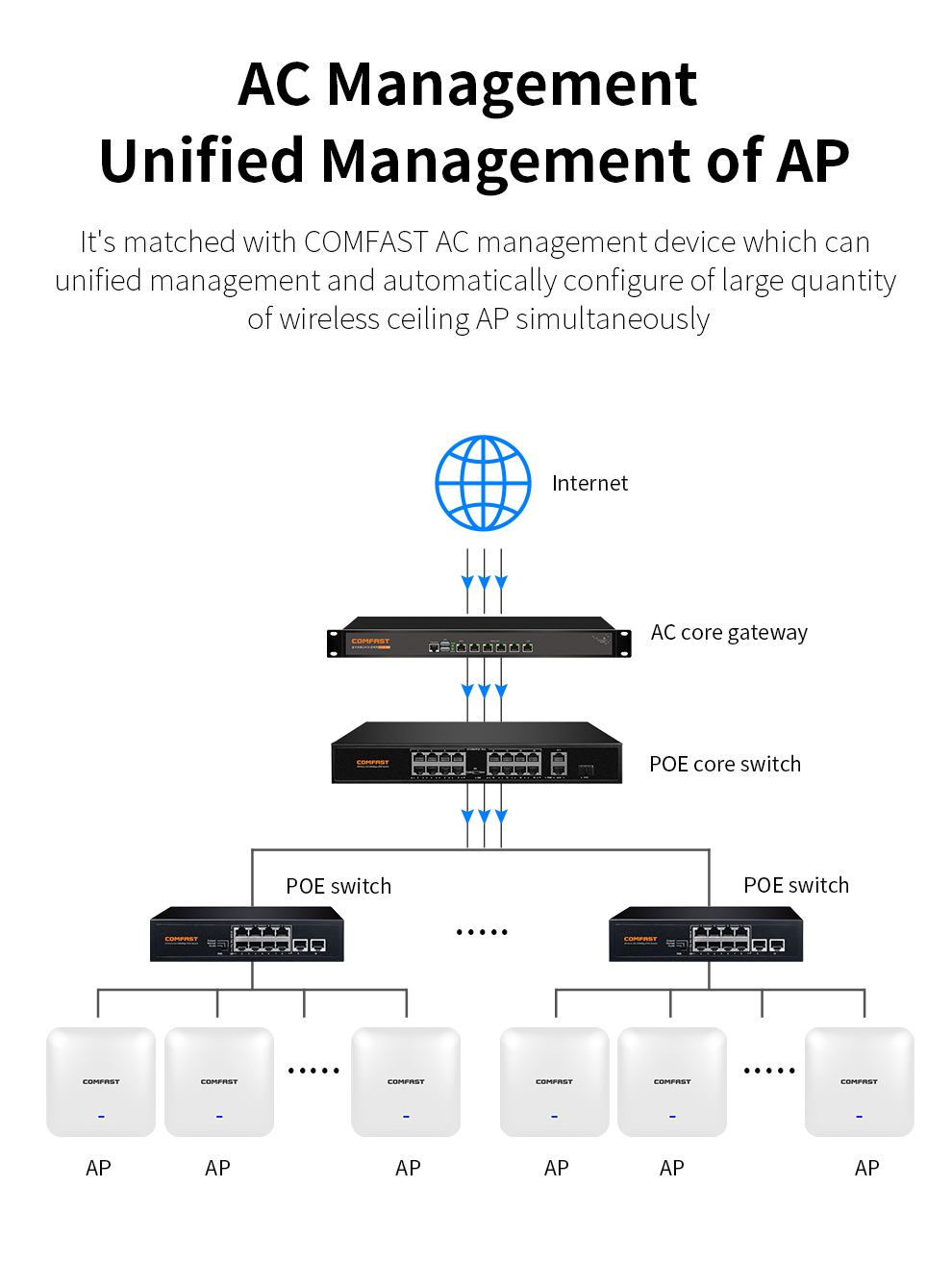

AC Management
Unified Management of AP

It’s matched with COMFAST AC management device which can

unified management and automatically configure of large quantity

of wireless ceiling AP simultaneously

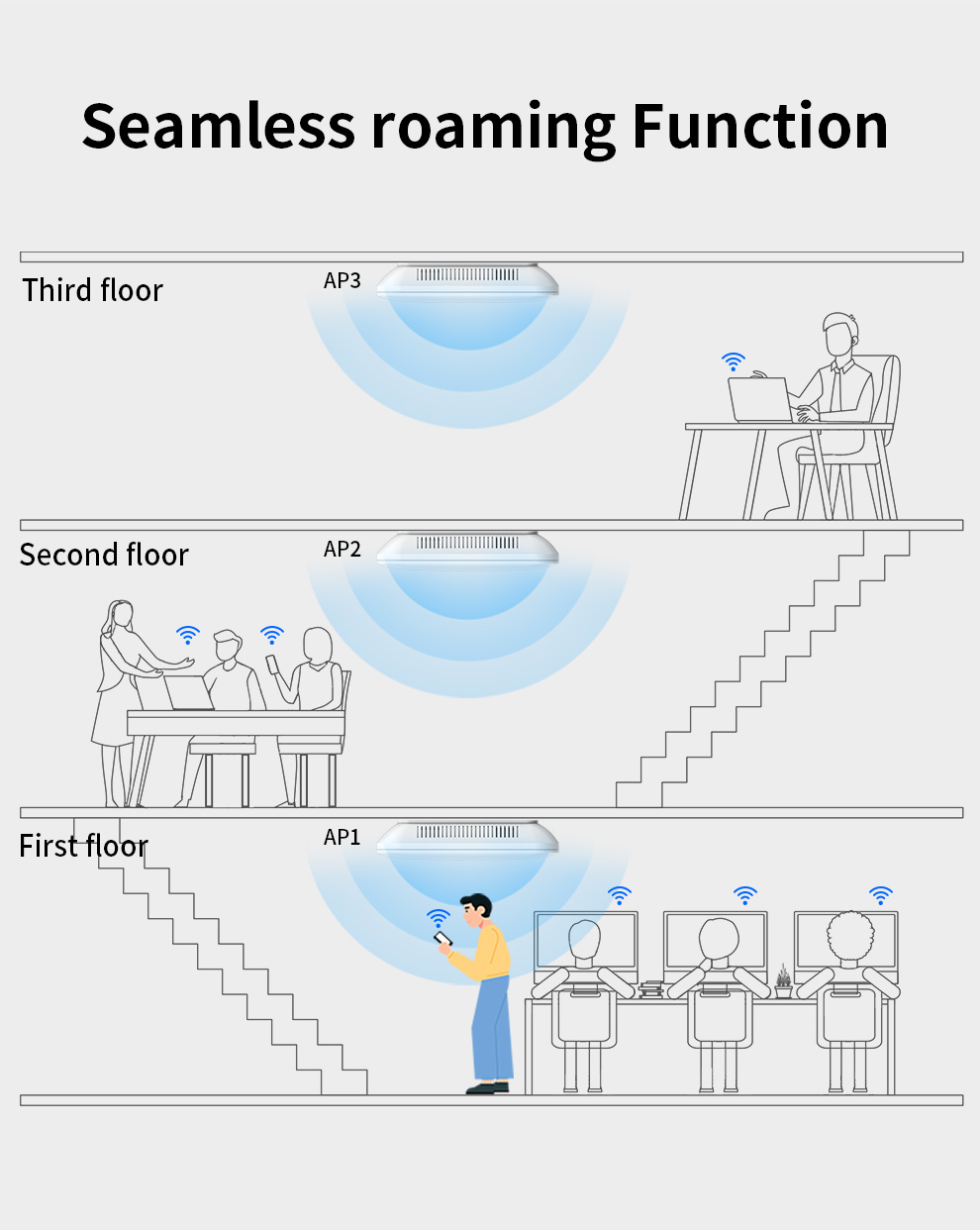

Seamless roaming Function

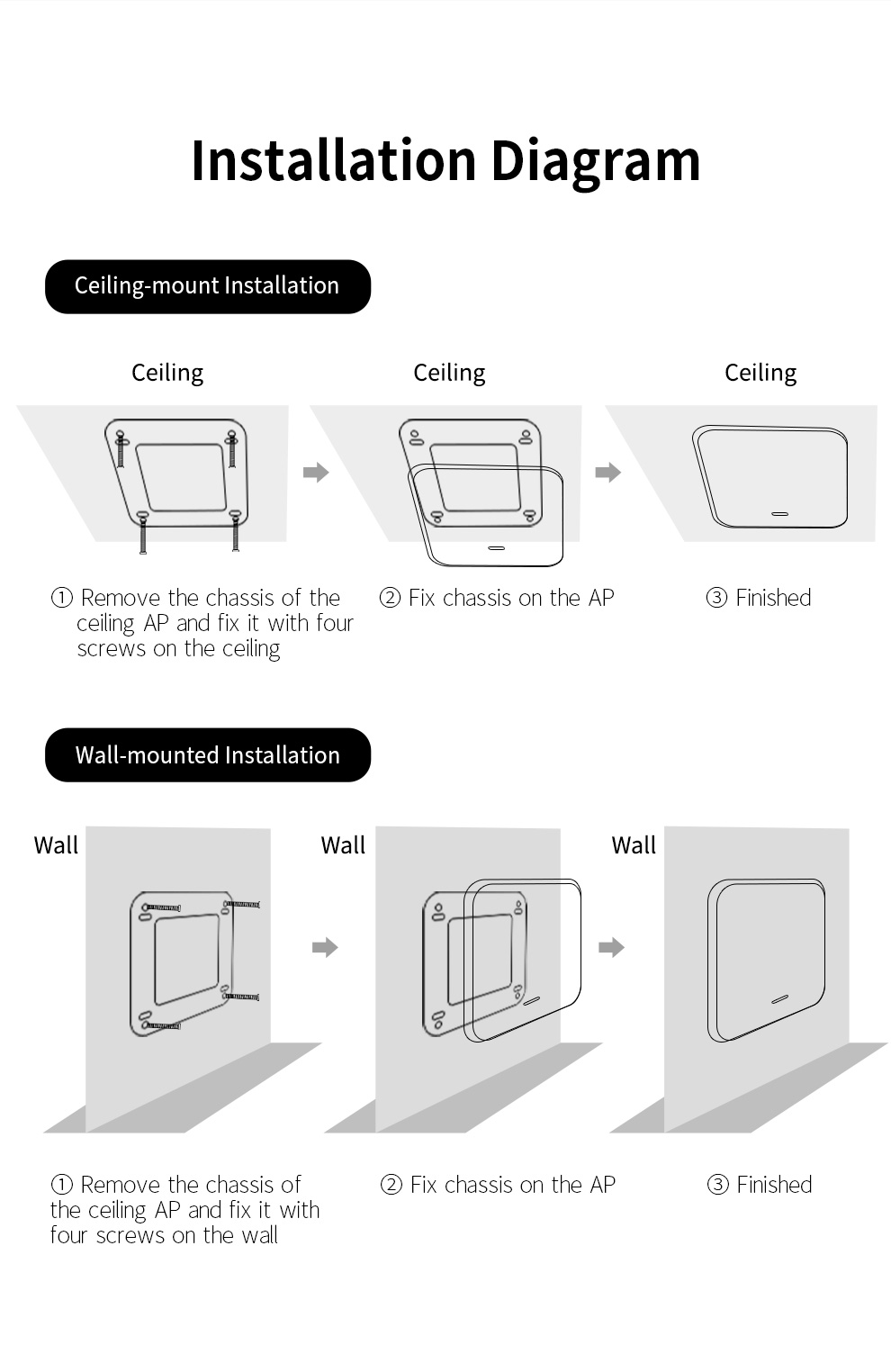

Installation Diagram

Application multi-scenes

Provide WiFi coverage and marketing solution

for varieties of scenes

*The product images and demonstration scenarios on this page are for illustrative purposes only and may have slight differences from the actual product. Please refer to the physical product for accuracy.
*The data on this page are theoretical values obtained from COMFAST’s internal laboratory under specific testing conditions. Actual usage may vary due to individual product differences, software versions, usage conditions, and environmental factors. Please refer to real-world usage for accurate representation.
*To provide as accurate product information, specifications, and features as possible, COMFAST may periodically adjust and revise the text descriptions, image effects, and other content on this page to ensure alignment with actual product performance, specifications, packaging, and accessories. Should such adjustments or revisions become necessary, no prior notice will be provided.

Hardware Specifications DDR: 256MB; Flash: 128MB;
Antenna Built in 4*3dBi Antennas
Transmission Rate 2.4GHz: 574Mbps; 5GHz: 2400Mbps
RF Parameters Output Power (Max): 26dBm;
Receiving Sensitivity (Min): -96dBm; Frequency:
802.11ax/ac/n/a: 5.180GHz-5.825GHz
802.11b/g/n: 2.412GHz-2.483GHz
Modulation Mode DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps; OFDM:
BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps;
MIMO-OFDM (11n): MCS 0-15;
MIMO-OFDM (11ac): MCS 0-9;
MIMO-OFDMA (11ac): MCS 0-11;
Modulation Way 11b: DSSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps
11a/g: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps,
BPSK@6/9Mbps;
11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM;
11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM
11ax: MIMO-OFDMA: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM
Physical Ports 1* 10/100/1000Mbps WAN RJ45 Ethernet Port; Support POE Power Supply;
1* 10/100/1000Mbps LAN RJ45 Ethernet Port; Support POE Power Supply;
1* RESET Button
Indicator Three Color Indicator
Power Power Supply: 802.3af/802.3at POE Power Supply (0-100m);
Power Adapter: 48V 0.5A POE Power Adapter (Configured)
Power Consumption <24W
IP Index IP31
MTBF >250000H
Installation Way Ceiling-mounted, Wall-mounted
Case Plastic Case (Imported ABS Material)
Physical Features Size: 220mm * 220mm * 46mm;
Working Environment Working Temperature: 0℃-40℃;
Storage Temperature: -40℃-70℃;
Operation Humidity: 10%-90%RH Non-condensing;
Storage Humidity: 5%-95%RH Non-condensing

Be Familiar With Quickly

Follow the guide quickly

Initial video configuration

Product Performance Introduction

Product Video

Frequently Asked Question
