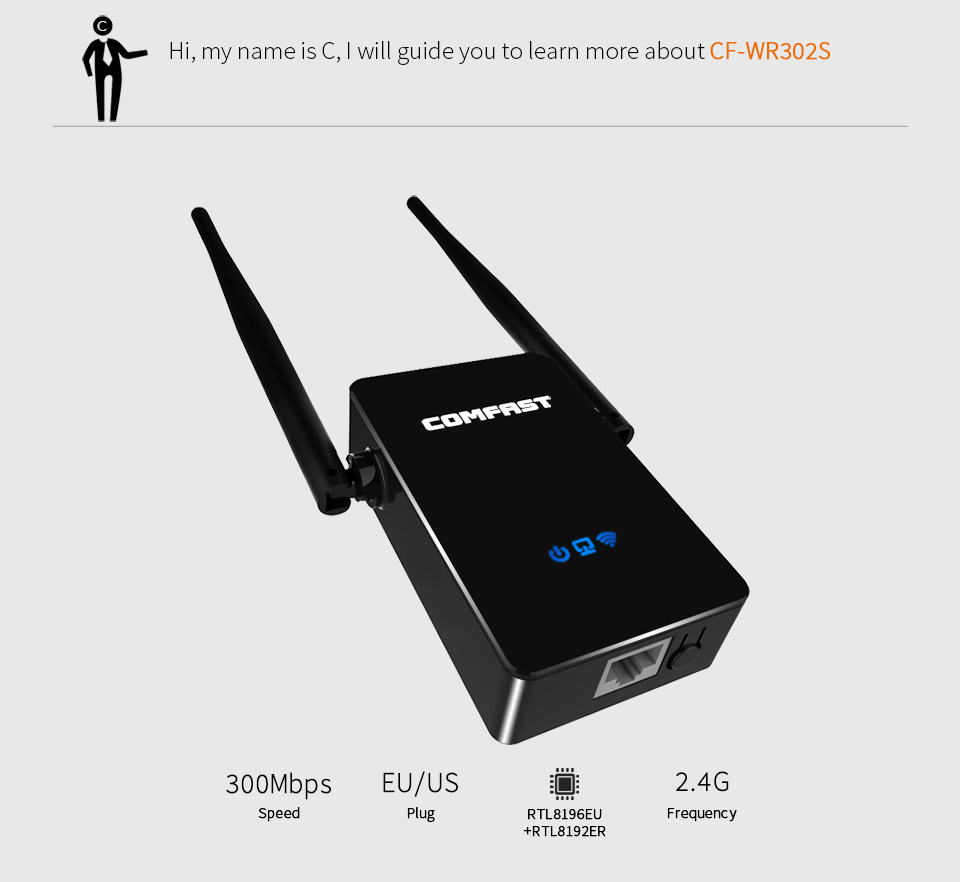

300Mbps Wireless Repeater
The CF-WR302S is a 300Mbps wireless range extender featuring a refined finish and energy-efficient design. Its dual external high-gain antennas boost signal coverage and wall penetration. With WPS one-touch pairing and multiple modes (repeater, AP, router), it effortlessly extends WiFi in home or office settings, eliminating dead zones for reliable connectivity.
-
Refined finish for aesthetics and durability
-

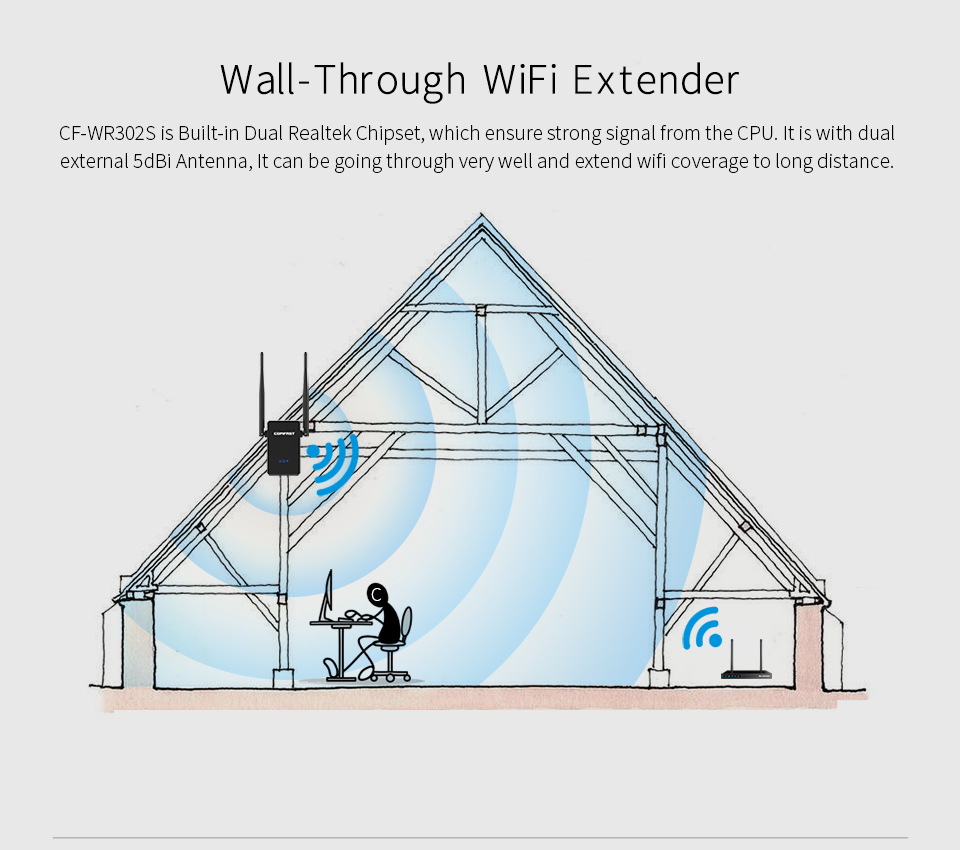

Two external high-gain omnidirectional antennas
-

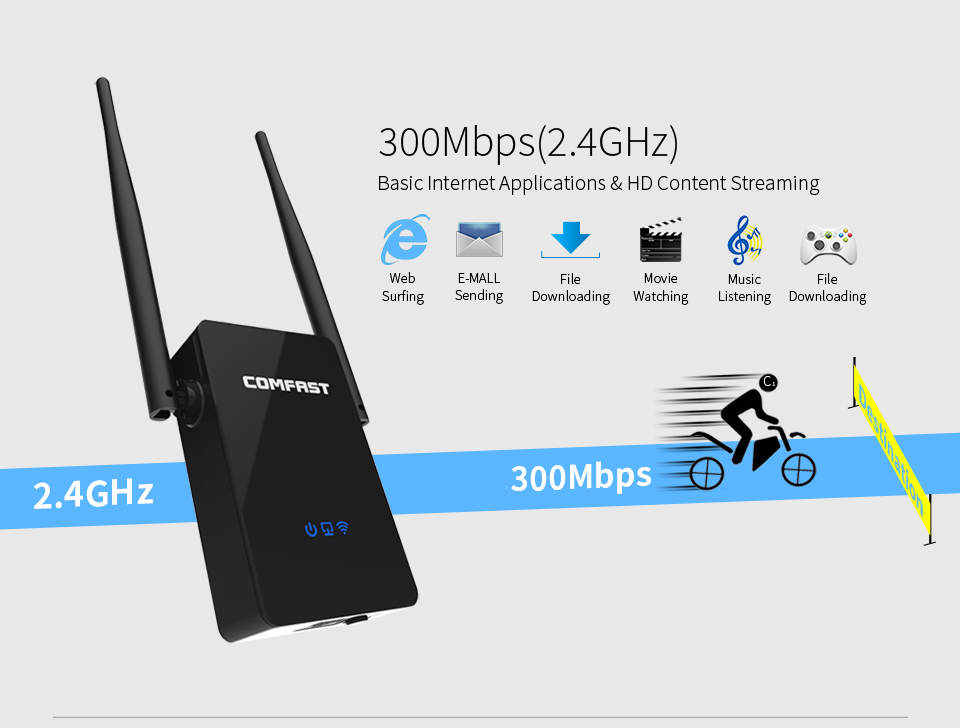

Extends wireless network at up to 300Mbps
-
Includes a 10/100Mbps auto-sensing Ethernet port
-

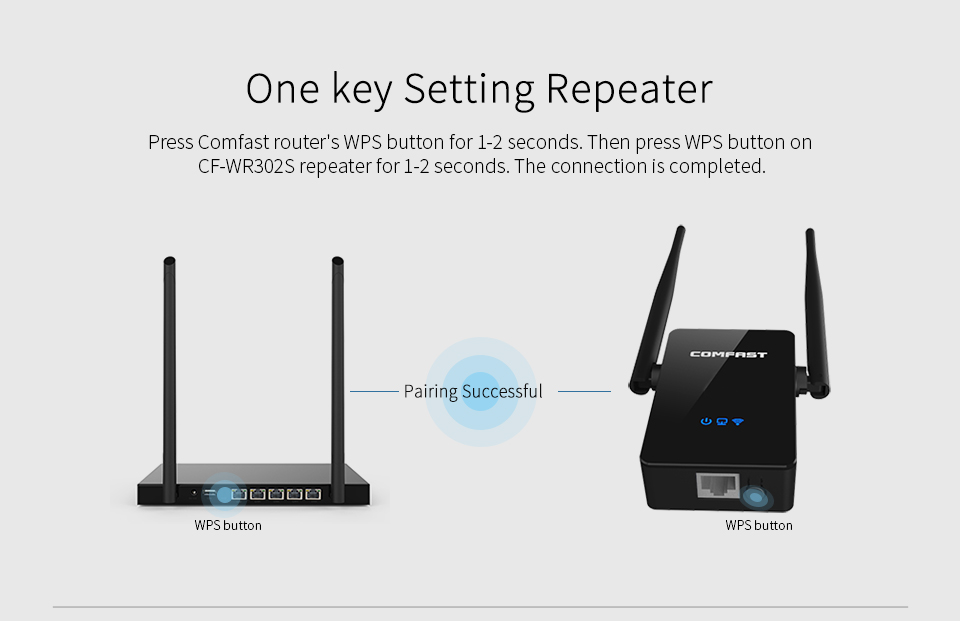

Quick and easy setup with WPS one-touch pairing
-
Low power consumption, energy-saving design
-
Rapid network configuration via QR code scan
-

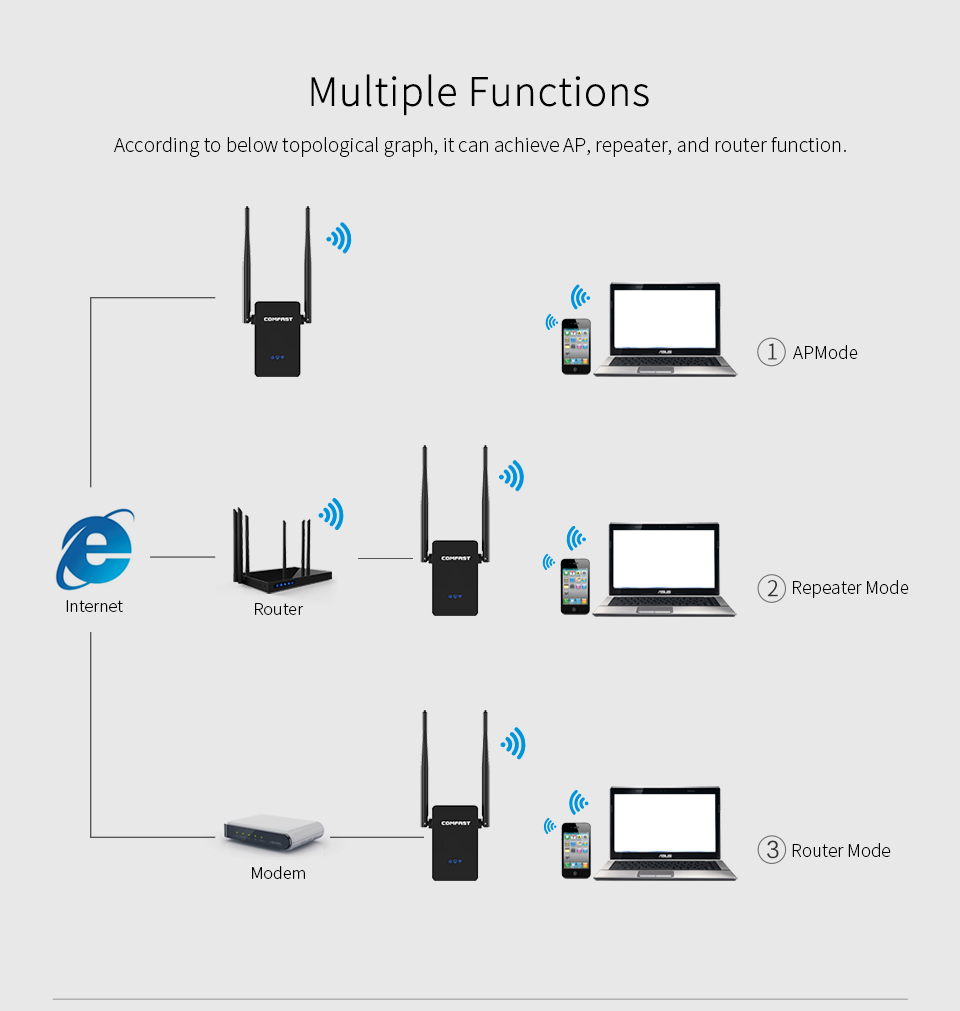

Supports repeater, AP, and router operation modes
-

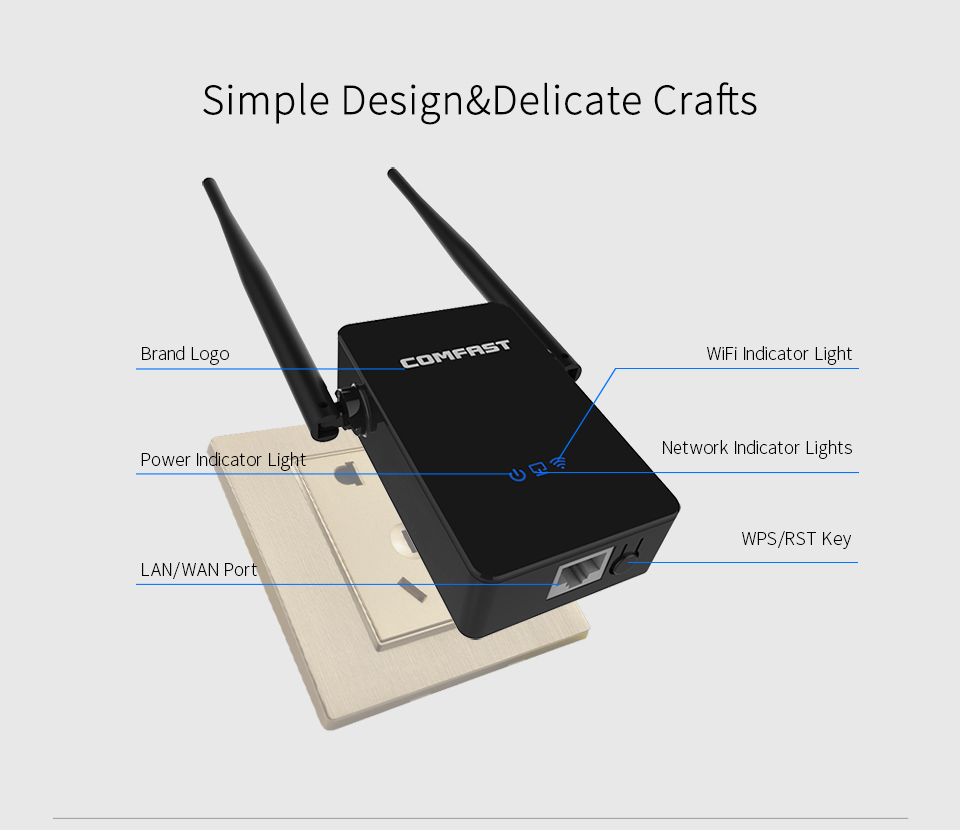

Status indicator clearly shows operation and signal state
- Categories: Wireless Repeater, PWR Repeater
- Model: CF-WR302S
Contact Us
Product Repair
Repair Address
9th-10th Floor, Building H, Huanan Digital Valley, No.1Huanan Road, Longhua District, Shenzhen, China
Telephone
Phone: 86-755-83790059
ZIP/Postal code:518109
Service Time
Monday to Friday
9:00-12:00,13:30-18:30
*The product images and demonstration scenarios on this page are for illustrative purposes only and may have slight differences from the actual product. Please refer to the physical product for accuracy.
*The data on this page are theoretical values obtained from COMFAST’s internal laboratory under specific testing conditions. Actual usage may vary due to individual product differences, software versions, usage conditions, and environmental factors. Please refer to real-world usage for accurate representation.
*To provide as accurate product information, specifications, and features as possible, COMFAST may periodically adjust and revise the text descriptions, image effects, and other content on this page to ensure alignment with actual product performance, specifications, packaging, and accessories. Should such adjustments or revisions become necessary, no prior notice will be provided.
| Product Model | CF-WR302S |
| Antenna | 2*3dBi External Antenna(Fixed) |
| Wireless Standard | IEEE802.11b/g/n |
| Transmission Rate | 11b: 1/2/5/5.11Mbps 11g: 6/9/12/18/24/36/48/54Mbps 11n: 300Mbps |
| RF Parameters | Output Power (Max): 50mW(17dBm) Receiver Sensitivity (Min): -96dBm Frequency: 2.4-2.4835GHz |
| Button | 1*WPS/RSTButton |
| Physical Ports | 1*10/100MbpsLAN/WANRJ45 Ethernet Port |
| Indicator | Power, Network, WiFi |
| Power | Power: 100-240V, 50/60HZ Plug: EU/US Plug |
| Channel Bandwidth | 20/40MHz Auto |
| Encryption | WPA-PSK/WPA2-PSK WPA/WPA2 |
| Working Mode | AP, Repeater, Router |
| Others | One Key Settings, QR Code Settings |
| Case | Plastic Case (ABS Material) |
| Physical Features | Size: 217*58*24MM, Weight: 82G |
| Working Environment | Working Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Working Humidity: 10%-90%RH Non-condensing Storage Humidity: 5%-90%RH Non-condensing |
| Packing List | 1*Wireless Repeater 1*Cable 1*Installation Guide 1*Warranty Card 1*Product Certificate |
