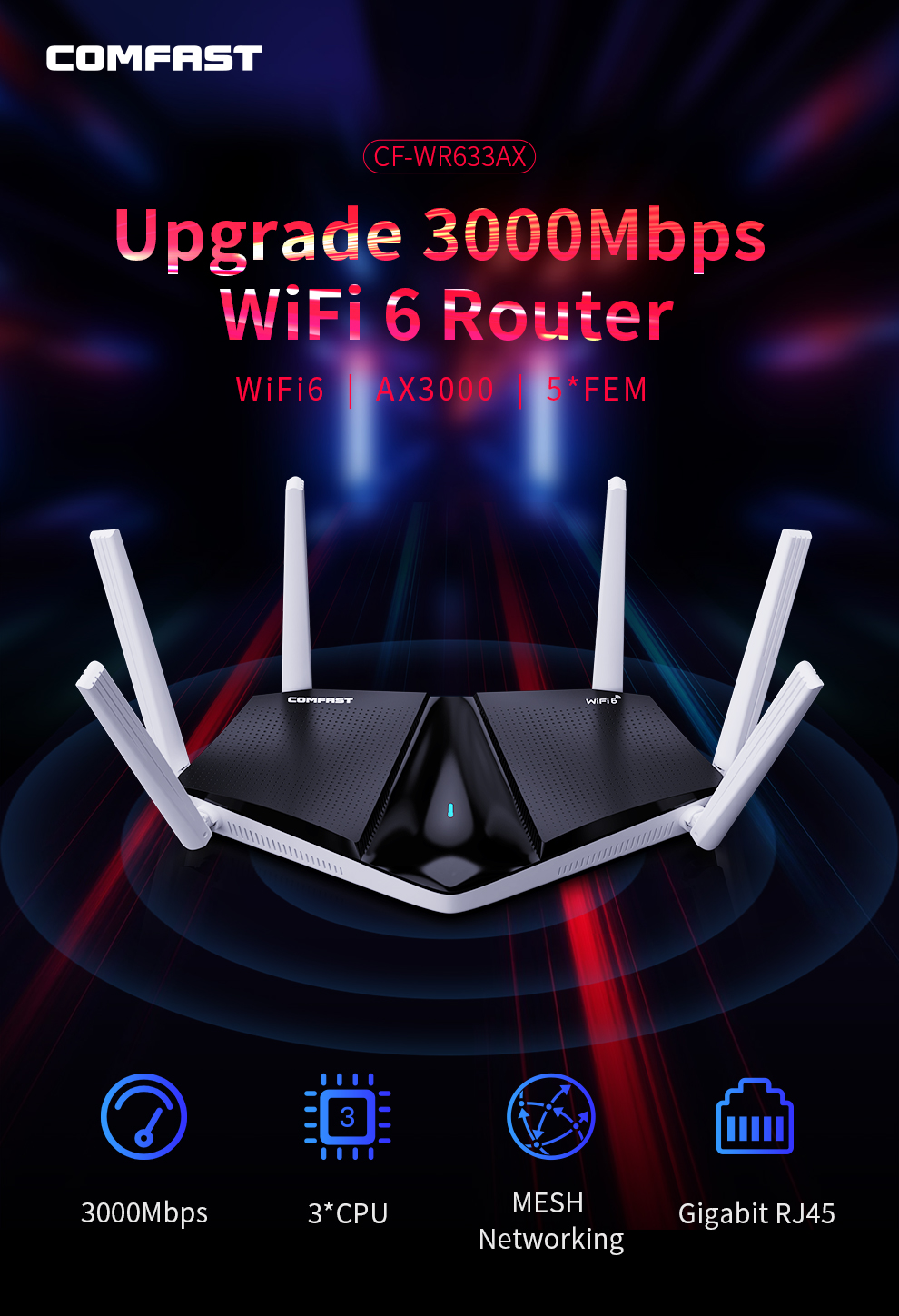

3000Mbps WiFi6 Upgrade Router

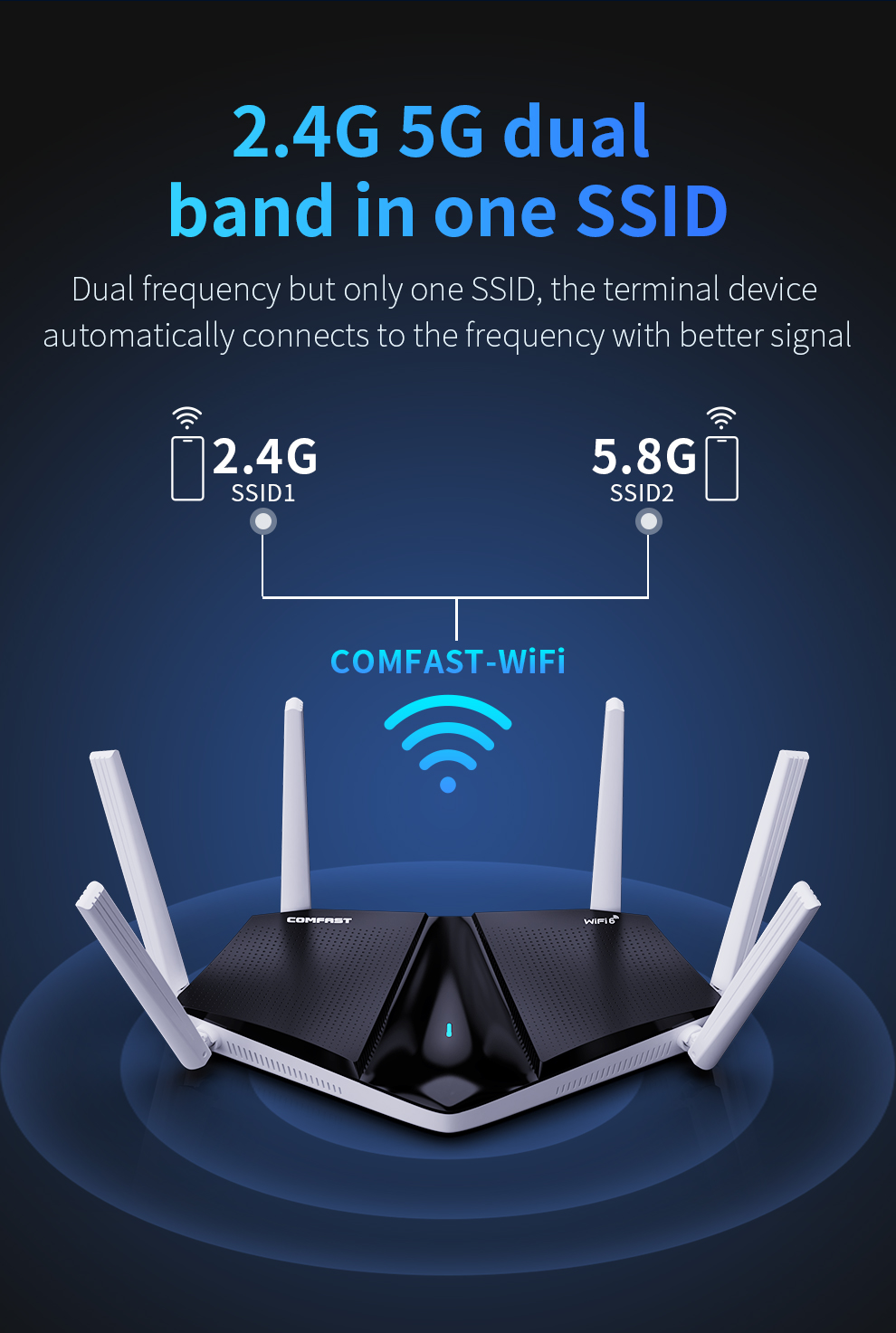

The CF-WR633AX is a high-speed Wi-Fi 6 smart mesh router offering high bandwidth, low latency, and wide coverage. Its mesh functionality ensures easy networking and full coverage in large, complex environments.
-

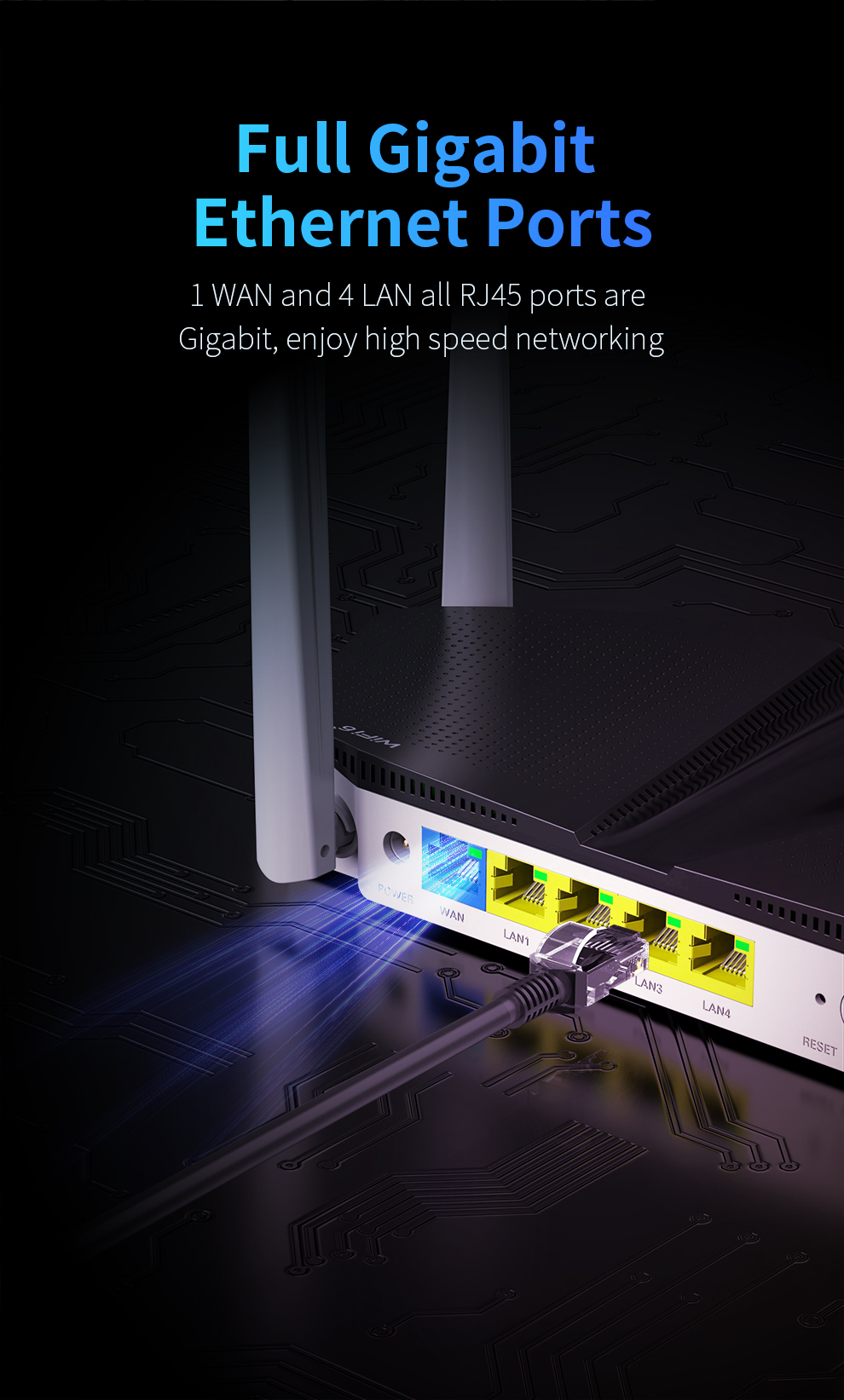

Gigabit Ports: Smooth wired transmission.
-

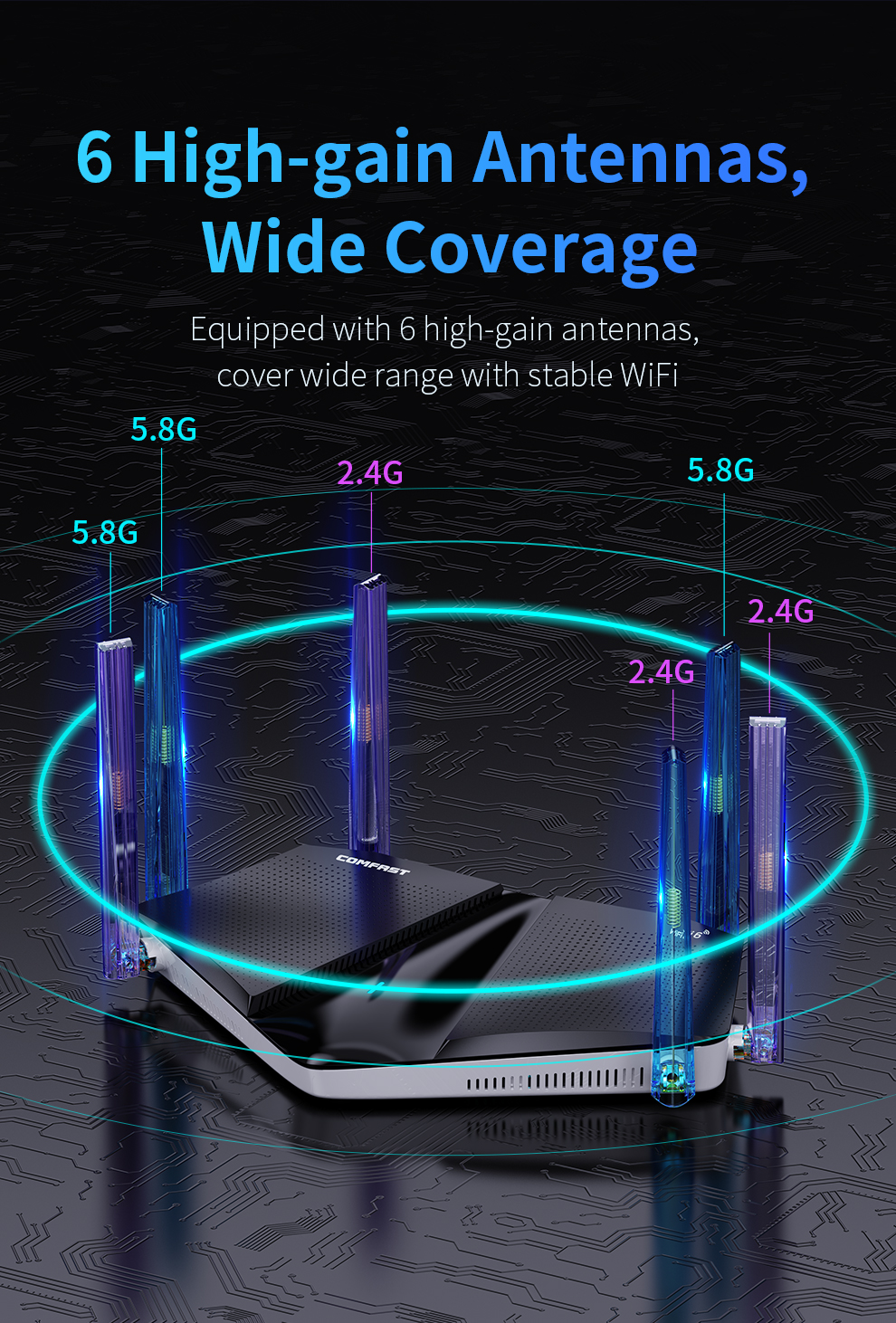

High-Gain Antennas: Sensitive signal reception.
-
Imported ABS Material: Heat and pressure resistant.
-

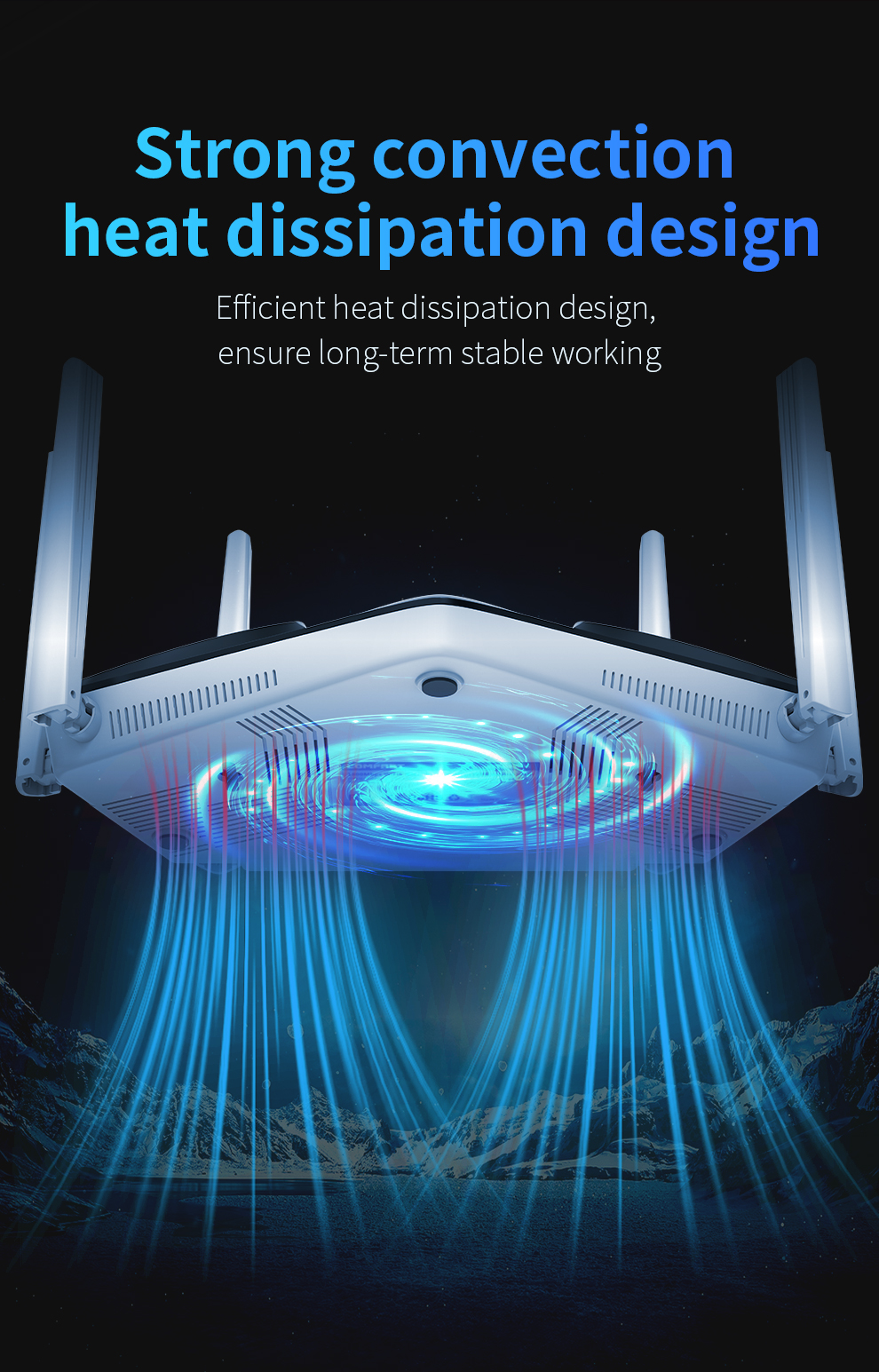

Efficient Heat Dissipation: Excellent cooling performance.
-
LED Indicator: Easy status monitoring.
- Categories: Wireless Router, Home Router, Mesh Router, Idea Router
- Model: CF-WR633AX
Contact Us
Product Repair
Repair Address
9th Floor, Building H, Huanan Digital Valley, No.1Huanan Road, Longhua District, Shenzhen, China
Telephone
Phone: 86-755-83790059
ZIP/Postal code:518109
Service Time
Monday to Friday
9:00-12:00,13:30-18:30
*The product images and demonstration scenarios on this page are for illustrative purposes only and may have slight differences from the actual product. Please refer to the physical product for accuracy.
*The data on this page are theoretical values obtained from COMFAST’s internal laboratory under specific testing conditions. Actual usage may vary due to individual product differences, software versions, usage conditions, and environmental factors. Please refer to real-world usage for accurate representation.
*To provide as accurate product information, specifications, and features as possible, COMFAST may periodically adjust and revise the text descriptions, image effects, and other content on this page to ensure alignment with actual product performance, specifications, packaging, and accessories. Should such adjustments or revisions become necessary, no prior notice will be provided.
| Item | Specification |
|---|---|
| Chipset | MT7981A + MT7976DA + MT7531AE |
| Memory | 256MB RAM, 128MB Flash |
| Wireless Standards | IEEE 802.11a/b/g/n/ac/ax |
| Physical Ports | 1 x 10/100/1000Mbps RJ45 WAN, 4 x 10/100/1000Mbps RJ45 LAN, 1 x WPS/RESET, 1 x DC Power, 1 x MESH button |
| Antenna Gain | 2.4GHz: 4dBi, 5.8GHz: 5dBi |

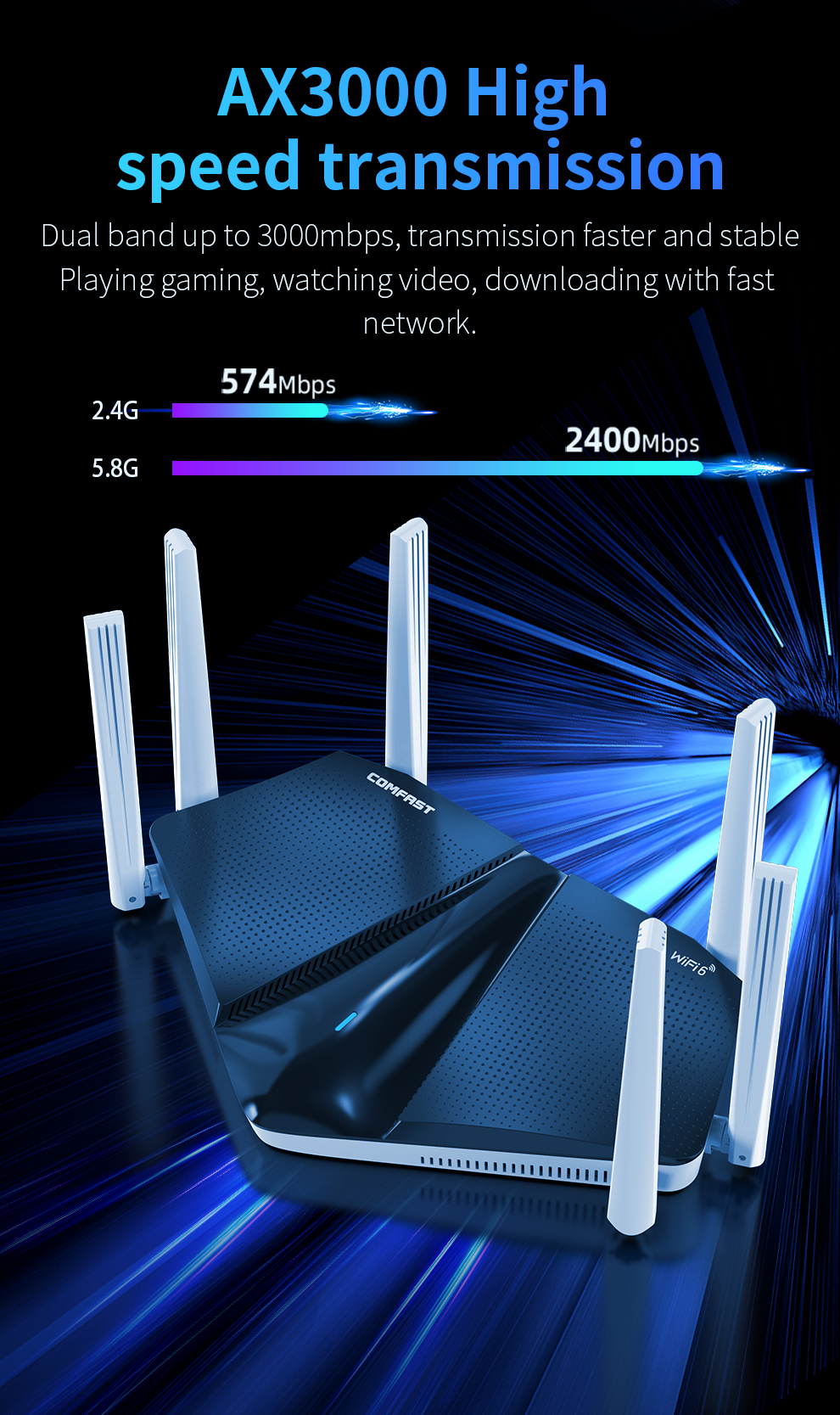

| Wireless Rate | 2.4GHz: 574Mbps, 5.8GHz: 2402Mbps |
| Max Power Consumption | 24W |
| Power Supply | DC 12V, 1.5A Adapter |
| MTBF | >250,000 hours |
| Installation | Tabletop, Wall Mountable |
| Protection Level | IP31 |
| Indicators | Tri-color LED |
| Frequency Range | 2.4GHz: 2.412GHz – 2.472GHz, 5.8GHz: 5.180GHz – 5.825GHz |
| Maximum TX Power | 25dBm |
| Minimum RX Sensitivity | -96dBm |
| Dimensions | 243.89mm (L) x 149.95mm (W) x 135mm (H) (with antennas) |
| Environmental | Operating Temp: 0°C ~ 40°C, Storage Temp: -40°C ~ 70°C, Humidity: 10% ~ 90% RH non-condensing |
