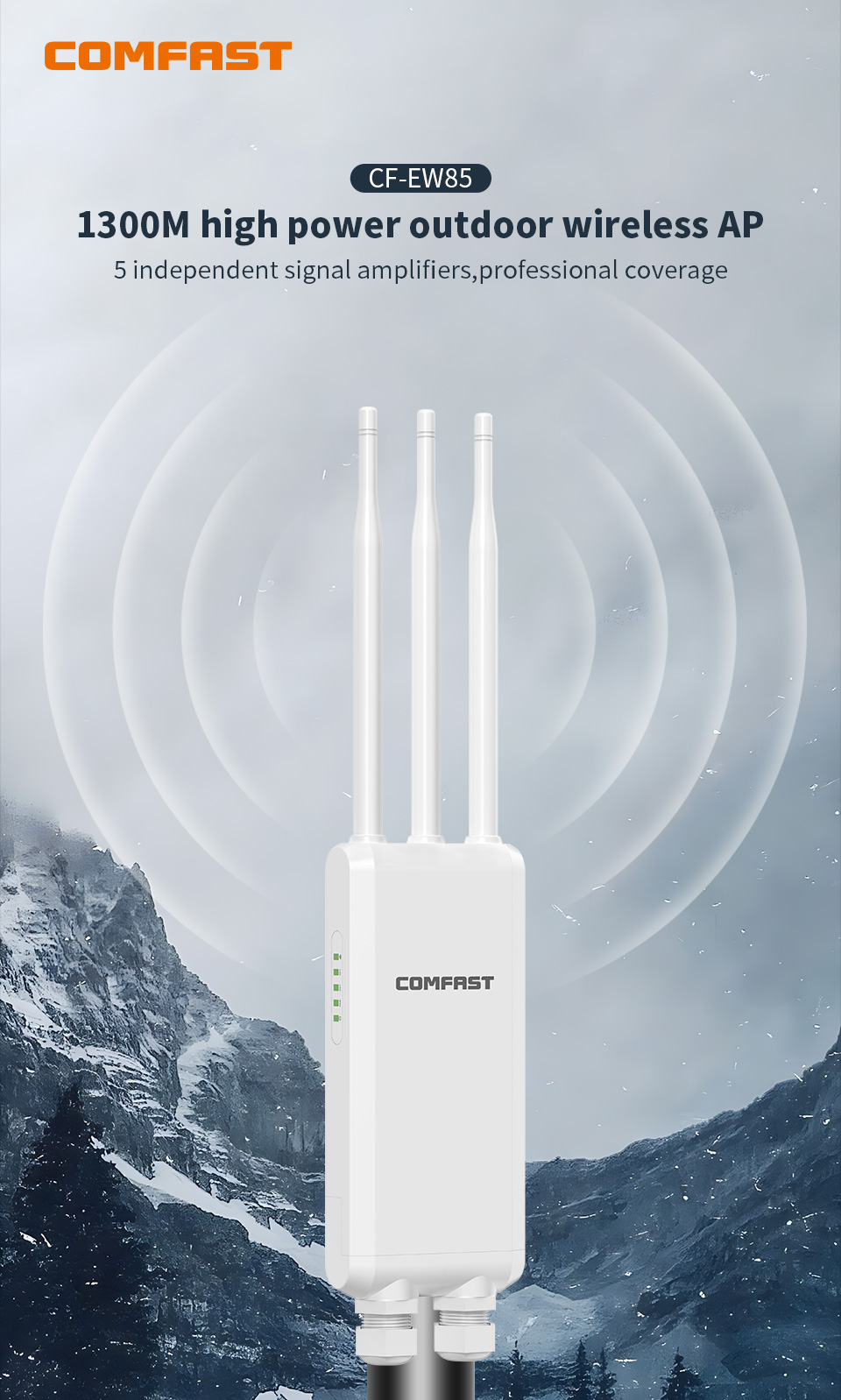

The CF-EW85 is a high-power outdoor AP with 1300Mbps dual-band speed, waterproof antennas, and 360° coverage, perfect for large outdoor areas.
Chipset: QCA9563 + QCA9886 + AR8337
Speed: Up to 1300Mbps
Antennas: 3 x 5dBi dual-band for better signal.

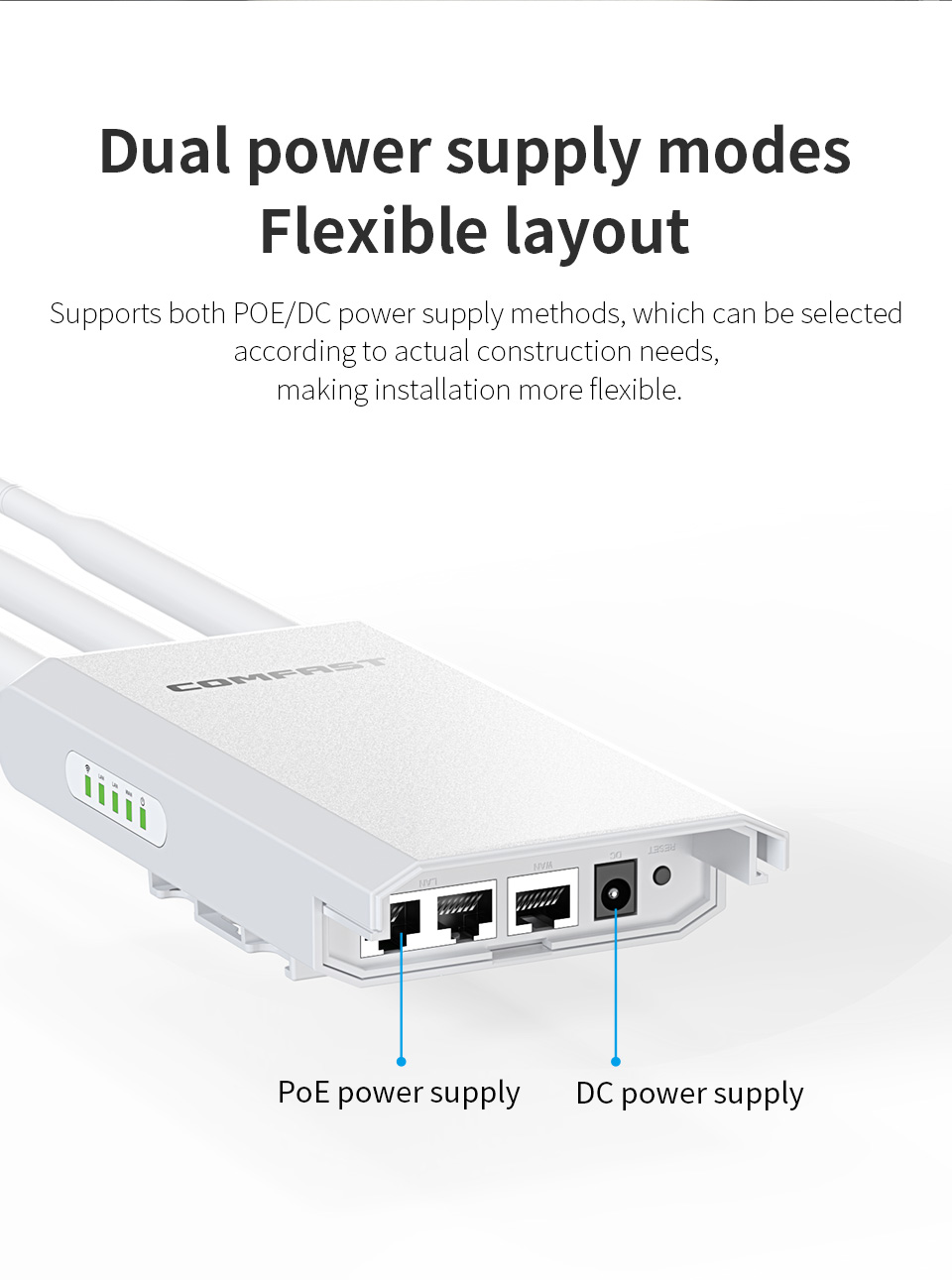

Power: PoE and DC support, flexible deployment.

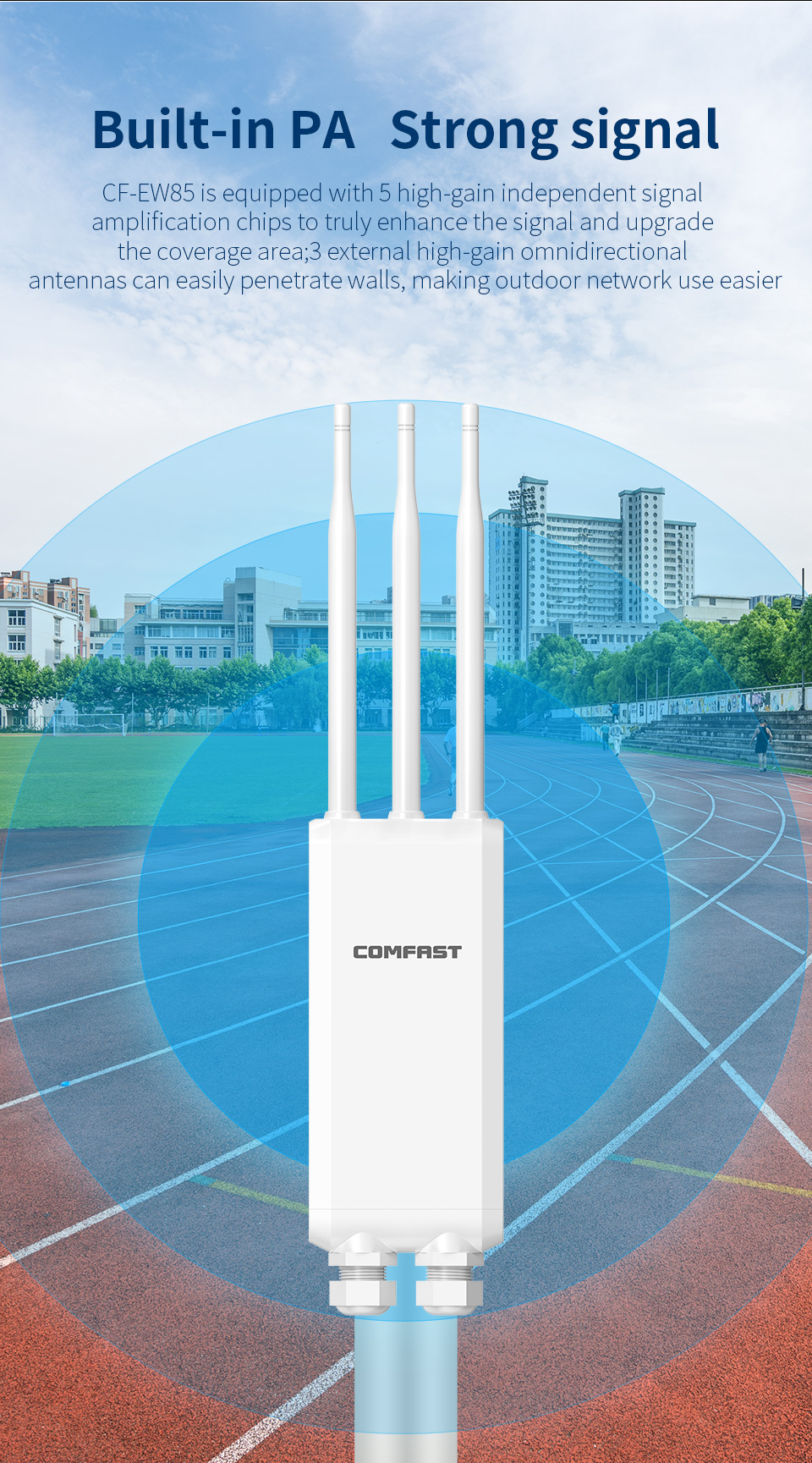

High Power: Stronger signals with PA amplifier.
Capacity: Supports 100+ devices.

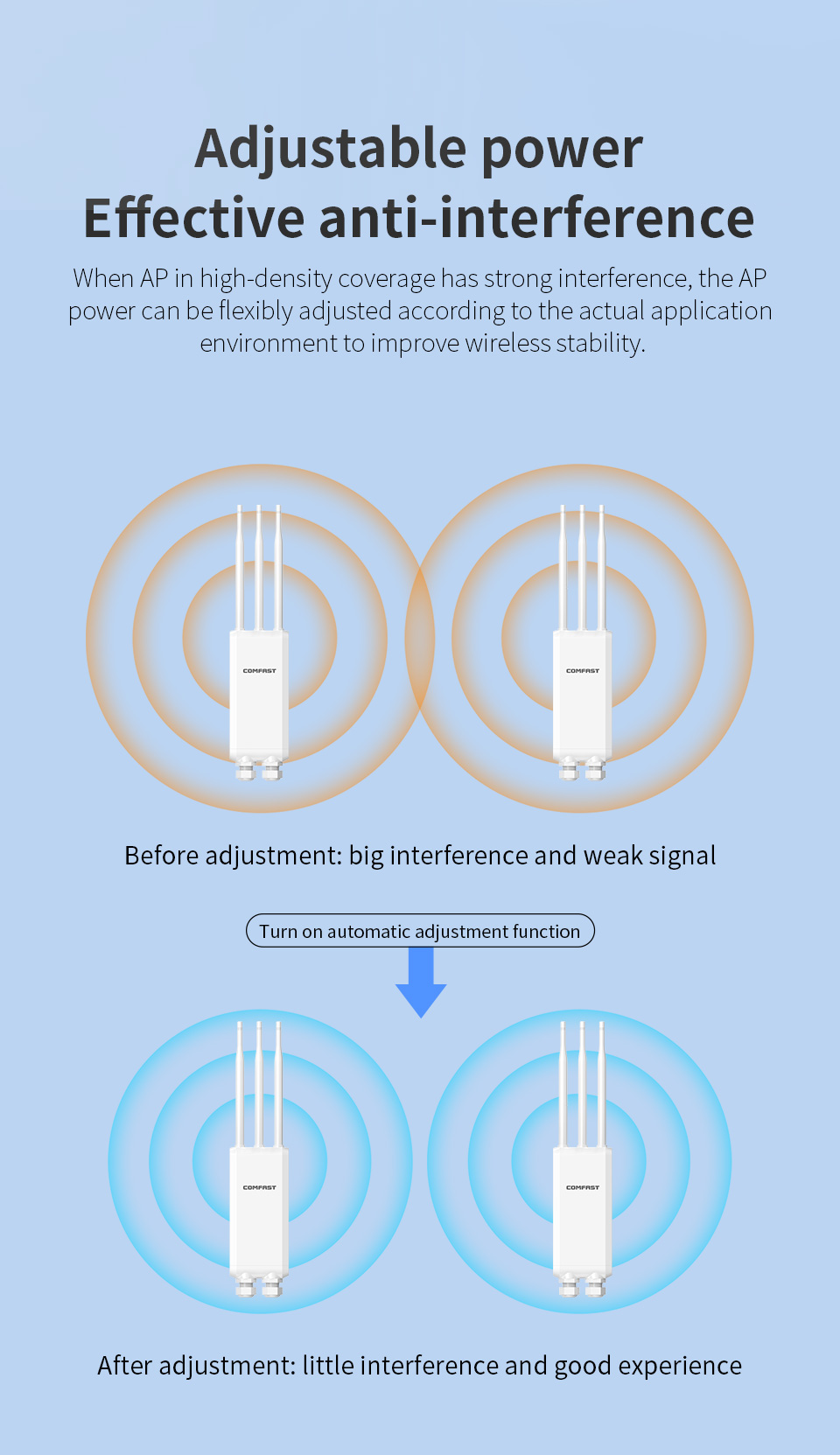

Adjustable Power: Reduces AP interference.
Coverage: 200m in open areas.
9th Floor, Building H, Huanan Digital Valley, No.1Huanan Road, Longhua District, Shenzhen, China
Phone: 86-755-83790059
ZIP/Postal code:518109
Monday to Friday
9:00-12:00,13:30-18:30

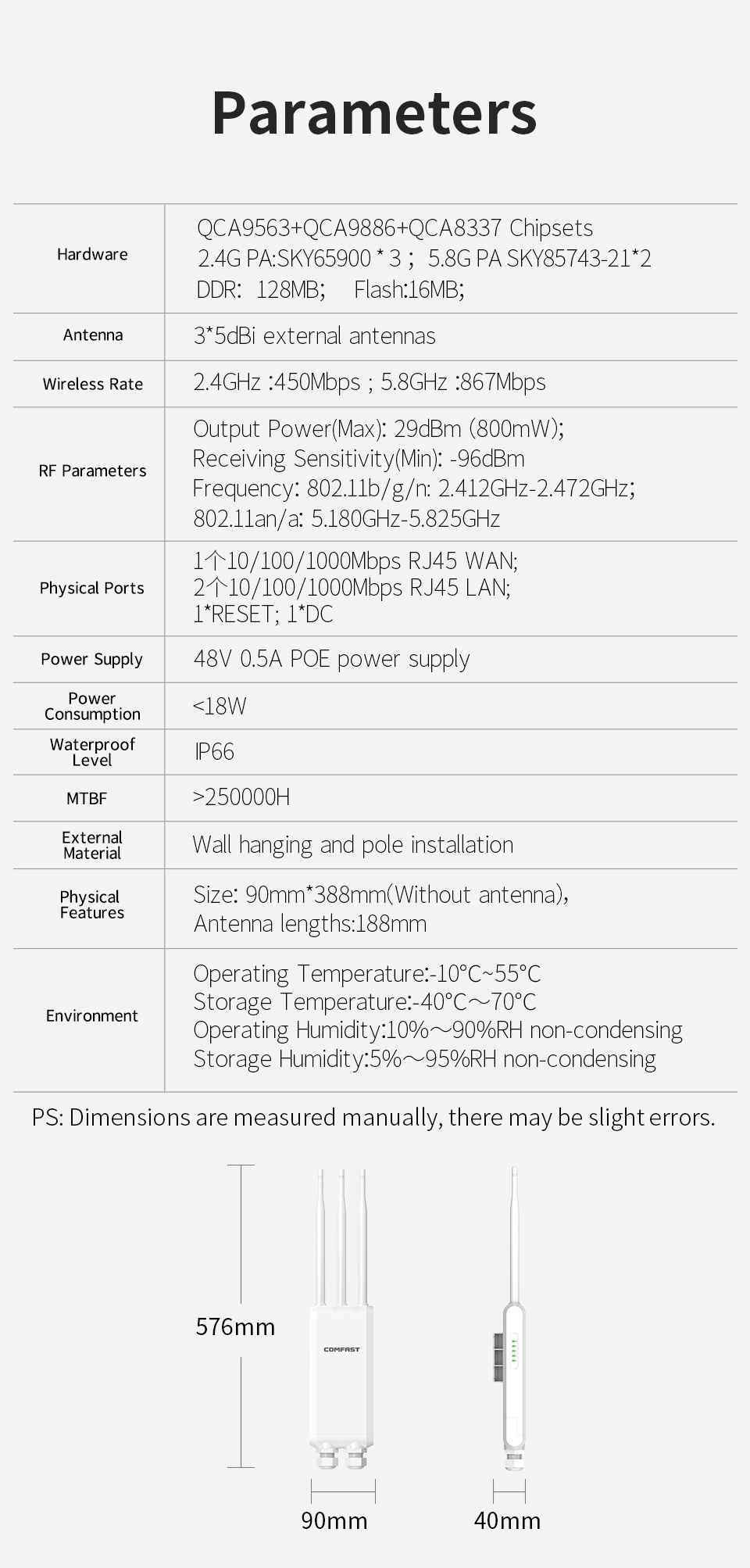

| Item | Specification |
|---|---|
| Chipset | QCA9563 + QCA9886 + QCA8337 |
| Memory | 128MB |
| Flash | 16MB |
| Amplifier Chips | 2.4GHz: SKY659003, 5.8GHz: SKY857432 |
| Antenna | 3 x 5dBi dual-band omnidirectional antennas |
| Wireless Speed | 2.4GHz: 450Mbps, 5GHz: 867Mbps |
| Max Transmit Power | 800mW (29dBm) |
| Min Receive Sensitivity | -96dBm |
| Frequency Range | 802.11ac/n/a: 5.180GHz – 5.825GHz 802.11b/g/n: 2.412GHz – 2.484GHz |
| Modulation Types | 11b: DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps 11a/g: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM |

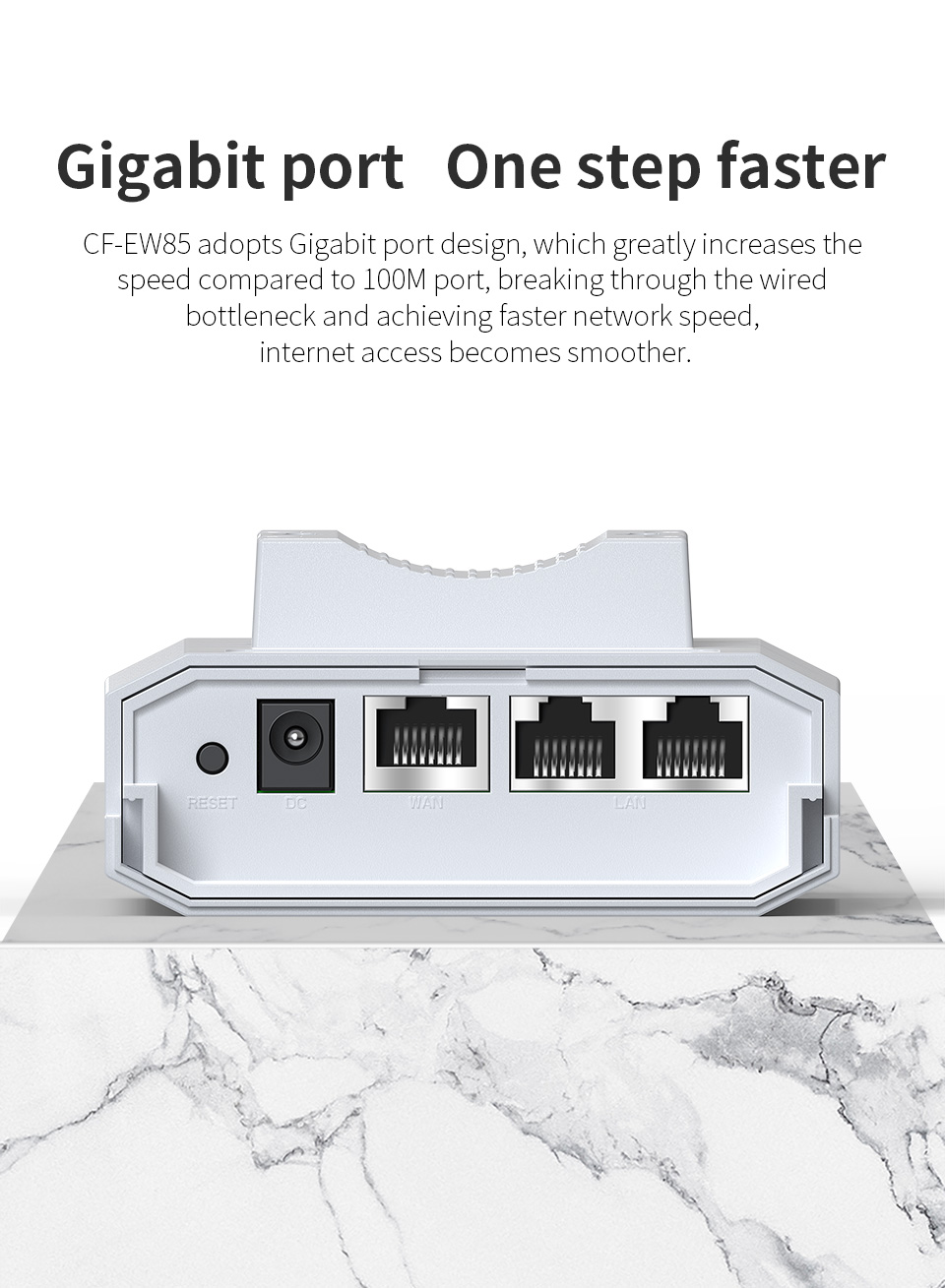

| Physical Ports | 1 x 10/100/1000Mbps WAN RJ45 port 2 x 10/100/1000Mbps LAN RJ45 ports 1 x RESET button 1 x DC port |
| Indicators | Power, WAN, LAN, LAN, Wi-Fi LEDs |
| Power Supply | 48V PoE (up to 100m), 12V/2A DC |
| Power Adapter | 48V 0.5A PoE power adapter included |
| Max Power Consumption | 18W |
| Protection Level | IP66 |
| MTBF | >250,000 hours |

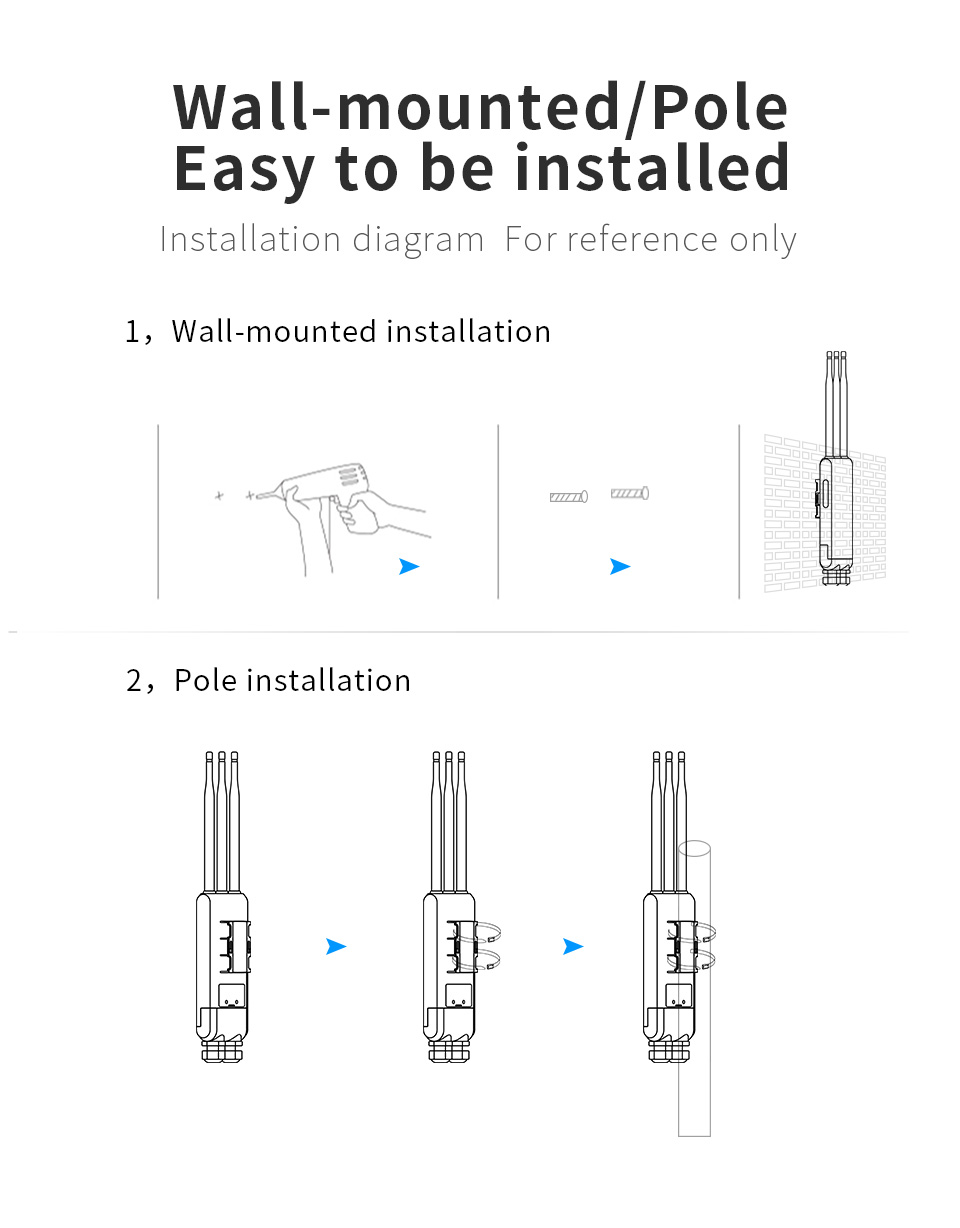

| Installation | Wall mount, pole mount |
| Enclosure | ABS imported material, plastic casing |
| Dimensions | 90mm x 388.2mm (excluding antennas), antenna length: 188.2mm |
| Operating Temperature | -10°C ~ 55°C |
| Storage Temperature | -40°C ~ 70°C |
| Operating Humidity | 10% ~ 90% RH (non-condensing) |
| Storage Humidity | 5% ~ 95% RH (non-condensing) |
