Full Gigabit intelligent Gateway

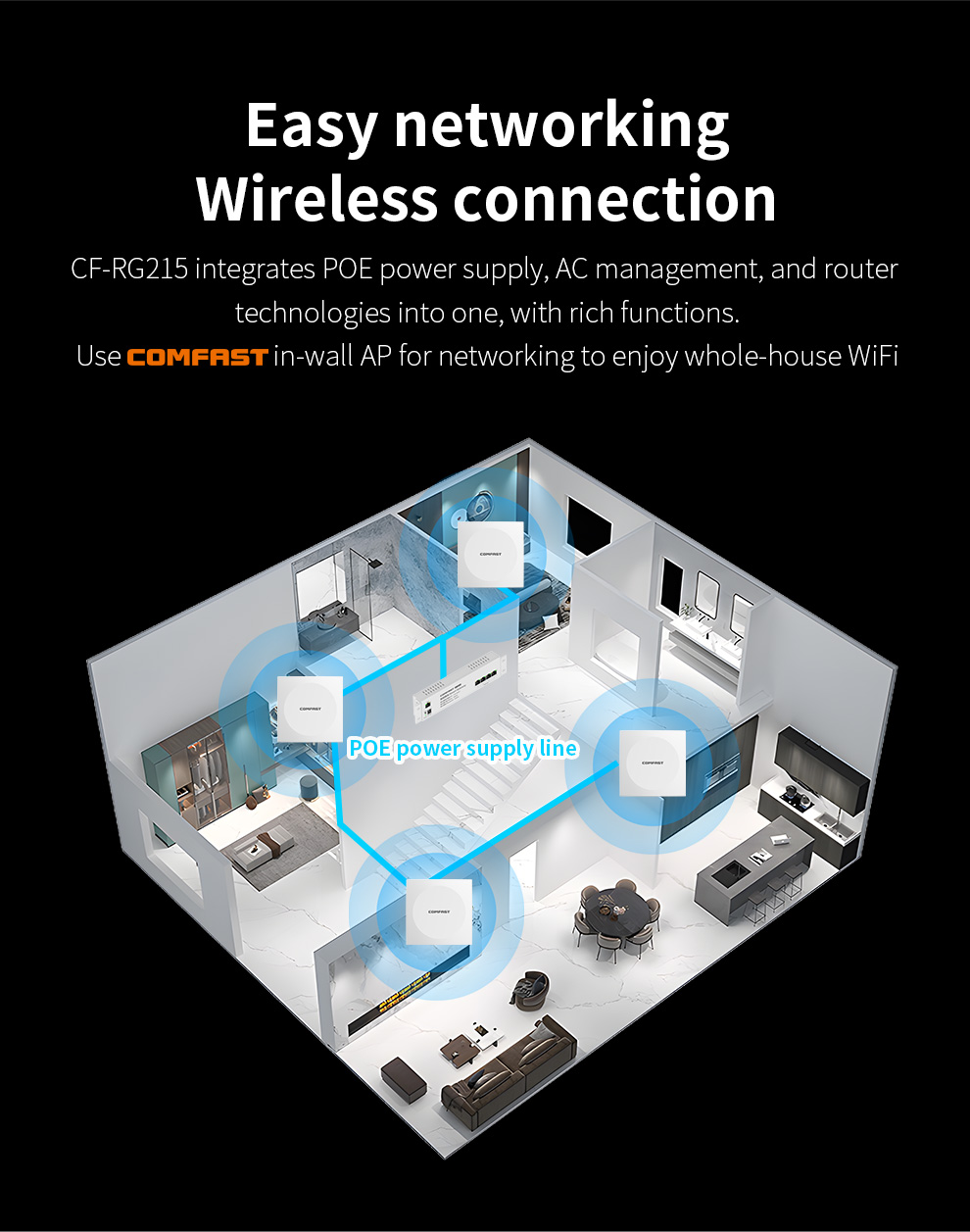

The CF-RG215 is an all-in-one Gigabit in-wall gateway integrating AC controller, PoE power supply, and routing functions. With 1 WAN port and 4 PoE/LAN ports, it manages 128 APs and supports 500 concurrent devices. Utilizing standard PoE technology, it delivers both data and power through single Ethernet cables, providing complete whole-home WiFi coverage for villas and apartments.
-

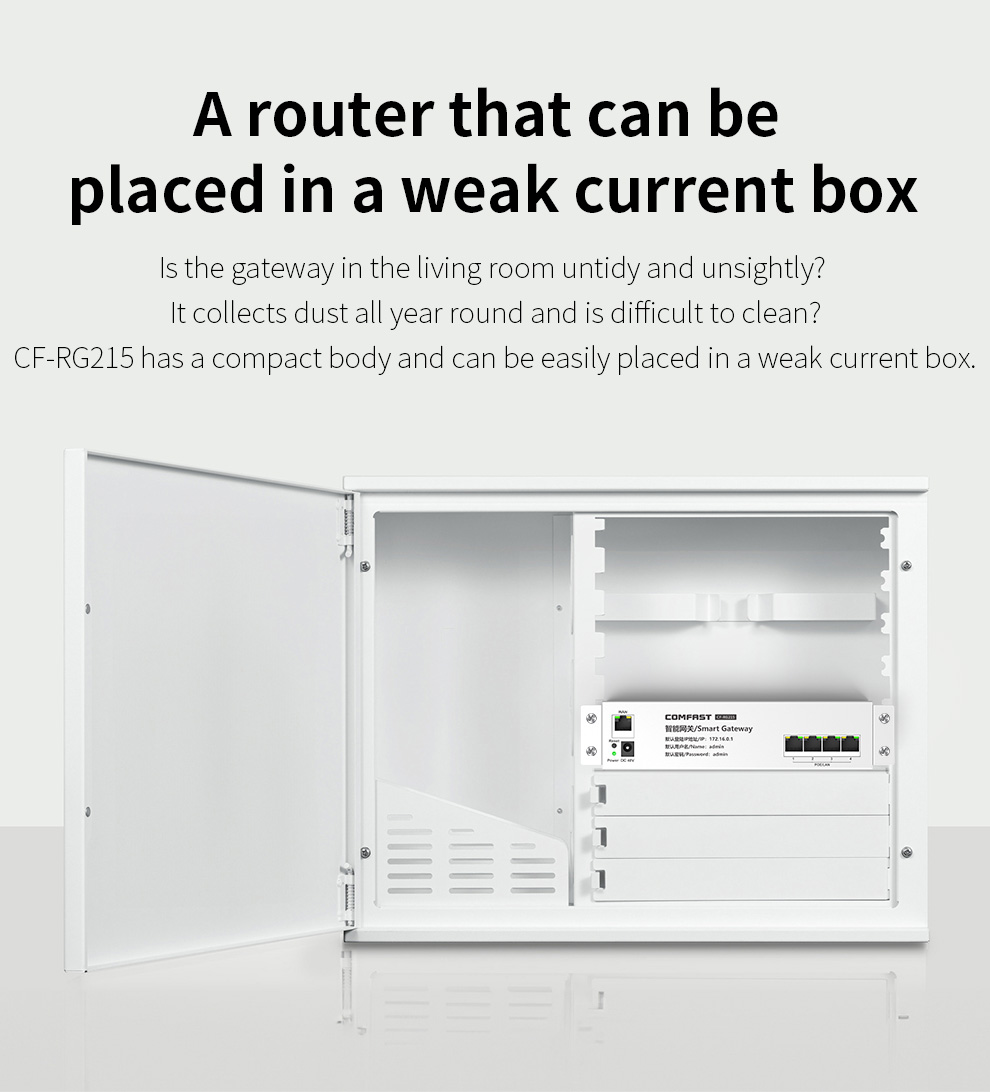

Compact design fits standard in-wall enclosures
-

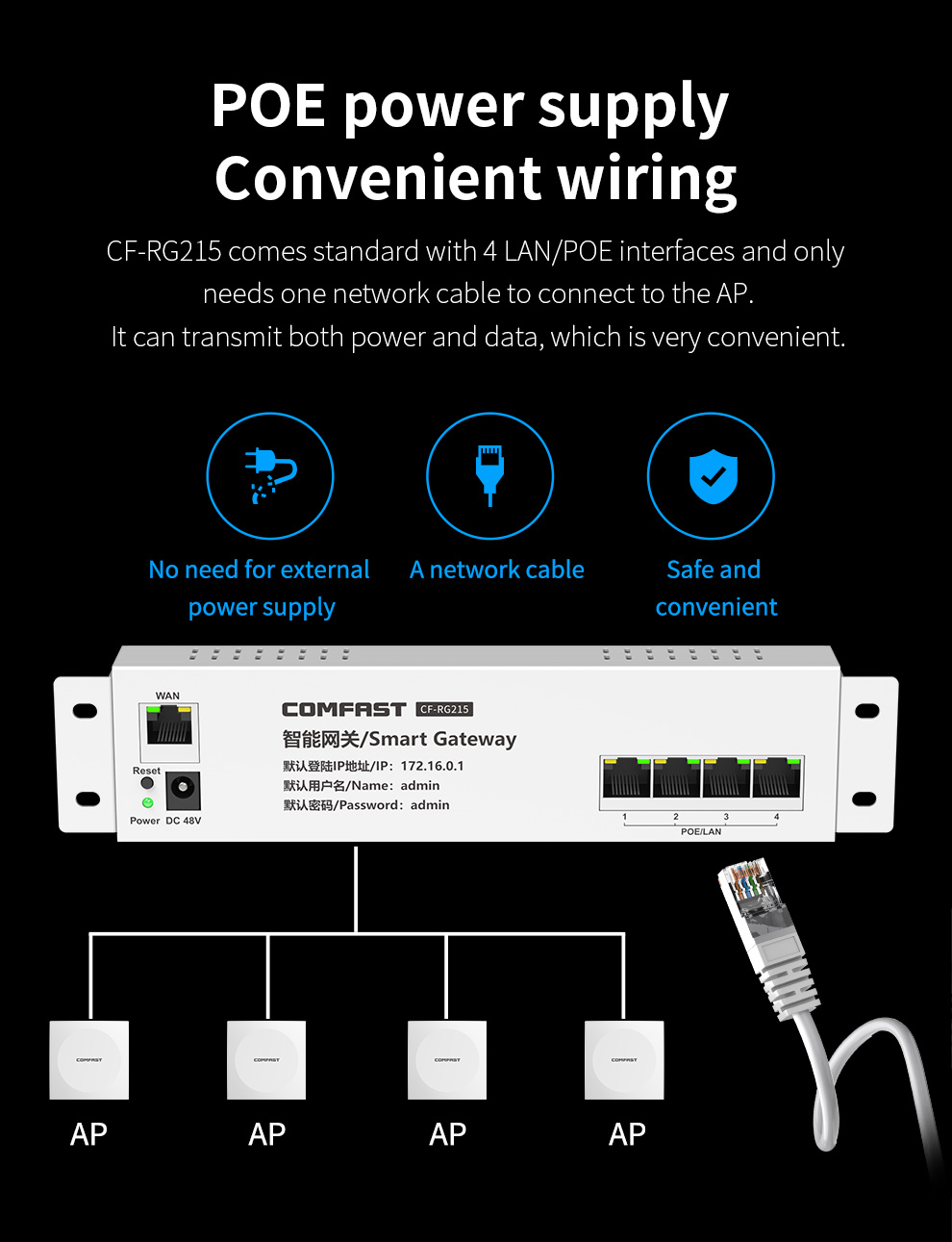

Four standard PoE ports with 30W per port
-
MT7621A dual-core processor for stable performance
-
512MB large memory for high-concurrency processing
-

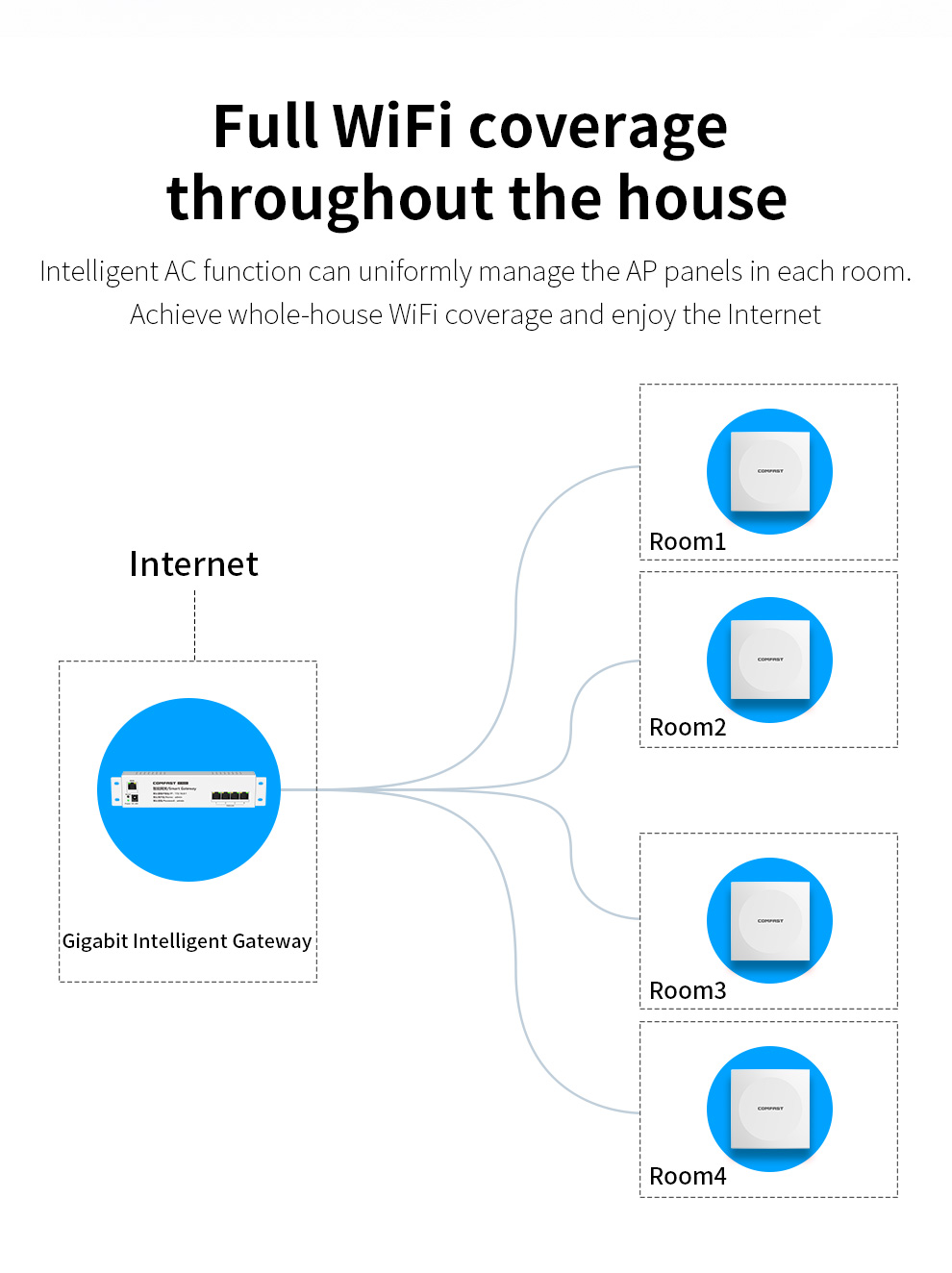

AC unified management simplifies multi-AP deployment
-

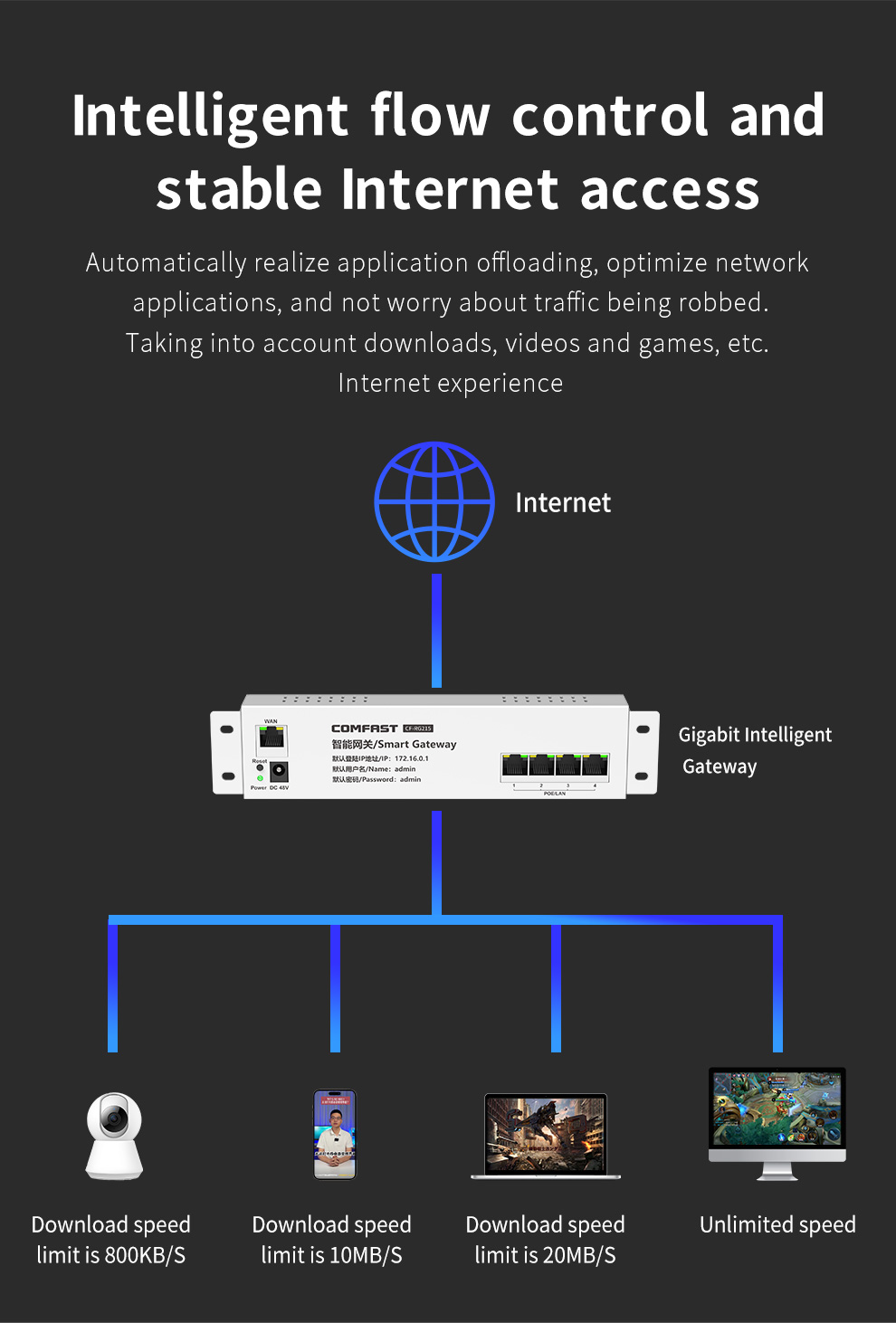

Intelligent traffic control optimizes bandwidth allocation
-
Comprehensive security protection for home networks
-

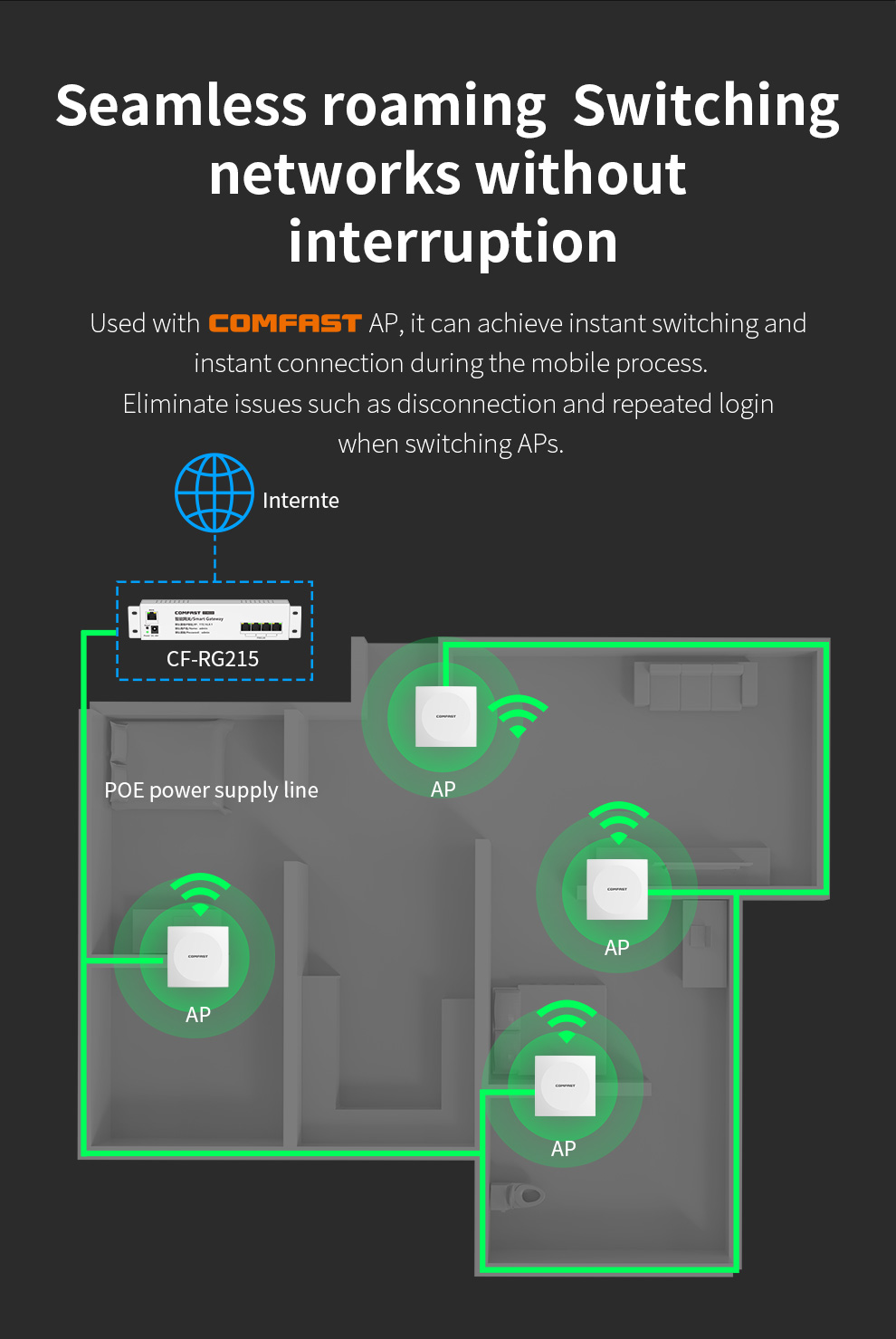

Seamless roaming support for uninterrupted connectivity
-
60W total power output for multiple devices
- Categories: AC Core Gateway, Home Gateway
- Model: CF-RG215
Contact Us
Product Repair
Repair Address
9th Floor, Building H, Huanan Digital Valley, No.1Huanan Road, Longhua District, Shenzhen, China
Telephone
Phone: 86-755-83790059
ZIP/Postal code:518109
Service Time
Monday to Friday
9:00-12:00,13:30-18:30
*The product images and demonstration scenarios on this page are for illustrative purposes only and may have slight differences from the actual product. Please refer to the physical product for accuracy.
*The data on this page are theoretical values obtained from COMFAST’s internal laboratory under specific testing conditions. Actual usage may vary due to individual product differences, software versions, usage conditions, and environmental factors. Please refer to real-world usage for accurate representation.
*To provide as accurate product information, specifications, and features as possible, COMFAST may periodically adjust and revise the text descriptions, image effects, and other content on this page to ensure alignment with actual product performance, specifications, packaging, and accessories. Should such adjustments or revisions become necessary, no prior notice will be provided.

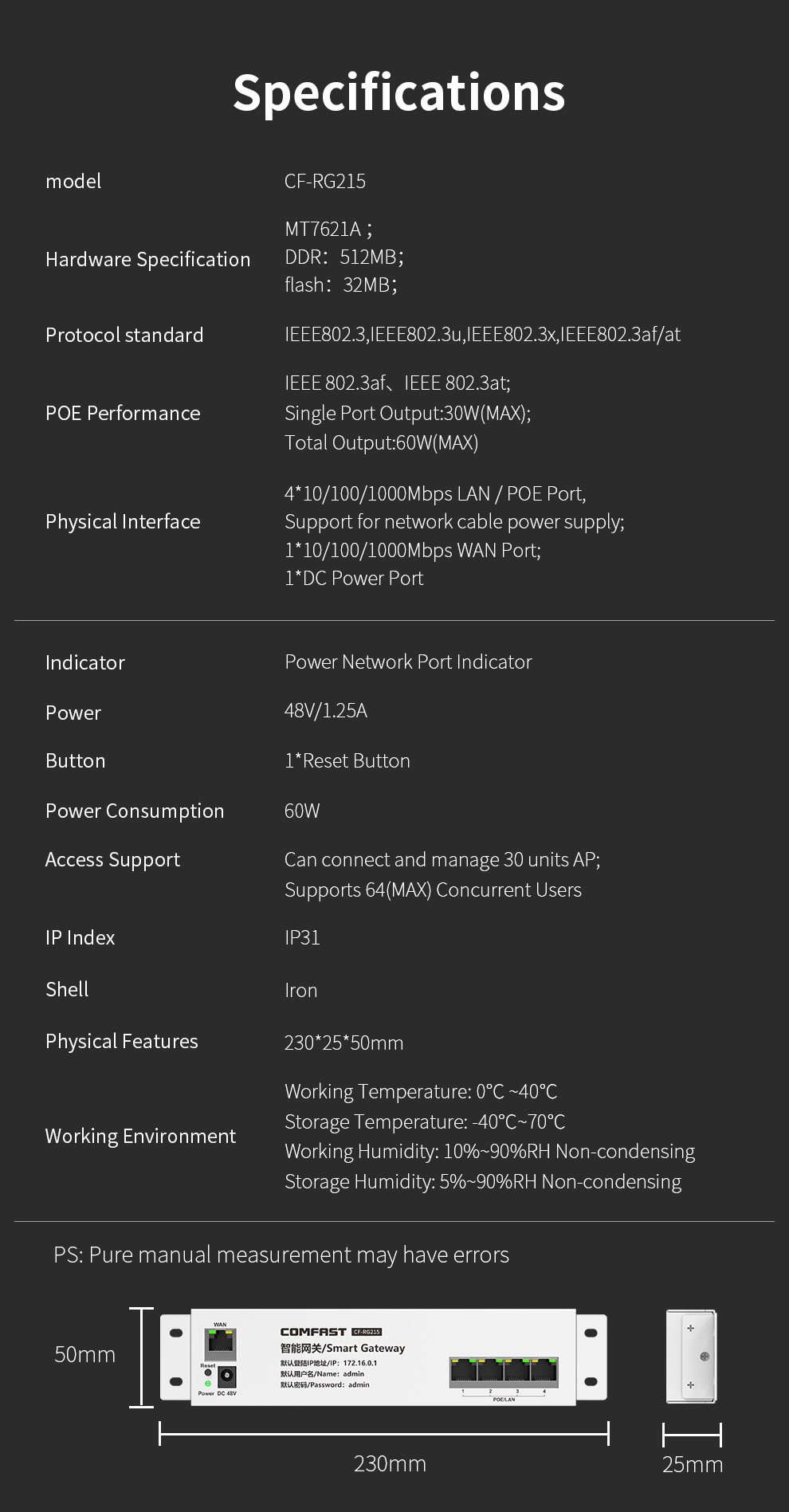

| Item | Specification |
|---|---|
| Chipset | MT7621A 880MHz CPU |
| Memory | DDR3: 512MB |
| Flash | 32MB |
| Watchdog Chip | Yes |
| Protocol Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af/at |
| PoE Support | IEEE 802.3af/at compliant, max 30W per port, 60W total |

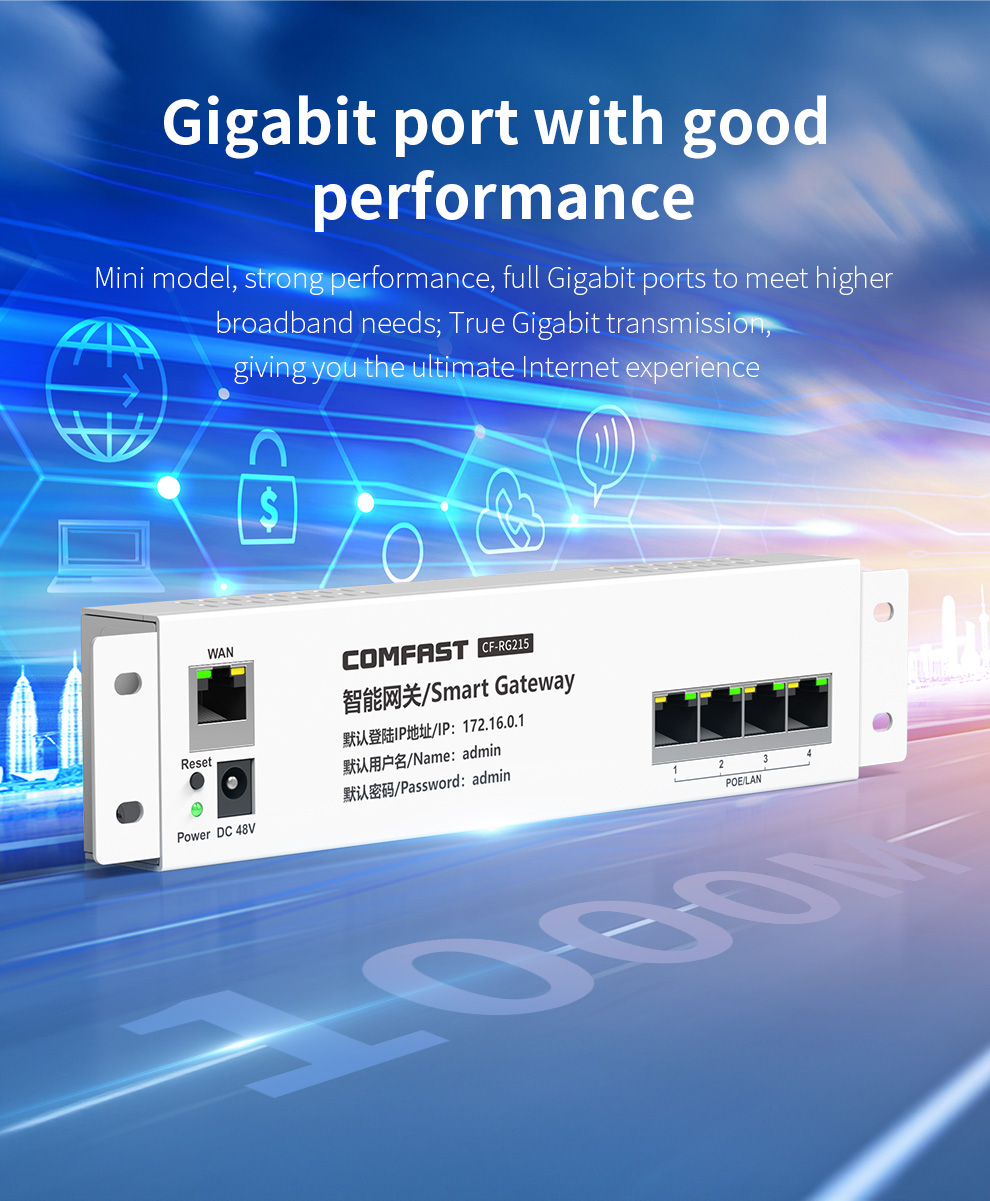

| Physical Ports | 1 x 10/100/1000M WAN, 4 x 10/100/1000M PoE/LAN |
| Power Supply | 48V/1.25A DC input |
| Buttons | 1 x Reset |
| Indicators | Power, Ethernet LED |
| Max Power Consumption | 60W |
| Device Support | Manage up to 128 APs, 500 devices simultaneously |
| Protection Level | IP31 |
| Installation | Desktop mount installation |
| Enclosure | Metal casing |
| Dimensions | 23 x 2.5 x 5 cm (L x W x H) |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -40°C ~ 70°C |
| Operating Humidity | 10% ~ 90% RH (non-condensing) |
| Storage Humidity | 5% ~ 90% RH (non-condensing) |
