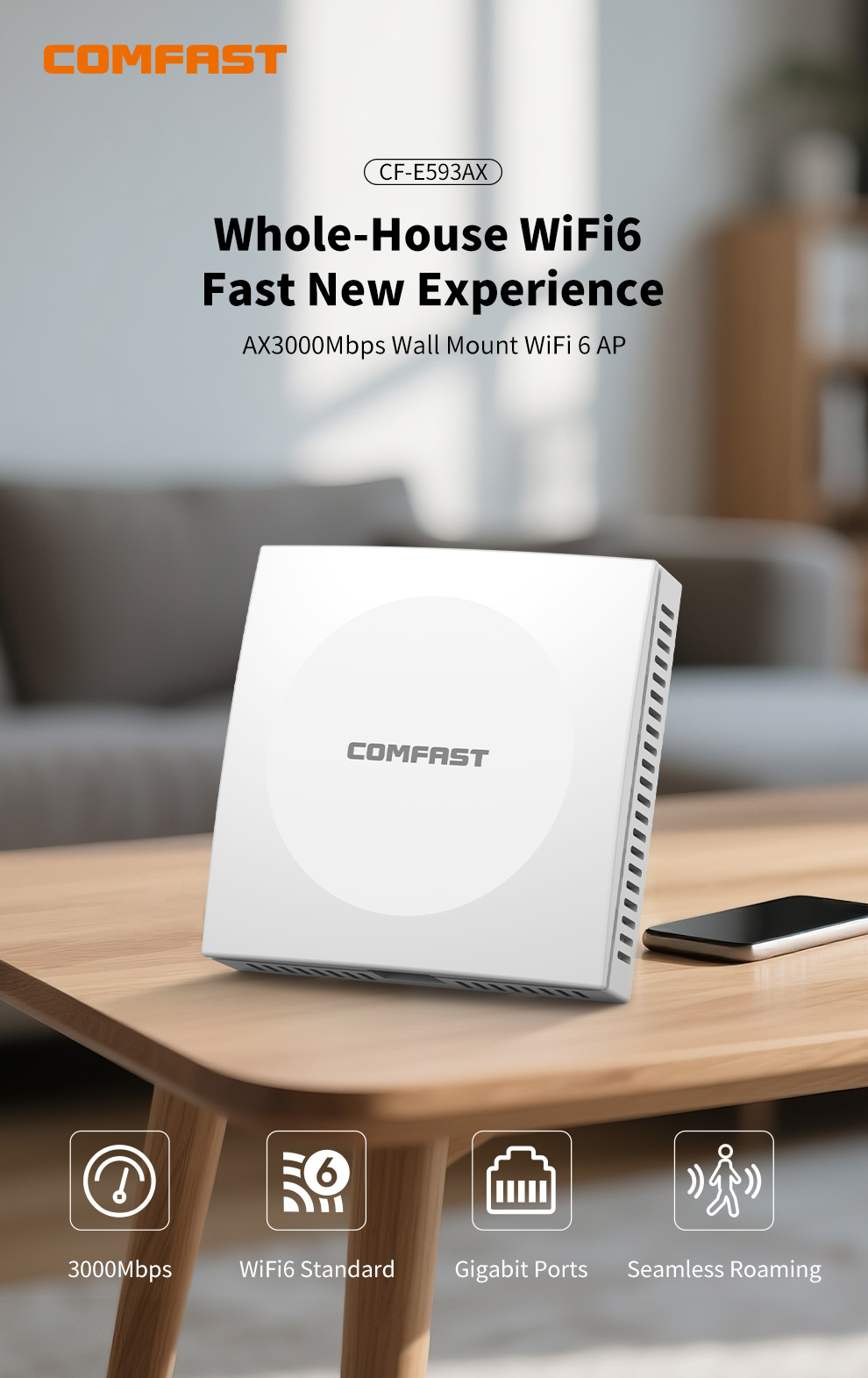

CF-E593AX Whole-House WiFi6Fast New Experience

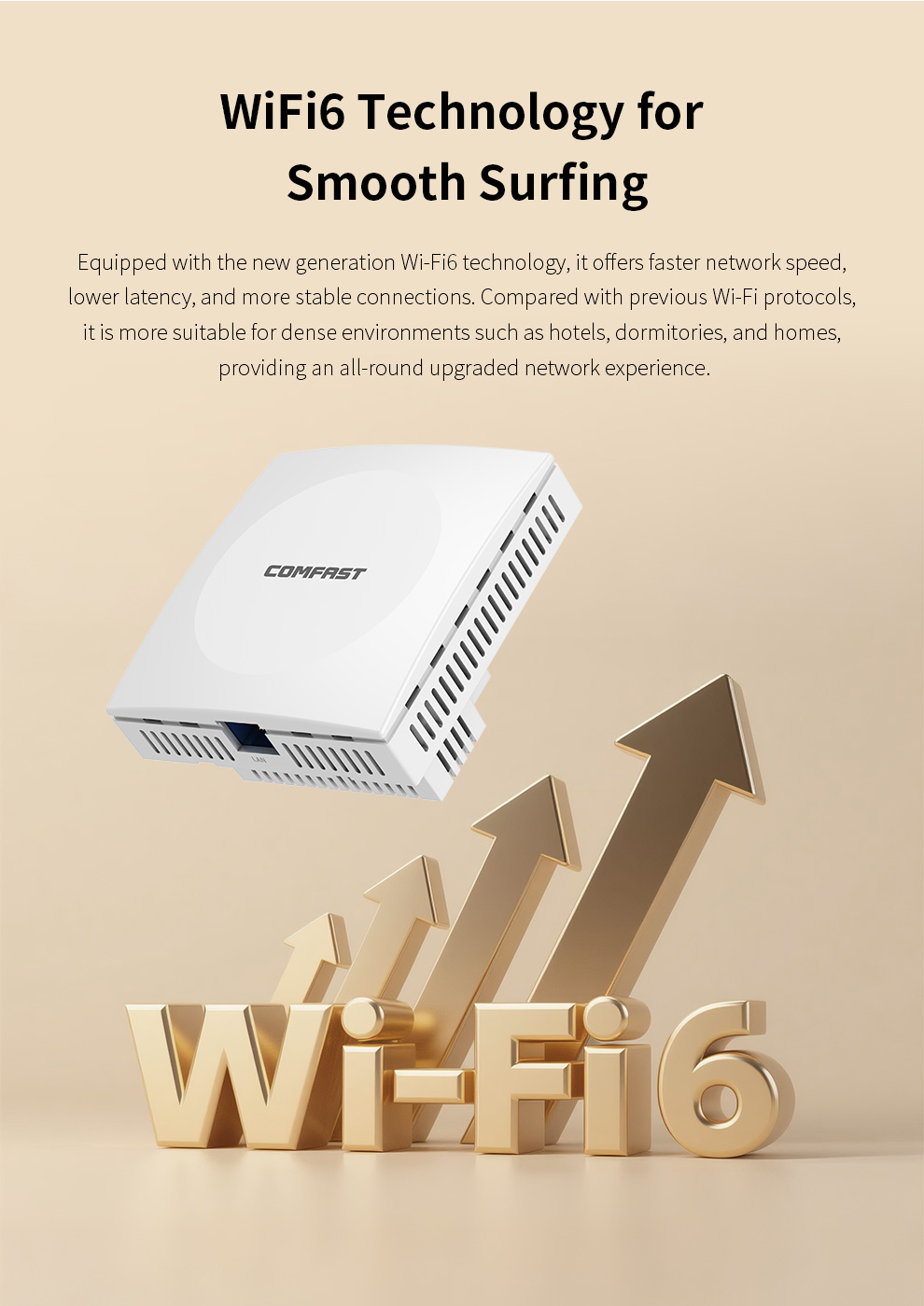

The CF-E593AX is a high-performance WiFi 6 panel AP with dual-band speeds up to 3000Mbps. It features advanced Mesh technology for seamless coverage and roaming, making it ideal for large indoor areas like malls, hotels, and schools.
-

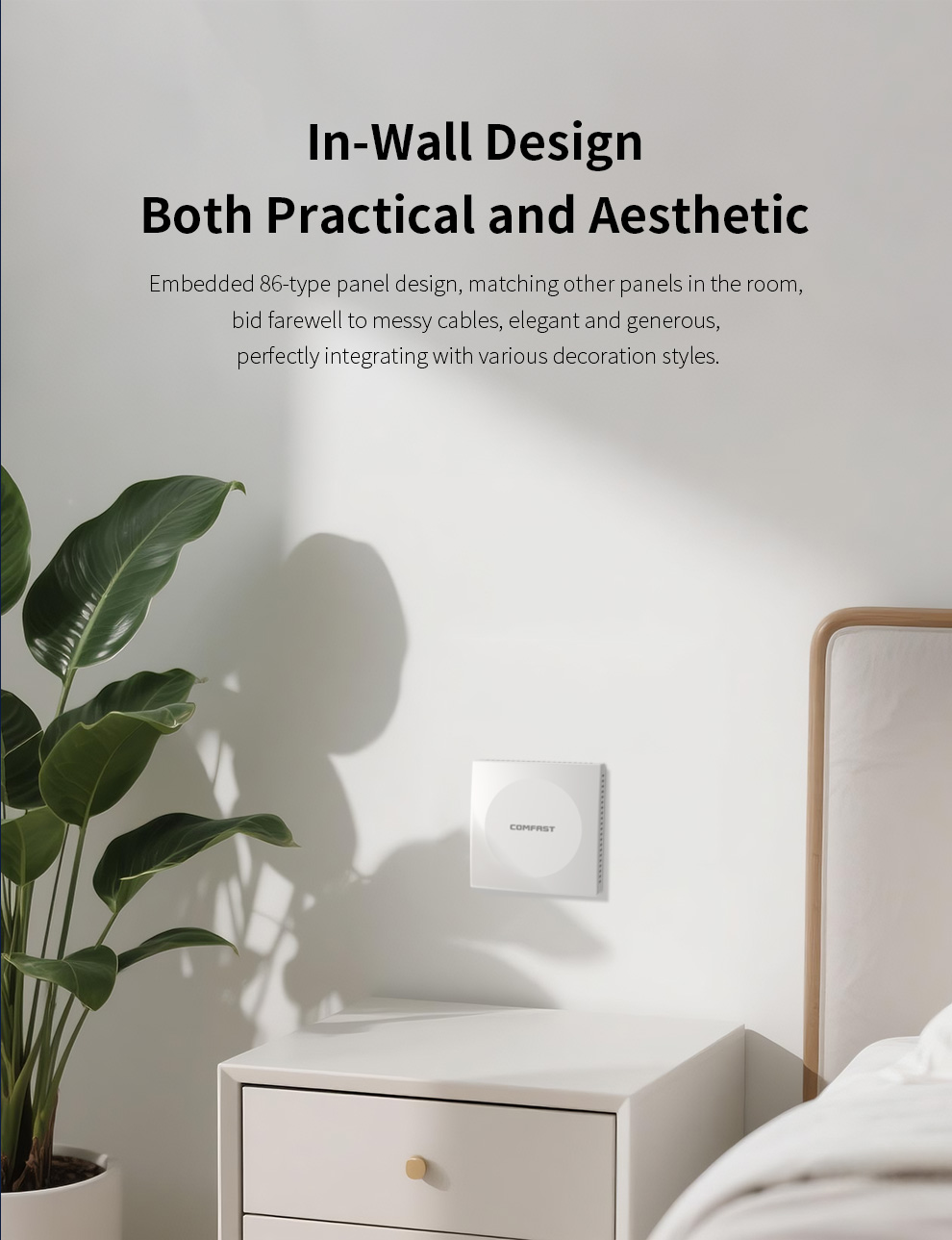

Standard 86 Design: Fits seamlessly into any space.
-
Gill-style Heat Dissipation: Excellent cooling performance.
-

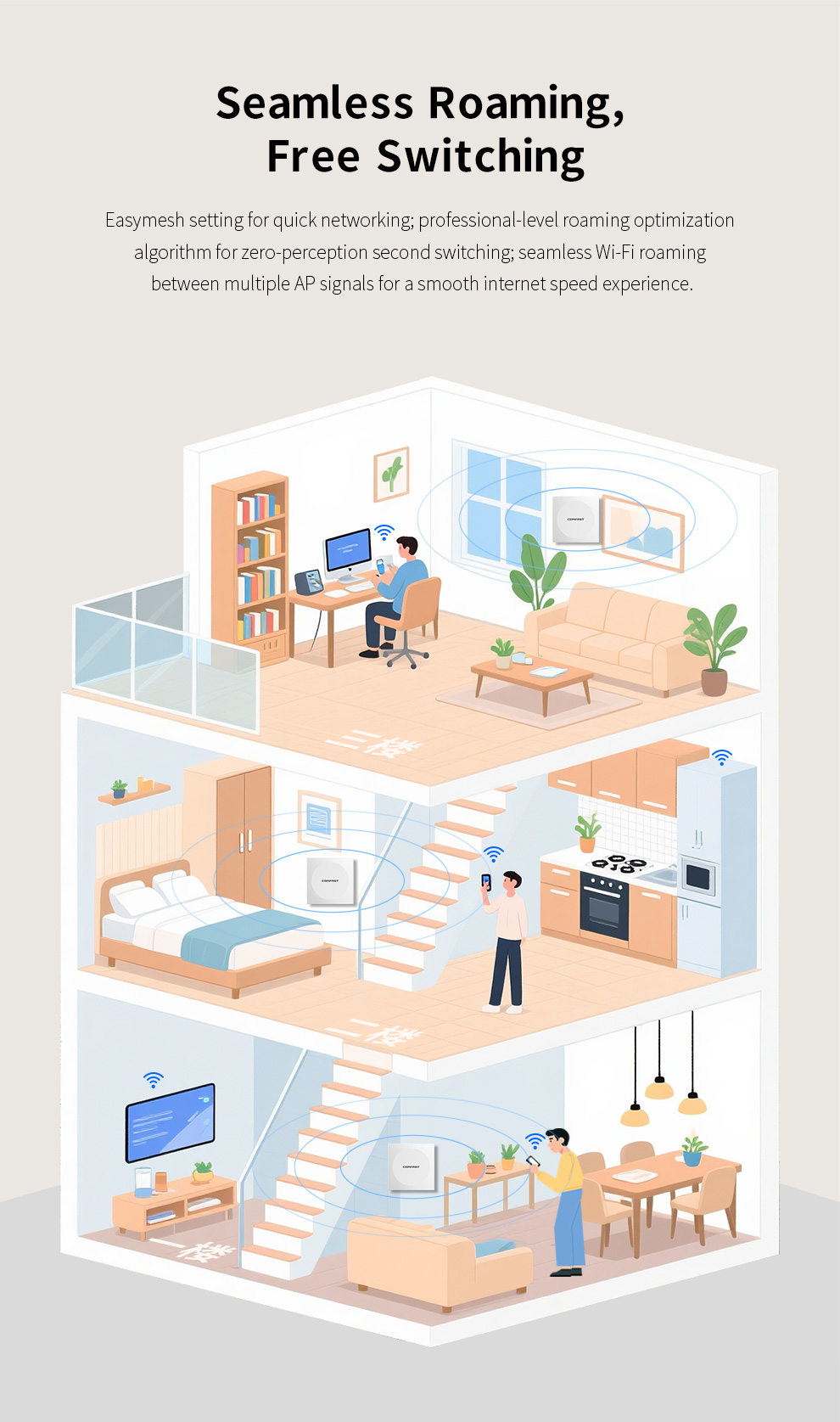

Mesh Technology: Easy setup with seamless coverage.
-

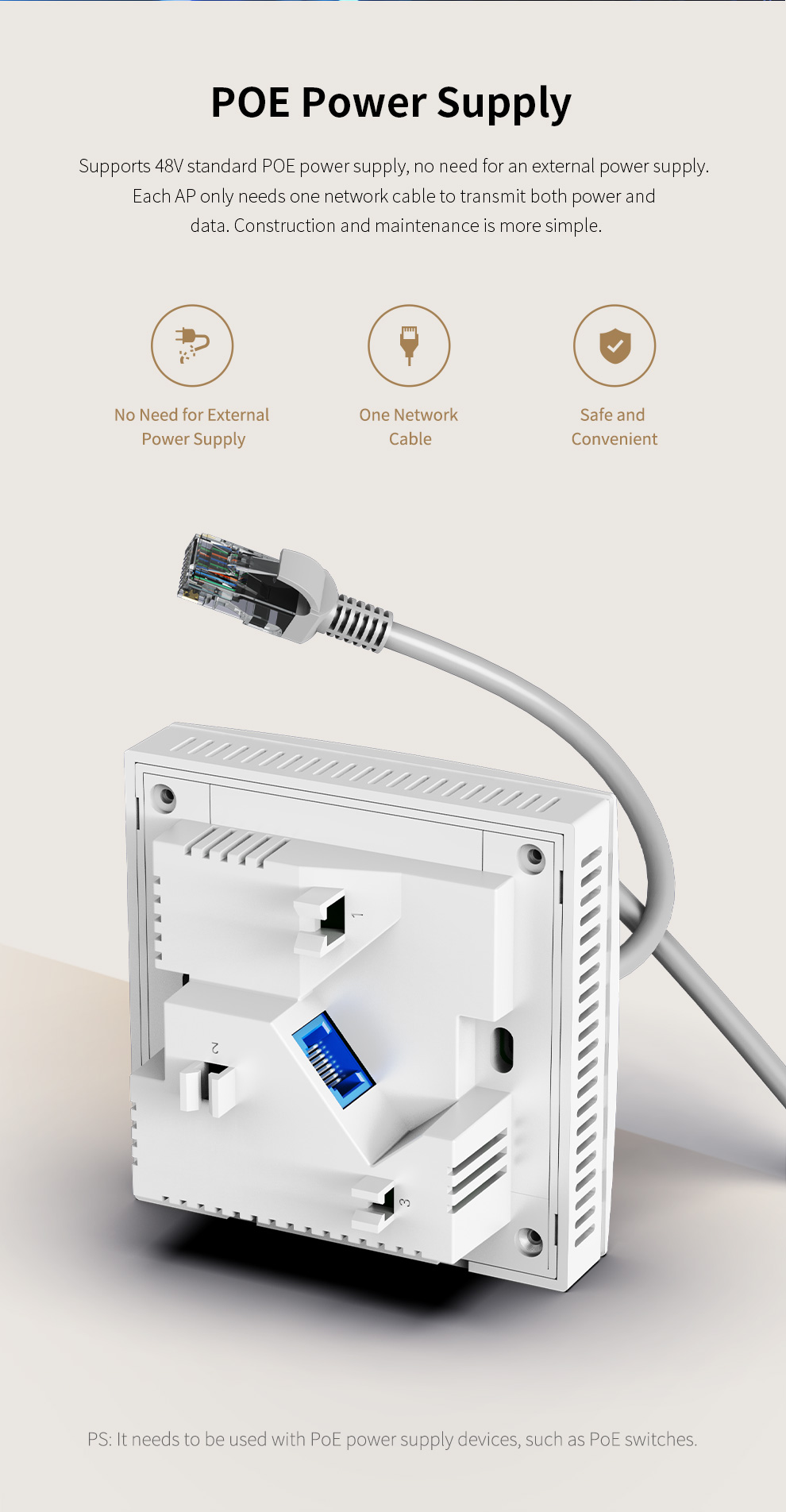

48V POE Power: Safe and reliable power supply.
-

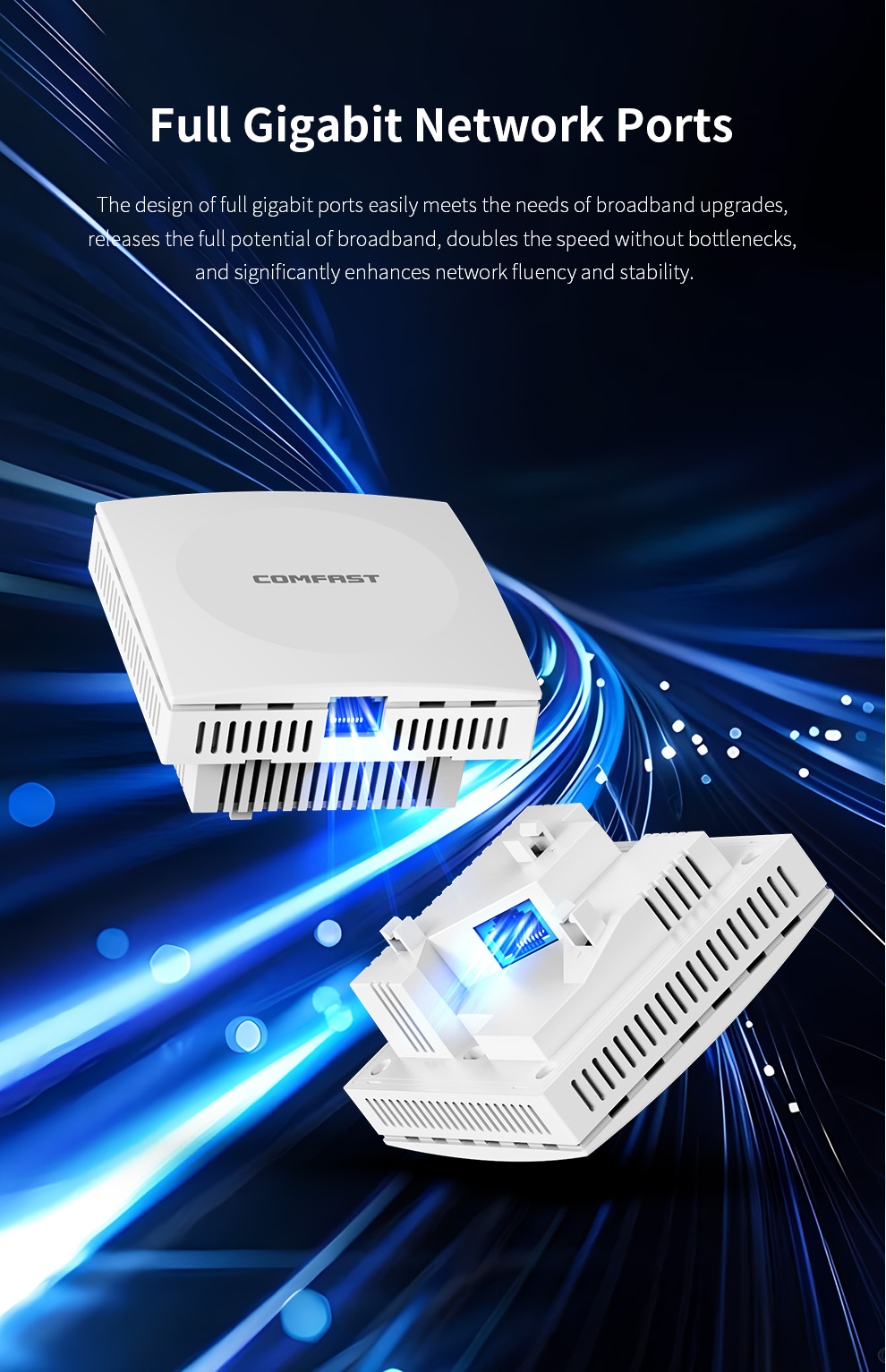

Gigabit Ports: Fast, smooth wired connection.
-

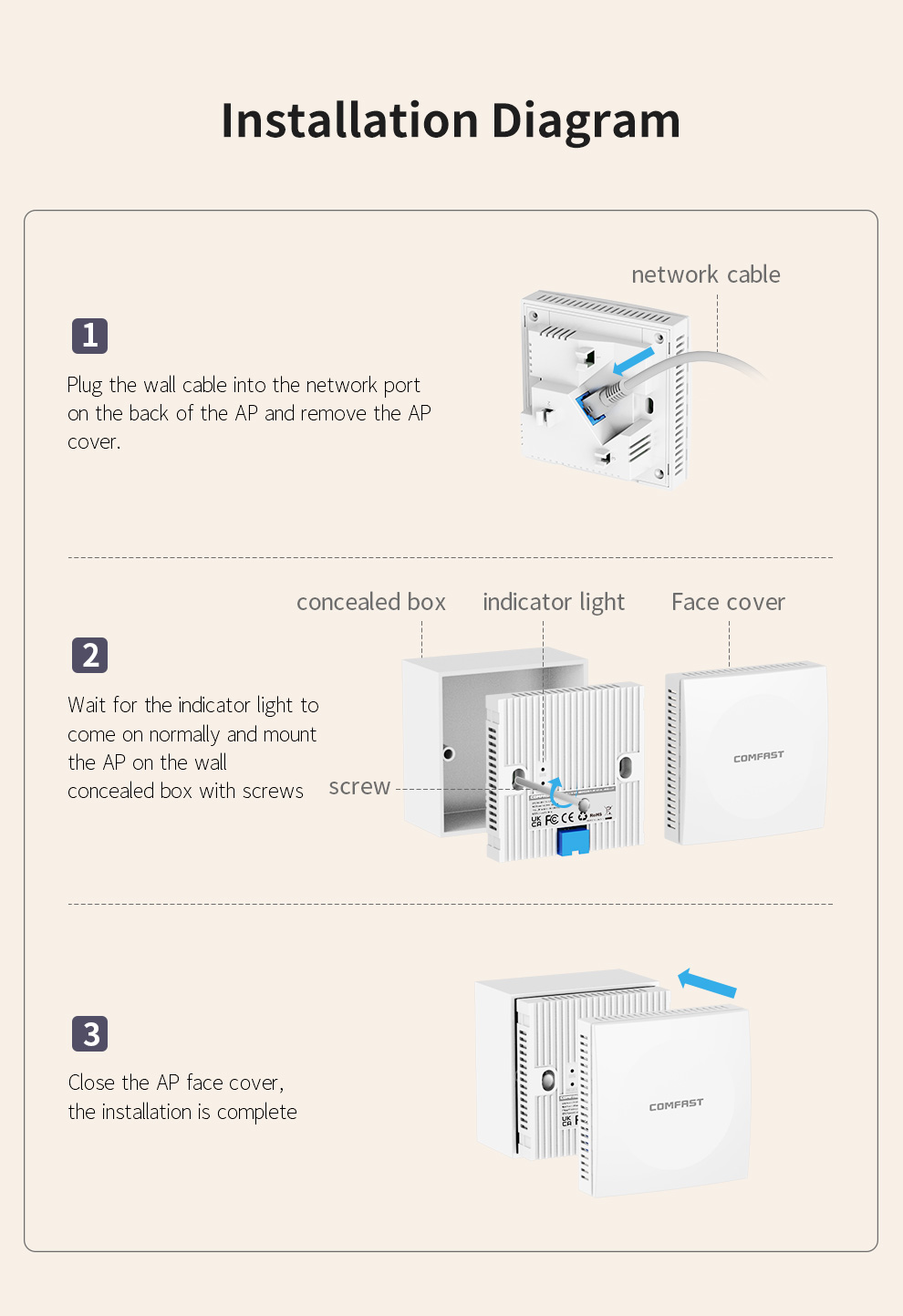

Wall/Ceiling Mountable: Flexible installation options.
- Categories: Wireless AP, Ceiling AP
- Model: CF-E593AX
Contact Us
Product Repair
Repair Address
9th Floor, Building H, Huanan Digital Valley, No.1Huanan Road, Longhua District, Shenzhen, China
Telephone
Phone: 86-755-83790059
ZIP/Postal code:518109
Service Time
Monday to Friday
9:00-12:00,13:30-18:30
*The product images and demonstration scenarios on this page are for illustrative purposes only and may have slight differences from the actual product. Please refer to the physical product for accuracy.
*The data on this page are theoretical values obtained from COMFAST’s internal laboratory under specific testing conditions. Actual usage may vary due to individual product differences, software versions, usage conditions, and environmental factors. Please refer to real-world usage for accurate representation.
*To provide as accurate product information, specifications, and features as possible, COMFAST may periodically adjust and revise the text descriptions, image effects, and other content on this page to ensure alignment with actual product performance, specifications, packaging, and accessories. Should such adjustments or revisions become necessary, no prior notice will be provided.

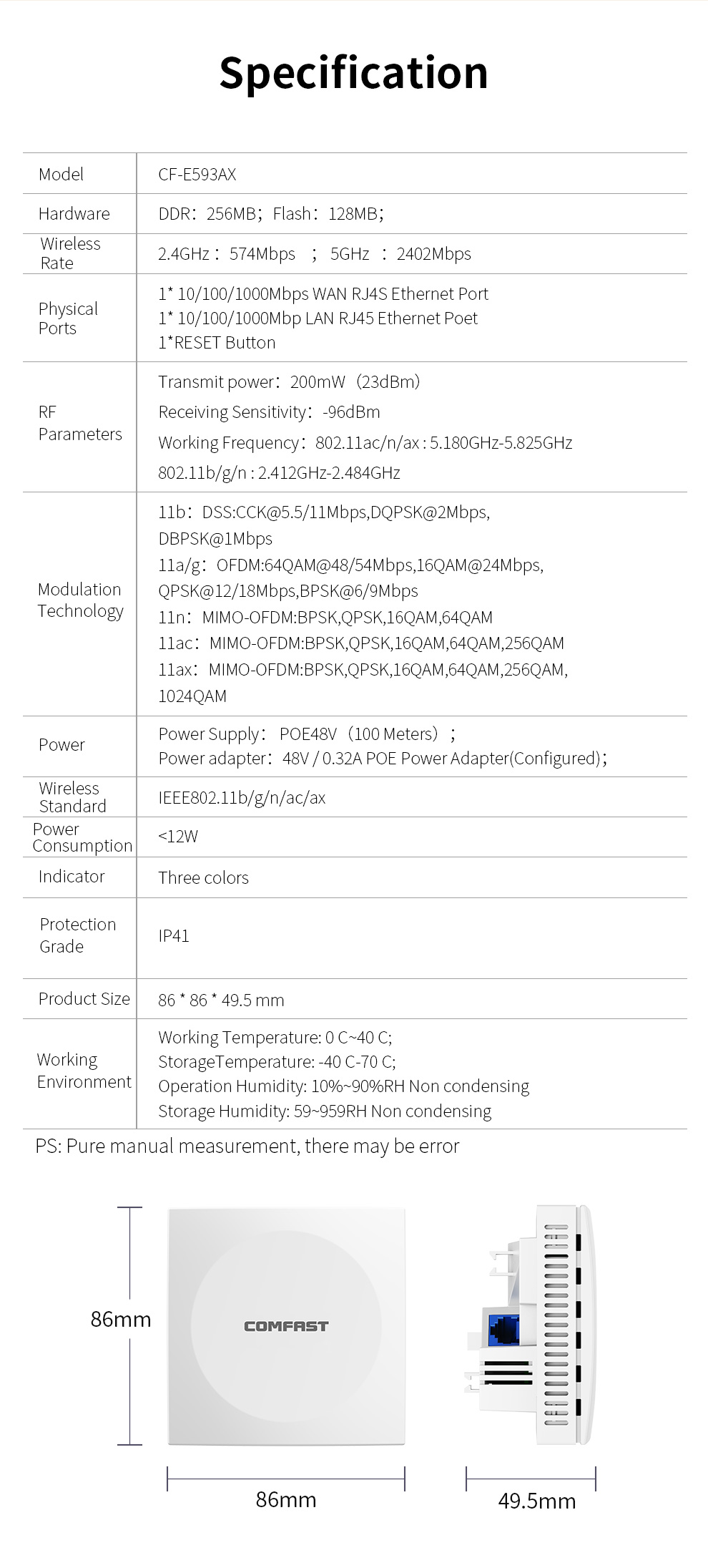

| Specification | Details |
|---|---|
| Chipset | MT7981B + MT7976CN + AN8801SB |
| Wireless Standard | IEEE 802.11a/b/g/n/ac/ax |
| Memory & Storage | RAM: 256MB, Flash: 128MB |
| RF Parameters | Max Transmission Power: 200mW (23dBm) |
| Min Receive Sensitivity: -96dBm | |
| Operating Frequency: | |
| 802.11a/n/ac/ax: 5.180GHz – 5.825GHz | |
| 802.11b/g/n/ax: 2.412GHz – 2.484GHz | |
| Physical Ports | 1 x 10/100/1000Mbps WAN RJ45 (supports 48V POE) |
| 1 x 10/100/1000Mbps LAN RJ45 | |
| 1 x RESET button | |
| Antenna Gain | 2 x 2.4G/5G 3dBi, 1 x 5G 3.48dBi |
| Power Supply | POE 48V (up to 100 meters) |
| POE Adapter: 48V/0.32A | |
| Max Power Consumption | <12W |
| MTBF (Mean Time Between Failures) | >25,000 hours |
| Installation Type | Wall Mount, Ceiling Mount |
| Protection Rating | IP41 |
| Product Dimensions | 86mm x 86mm x 42.9mm (manual measurement, slight error) |
| LED Indicators | 3-color LED (LAN, WAN, WLAN) |
| Environmental Conditions | Operating Temperature: 0℃ to 40℃ |
| Storage Temperature: -40℃ to 70℃ | |
| Operating Humidity: 10% to 90% RH (non-condensing) | |
| Storage Humidity: 5% to 90% RH (non-condensing) |
