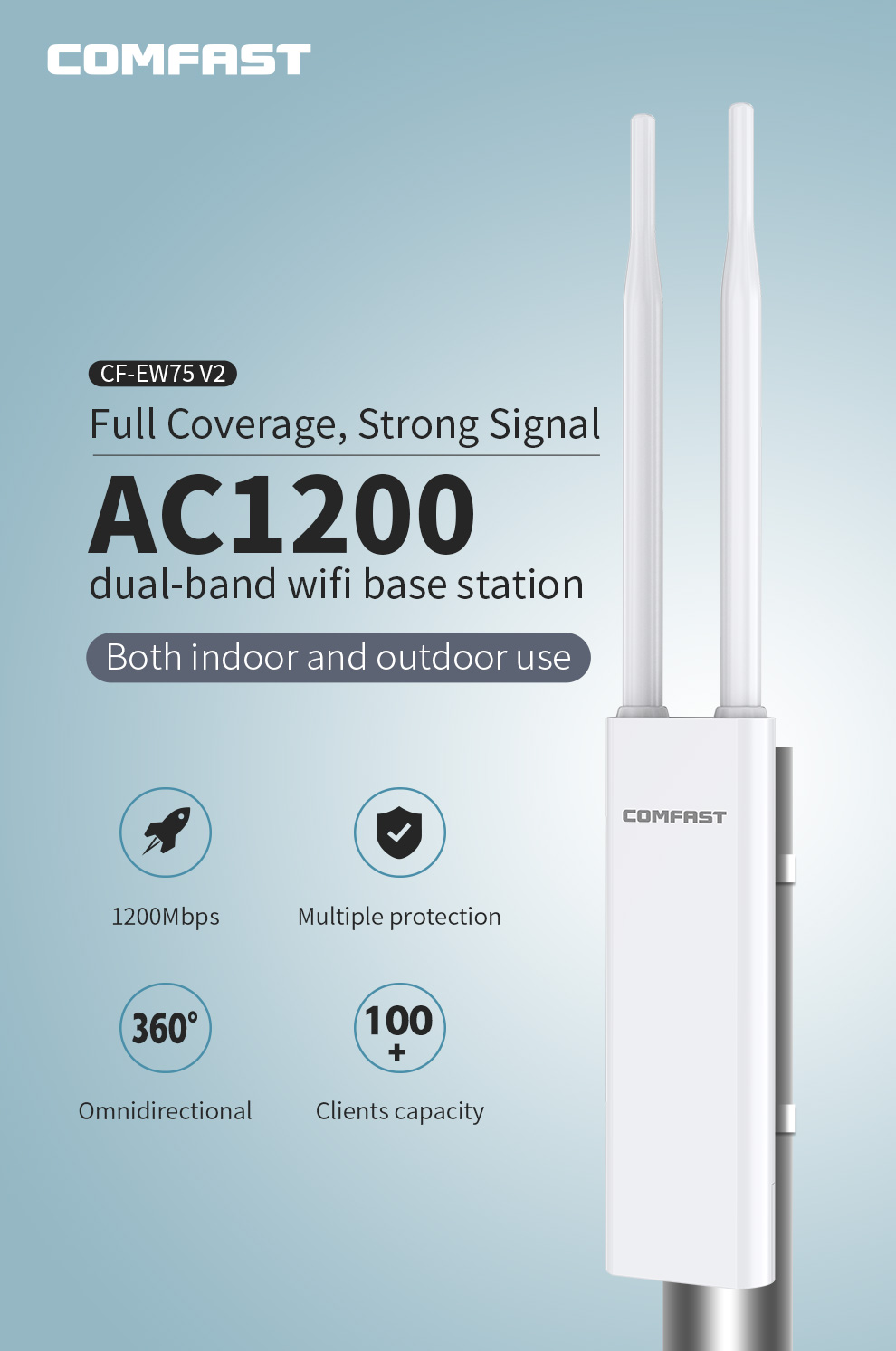

AC1200 dual-band Outdoor AP

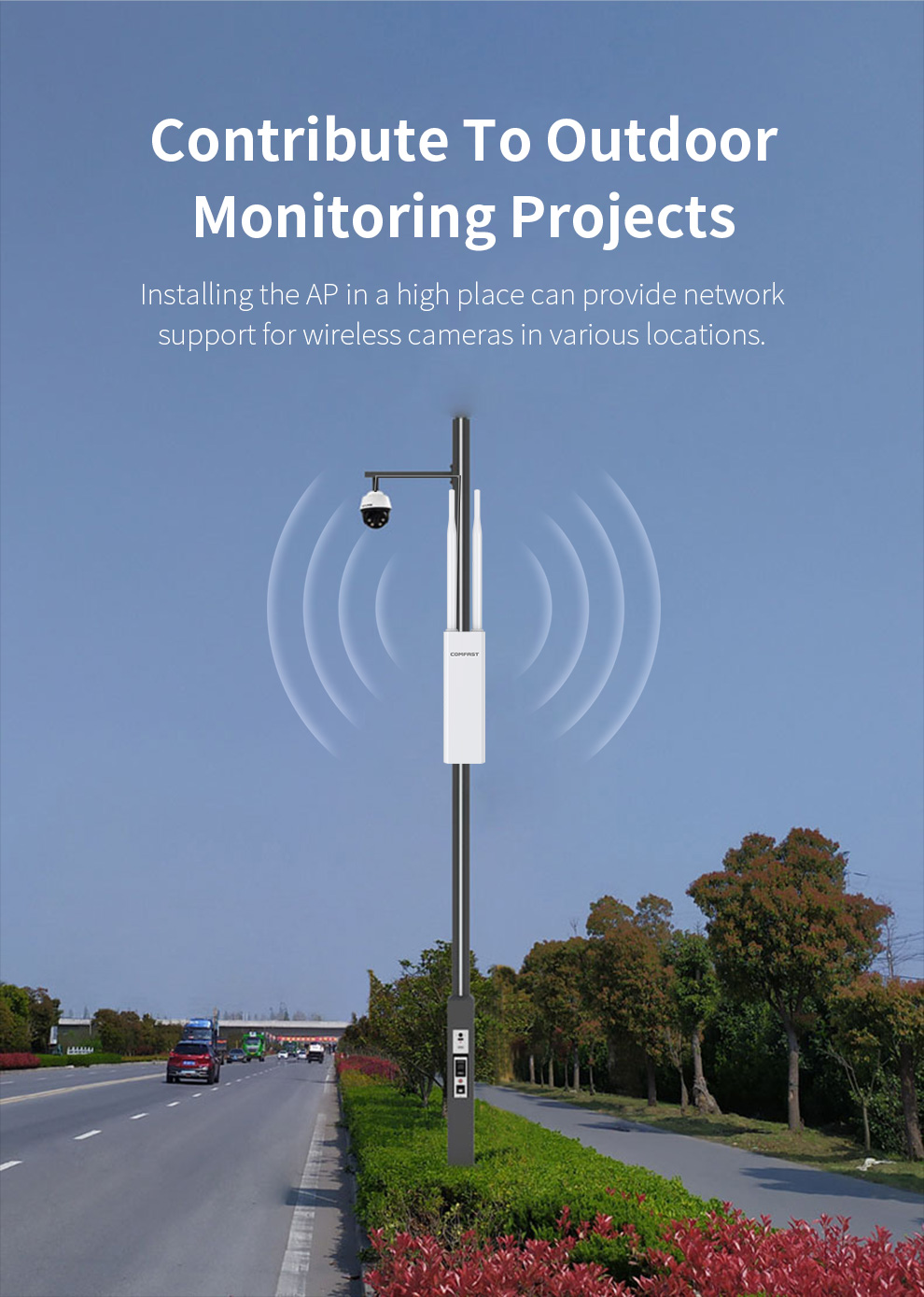

The CF-EW75 V2 is a 1200Mbps dual-band high-power outdoor AP designed for harsh environments. With an IP66 rating, high-gain omnidirectional antennas, and powerful signal amplification, it delivers wide-area, long-range coverage. Featuring flexible PoE support and Fat/Fit AP modes, it provides a high-speed, stable, and manageable wireless network for outdoor venues like parks, plazas, scenic areas, and residential communities.
-

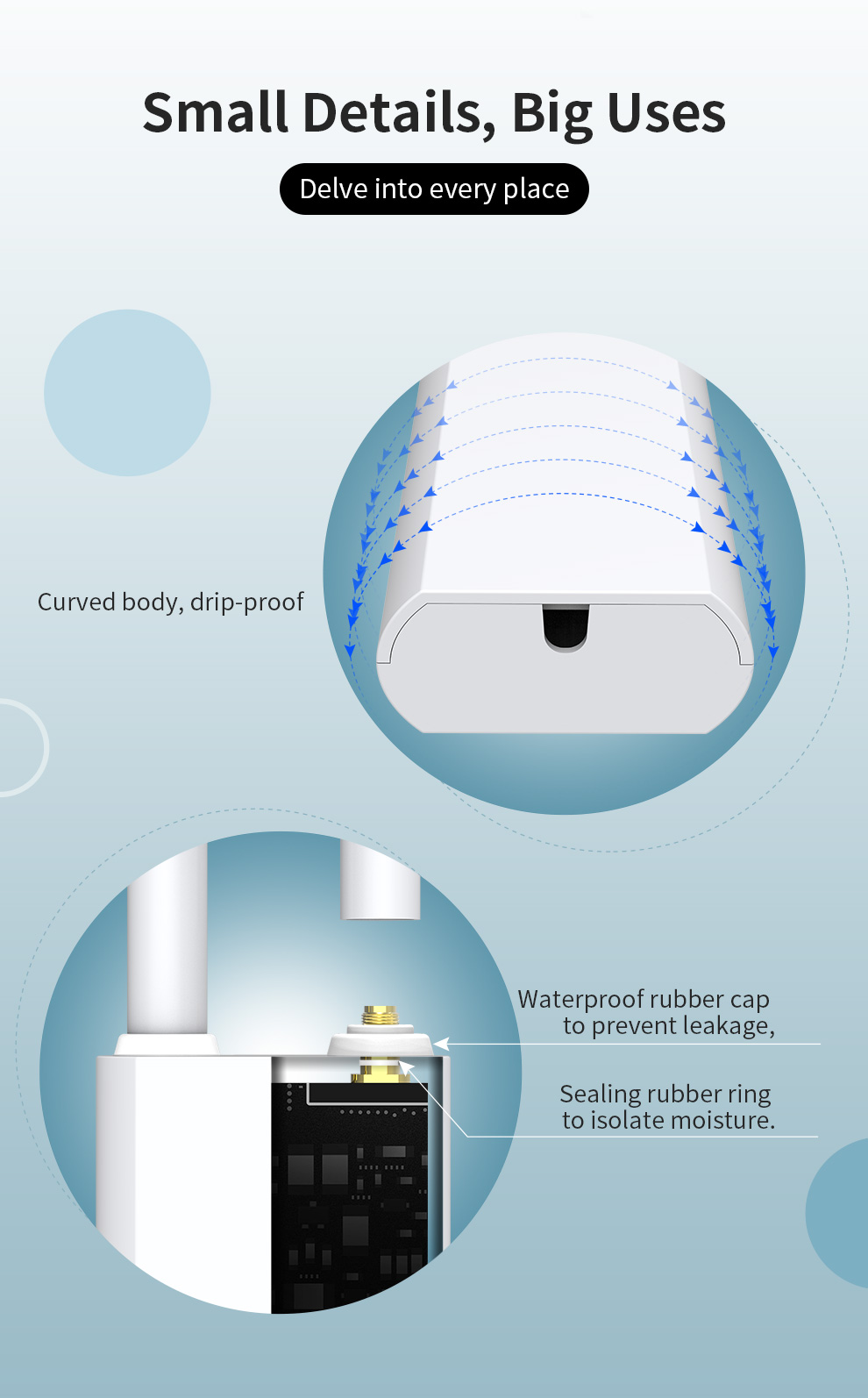

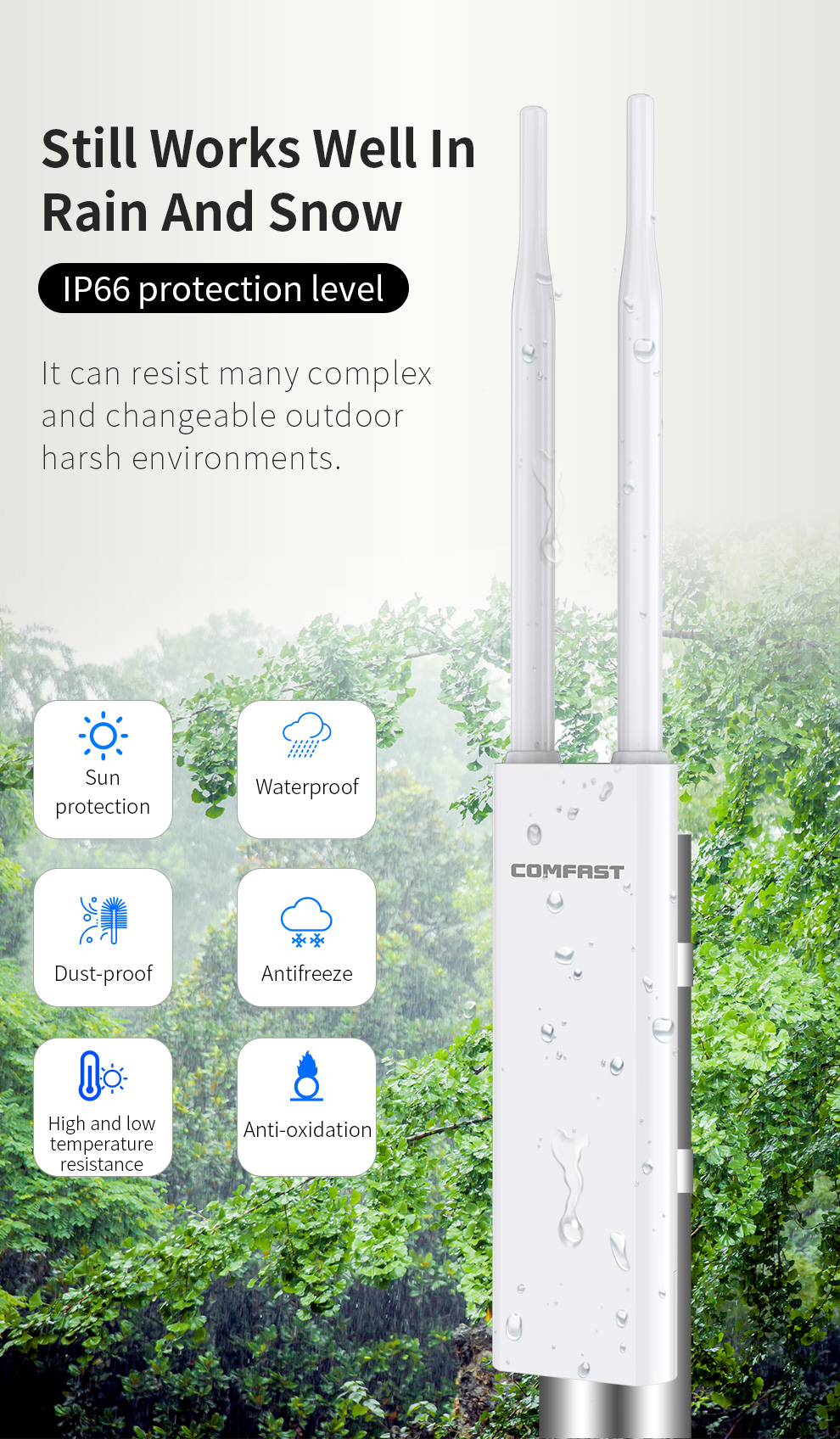

Rugged outdoor housing with IP66 protection
-
External waterproof dual-band antenna ports
-
Two 5dBi high-gain omnidirectional antennas
-

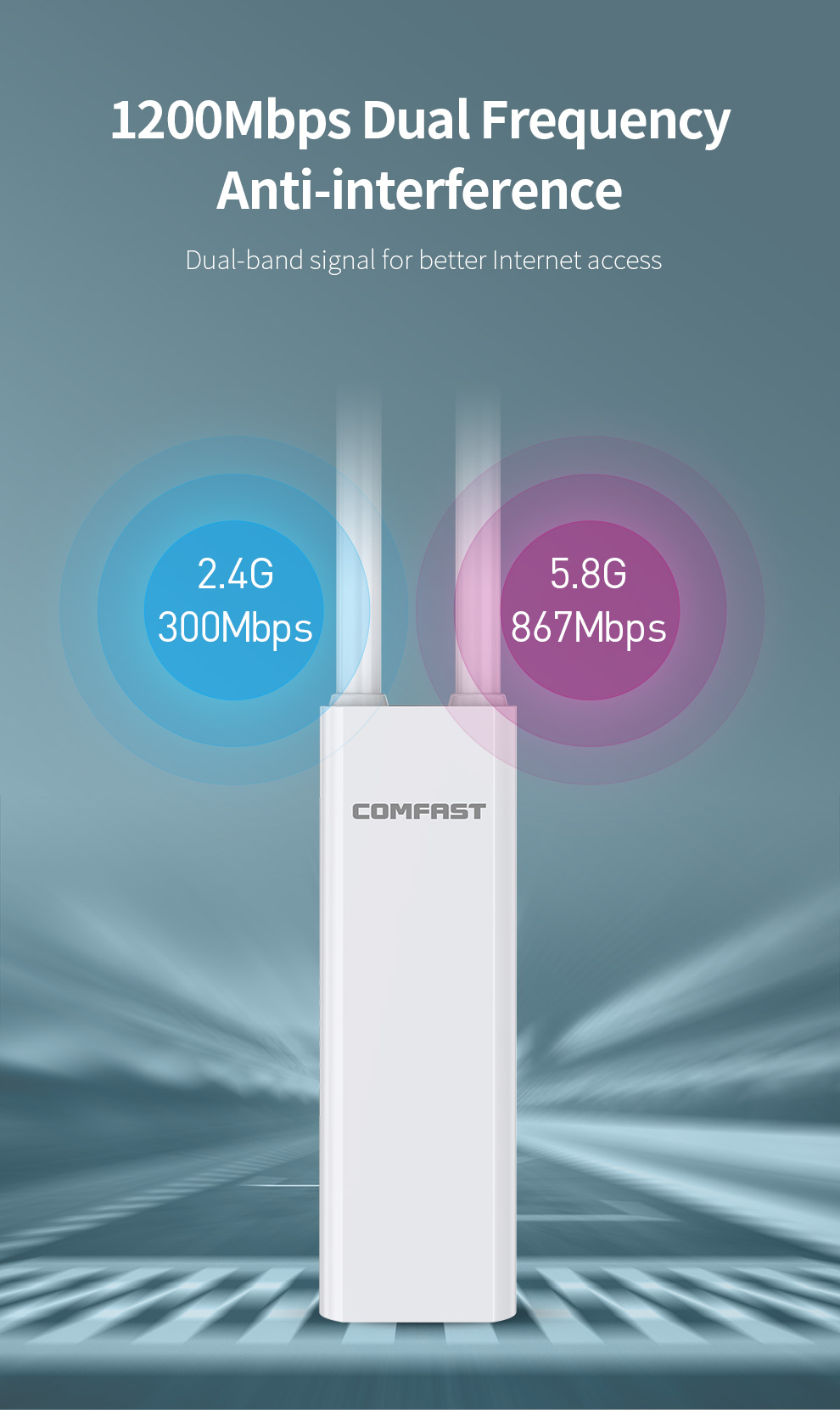

Dual-band concurrent speeds up to 1200Mbps
-

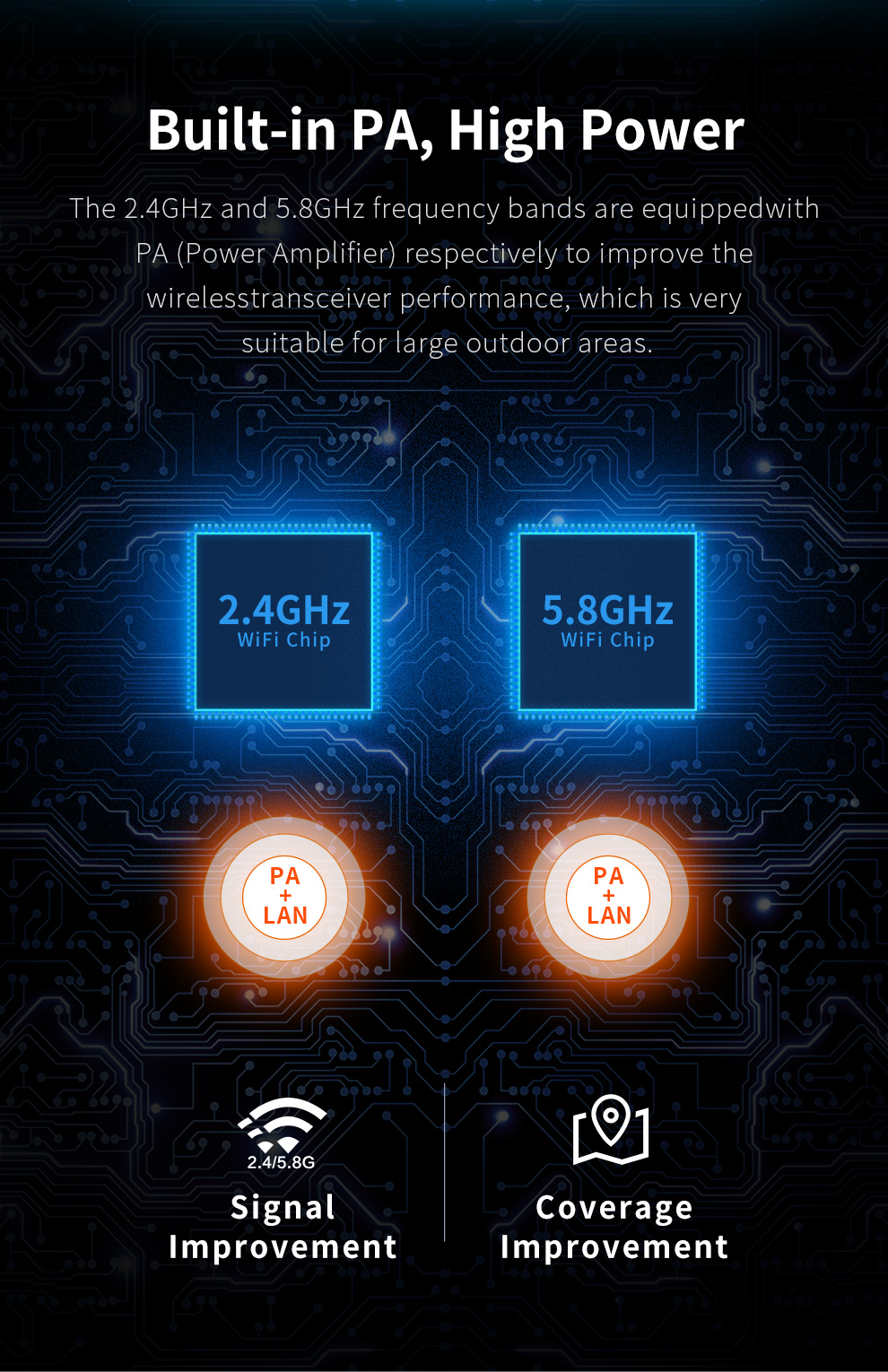

Dual-band independent high-performance amplifiers
-

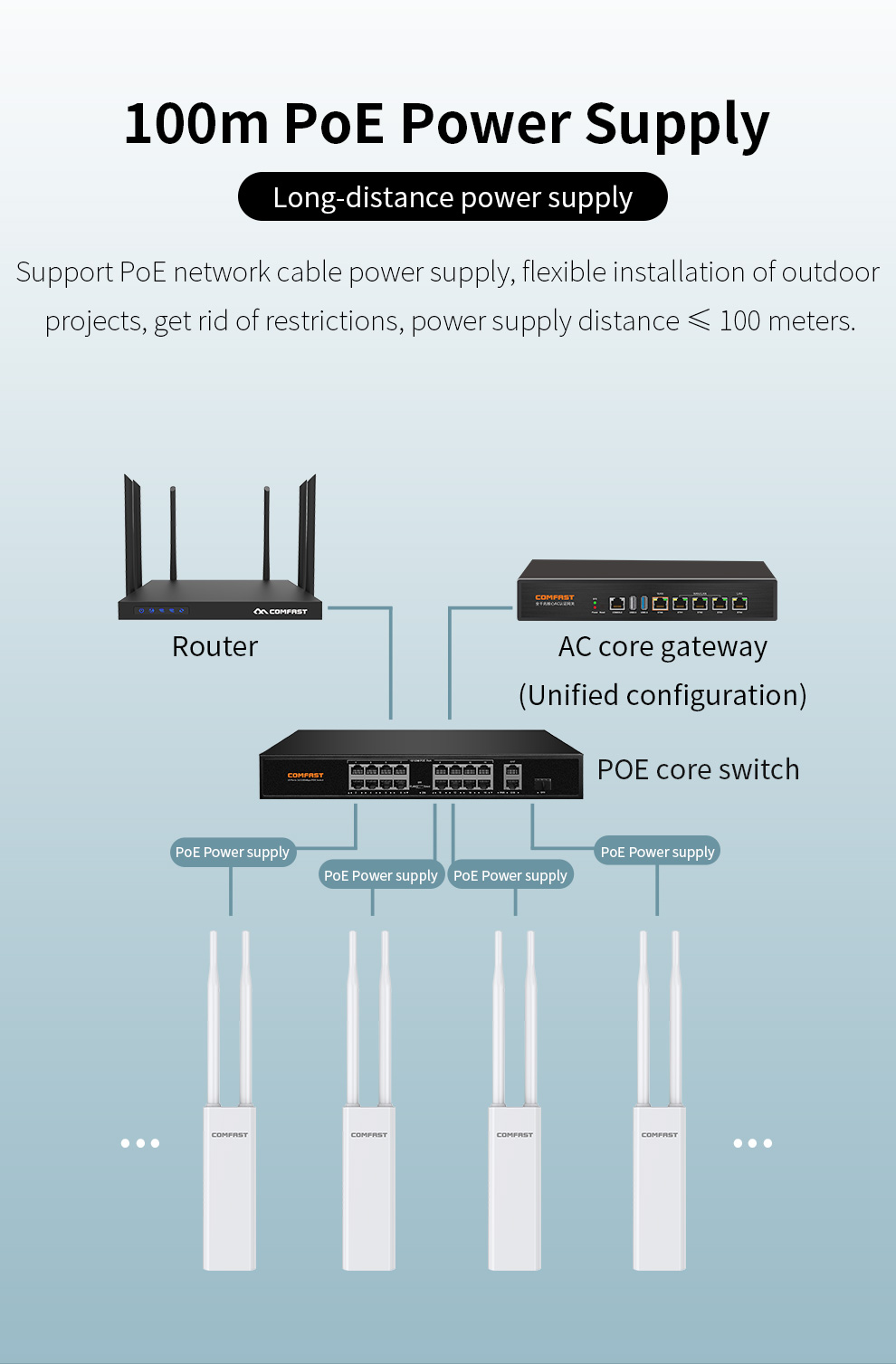

Standard PoE support for flexible deployment
-
Multi-level adjustable transmit power
-

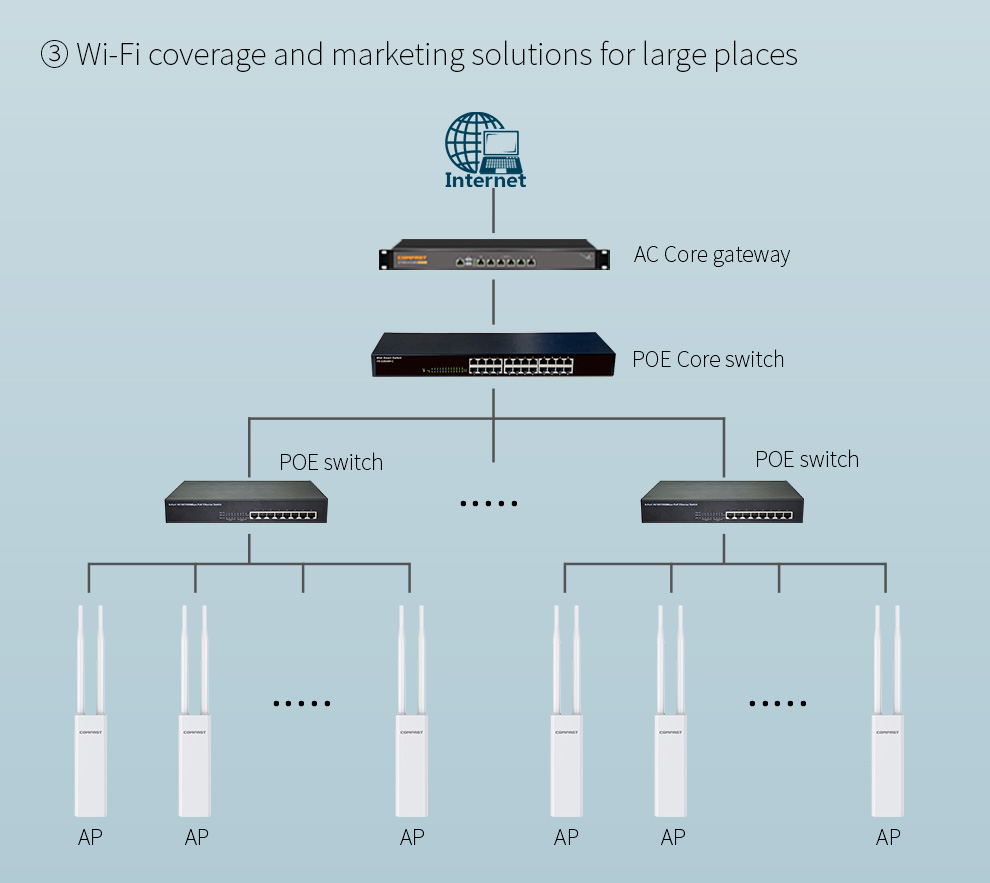

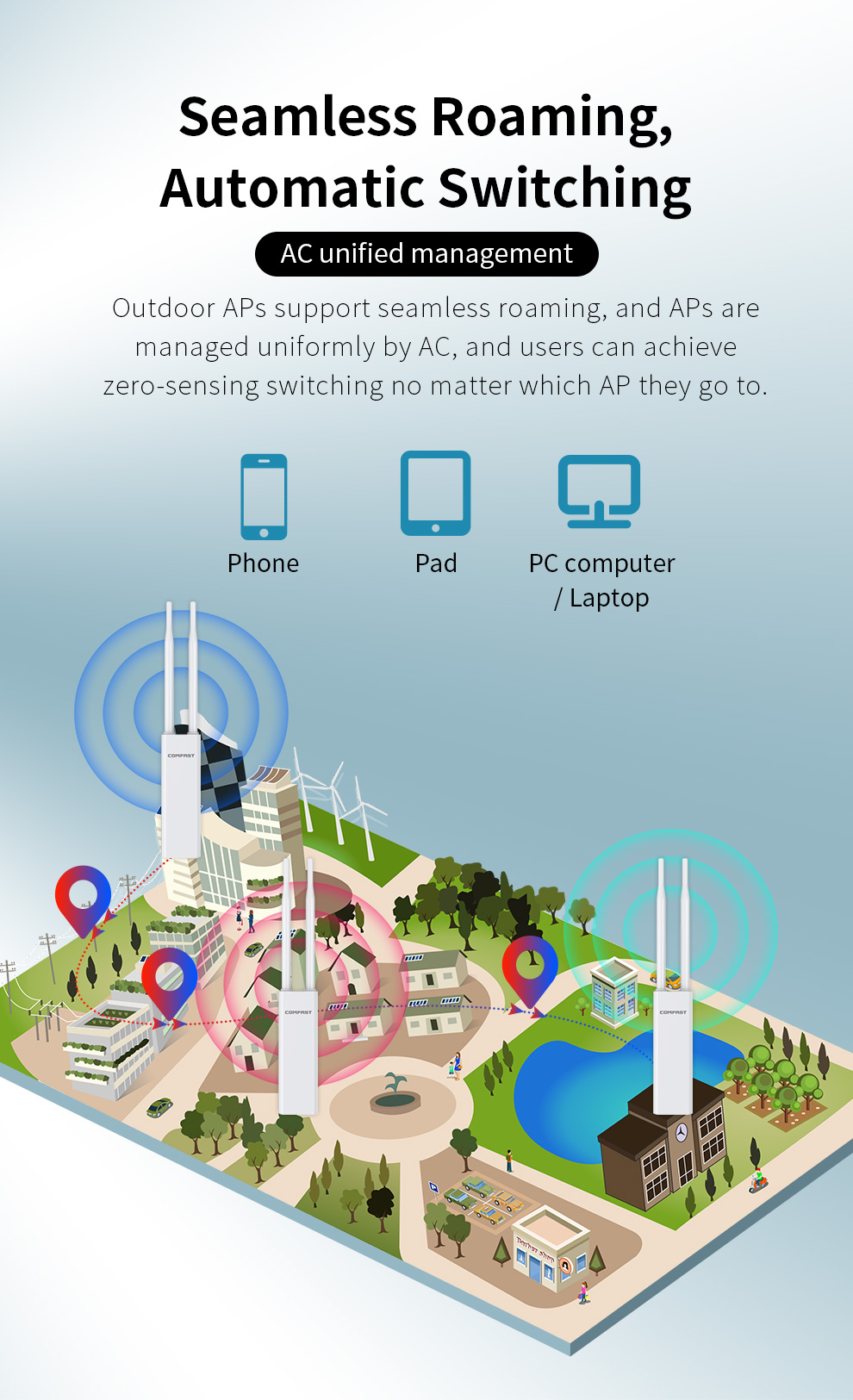

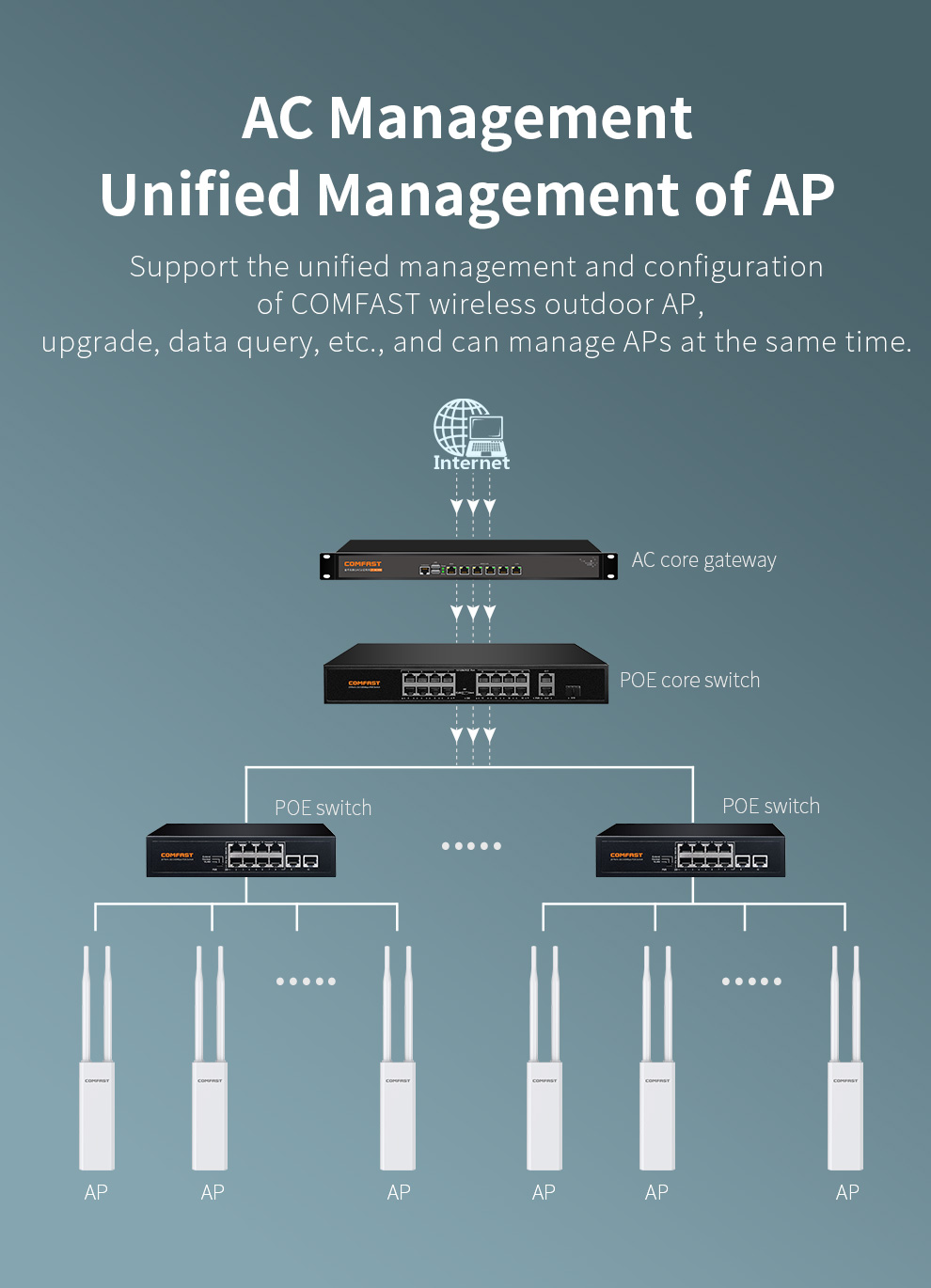

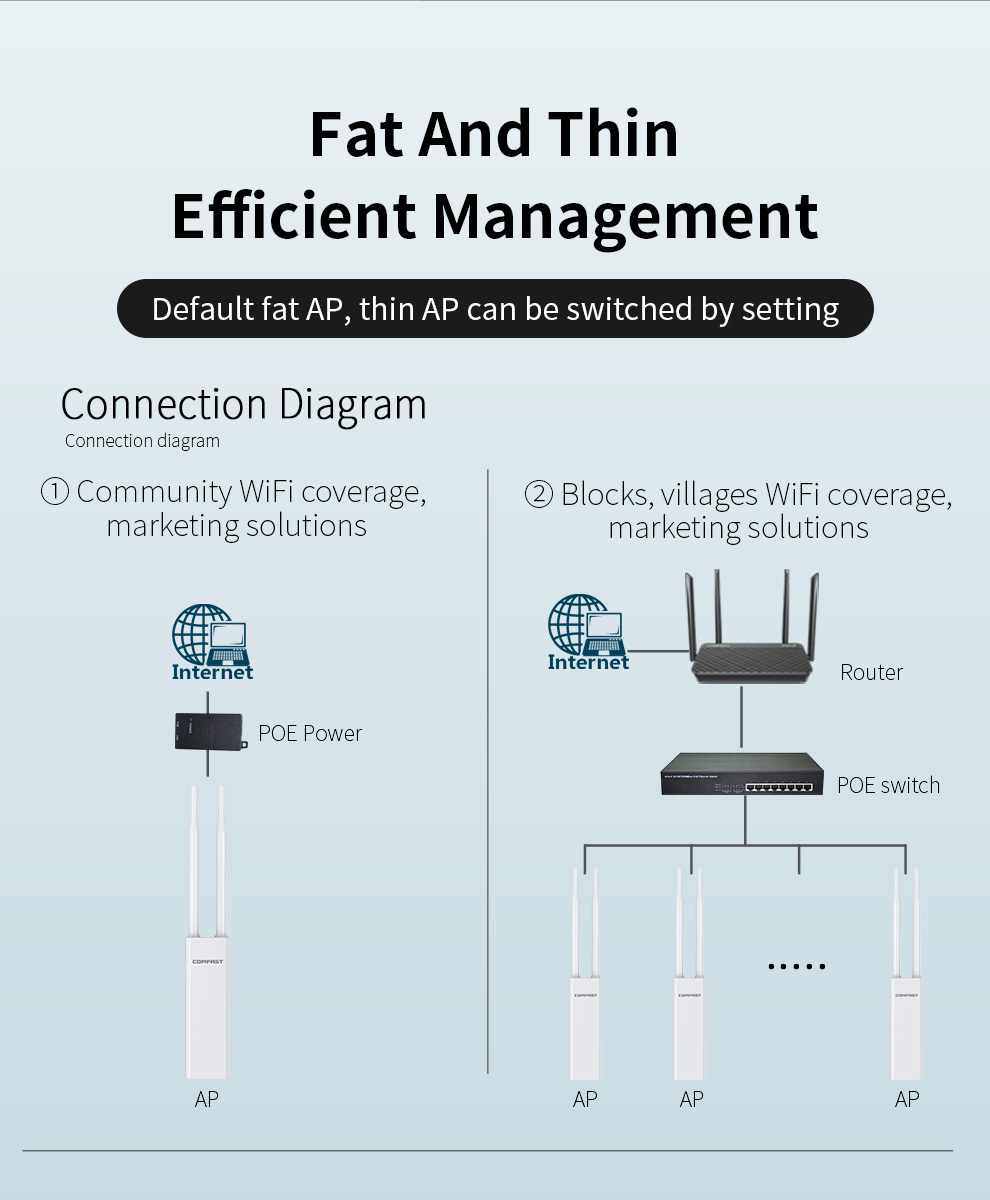

Flexible Fat AP and Fit AP mode switching
-

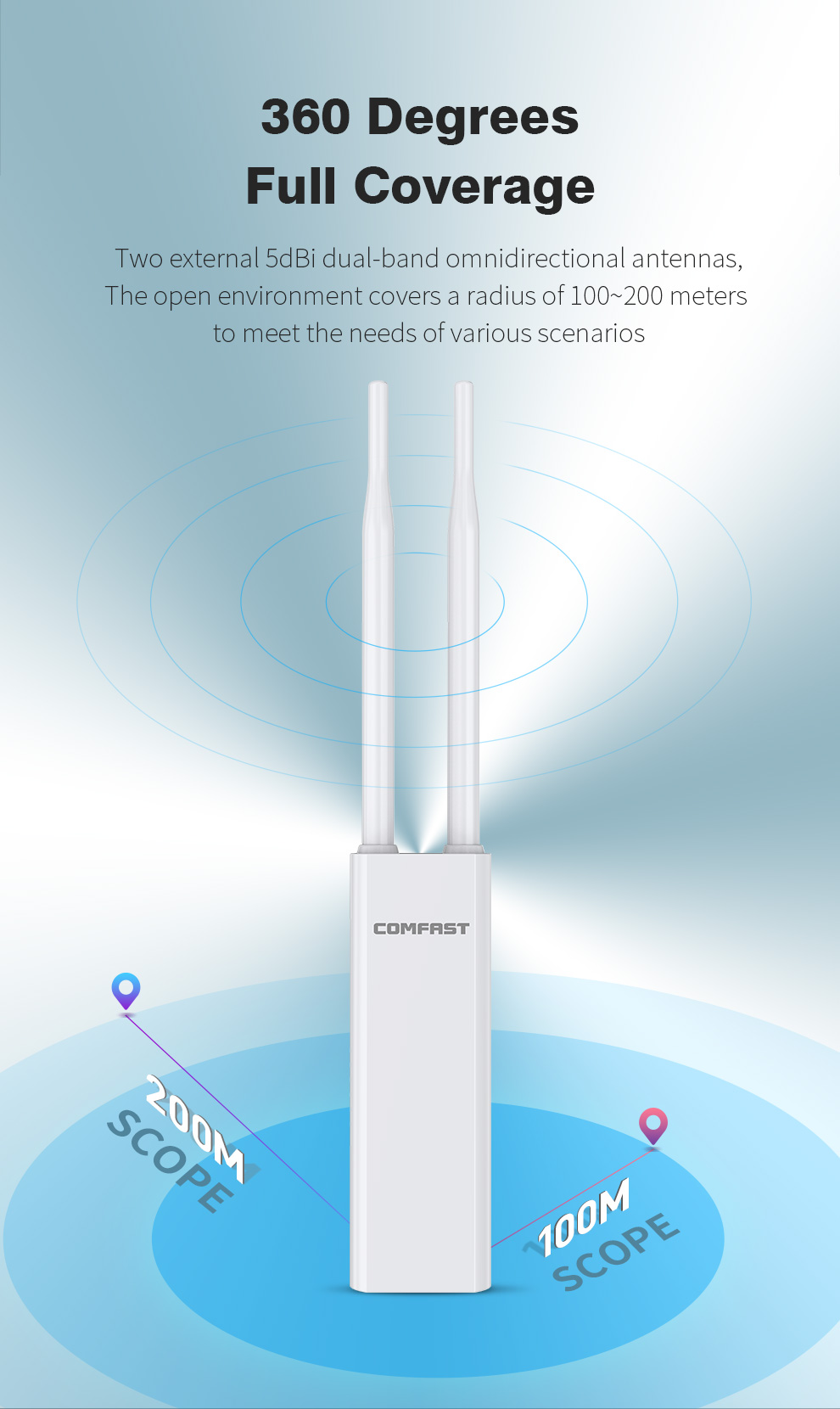

Open-field coverage radius up to approximately 200 meters
- Categories: Wireless AP, Outdoor AP
- Model: CF-EW75 V2
Contact Us
Product Repair
Repair Address
9th-10th Floor, Building H, Huanan Digital Valley, No.1Huanan Road, Longhua District, Shenzhen, China
Telephone
Phone: 86-755-83790059
ZIP/Postal code:518109
Service Time
Monday to Friday
9:00-12:00,13:30-18:30
*The product images and demonstration scenarios on this page are for illustrative purposes only and may have slight differences from the actual product. Please refer to the physical product for accuracy.
*The data on this page are theoretical values obtained from COMFAST’s internal laboratory under specific testing conditions. Actual usage may vary due to individual product differences, software versions, usage conditions, and environmental factors. Please refer to real-world usage for accurate representation.
*To provide as accurate product information, specifications, and features as possible, COMFAST may periodically adjust and revise the text descriptions, image effects, and other content on this page to ensure alignment with actual product performance, specifications, packaging, and accessories. Should such adjustments or revisions become necessary, no prior notice will be provided.
| Product Model | CF-EW75 V2 |
| Antenna | 2* 5dBi Omnidirectional Antennas |
| Wireless Standard | IEEE802.11b/g/n Standards |
| RF Parameters | Output Power (Max): 640mW (28dBm) Receiver Sensitivity (Min): -96dBm Frequency: 802.11ac/n/a: 5.180-5.825GHz 802.11b/g/n : 2.412GHz~2.472GHz |
| Modulation Mode | DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps; OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps; MIMO-OFDM: MCS 0-15 |
| Transmission Rate | 11a: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps 11an: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM MIMO-OFDM : MCS 0-15 |
| Physical Ports | 1* 10/100/1000Mbps WAN/LAN RJ45; Support 24V POE power supply 1* RESET Button; |
| Indicator | Power/RJ45 ports/ Three wifi signal indicator |
| Power | 24V 1A POE power supply(Max 100M) |
| Power Consumption | <18W |
| IP Index | IP66 Level |
| MTBF | >250000H |

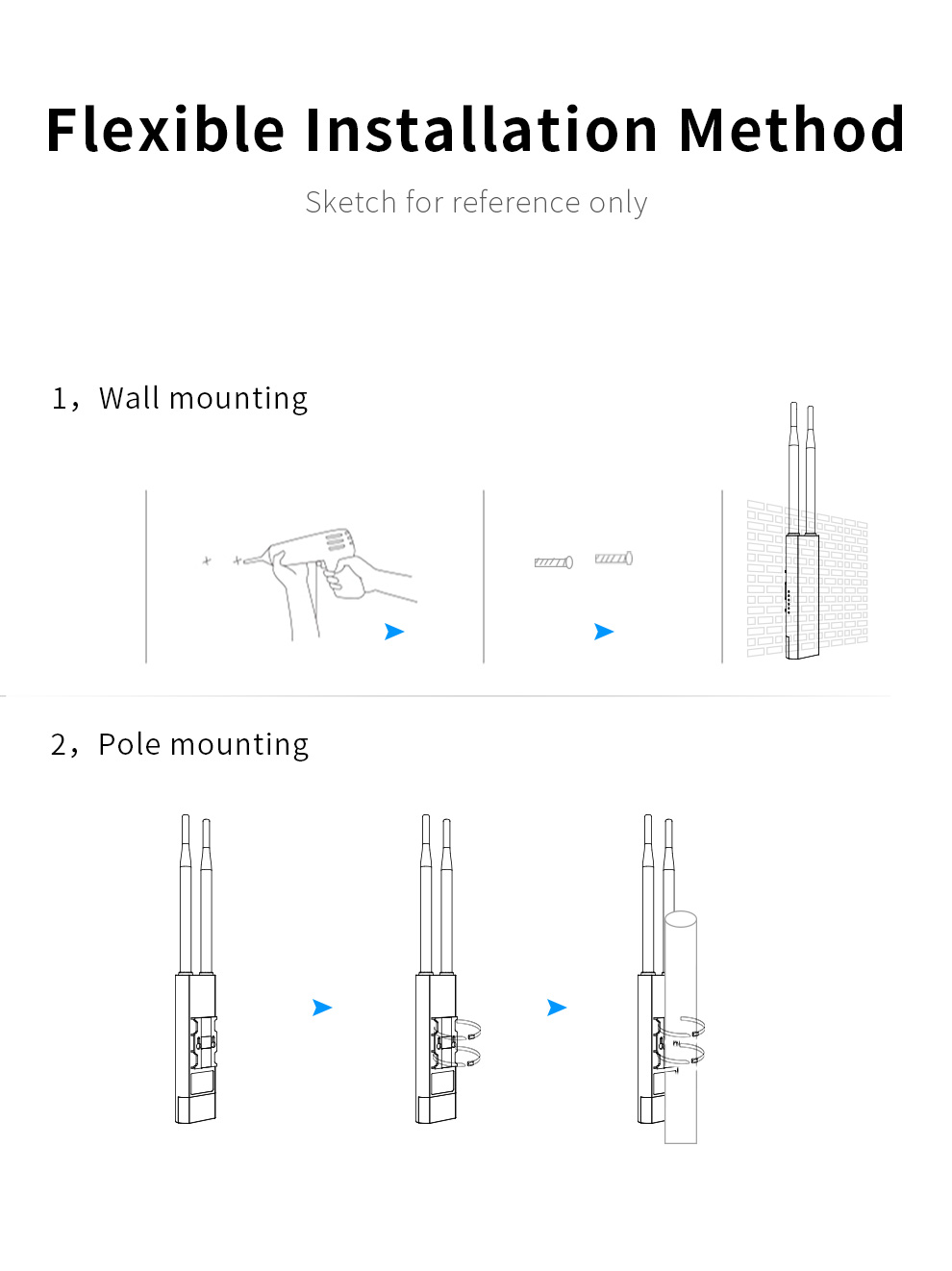

| Installation Way | Wall-mounted/Pole-mounted |
| Case | ABS Material, Plastic Case |

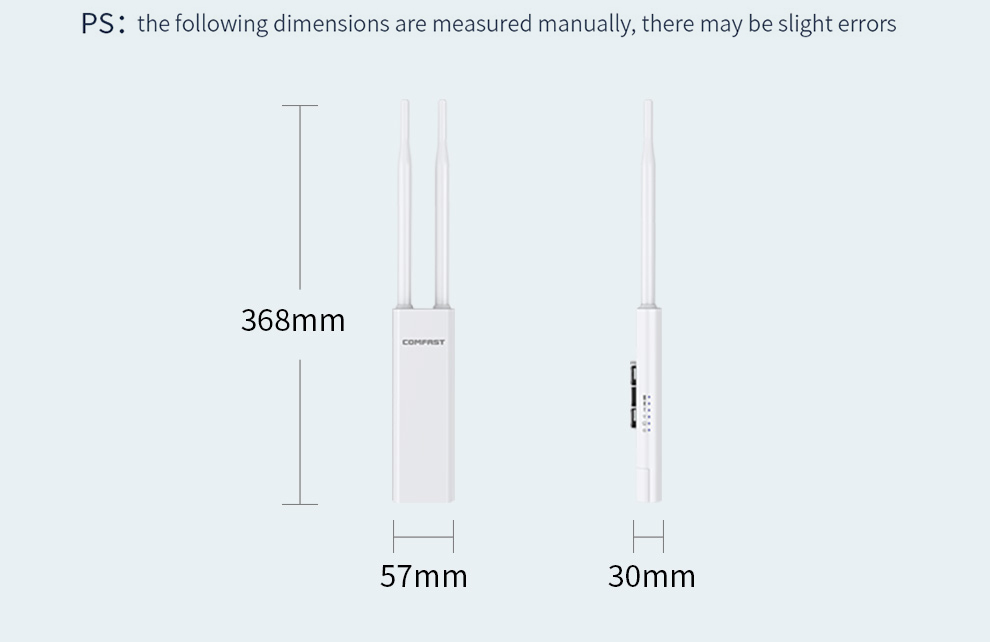

| Physical Features | Size: 57*30*368mm |
| Working Environment | Working Temperature: -10℃~55℃; Storage Temperature: -40℃~70℃; Working Humidity: 10%~90%RH Non-condensing; Storage Humidity: 5%~95%RH Non-condensing |
