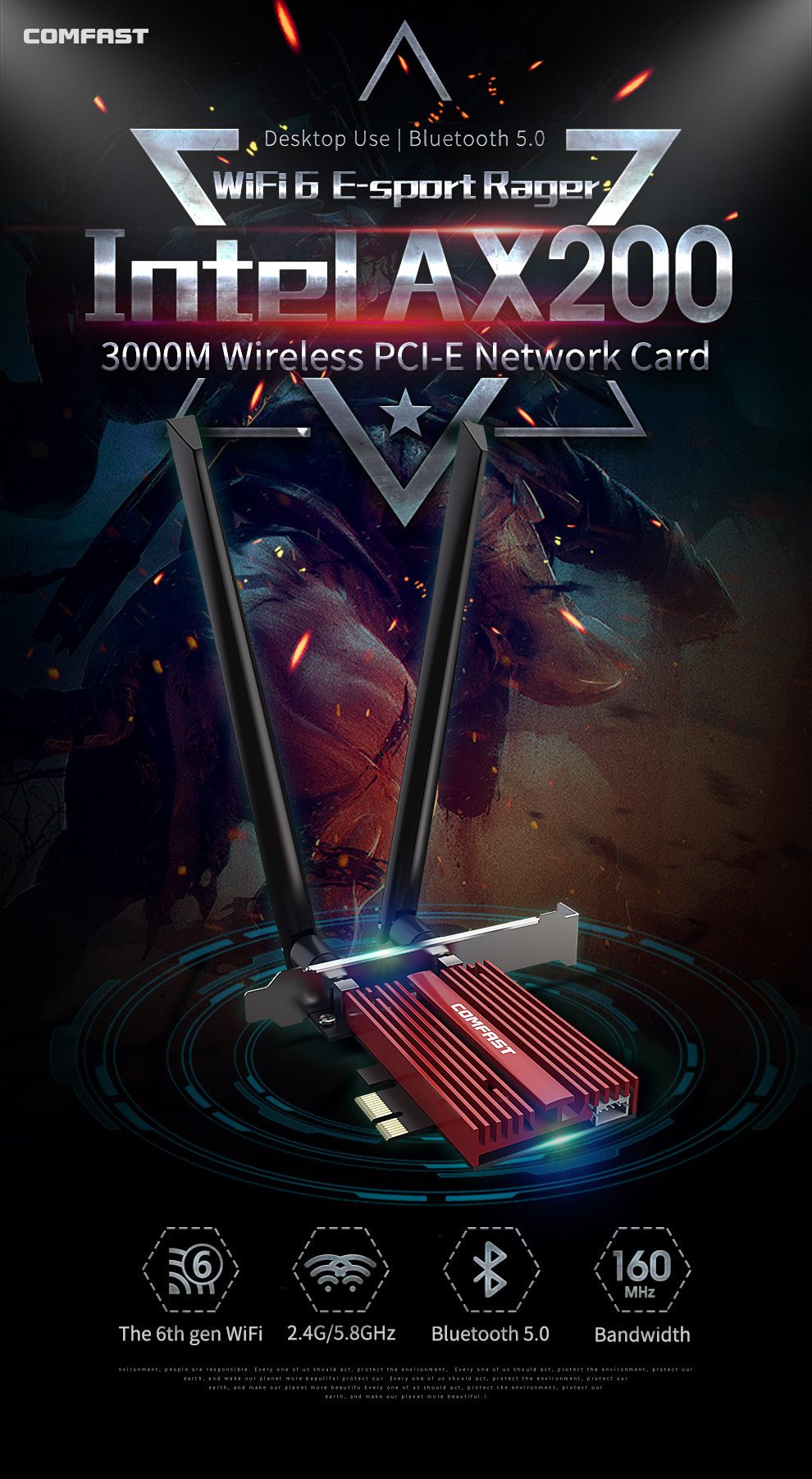

AX3000 PCI-E BT Wireless Adapter
CF-AX200 Pro is a high-speed PCI-E network card supporting WiFi 6, delivering dual-band 2.4GHz and 5.8GHz performance with wireless speeds up to 2974Mbps. It also features Bluetooth 5.2, powerful specifications, and practical functions, optimized for pairing with WiFi 6 routers.
-
AX200 NGW chipset solution for stable and efficient performance
-

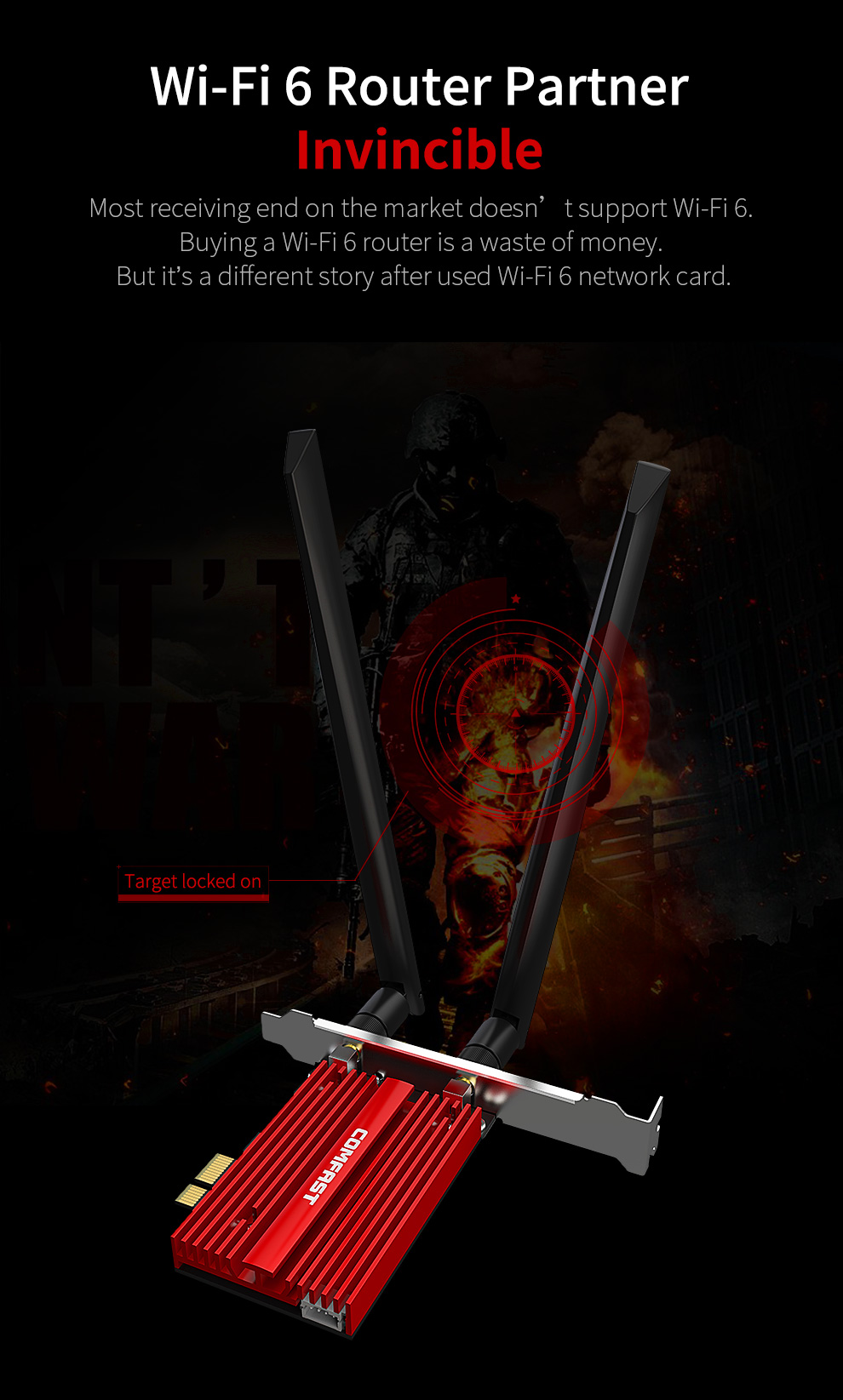

WiFi 6 card, optimized for use with WiFi 6 routers
-
Supports WiFi 6 (802.11ax) with up to 4× higher average throughput in dense environments
-

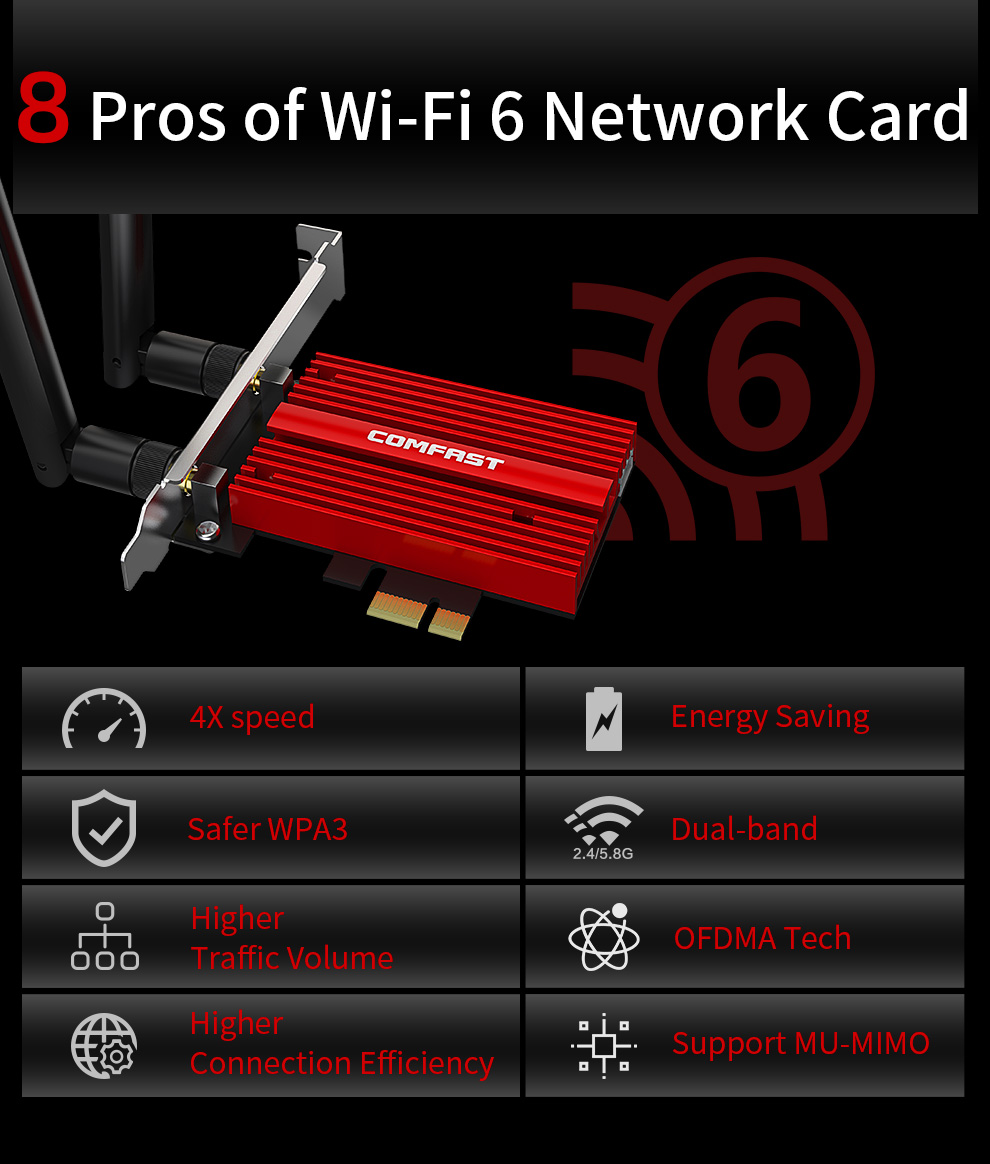

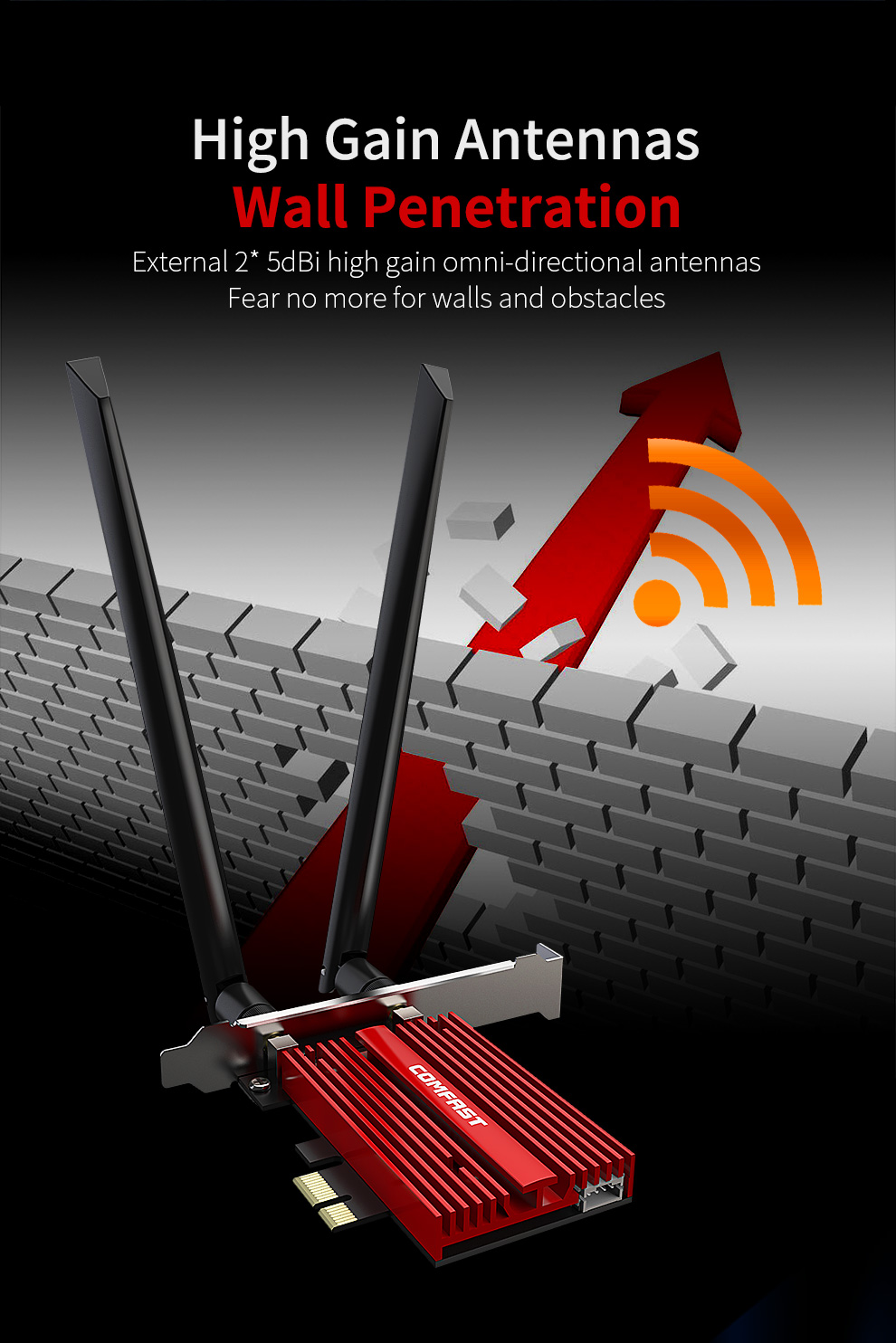

External 2×5dBi omnidirectional high-gain antennas
-

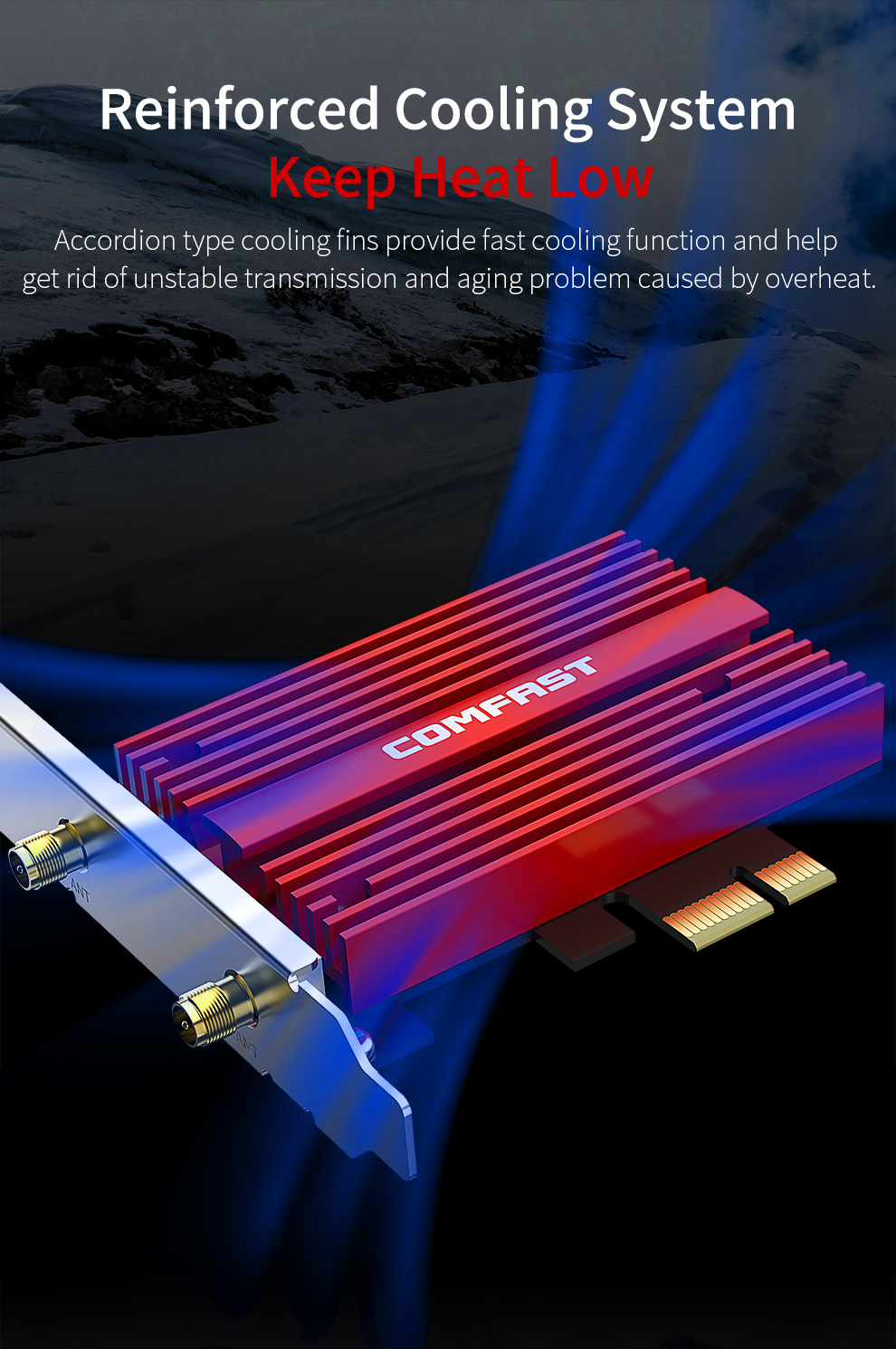

Accordion-style heatsink for effective cooling
-

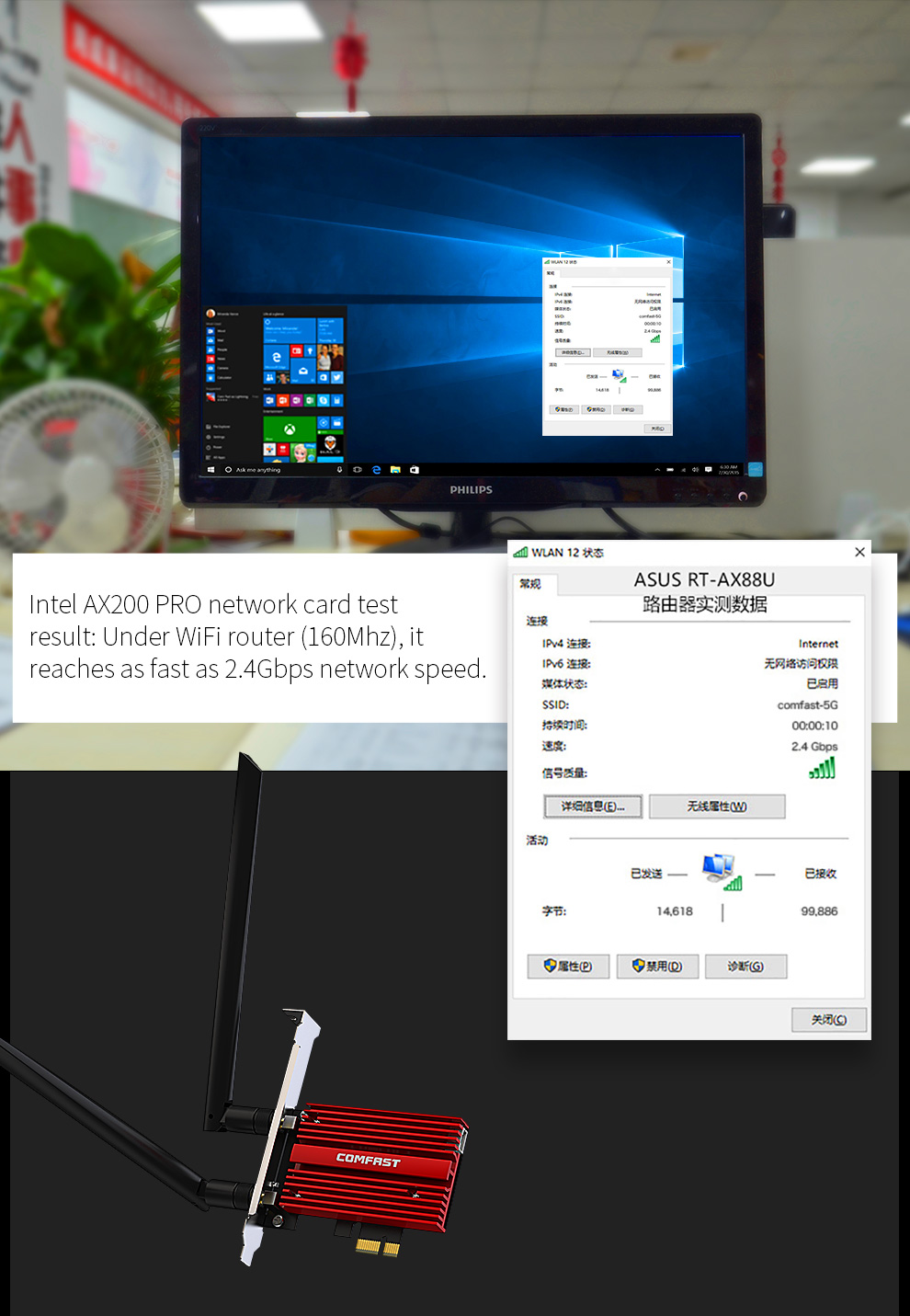

2974Mbps high-speed wireless transmission
-
Supports 802.11ax/a/ac/b/g/n standards
-
Dual-band 2.4GHz & 5.8GHz for smoother, faster networking
-
Enables desktop PCs to connect via high-speed WiFi
- Categories: Wireless Adapter, PCI-E Adapter
- Model: CF-AX200PRO+
Contact Us
Product Repair
Repair Address
9th Floor, Building H, Huanan Digital Valley, No.1Huanan Road, Longhua District, Shenzhen, China
Telephone
Phone: 86-755-83790059
ZIP/Postal code:518109
Service Time
Monday to Friday
9:00-12:00,13:30-18:30
ssdsdsd*The product images and demonstration scenarios on this page are for illustrative purposes only and may have slight differences from the actual product. Please refer to the physical product for accuracy.
*The data on this page are theoretical values obtained from COMFAST’s internal laboratory under specific testing conditions. Actual usage may vary due to individual product differences, software versions, usage conditions, and environmental factors. Please refer to real-world usage for accurate representation.
*To provide as accurate product information, specifications, and features as possible, COMFAST may periodically adjust and revise the text descriptions, image effects, and other content on this page to ensure alignment with actual product performance, specifications, packaging, and accessories. Should such adjustments or revisions become necessary, no prior notice will be provided.
| Chipset | Intel AX200NGW |
| Antenna | External 5dBi Antenna |
| Drive Free | Not Support |

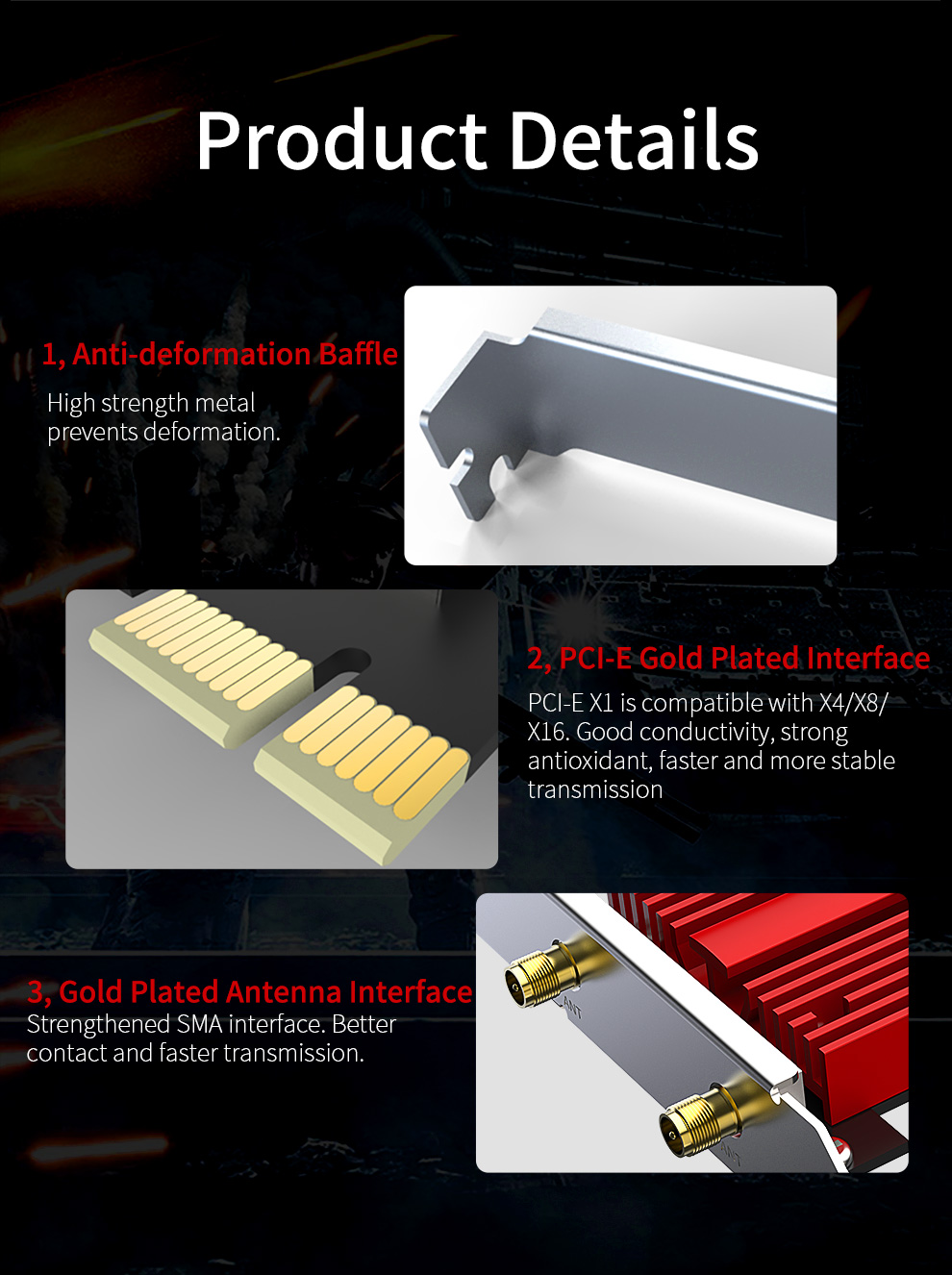

| Physical Interface | PCIE-X1 |
| USB | Not Support |
| Wireless Frequency | 2.412-2.472GHz：574Mbps 5.180-5.825GHz：2400Mbps |

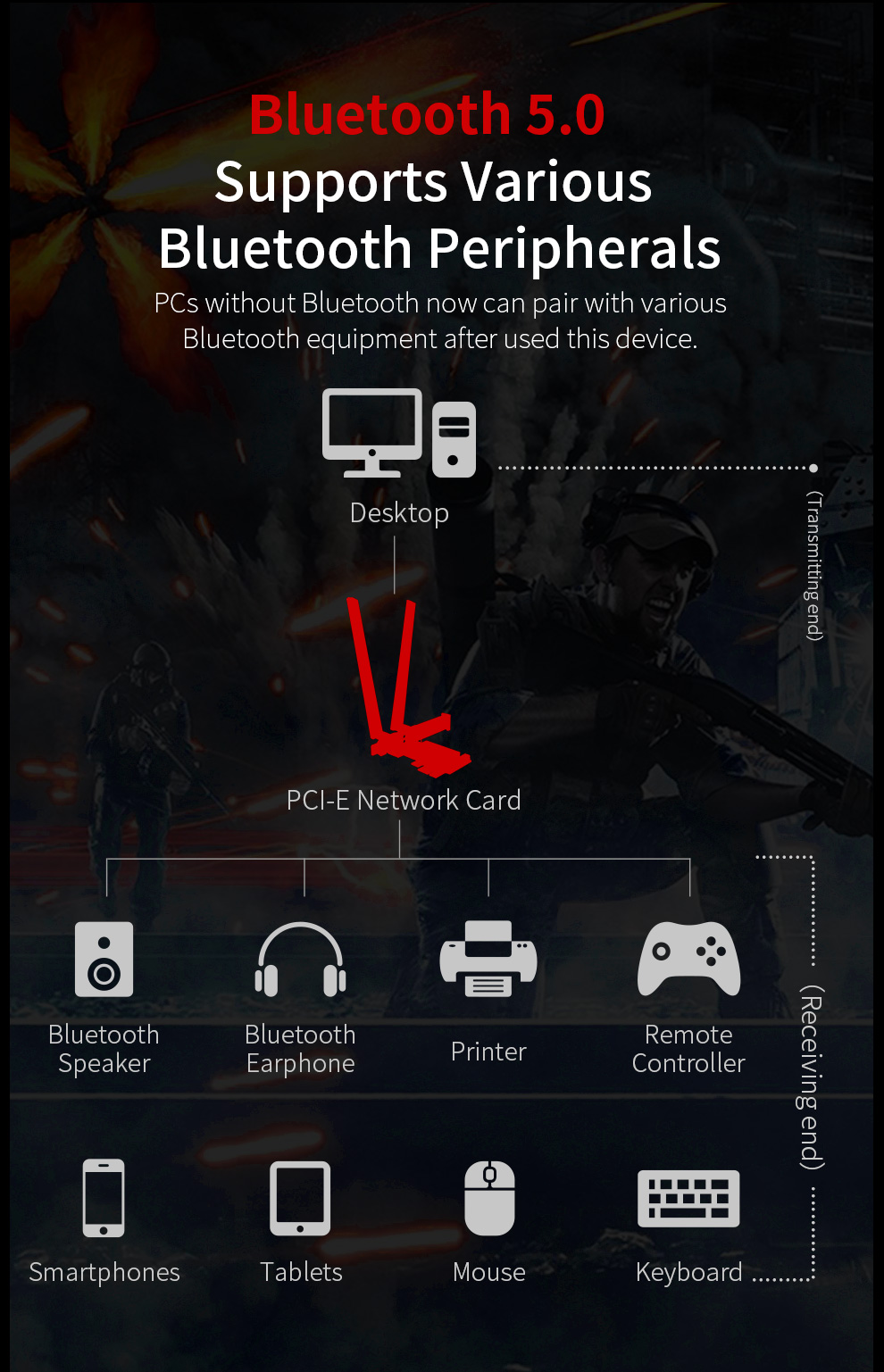

| Bluetooth | Bluetooth 5.2 |
| Wireless Standard | IEEE802.11ax/ ac/ a/ b/ g/ n |

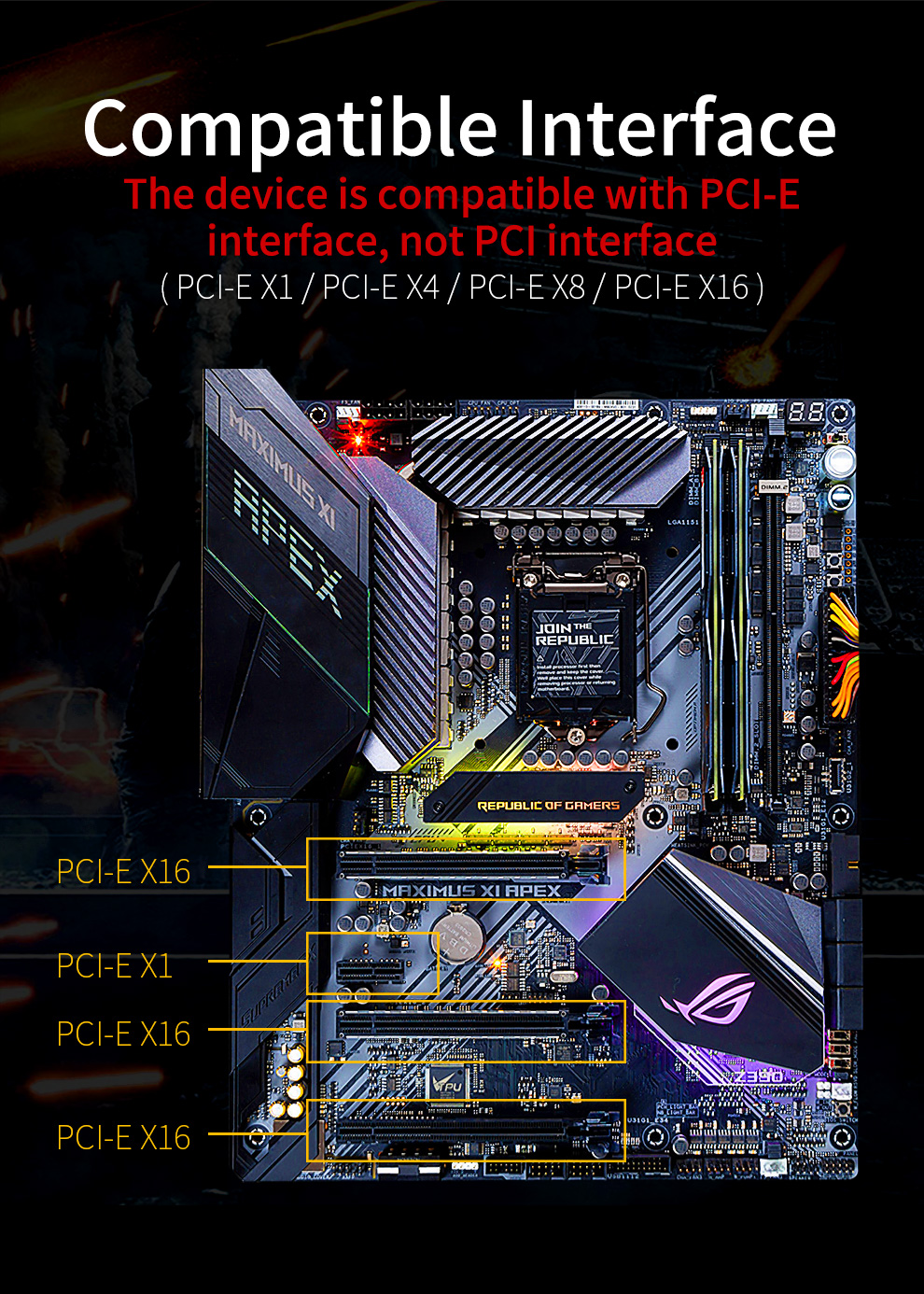

| Compatible Card Slot | PCIE-16X/PCI-E-4X/PCI-E-8X/PCI-E-1X; Graphics slot |
| Transmit Power | WiFi: 19.5 dBm(max) BT: 10 dBm |
| Scope of Application | Desktop PC,Except Mac |
| Web Environment | Gigabit and above networks |
| Product Size | Size: 95*64mm; Antenna Size:173mm |

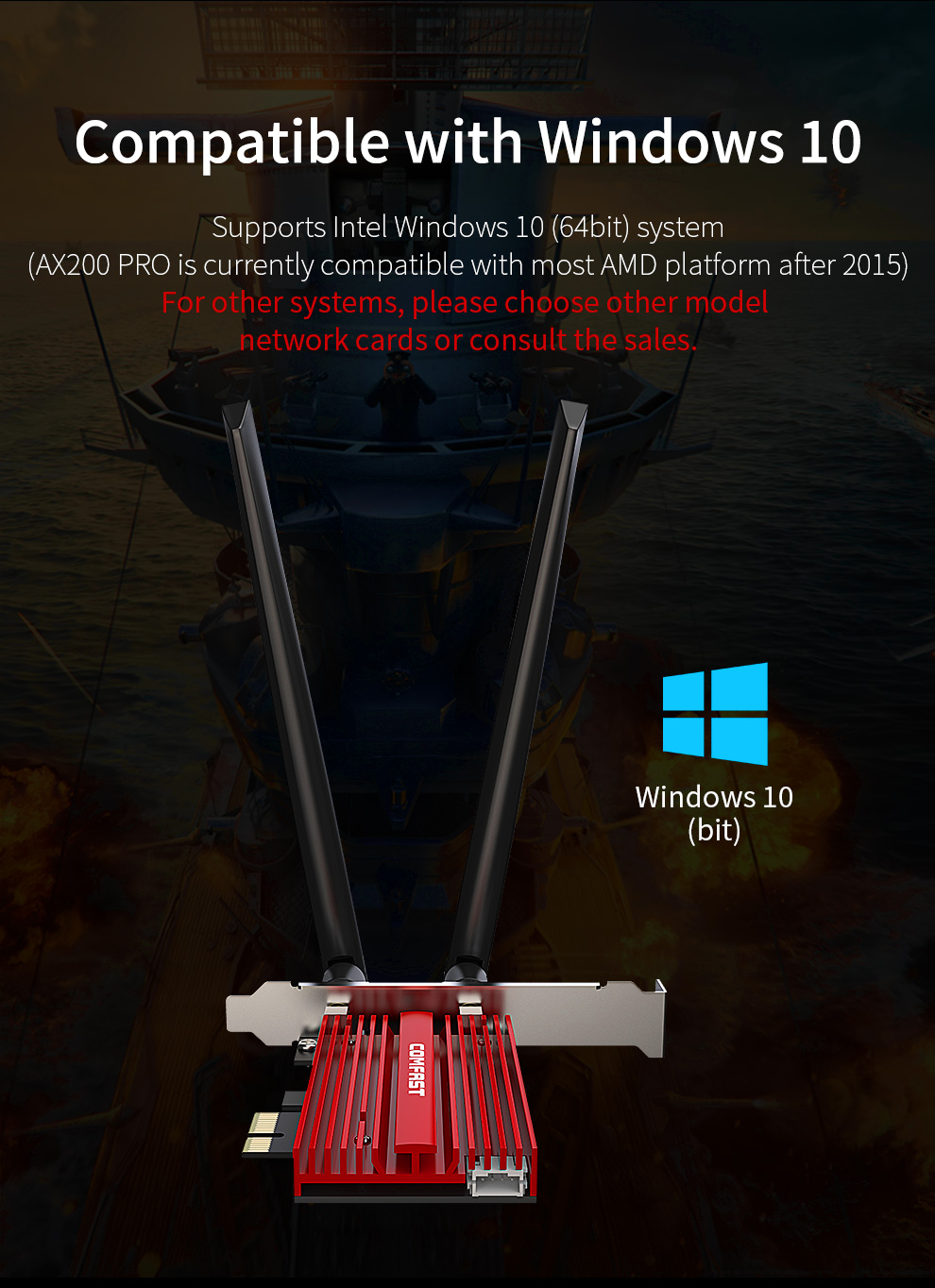

| Support OS | Windows10 (64bit) |
| Working Environment | Working Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Working Humidity: 10%~90%RH Non-condensing Storage Humidity: 5%~90%RH Non-condensing |
