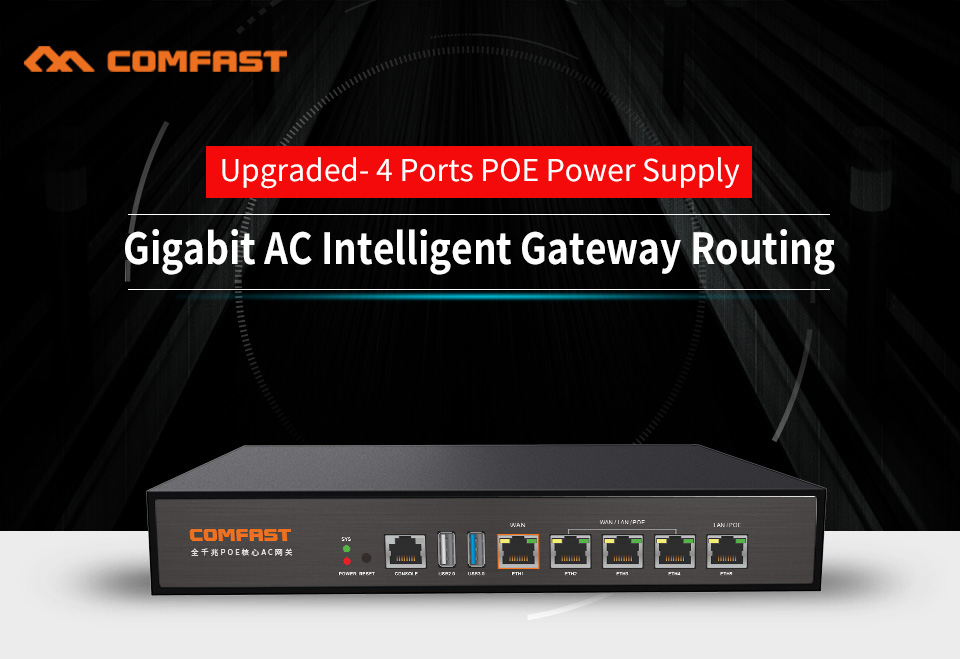

Gigabit AC Intelligent Gateway Routing

The CF-AC101 is an integrated core gateway combining Gigabit routing, an AC wireless controller, and standard PoE power. Designed for SMEs, offices, and commercial spaces, it centrally manages and powers numerous access points, delivering high-speed, stable, and easily managed network coverage while simplifying infrastructure and saving costs.

  • Sturdy matte-textured metal housing for durability and heat dissipation

  • Integrated AC controller to centrally manage up to 100 APs

  • Five auto-negotiation Gigabit Ethernet ports

  • Four of the Gigabit ports support standard PoE power output

  • Multi-WAN support for load balancing and bandwidth aggregation

  • Runs the feature-rich OrangeOS intelligent management system

  • Offers web behavior management and smart traffic control

  • Enables seamless roaming for uninterrupted mobile connectivity

  • Built-in advanced firewall and multiple network security protections

Contact Us

Online Service

Service hours: Mon-Fri 9:00-12:00, 13:30-18:30 (excluding holidays)

Contact

Product Repair

Repair Address

9th-10th Floor, Building H, Huanan Digital Valley, No.1Huanan Road, Longhua District, Shenzhen, China

Telephone

Phone: 86-755-83790059
ZIP/Postal code:518109

Service Time

Monday to Friday
9:00-12:00,13:30-18:30

描述

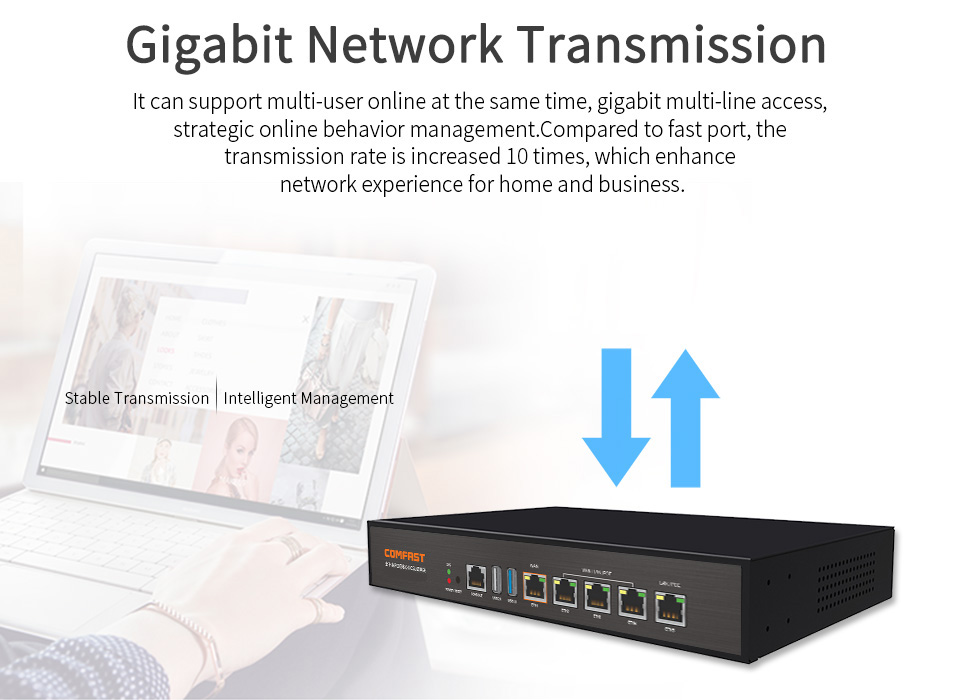

Gigabit Network Transmission

It can support multi-user online at the same time, gigabit multi-line access,

strategic online behavior management.Compared to fast port, the transmission rate is

increased 10 times, which enhance network experience for home and business.

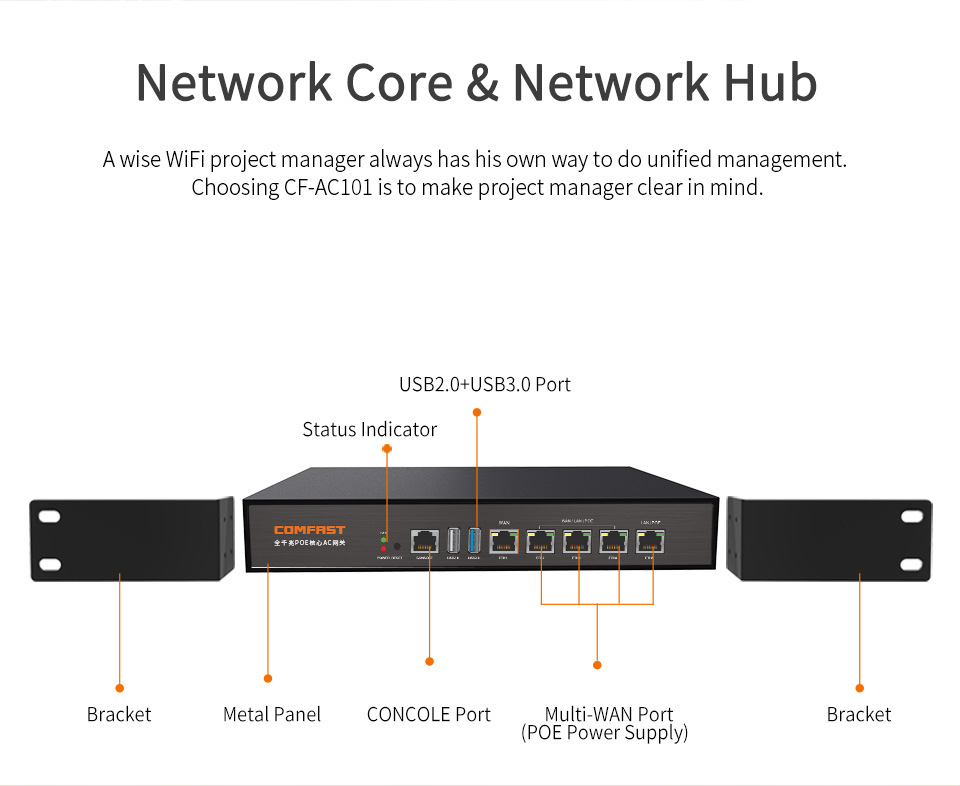

Network Core & Network Hub

A wise WiFi project manager always has his own way to do unified management.

Choosing CF-AC101 is to make project manager clear in mind.

OrangeOS
New Generation Core AC
System

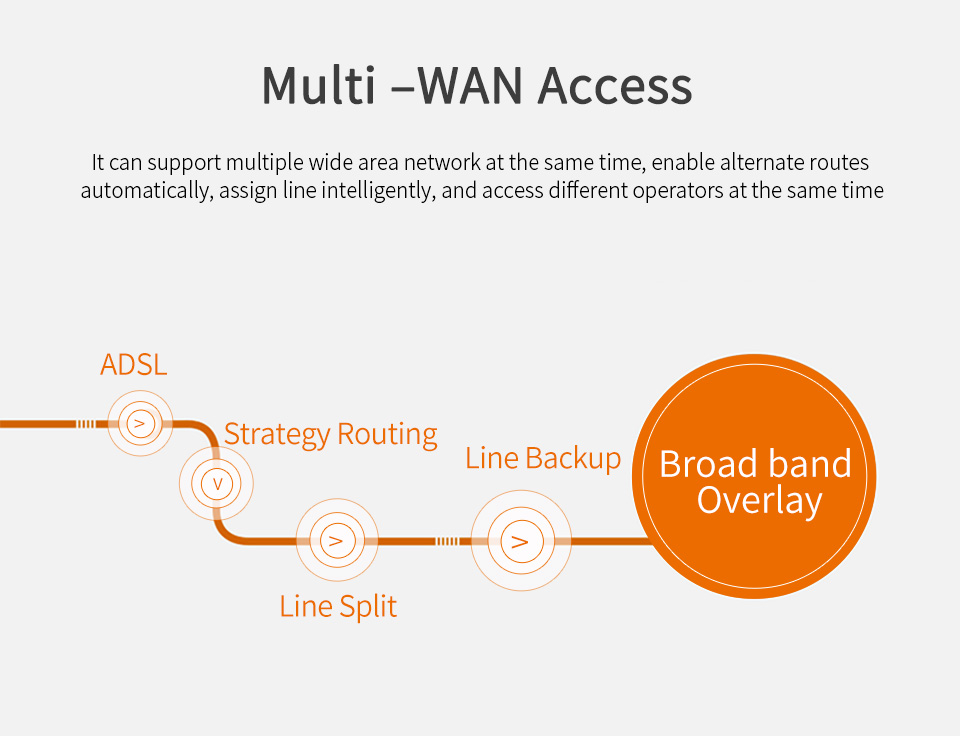

Multi –WAN Access

It can support multiple wide area network at the same time,

enable alternate routes automatically, assign line intelligently,

and access different operators at the same time

Intelligent Traffic Control

No need any configuration. It can intelligently monitor broadband speed and

choose the best broadband.

Load Balancing

With load balancing, users can be evenly assigned, and the Internet will

be more smooth.

Wireless Roaming

It can support to connect wifi automatically when there are lots of AP in different area.

Solve the headache of dropped or re-log in.

Firewall

ARP Defense&Attack Defense&Mac Filter

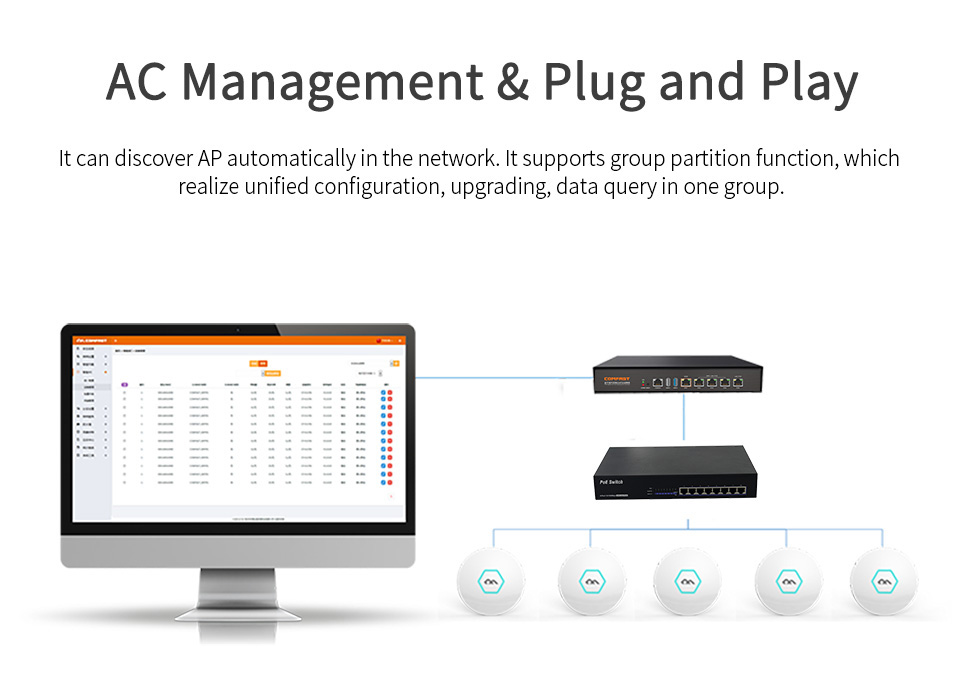

AC Management & Plug and Play

It can discover AP automatically in the network. It supports group partition function, which

realize unified configuration, upgrading, data query in one group.

Authentication Marketing

Portal authentication makes marketing more efficient and faster

*The product images and demonstration scenarios on this page are for illustrative purposes only and may have slight differences from the actual product. Please refer to the physical product for accuracy.
*The data on this page are theoretical values obtained from COMFAST’s internal laboratory under specific testing conditions. Actual usage may vary due to individual product differences, software versions, usage conditions, and environmental factors. Please refer to real-world usage for accurate representation.
*To provide as accurate product information, specifications, and features as possible, COMFAST may periodically adjust and revise the text descriptions, image effects, and other content on this page to ensure alignment with actual product performance, specifications, packaging, and accessories. Should such adjustments or revisions become necessary, no prior notice will be provided.

Hardware Specification DDR: 512MB; Flash: 32MB
Physical Interface 1*1000Mbps WAN Port;
1*1000Mbps LAN Port;
3*1000Mbps WAN/LAN Port;
1*USB2.0 Port;
1*USB3.0 Port;
1*Console Port;
1*Power Port
Button 1*Reset Button; 1*Power Button
Power 100-240V AC, 50/60Hz
Indicator Power, SYS
Power Consumption 54W
MTBF >250000H
IP Index IP31
Installation Way Desktop, Rack-mounted
Case Iron
Physical Features Product Size: 280*180*44mm
Working Environment Working Temperature: 0°C~40°C
Storage Temperature: -40°C~70°C
Working Humidity: 10%-90%RH Non-condensing
Storage Humidity: 5%-90%RH Non-condensing
