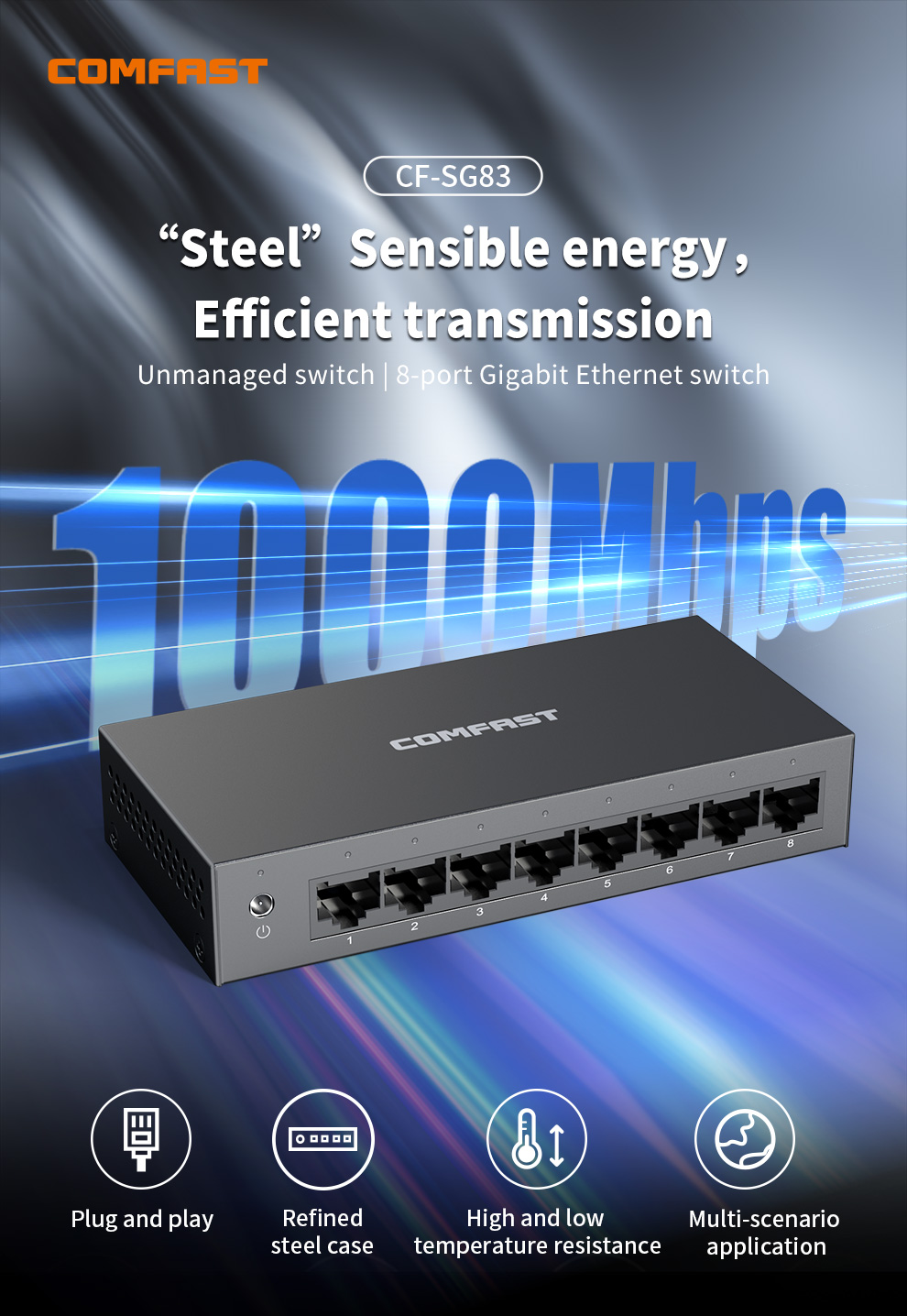

“Steel” Sensible energy,Efficient transmission
The CF-SG83 is an 8-port Gigabit Ethernet switch that enhances data transfer efficiency and eliminates bottlenecks using advanced Gigabit technology. With intelligent Green Ethernet that auto-adjusts power consumption, this compact plug-and-play device provides reliable wired expansion for home and small office networks while conserving energy.
-

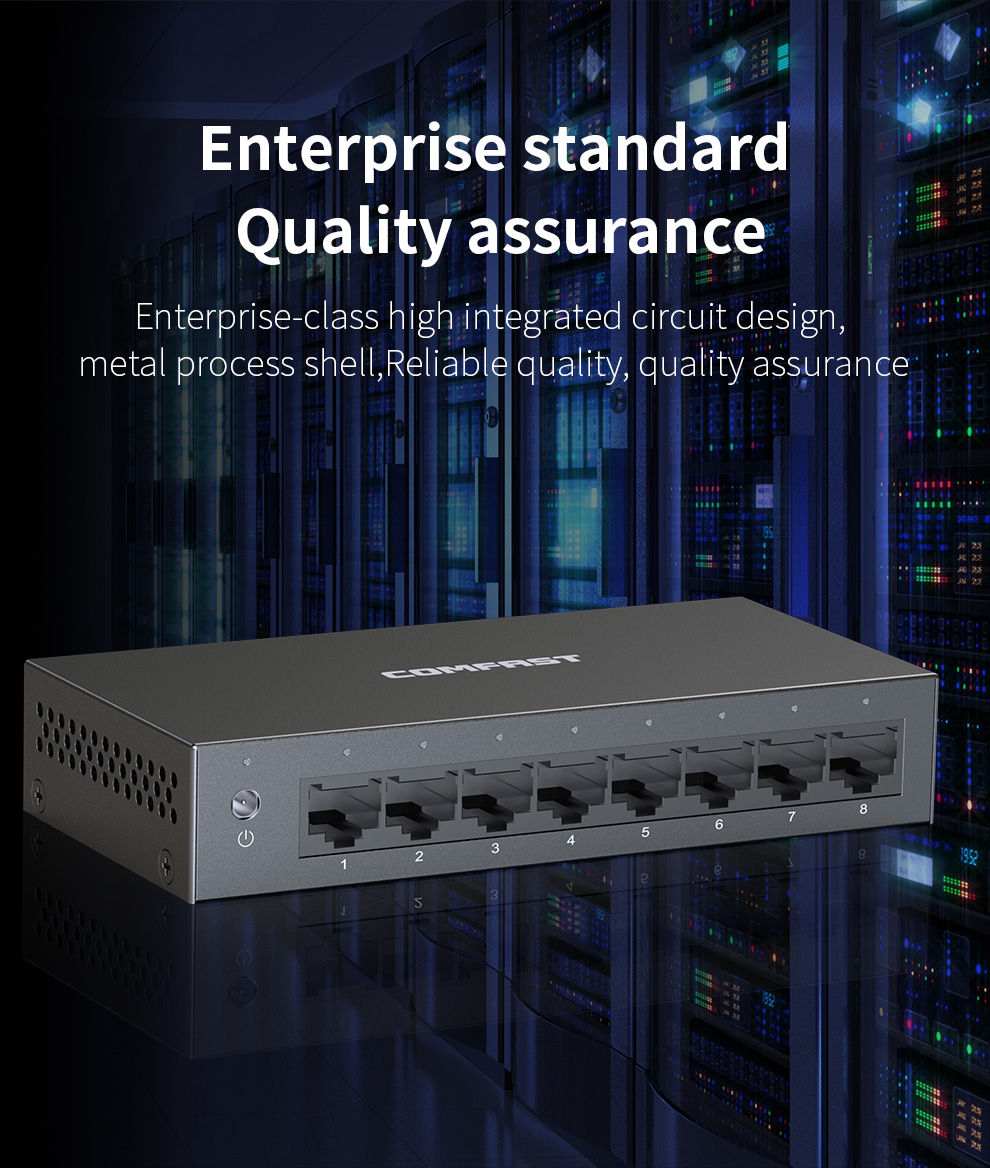

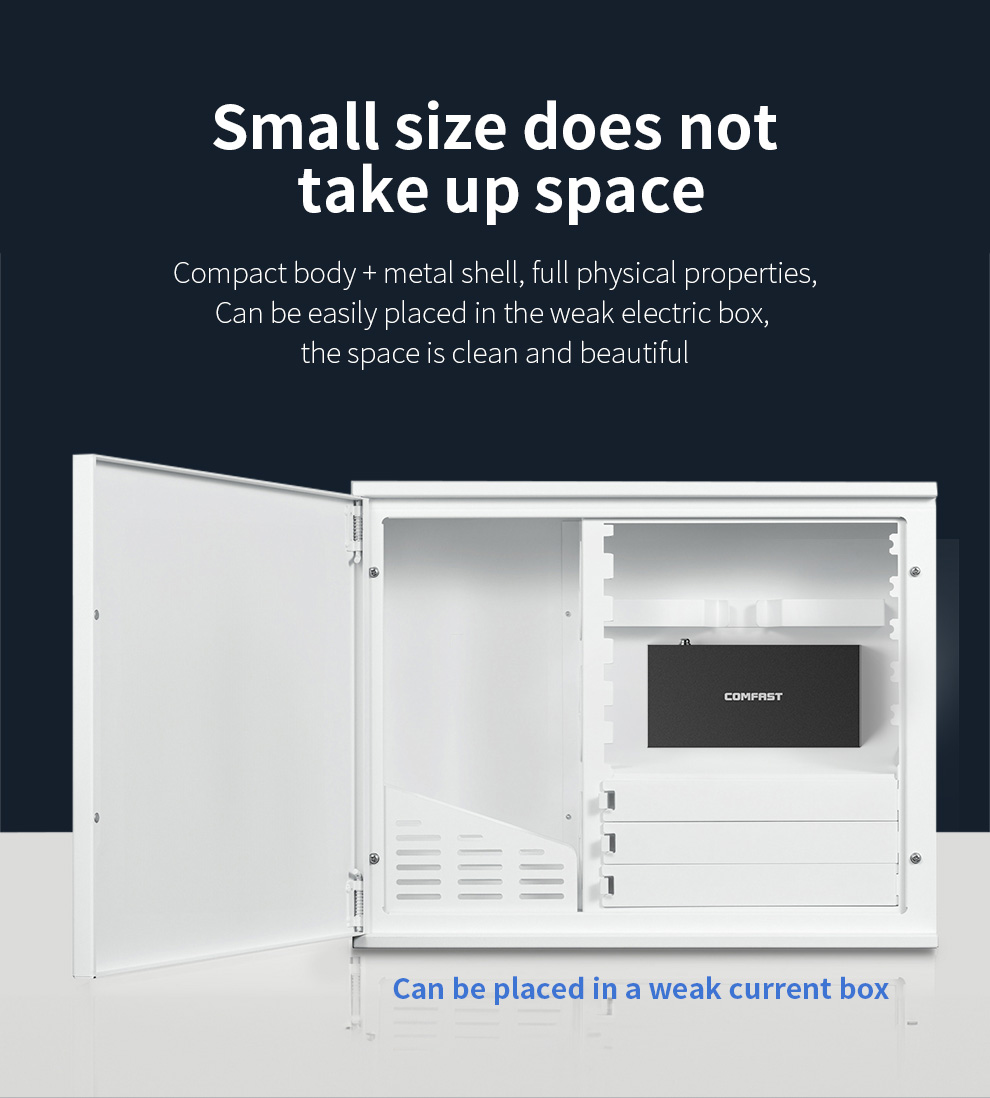

Compact and lightweight body design
-

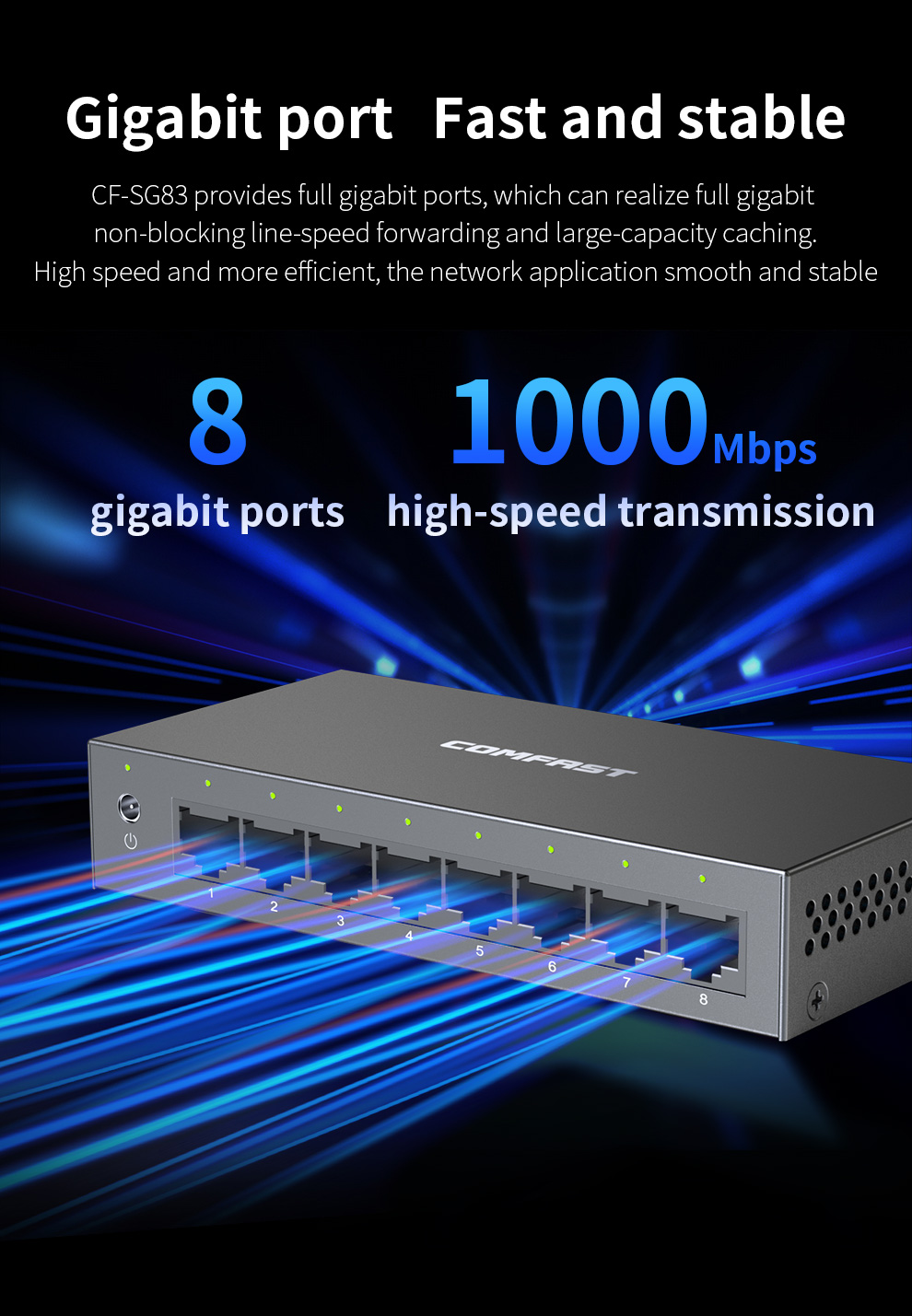

Eight Gigabit auto-negotiation RJ45 ports
-

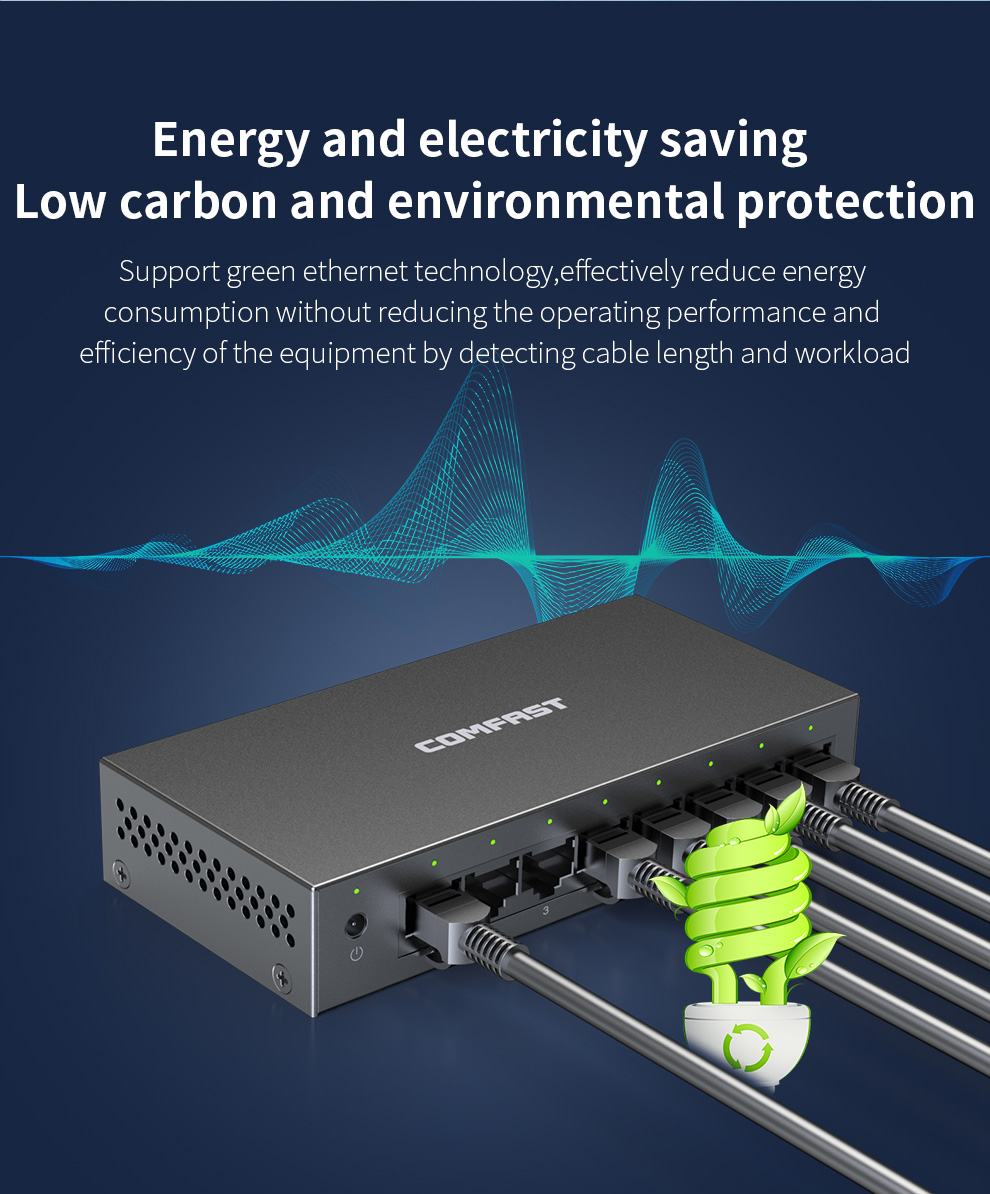

Intelligent Green Ethernet power-saving technology
-

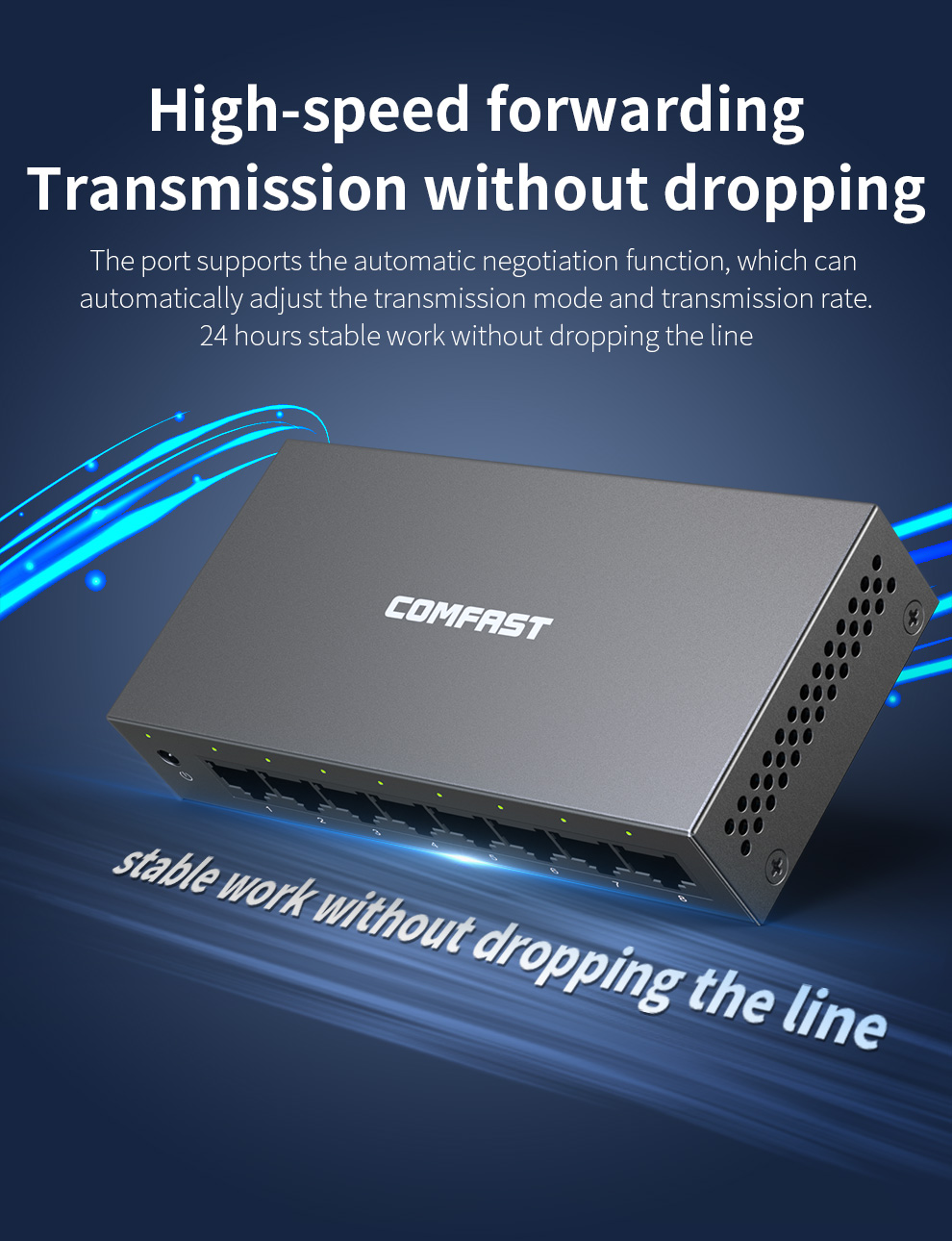

Store-and-forward architecture for data integrity
-
8K MAC address table for multiple device connections
-

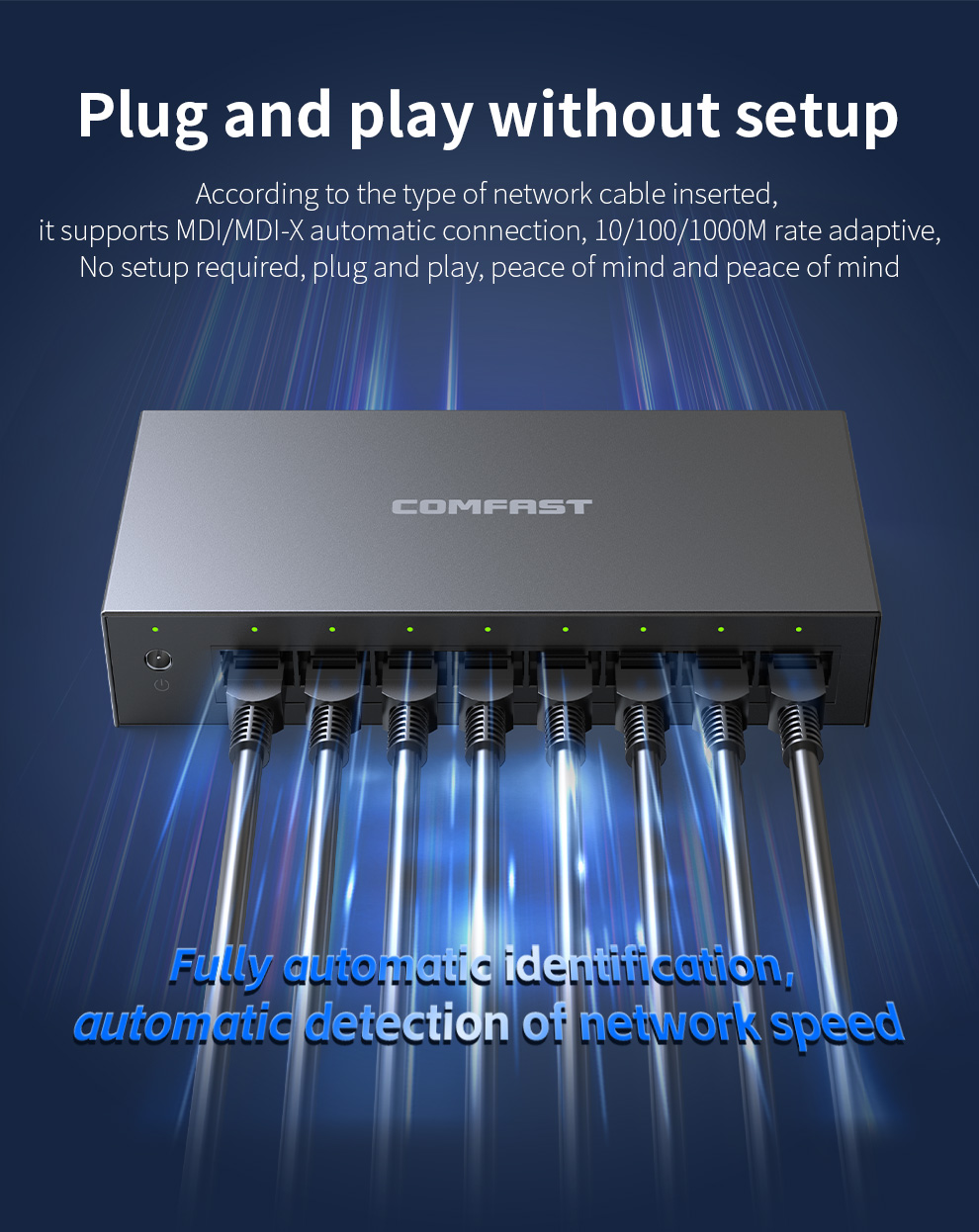

Auto MDI/MDIX and automatic negotiation
-
Dynamic LED indicators for real-time status
-
16Gbps switching capacity for smooth transmission
-
Compliant with IEEE 802.3az energy efficiency standard
- Categories: POE Switch, Enterprise
- Model: CF-SG83
Contact Us
Product Repair
Repair Address
9th Floor, Building H, Huanan Digital Valley, No.1Huanan Road, Longhua District, Shenzhen, China
Telephone
Phone: 86-755-83790059
ZIP/Postal code:518109
Service Time
Monday to Friday
9:00-12:00,13:30-18:30
*The product images and demonstration scenarios on this page are for illustrative purposes only and may have slight differences from the actual product. Please refer to the physical product for accuracy.
*The data on this page are theoretical values obtained from COMFAST’s internal laboratory under specific testing conditions. Actual usage may vary due to individual product differences, software versions, usage conditions, and environmental factors. Please refer to real-world usage for accurate representation.
*To provide as accurate product information, specifications, and features as possible, COMFAST may periodically adjust and revise the text descriptions, image effects, and other content on this page to ensure alignment with actual product performance, specifications, packaging, and accessories. Should such adjustments or revisions become necessary, no prior notice will be provided.

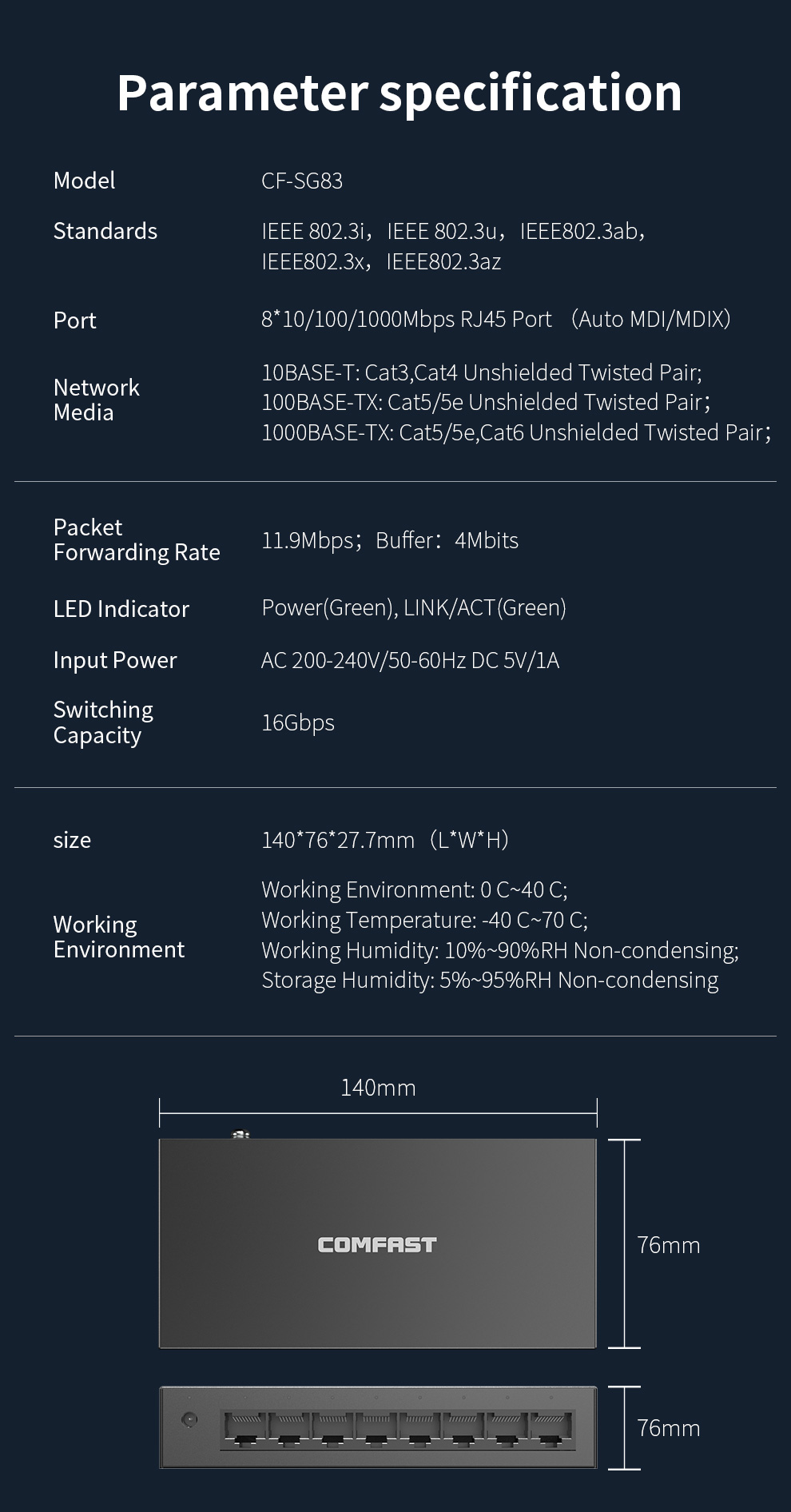

| Item | Specification |
|---|---|
| Model | CF-SG83 |
| Chipset | EN8851F |
| Standards & Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az |
| Ports | 8 x 10/100/1000Mbps auto-negotiating RJ45 ports (Auto MDI/MDIX) |
| Network Media | 10BASE-T: Cat 3, 4 unshielded twisted pair (≤100m) 100BASE-TX: Cat 5, 5e unshielded twisted pair (≤100m) 1000BASE-T: Cat 5, 5e, 6 unshielded twisted pair (≤100m) |
| Transmission Mode | Store-and-forward |
| MAC Address Table | 8K |
| Switching Capacity | 16Gbps |
| Packet Forwarding Rate | 11.9Mbps |
| Packet Buffer | 4Mbits |
| LED Indicators | Link/Act (Connection/Working) indicator: Green Power: Green |
| Jumbo Frame | 15KBytes |
| Power Supply | 5V 1A Adapter |
| Dimensions | 140 x 76 x 27.7mm (L x W x H) |
| Operating Environment | Operating Temp: 0℃ ~ 40℃ Storage Temp: -40℃ ~ 70℃ Operating Humidity: 10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90% RH non-condensing |
