1500Mbps In-Wall Wireless AP

The CF-E591AX is a panel AP supporting WiFi 6 and Mesh technology, delivering 1500Mbps dual-band wireless speed. Its standard 86-type panel design is stylish, easy to install, and supports PoE, blending seamlessly into any indoor environment. With efficient wireless technology and Mesh networking, it provides stable, high-speed, and seamless coverage for homes, enterprises, hotels, and schools.

  • Standard 86 panel design, aesthetically clean and easy to install

  • Supports latest WiFi 6 standard for superior wireless experience

  • Dual-band speed up to 1500Mbps for efficient transmission

  • Features OFDMA and MU-MIMO for strong multi-device performance

  • 內建 Mesh 功能,可靈活簡便地建立網路

  • One Gigabit WAN/PoE port and one Gigabit LAN port

  • Standard PoE support for clean and convenient installation

  • Built-in high-gain antennas for wide and strong coverage

  • Ideal for homes, enterprises, hotels, and various indoor scenes

聯絡我們

線上服務

服務時間:週一至週五 9:00-12:00、13:30-18:30(節假日除外)

產品維修

維修地址

深圳市龍華區華南路1號華南數谷H棟9-10樓

電話

電話:86-755-83790059
郵遞區號:518109

服務時間

週一至週五
9:00-12:00,13:30-18:30

描述

Efficient Coverage Enjoy WiFi

New generation of WiFi6 technology,

stronger performance, better experience

Mainstream WiFi6 Choose Wisely

WiFi6 has become mainstream, with faster network speeds,

lower latency, and improved connection efficiency,

making it more suitable for high-density access scenarios than

previous Wi-Fi protocols

Powerful Tri-Core
Power Engine

Branded triple-core CPU program, the performance of each enhancement,

high-speed processing of data transmission and forwarding, full of power,

to maintain the network from the beginning to the end of the stable

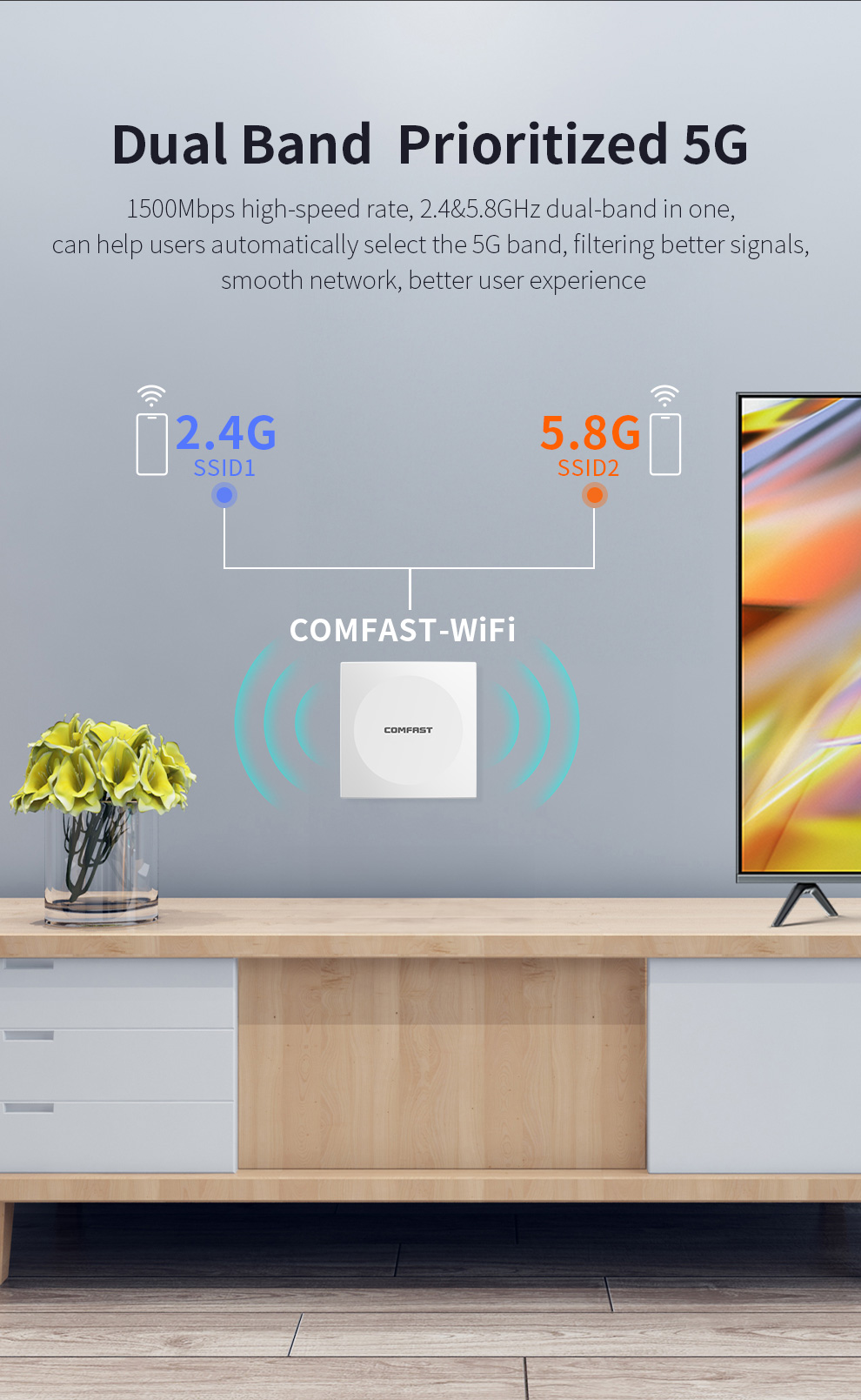

Dual Band Prioritized 5G

1500Mbps high-speed rate, 2.4&5.8GHz dual-band in one,

can help users automatically select the 5G band, filtering better signals,

smooth network, better user experience

Full Gigabit Ethernet port
Full Performance

Adopting full Gigabit port design, it greatly enhances the wired transmission rate,

easily copes with the demand of broadband upgrading, gives full play to the

Internet speed and provides a more stable and smooth Internet experience

POE power supply
Need only one network cable

Supports 48V standard POE power supply, each AP only needs a

network cable to transmit data and power at the same time, easy to construct.

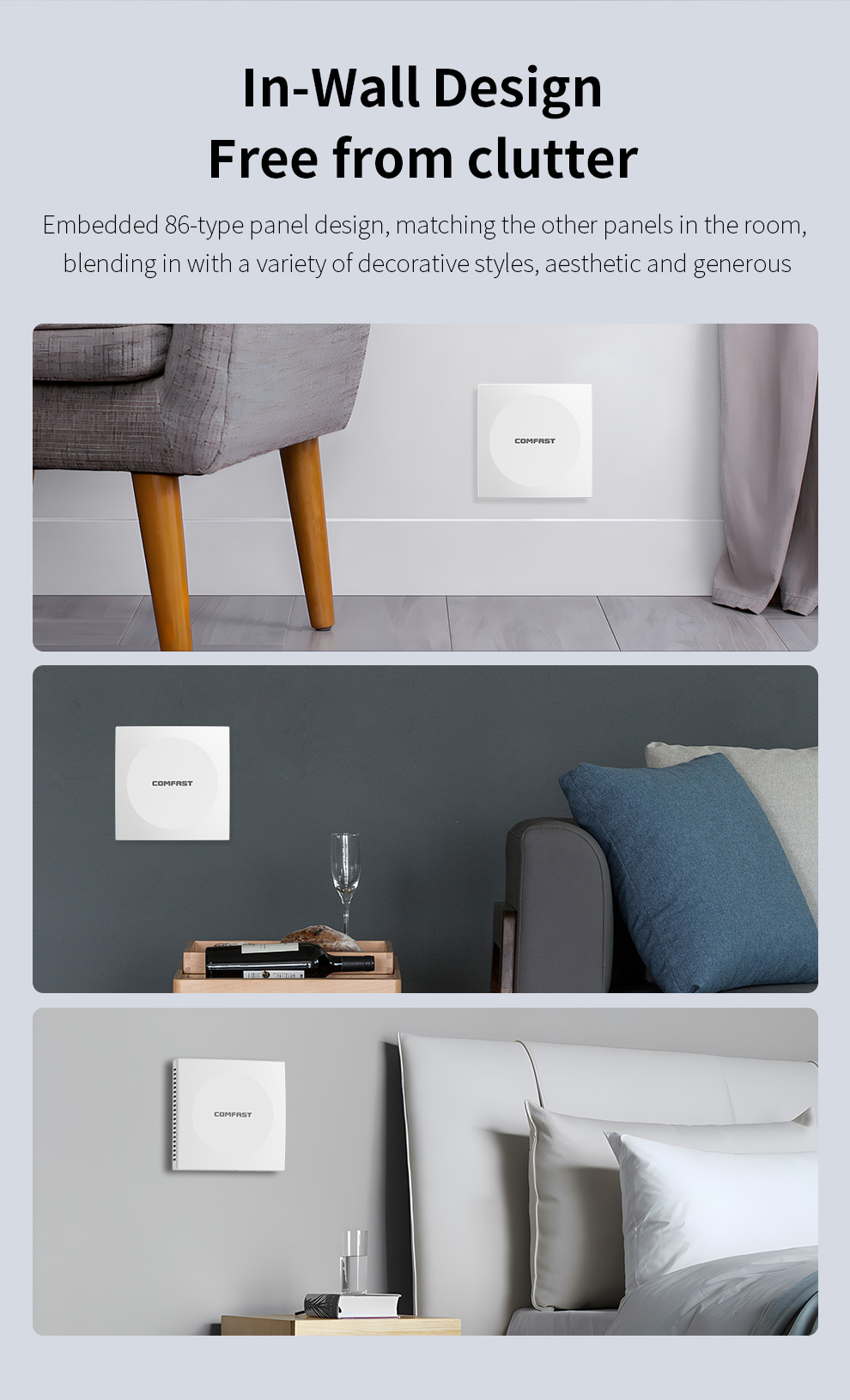

牆內設計
Free from clutter

Embedded 86-type panel design, matching the other panels in the room,

blending in with a variety of decorative styles, aesthetic and generous

降低延遲
網路飆升

OFDMA+MU-MIMO 技術的組合可改善每個

使用者在多使用者網路情境中的網際網路體驗,無需

相互干擾,延遲時間低至 10 毫秒的

更順暢的網路。.

TWT Technology
Energy saving

AP 可以統一調度無線終端休眠和資料

傳輸時間,以改善

多台裝置的頻道,也可將無線終端機群組

成不同的 TWT 循環,以提高設備的電池壽命。.

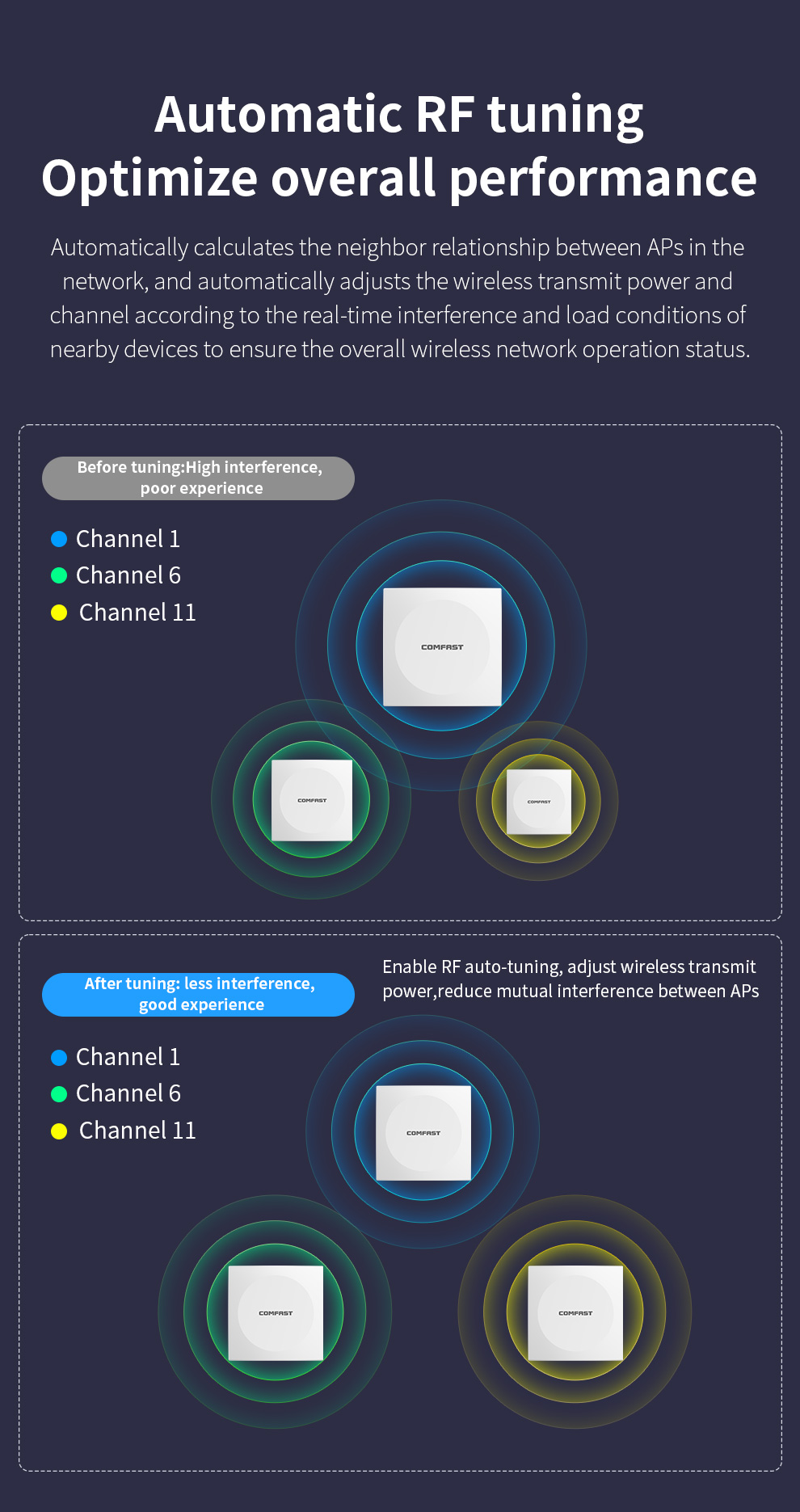

Automatic RF tuning
Optimize overall performance

Automatically calculates the neighbor relationship between APs in the

network, and automatically adjusts the wireless transmit power and

channel according to the real-time interference and load conditions of

nearby devices to ensure the overall wireless network operation status.

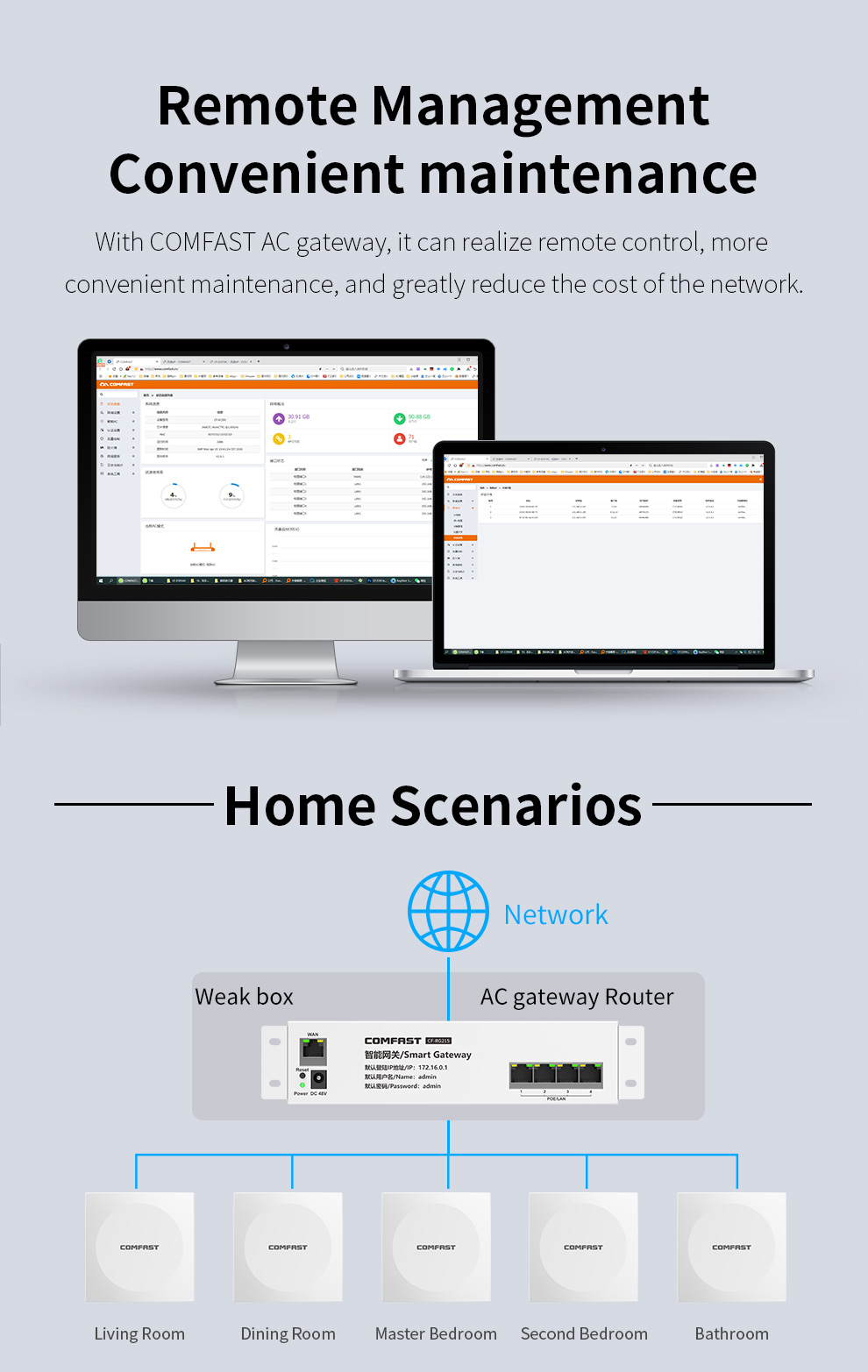

Remote Management
Convenient maintenance

With COMFAST AC gateway, it can realize remote control, more

convenient maintenance, and greatly reduce the cost of the network.

Seamless roaming
Easy switching

Easymesh setup, fast networking; professional roaming optimization algorithm.

Zero-perception switching in seconds; Seamless WiFi roaming between

multiple AP signals: smooth and stable network speed at all times.

應用多重場景

Suitable for a variety of networking scenarios,

providing stable and efficient network connectivity

安裝示意圖

* 本頁面的產品圖片和示範情景僅供說明之用,可能與實際產品略有差異。請以實物為準。.
* 本頁資料為 COMFAST 內部實驗室在特定測試條件下取得的理論值。實際使用情況可能因個別產品差異、軟體版本、使用條件和環境因素而有所不同。請參考實際使用情況以獲得準確的表述。.
*為提供盡可能準確的產品資訊、規格和功能,COMFAST可能會定期調整和修改本頁的文字描述、圖像效果和其他內容,以確保與實際產品性能、規格、包裝和配件相符。如有需要作出上述調整或修改,恕不另行通知。.

Model  CF-E591AX
硬體規格 DDR: 128MB; Flash: 128MB
天線 Built-in 2 * 3dBi Antennas
傳輸速率 2.4GHz:300Mbps;5.8GHz:1200Mbps;
射頻參數 Output Power (Max): 100mW (20dbm);
接收靈敏度(最低):-96dBm;;
Frequency: 802.11b/g/n: 2.412GHz-2.472GHz;
802.11ax/ac/an/a: 5.180GHz-5.825GHz
實體連接埠 1*10/100/1000Mbps RJ45 WAN 乙太網路埠;;
1*10/100/1000Mbps RJ45 LAN Ethernet port;
1*RESET Button;
Power consumption 12W
電源 Power Supply:
48V 0.32A POE power supply
MTBF >250000H
物理特徵 Plastic shell, Size: 86mm * 86mm * 29.9mm
Installation Wall and ceiling mounted
工作環境 工作溫度:0℃-40℃;
儲存溫度:-40℃-70℃;;
操作濕度:10%-90%RH 非冷凝;;
儲存濕度:5%-90%RH 不凝結
