3000Mbps WiFi6 USB Wireless Adapter
CF-AX200 Pro is a high-speed PCI-E network card supporting WiFi 6 with 2974Mbps dual-band performance on 2.4GHz and 5.8GHz, along with Bluetooth 5.2. With impressive configuration standards and practical functionality, it pairs exceptionally well with WiFi 6 routers.
-
Smooth PCB with sensitive signal transmission
-
WiFi 6 card optimized for WiFi 6 routers
-
Supports 802.11ax with higher dense-environment throughput
-
External 2×5dBi high-gain omnidirectional antennas
-
Accordion-style heatsink for improved cooling
-
2974Mbps high-speed wireless transmission
-
Supports 802.11ax/a/ac/b/g/n standards
-
Dual-band 2.4GHz and 5.8GHz connectivity
-
WiFi reception for desktop wireless networking
聯絡我們
產品維修
維修地址
深圳市龍華區華南路1號華南數谷H棟9-10樓
電話
電話：86-755-83790059
郵遞區號：518109
服務時間
週一至週五
9:00-12:00,13:30-18:30
* 本頁面的產品圖片和示範情景僅供說明之用，可能與實際產品略有差異。請以實物為準。.
* 本頁資料為 COMFAST 內部實驗室在特定測試條件下取得的理論值。實際使用情況可能因個別產品差異、軟體版本、使用條件和環境因素而有所不同。請參考實際使用情況以獲得準確的表述。.
*為提供盡可能準確的產品資訊、規格和功能，COMFAST可能會定期調整和修改本頁的文字描述、圖像效果和其他內容，以確保與實際產品性能、規格、包裝和配件相符。如有需要作出上述調整或修改，恕不另行通知。.
| Product Model | CF-AX200 PRO |
| 天線 | External 5dBi Antenna |
| Drive Free | Not Support |
| Physical interface | PCIE-X1 |
| USB | Not Support |
| Wireless Frequency | 2.412-2.472GHz：574Mbps 5.180-5.825GHz：2400Mbps |

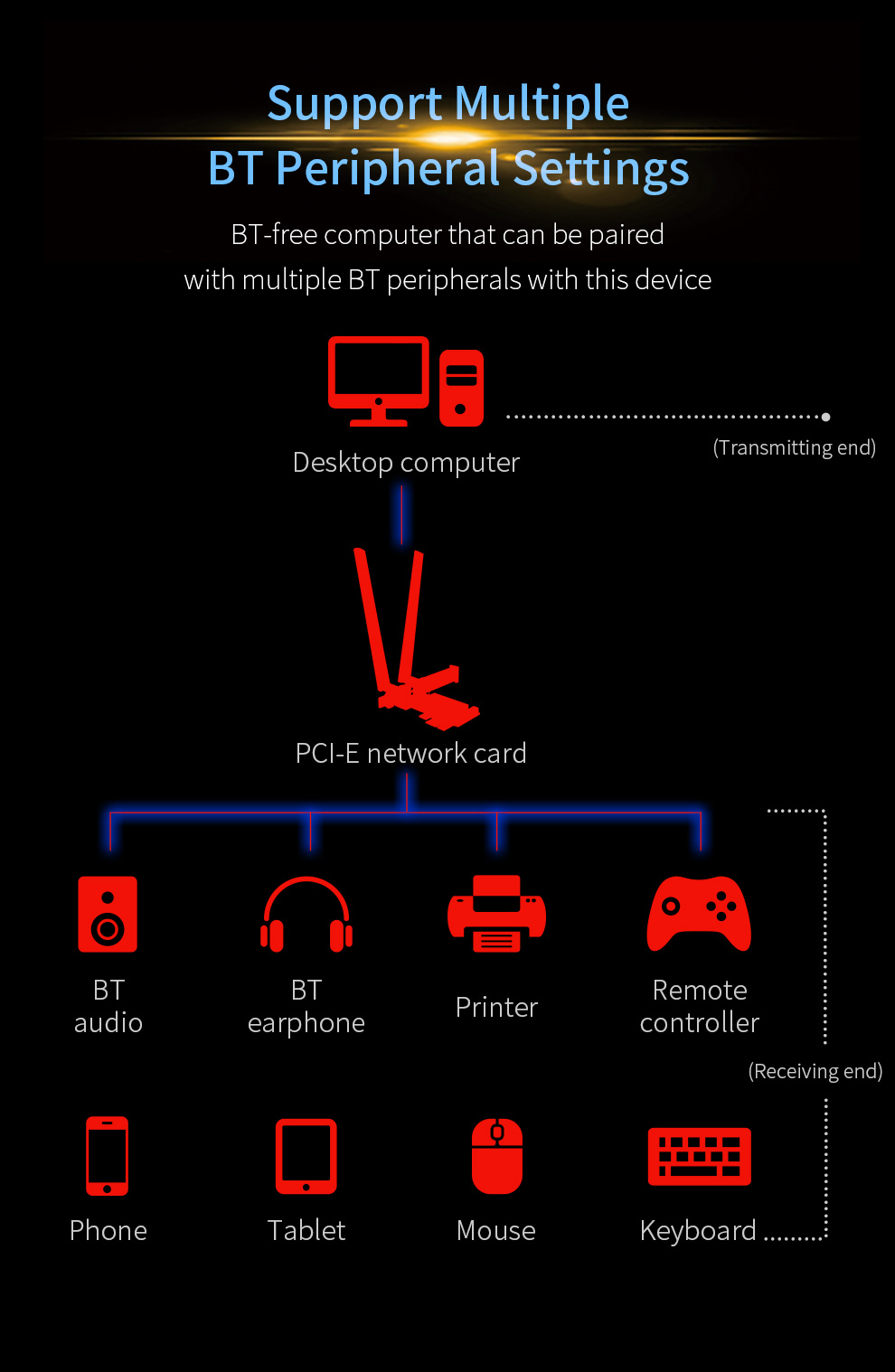

| Bluetooth | Bluetooth 5.2 |
| 無線標準 | IEEE802.11ax / ac / al / b / g / n |
| Compatible Card Slot | PCIE-16X/PCIE-4X/PCIE-8X/PCIE-1X；Graphics slot |
| Transmit Power | WiFi：19.5 dBm(max) BT：10 dBm |
| Scope of Application | Desktop PC,Except Mac |
| Web Environment | Gigabit and above networks |
| Product Size | Size: 95*64mm; Antenna Size:173mm |

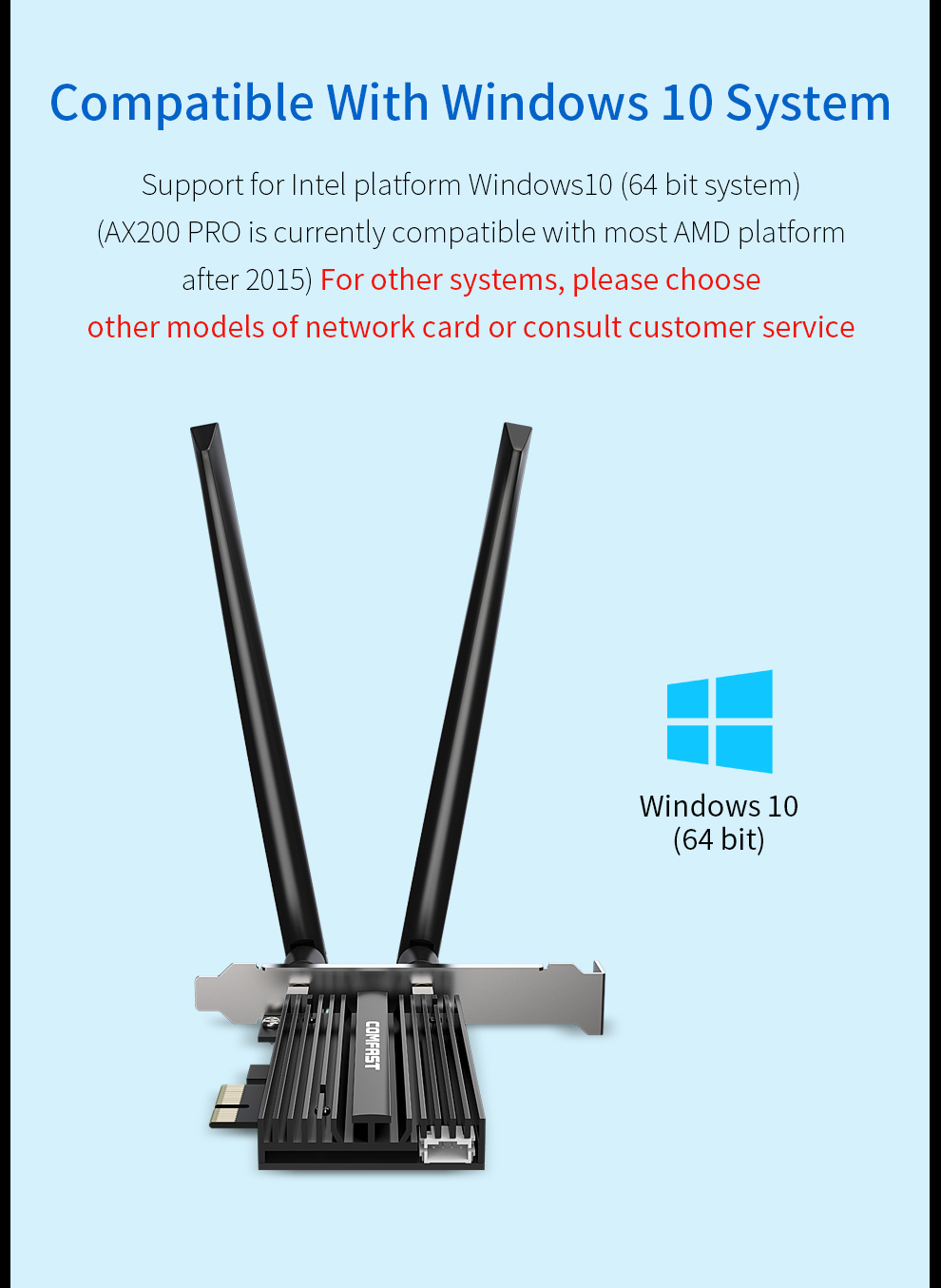

| Support OS | Windows 10 (64bit) |
| 工作環境 | Working Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ 工作濕度：10%~90%RH 不凝結 儲存濕度：5%~90%RH 不凝結 |
