3000Mbps WiFi6 USB Wireless Adapter
CF-AX200 Pro is a high-speed PCI-E network card supporting WiFi 6 with 2974Mbps dual-band performance on 2.4GHz and 5.8GHz, along with Bluetooth 5.2. With impressive configuration standards and practical functionality, it pairs exceptionally well with WiFi 6 routers.
-
Smooth PCB with sensitive signal transmission
-
WiFi 6 card optimized for WiFi 6 routers
-
Supports 802.11ax with higher dense-environment throughput
-
External 2×5dBi high-gain omnidirectional antennas
-
Accordion-style heatsink for improved cooling
-
2974Mbps high-speed wireless transmission
-
Supports 802.11ax/a/ac/b/g/n standards
-
Dual-band 2.4GHz and 5.8GHz connectivity
-
WiFi reception for desktop wireless networking
聯絡我們
產品維修
維修地址
深圳市龍華區華南路1號華南數谷H棟9-10樓
電話
電話：86-755-83790059
郵遞區號：518109
服務時間
週一至週五
9:00-12:00,13:30-18:30
Your Free Professional Consultation
Consult with us now for guidance from a leading WiFi engineer with 17 years of experience. Don’t miss this excellent opportunity to access expert WiFi coverage and surveillance transmission solutions, backed by our high‑quality products and support!
Why choose us ？
Our Factory
OEM&ODM
Direct-from-Factory
Ready to Ship
Direct-from-Factory
Ready to Ship
Direct-from-Factory
Dust Free Workshop
Testing Equipment
Assembly Line
PCBA Processing
Chip Mounter
Fine Detection
Warehouse Logistics
* 本頁面的產品圖片和示範情景僅供說明之用，可能與實際產品略有差異。請以實物為準。.
* 本頁資料為 COMFAST 內部實驗室在特定測試條件下取得的理論值。實際使用情況可能因個別產品差異、軟體版本、使用條件和環境因素而有所不同。請參考實際使用情況以獲得準確的表述。.
*為提供盡可能準確的產品資訊、規格和功能，COMFAST可能會定期調整和修改本頁的文字描述、圖像效果和其他內容，以確保與實際產品性能、規格、包裝和配件相符。如有需要作出上述調整或修改，恕不另行通知。.
| Product Model | CF-AX200 PRO |
| 天線 | External 5dBi Antenna |
| Drive Free | Not Support |
| Physical interface | PCIE-X1 |
| USB | Not Support |
| Wireless Frequency | 2.412-2.472GHz：574Mbps 5.180-5.825GHz：2400Mbps |

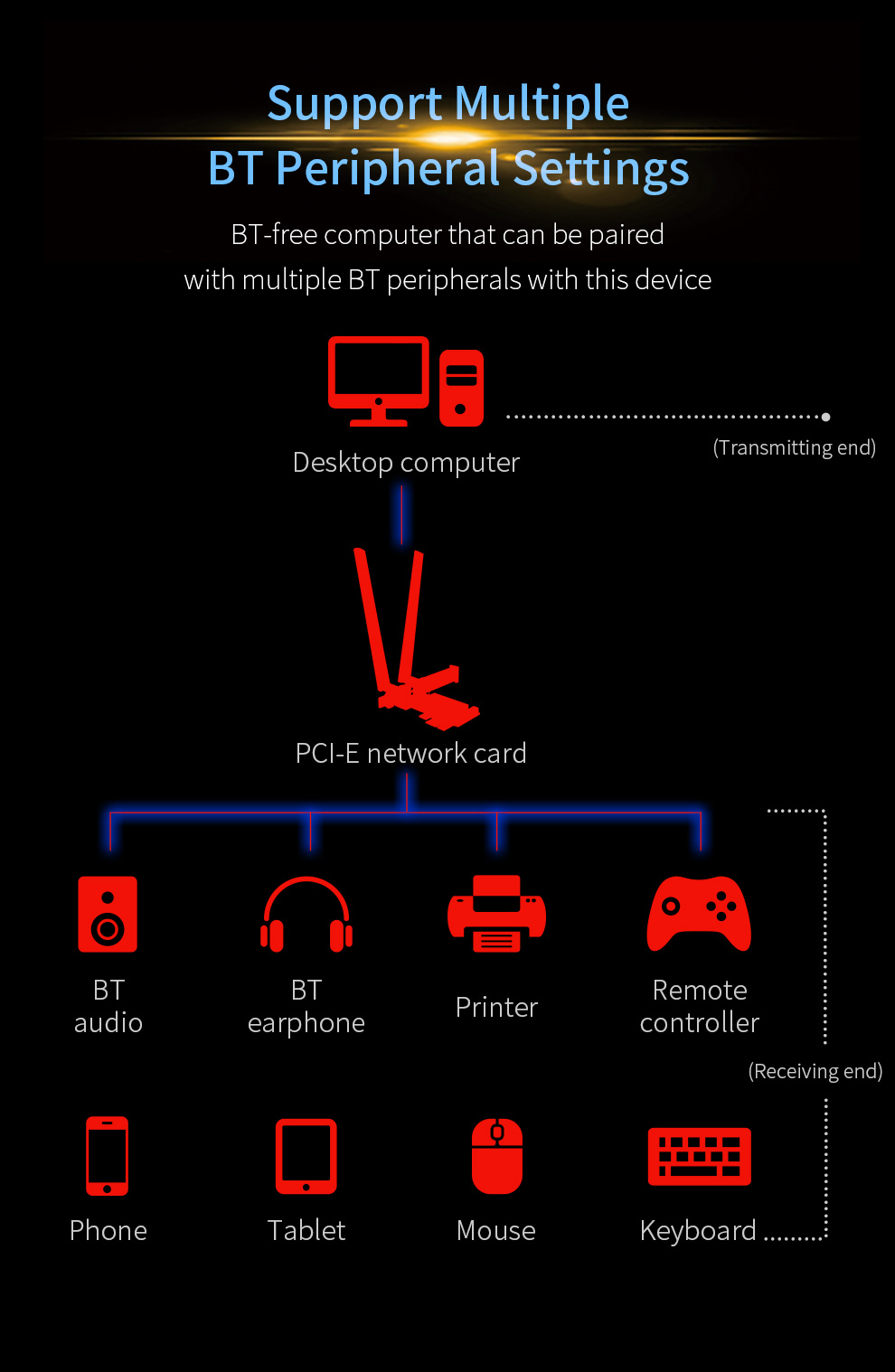

| Bluetooth | Bluetooth 5.2 |
| 無線標準 | IEEE802.11ax / ac / al / b / g / n |
| Compatible Card Slot | PCIE-16X/PCIE-4X/PCIE-8X/PCIE-1X；Graphics slot |
| Transmit Power | WiFi：19.5 dBm(max) BT：10 dBm |
| Scope of Application | Desktop PC,Except Mac |
| Web Environment | Gigabit and above networks |
| Product Size | Size: 95*64mm; Antenna Size:173mm |

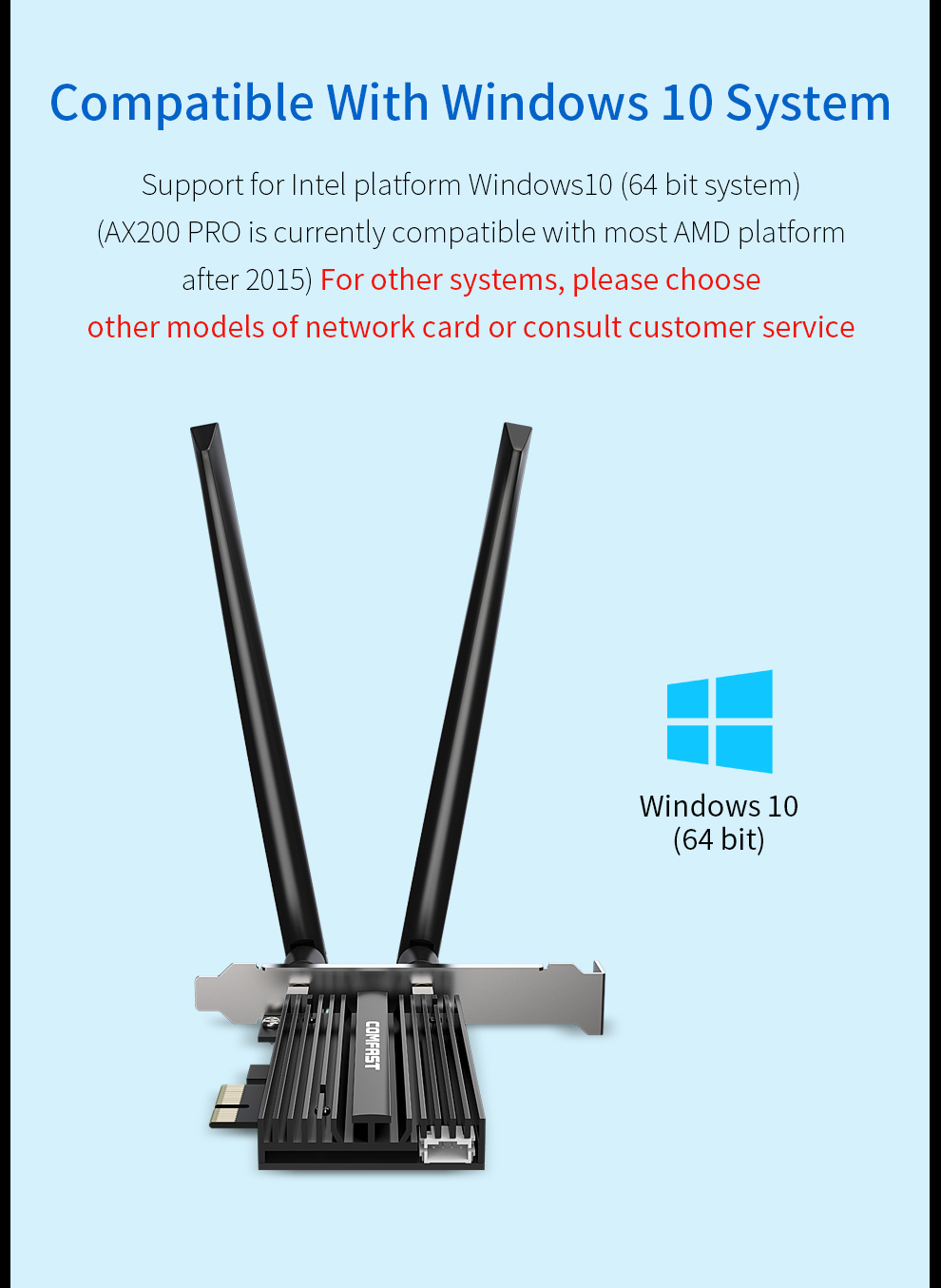

| Support OS | Windows 10 (64bit) |
| 工作環境 | Working Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ 工作濕度：10%~90%RH 不凝結 儲存濕度：5%~90%RH 不凝結 |
