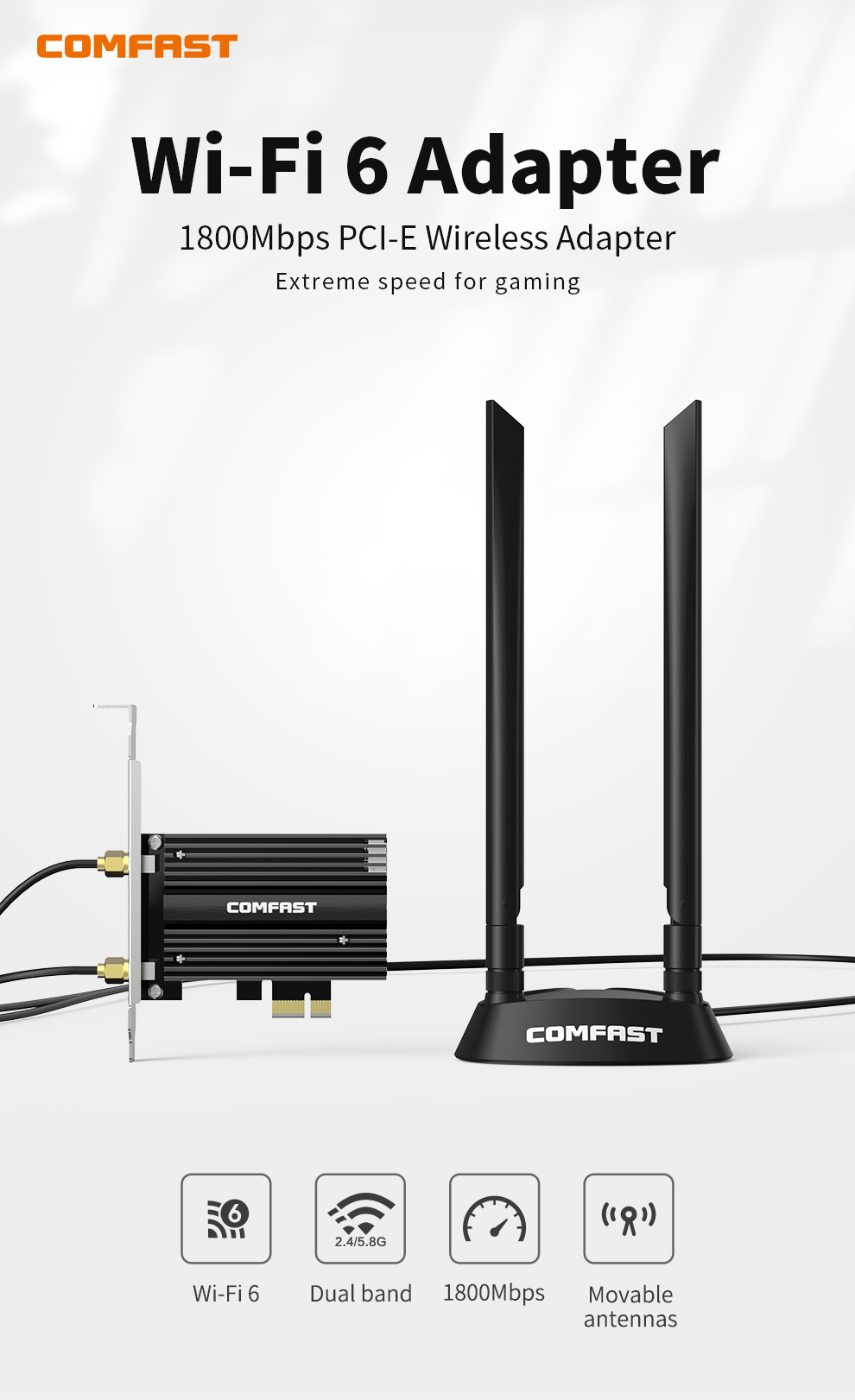

AX1800 PCI-E Wireless adapter

CF-AX180 PLUS is a high-speed PCI-E network card supporting WiFi6 (802.11ax), providing 1800Mbps dual-band speed and Bluetooth 5.2. It supports both 2.4GHz and 5.8GHz frequencies, ideal for large-scale online gaming and HD video streaming. MU-MIMO technology enhances network stability and speed, delivering a smooth wireless experience.

  • Magnetic antenna base for easy attachment to the PC case

  • Compatible with PCI-E 16X/4X/8X/1X slots, easy installation

  • WiFi6 and Bluetooth 5.2 technology;

  • Bluetooth functionality enables connection with various high-end Bluetooth devices

  • Antennas rotate freely for optimal signal reception

  • 1800Mbps high-speed wireless transmission

  • Supports 802.11ax/a/ac/b/g/n standards

  • Dual-band 2.4GHz & 5.8GHz for more stable and faster connections

  • WiFi reception, enabling wireless internet for desktop PCs

聯絡我們

線上服務

服務時間：週一至週五 9:00-12:00、13:30-18:30（節假日除外）

聯絡人

產品維修

維修地址

深圳市龍華區華南路1號華南數谷H棟9-10樓

電話

電話：86-755-83790059
郵遞區號：518109

服務時間

週一至週五
9:00-12:00,13:30-18:30

Your Free Professional Consultation

Consult with us now for guidance from a leading WiFi engineer with 17 years of experience. Don’t miss this excellent opportunity to access expert WiFi coverage and surveillance transmission solutions, backed by our high‑quality products and support!

Why choose us ？

Our Factory

OEM&ODM

Direct-from-Factory

Ready to Ship

Direct-from-Factory

Ready to Ship

Direct-from-Factory

Dust Free Workshop

Testing Equipment

Assembly Line

PCBA Processing

Chip Mounter

Fine Detection

Warehouse Logistics

描述

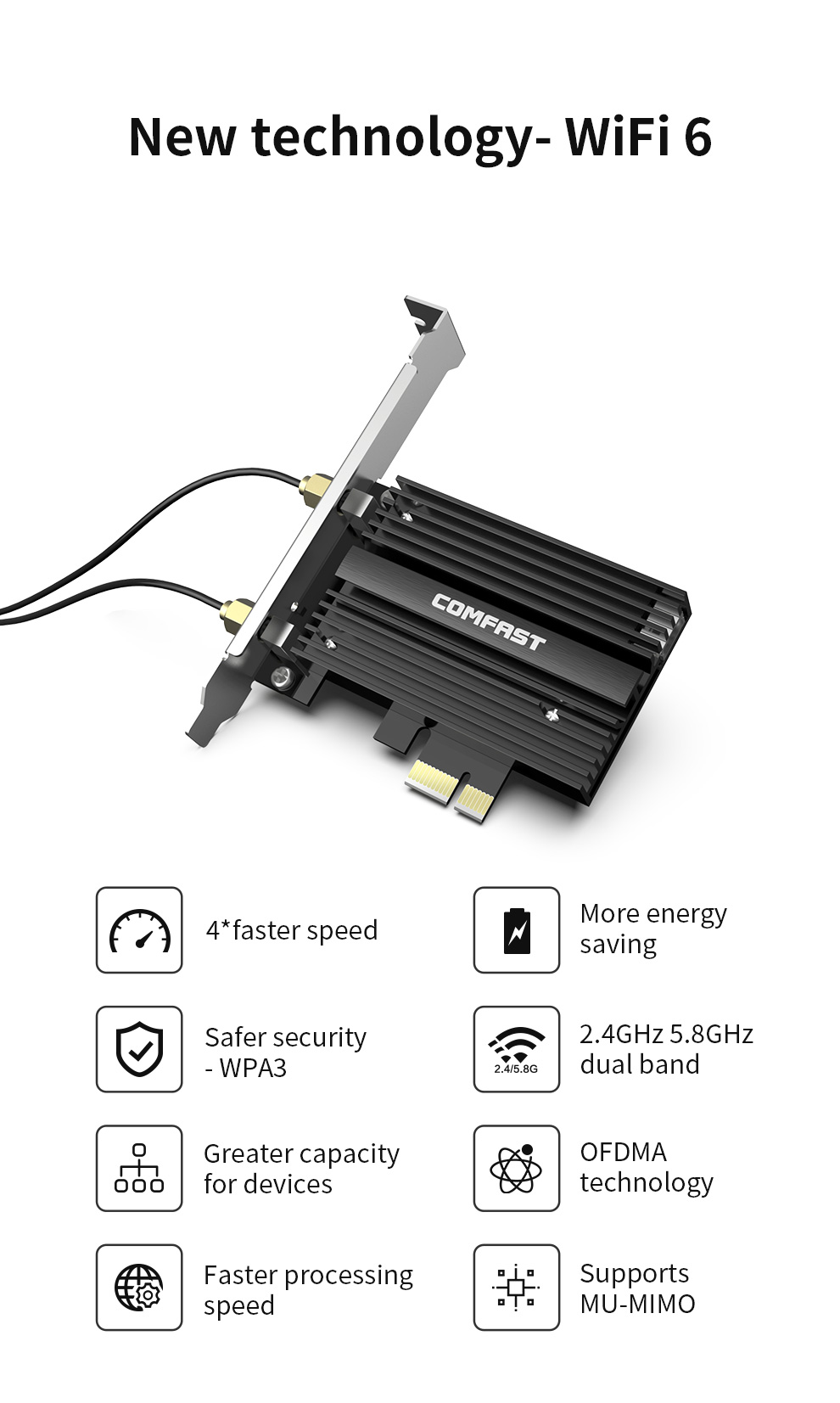

New technology- WiFi 6

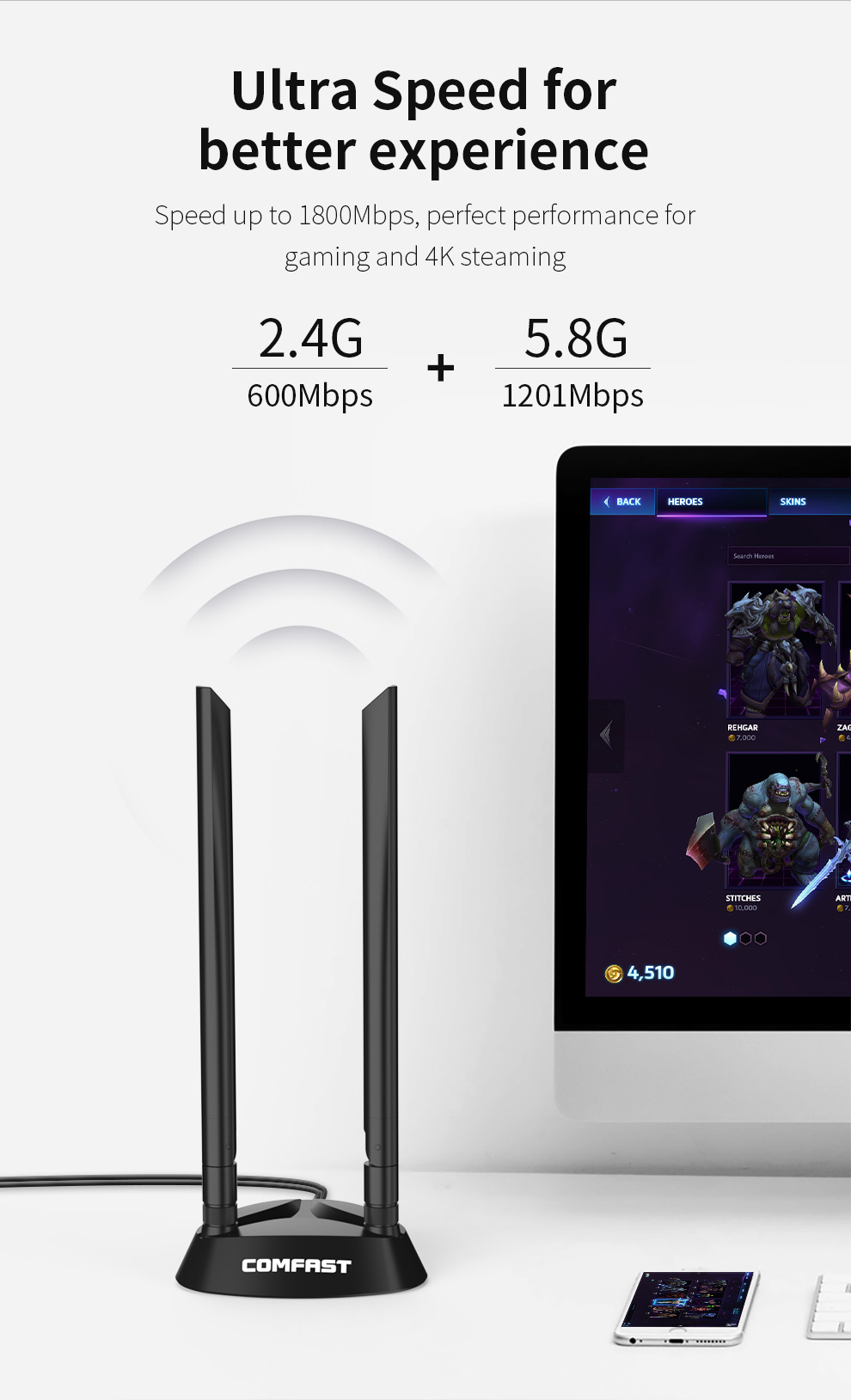

Ultra Speed for better experience

Speed up to 1800Mbps, perfect performance forgaming and 4K steaming

Upgrade to BT5.2

Supports BT5.2 to match with your Blue-tooth earphone, audio

BT5.2 New Generation Technology

Extension cable & base

Equipped with high gain external antennas base and 1.2m extension cable,

ensures flexible deposit to eliminate the signal dead zone.

High heat dissipation design

CF-AX180 Plus designed with fin heat sink for longer lifespan.

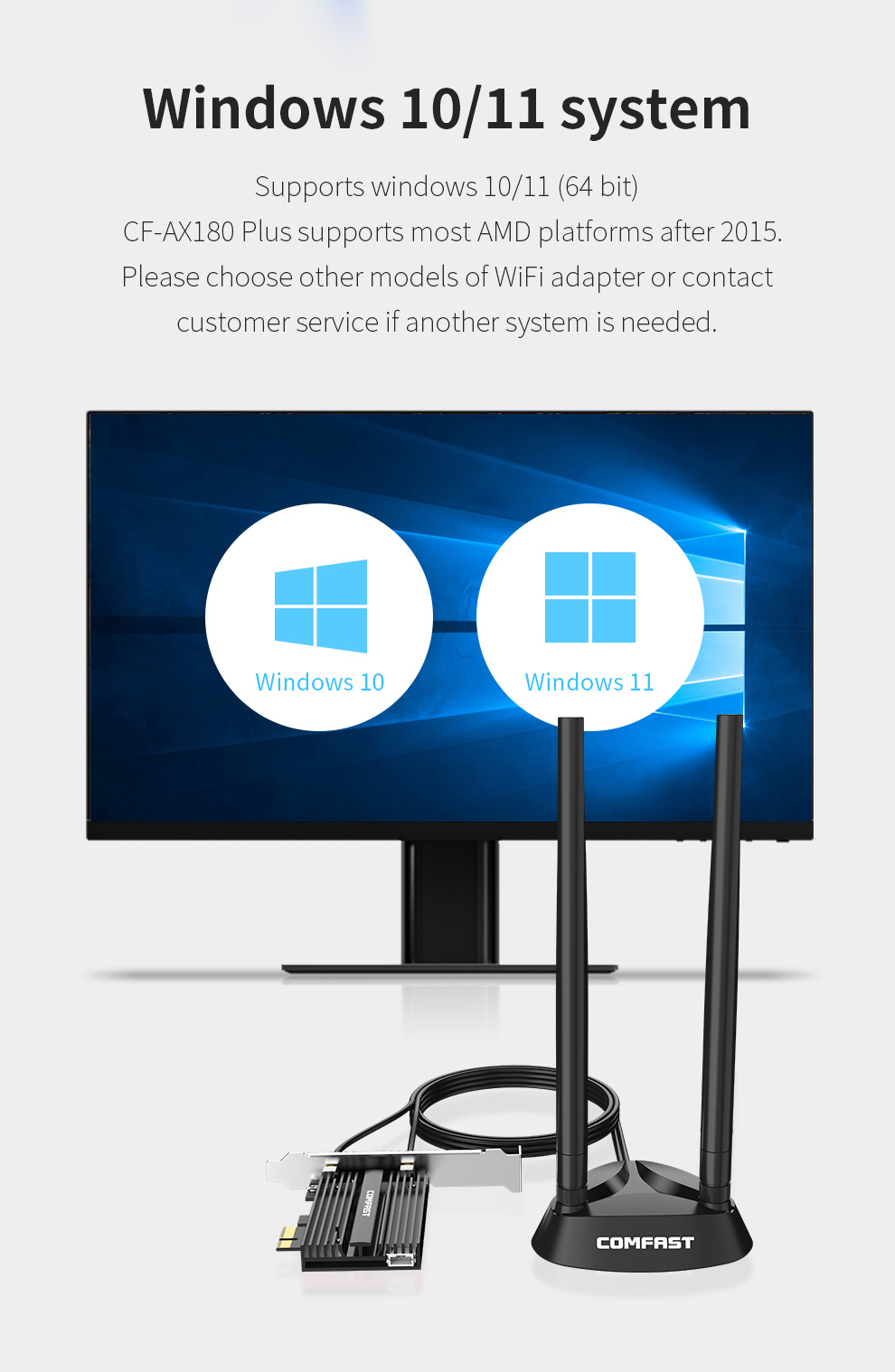

Windows 10/11 system

Supports windows 10/11 (64 bit) ,CF-AX180 Plus supports most AMD platforms after 2015.

Please choose other models of WiFi adapter or contact customer service if another system is needed.

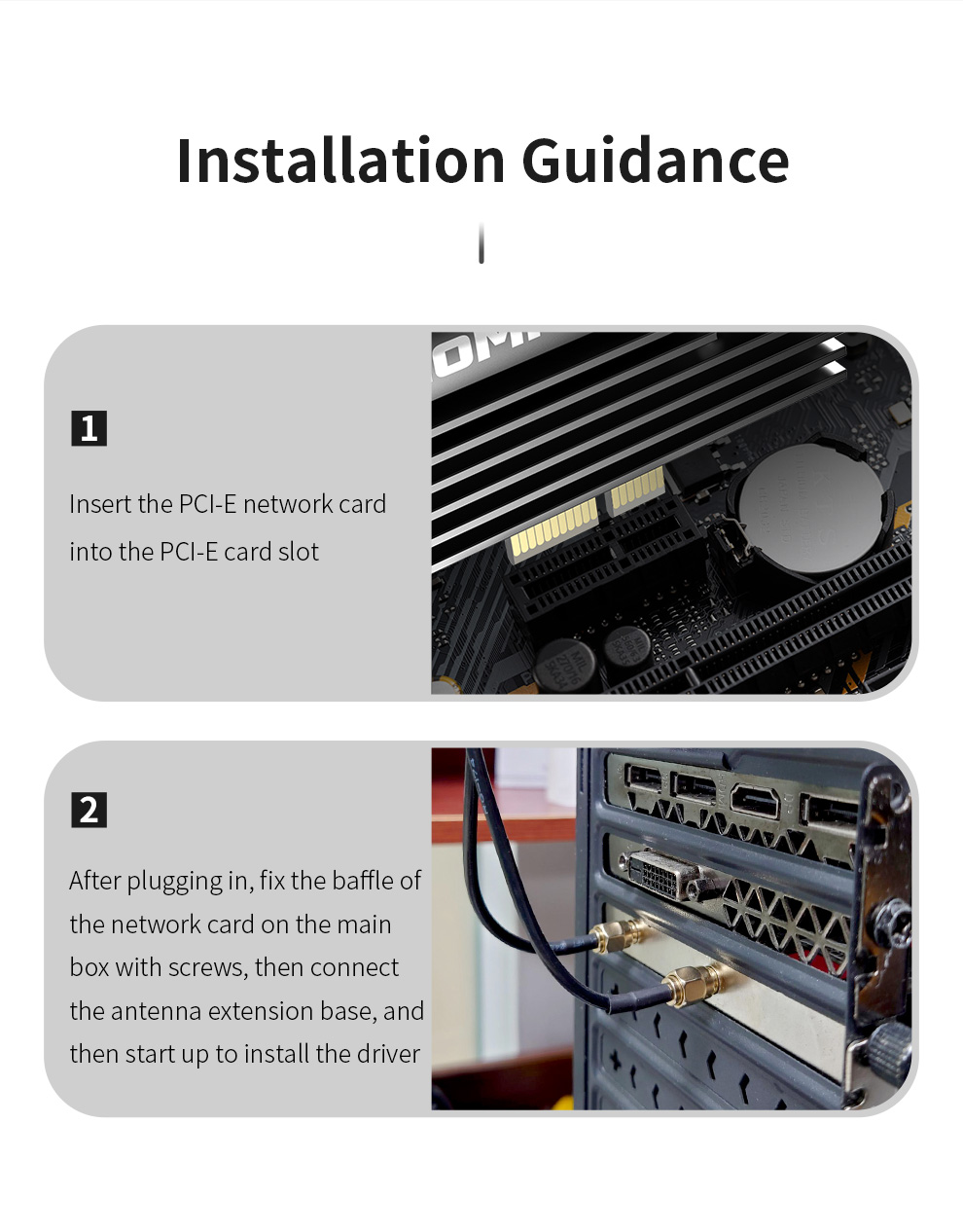

Installation Guidance

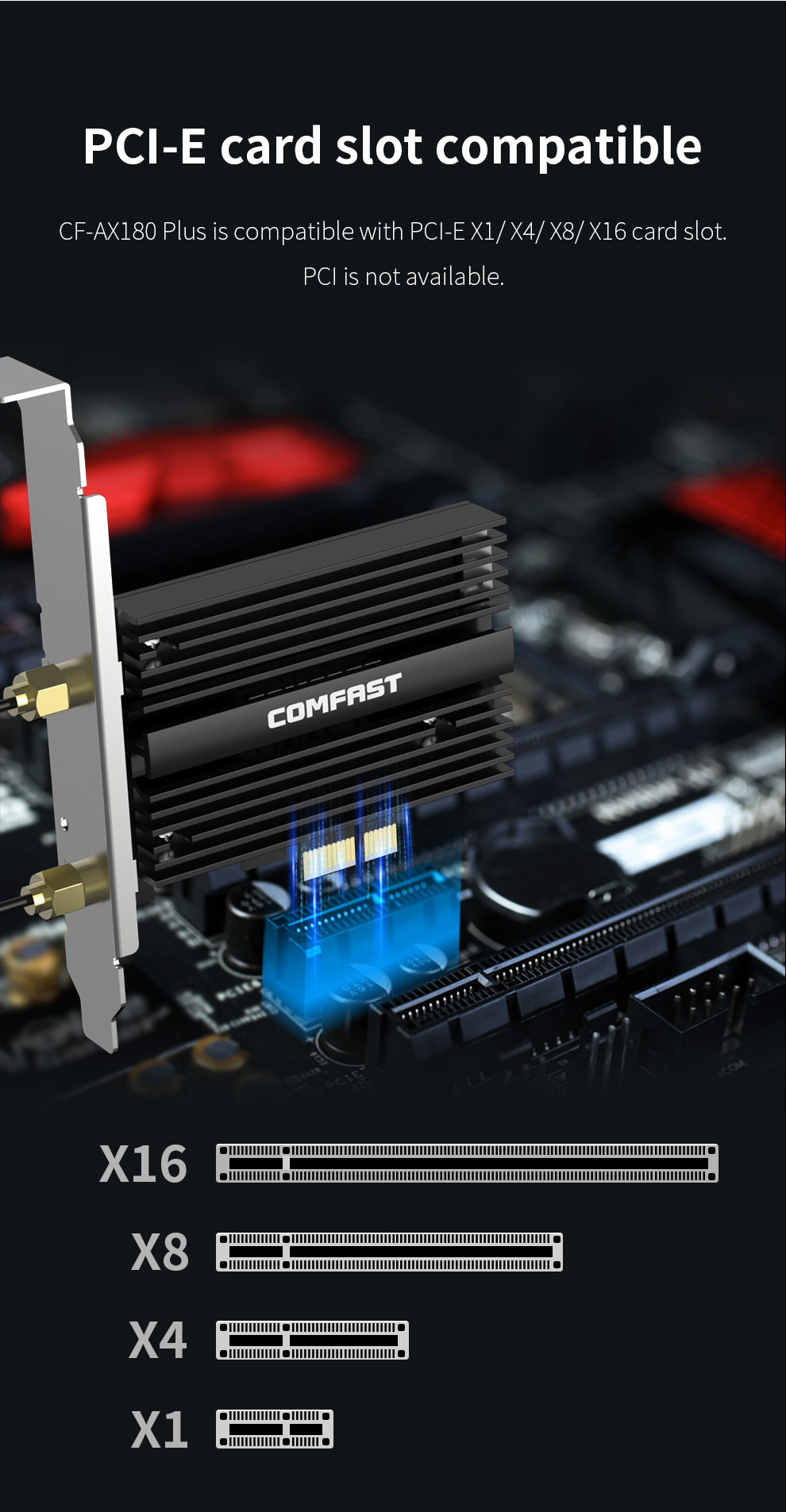

PCI-E card slot compatible

CF-AX180 Plus is compatible with PCI-E X1/X4/X8/X16 card slot.

PCl is notavailable.

* 本頁面的產品圖片和示範情景僅供說明之用，可能與實際產品略有差異。請以實物為準。.
* 本頁資料為 COMFAST 內部實驗室在特定測試條件下取得的理論值。實際使用情況可能因個別產品差異、軟體版本、使用條件和環境因素而有所不同。請參考實際使用情況以獲得準確的表述。.
*為提供盡可能準確的產品資訊、規格和功能，COMFAST可能會定期調整和修改本頁的文字描述、圖像效果和其他內容，以確保與實際產品性能、規格、包裝和配件相符。如有需要作出上述調整或修改，恕不另行通知。.

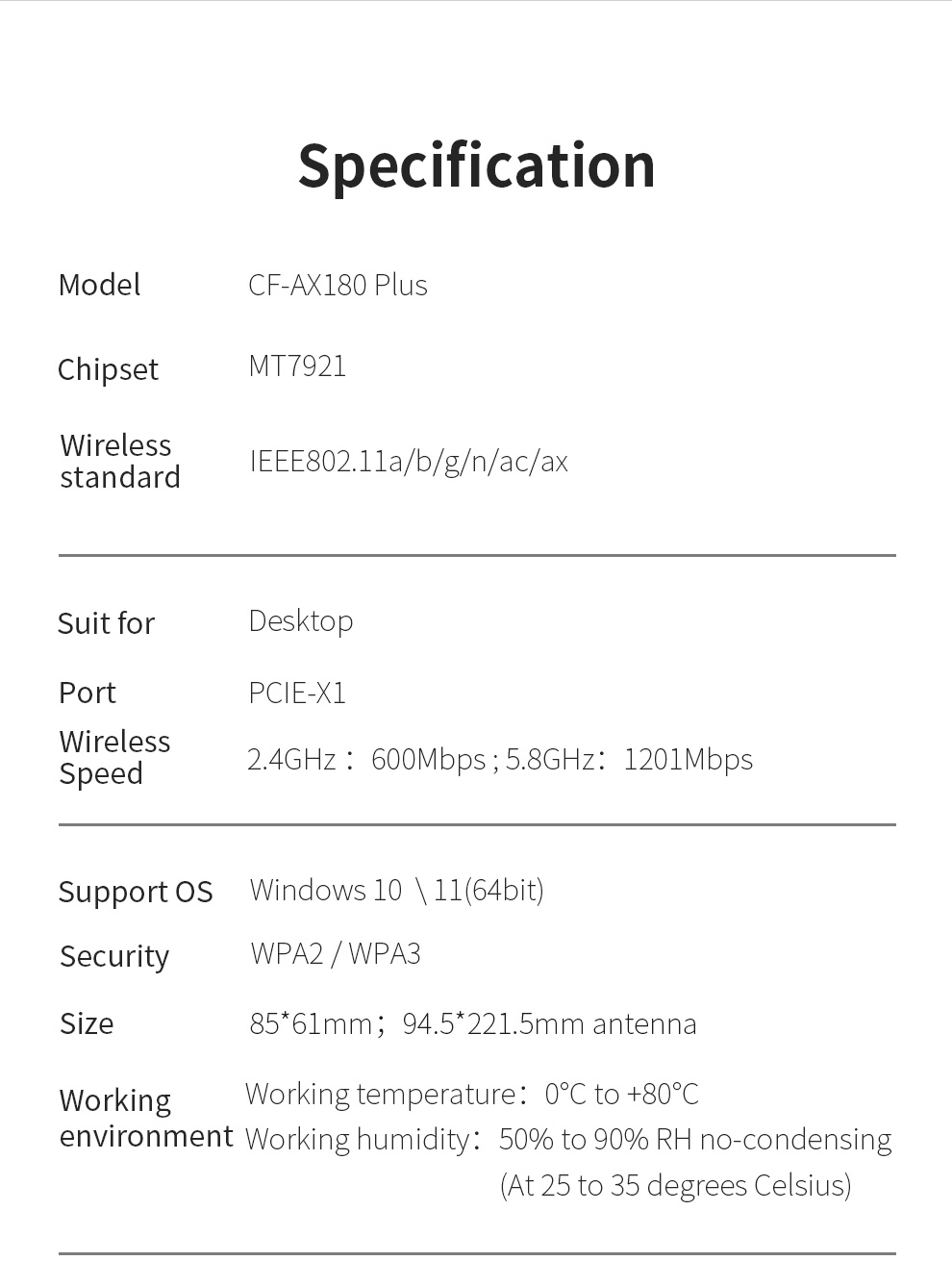

Product Model CF-AX180 Plus
天線 2*5dBi movable base antenna, with magnetic base
Physical Interface PCIE-X1
USB USB2.0(Bluetooth use)
Wireless Frequency 2.412-2.472GHz：600Mbps
5.180-5.825GHz：1201Mbps
Bluetooth Bluetooth 5.2
無線標準 IEEE802.11ax/ ac/ a/ b/ g/ n
Compatible Card Slot PCIE-16X/PCIE-4X/PCIE-8X/PCIE-1X; Graphics slot
Scope of Application Desktop PC
Encryption WPA-PSK/WPA2-PSK, WPA/WPA2, WEP
Product Size Size: 85*63mm; Antenna Size:94.5*22.15mm
Support OS Windows10/11 (64bit)
工作環境 Working Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
工作濕度：10%~90%RH 不凝結
儲存濕度：5%~90%RH 不凝結
